Nanoscale chemical imaging of solid–liquid interfaces using tip-enhanced Raman spectroscopy

Author affiliations

Abstract

Tip-enhanced Raman spectroscopy (TERS) is a powerful tool for non-destructive and label-free surface molecular mapping at the nanoscale. However, to date nanoscale resolution chemical imaging in a liquid environment has not been possible, in part due to the lack of robust TERS probes that are stable when immersed in a liquid. In this work, we have addressed this challenge by developing plasmonically-active TERS probes with a multilayer metal coating structure that can be successfully used within a liquid environment. Using these novel TERS probes, we have compared the plasmonic enhancement of TERS signals in air and water environments for both gap mode and non-gap mode configurations and show that in both cases the plasmonic enhancement decreases in water. To better understand the signal attenuation in water, we have performed numerical simulations that revealed a negative correlation between the electric field enhancement at the TERS probe-apex and the refractive index of the surrounding medium. Finally, using these robust probes we demonstrate TERS imaging with nanoscale spatial resolution in a water environment for the first time by employing single-wall carbon nanotubes as a model sample. Our findings are expected to broaden the scope of TERS to a range of scientific disciplines in which nanostructured solid–liquid interfaces play a key role.

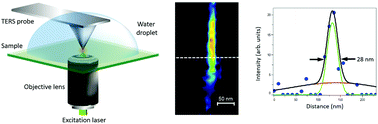

Graphical abstract: Nanoscale chemical imaging of solid–liquid interfaces using tip-enhanced Raman spectroscopy

Back to tab navigation

Supplementary files

Publication details

The article was received on 06 Nov 2017, accepted on 07 Dec 2017 and first published on 08 Jan 2018


Article type: Paper
DOI: 10.1039/C7NR08257F
Citation: Nanoscale, 2018,10, 1815-1824
  •   Request permissions

    Nanoscale chemical imaging of solid–liquid interfaces using tip-enhanced Raman spectroscopy

    N. Kumar, W. Su, M. Veselý, B. M. Weckhuysen, A. J. Pollard and A. J. Wain, Nanoscale, 2018, 10, 1815
    DOI: 10.1039/C7NR08257F
