Mussel-inspired graphene oxide nanosheet-enwrapped Ti scaffolds with drug-encapsulated gelatin microspheres for bone regeneration

Author affiliations

Abstract

Graphene oxide (GO) attracts considerable attention for biomedical applications owing to its unique nanostructure and remarkable physicochemical characteristics. However, it is challenging to uniformly deposit GO on chemically inert Ti scaffolds, which have good biocompatibility and wide applications in bone engineering. In this study, a GO-functionalized Ti porous scaffold (GO/Ti scaffold) was prepared by depositing GO onto polydopamine (PDA) modified Ti scaffolds. The mussel-inspired PDA modification facilitated the interaction between GO and Ti surfaces, leading to a uniform coverage of GO on Ti scaffolds. BMP2 and vancomycin (Van) were separately encapsulated into gelatin microspheres (GelMS). Then, drug-containing GelMS were assembled on GO/Ti scaffolds and anchored by the functional groups of GO. The modified scaffold independently delivered multiple biomolecules with different physiochemical properties, without interfering with each other. Thus, the GO/Ti scaffold has the dual functions of inducing bone regeneration and preventing bacterial infection. In summary, this mussel-inspired GO/Ti hybrid scaffold combined the good mechanical properties of Ti scaffolds and the advantages of GO nanosheets. GO nanosheets with their unique nanostructure and functional groups, together with GelMS on Ti scaffolds, are suitable carriers for drug delivery and provide adhesive sites for cell adhesion and create nanostructured environments for bone regeneration.

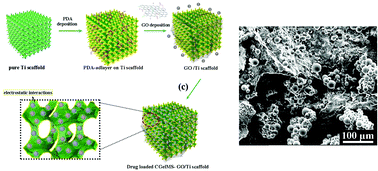

Graphical abstract: Mussel-inspired graphene oxide nanosheet-enwrapped Ti scaffolds with drug-encapsulated gelatin microspheres for bone regeneration

Back to tab navigation

Supplementary files

Publication details

The article was received on 16 Nov 2017, accepted on 10 Jan 2018 and first published on 12 Jan 2018


Article type: Paper
DOI: 10.1039/C7BM01060E
Citation: Biomater. Sci., 2018,6, 538-549
  •   Request permissions

    Mussel-inspired graphene oxide nanosheet-enwrapped Ti scaffolds with drug-encapsulated gelatin microspheres for bone regeneration

    L. Han, H. Sun, P. Tang, P. Li, C. Xie, M. Wang, K. Wang, J. Weng, H. Tan, F. Ren and X. Lu, Biomater. Sci., 2018, 6, 538
    DOI: 10.1039/C7BM01060E
