An interdigitated electrode with dense carbon nanotube forests on conductive supports for electrochemical biosensors

Author affiliations

Abstract

A highly sensitive interdigitated electrode (IDE) with vertically aligned dense carbon nanotube forests directly grown on conductive supports was demonstrated by combining UV lithography and a low temperature chemical vapor deposition process (470 °C). The cyclic voltammetry (CV) measurements of K4[Fe(CN)6] showed that the redox current of the IDE with CNT forests (CNTF-IDE) reached the steady state much more quickly compared to that of conventional gold IDE (Au-IDE). The performance of the CNTF-IDE largely depended on the geometry of the electrodes (e.g. width and gap). With the optimum three-dimensional electrode structure, the anodic current was amplified by a factor of ∼18 and ∼67 in the CV and the chronoamperometry measurements, respectively. The collection efficiency, defined as the ratio of the cathodic current to the anodic current at steady state, was improved up to 97.3%. The selective detection of dopamine (DA) under the coexistence of L-ascorbic acid with high concentration (100 μM) was achieved with a linear range of 100 nM–100 μM, a sensitivity of 14.3 mA mol−1 L, and a limit of detection (LOD, S/N = 3) of 42 nM. Compared to the conventional carbon electrodes, the CNTF-IDE showed superior anti-fouling property, which is of significant importance for practical applications, with a negligible shift of the half-wave potential (ΔE1/2 < 1.4 mV) for repeated CV measurements of DA at high concentration (100 μM).

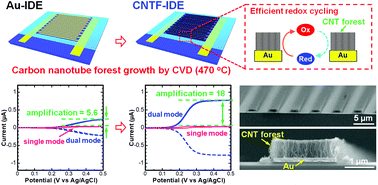

Graphical abstract: An interdigitated electrode with dense carbon nanotube forests on conductive supports for electrochemical biosensors

Back to tab navigation

Supplementary files

Publication details

The article was received on 22 Mar 2018, accepted on 05 Jun 2018 and first published on 12 Jun 2018


Article type: Paper
DOI: 10.1039/C8AN00528A
Citation: Analyst, 2018,143, 3635-3642
  • Open access: Creative Commons BY license
  •   Request permissions

    An interdigitated electrode with dense carbon nanotube forests on conductive supports for electrochemical biosensors

    H. Sugime, T. Ushiyama, K. Nishimura, Y. Ohno and S. Noda, Analyst, 2018, 143, 3635
    DOI: 10.1039/C8AN00528A
