Influence of surface coverage on the formation of 4,4′-bipyridinium (viologen) single molecular junctions

Author affiliations

Abstract

Single-molecule conductance experiments using the STM-based I(s) method and samples of N,N′-di(4-(trimethylsilylethynyl)benzyl)-4,4′-bipyridinium bis(tetrafluoroborate) ([1](BF4)2) prepared on gold substrates with low-surface coverage of [1](BF4)2 (Γ = 1.25 × 10−11 mol cm−2) give rise to molecular junctions with two distinct conductance values. From the associated break-off distances and comparison experiments with related compounds, the higher conductance junctions are attributed to molecular contacts between the molecule and the electrodes via the N,N′-dibenzyl-4,4′-bipyridinium (viologen) moiety and one trimethylsilylethynyl (TMSE) group (G = (5.4 ± 0.95) × 10−5 G0, break-off distance (1.56 ± 0.09) nm). The second, lower conductance junction (G = (0.84 ± 0.09) × 10−5 G0) is consistent with an extended molecular conformation between the substrate and tip contacted through the two TMSE groups giving rise to a break-off distance (1.95 ± 0.12) nm that compares well with the Si⋯Si distance (2.0 nm) in the extended molecule. Langmuir monolayers of [1](BF4)2 formed at the air–water interface can be transferred onto a gold-on-glass substrate by the Langmuir–Blodgett (LB) technique to give well-ordered, compact films with surface coverage Γ = 2.0 × 10−10 mol cm−2. Single-molecule conductance experiments using the STM-based I(s) method reveal only the higher conductance junctions (G = (5.4 ± 0.95) × 10−5 G0, break-off distance (1.56 ± 0.09) nm) due to the restricted range of molecular conformations in the tightly packed, well-ordered LB films.

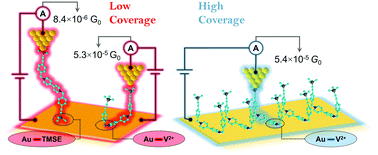

Graphical abstract: Influence of surface coverage on the formation of 4,4′-bipyridinium (viologen) single molecular junctions

Back to tab navigation

Supplementary files

Publication details

The article was received on 10 Aug 2017, accepted on 24 Oct 2017 and first published on 24 Oct 2017


Article type: Paper
DOI: 10.1039/C7TC03624H
Citation: J. Mater. Chem. C, 2017, Advance Article
  •   Request permissions

    Influence of surface coverage on the formation of 4,4′-bipyridinium (viologen) single molecular junctions

    H. M. Osorio, S. Martín, D. C. Milan, A. González-Orive, J. B. G. Gluyas, S. J. Higgins, P. J. Low, R. J. Nichols and P. Cea, J. Mater. Chem. C, 2017, Advance Article , DOI: 10.1039/C7TC03624H
