Paper-based membranes on silicone floaters for efficient and fast solar-driven interfacial evaporation under one sun

Author affiliations

Abstract

Solar-driven water evaporation has emerged as a highly efficient solar-thermal process to harness abundant clean solar energy for a variety of important applications. Herein, we rationally designed and developed a high-efficiency and fast-response solar-driven interfacial evaporation system by integrating a paper-based reduced graphene oxide (PrGO) composite membrane on top of a silicone-based porous insulation layer (PIL). The PrGO membrane that was prepared by using a cost-effective, scalable, simple fabrication process could effectively absorb and convert broadband solar light into heat to drive the evaporation process. Simultaneously, the hydrophilic PrGO membrane could provide continuous water supply through its strong capillary wicking effect. The floating PIL not only physically suspends the PrGO membrane but also thermally localizes solar heating at the air–water interface by suppressing downward heat conduction loss. Under one-sun illumination for 30 min, the resultant PrGO-PIL solar-driven interfacial evaporation system achieved steady-state and time-averaged evaporation efficiency of 89.7% and 80.6%, respectively. Theoretical analysis indicates that advantageous thermophysical properties of the evaporating materials together with rational design of the evaporation structure contribute to the superior evaporation performance. Such a high-efficiency solar-driven interfacial evaporation system has enabled consistent high-performance solar desalination of seawater under ambient one-sun illumination.

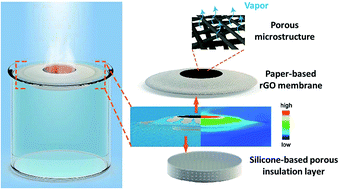

Graphical abstract: Paper-based membranes on silicone floaters for efficient and fast solar-driven interfacial evaporation under one sun

Back to tab navigation
Please wait while Download options loads

Supplementary files

Publication details

The article was received on 14 Apr 2017, accepted on 11 May 2017 and first published on 15 May 2017


Article type: Paper
DOI: 10.1039/C7TA03262E
Citation: J. Mater. Chem. A, 2017, Advance Article
  •   Request permissions

    Paper-based membranes on silicone floaters for efficient and fast solar-driven interfacial evaporation under one sun

    Z. Wang, Q. Ye, X. Liang, J. Xu, C. Chang, C. Song, W. Shang, J. Wu, P. Tao and T. Deng, J. Mater. Chem. A, 2017, Advance Article , DOI: 10.1039/C7TA03262E
