Microorganism-moulded pomegranate-like Na3V2(PO4)3/C nanocomposite for advanced sodium-ion batteries

Author affiliations

Abstract

Na3V2(PO4)3 (NVP) with a NASICON crystal structure is a promising cathode material for sodium-ion batteries; however, it has a low rate performance due to its poor electric conductivity. Herein, pomegranate-like NVP/C composites were proposed and prepared via a simple and cost-efficient method using yeast as the mould. Owing to the strong adsorption ability of yeast, high tolerance to extreme conditions and high nitrogen and phosphorus content, a hierarchically structured material composed by NVP particles embedded within a N-/P-doped carbon framework was formed in situ. In the NVP/C composites, the nanoscaled NVP grains coated by carbon, derived from the cytoplasm, and micron-sized carbon capsules, which resulted from the carbonization of the sturdy cell walls, were formed to further accommodate dozens of the carbon-coated NVP grains, resulting in a pomegranate-like architecture. This unique structure and the N-/P-doped carbon framework can provide superior electrochemical kinetics and stability, with efficient electron pathways, and can also buffer volume changes during Na+ insertion/extraction. As a result, the NVP/C composites exhibit a good rate performance (113.9 mA h g−1 at 10C) and an outstanding long-term cycling stability (capacity retention of around 74.7% after 10 000 cycles). The properties of the pomegranate-like structure moulded by yeast microorganisms are remarkable and the NVP/C composite is believed to be a promising electrode material for sodium-ion batteries.

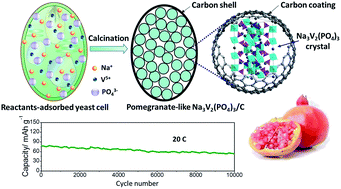

Graphical abstract: Microorganism-moulded pomegranate-like Na3V2(PO4)3/C nanocomposite for advanced sodium-ion batteries

Back to tab navigation
Please wait while Download options loads

Supplementary files

Publication details

The article was received on 11 Mar 2017, accepted on 24 Apr 2017 and first published on 24 Apr 2017


Article type: Paper
DOI: 10.1039/C7TA02165H
Citation: J. Mater. Chem. A, 2017,5, 9982-9990
  •   Request permissions

    Microorganism-moulded pomegranate-like Na3V2(PO4)3/C nanocomposite for advanced sodium-ion batteries

    Q. Zhu, X. Chang, N. Sun, H. Liu, R. Chen, F. Wu and B. Xu, J. Mater. Chem. A, 2017, 5, 9982
    DOI: 10.1039/C7TA02165H
