Scalable perovskite/CIGS thin-film solar module with power conversion efficiency of 17.8%

Author affiliations

Abstract

All-thin film perovskite/CIGS multijunction solar modules, combining a semi-transparent perovskite top solar module stacked on a CIGS bottom solar module, are a promising route to surpass the efficiency limits of single-junction thin-film solar modules. In this work, we present a scalable thin-film perovskite/CIGS photovoltaic module with an area of 3.76 cm2 and a power conversion efficiency of 17.8%. Our prototype outperforms both the record single-junction perovskite solar module of the same area as well as the reference CIGS solar module. The presented perovskite/CIGS thin-film multijunction solar module makes use of the “4-terminal architecture”, which stacks the perovskite solar module in superstrate configuration on top of the CIGS solar module in substrate configuration. Both submodules apply a scalable interconnection scheme that can accommodate scale-up towards square meter scale thin-film multijunction solar modules. In order to identify the future potential of the presented stacked perovskite/CIGS thin-film solar module, we quantify the various losses in the presented prototype and identify the key challenges of this technology towards very high power conversion efficiencies.

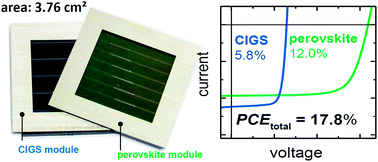

Graphical abstract: Scalable perovskite/CIGS thin-film solar module with power conversion efficiency of 17.8%

Back to tab navigation
Please wait while Download options loads

Supplementary files

Publication details

The article was received on 23 Feb 2017, accepted on 19 Apr 2017 and first published on 19 Apr 2017


Article type: Paper
DOI: 10.1039/C7TA01651D
Citation: J. Mater. Chem. A, 2017,5, 9897-9906
  •   Request permissions

    Scalable perovskite/CIGS thin-film solar module with power conversion efficiency of 17.8%

    U. W. Paetzold, M. Jaysankar, R. Gehlhaar, E. Ahlswede, S. Paetel, W. Qiu, J. Bastos, L. Rakocevic, B. S. Richards, T. Aernouts, M. Powalla and J. Poortmans, J. Mater. Chem. A, 2017, 5, 9897
    DOI: 10.1039/C7TA01651D
