Transferrable optimization of spray-coated PbI2 films for perovskite solar cell fabrication

Author affiliations

Abstract

Ultrasonic spray coating is a promising pathway to scaling-up of perovskite solar cell production that can be implemented on any scale – from table-top to mass production. However, unlike spin-coating, spray coating processes are not easily described by a set of machine-independent parameters. In this work, in situ measurement and modeling of wet film thickness and evaporation rate are presented as a machine-independent description of the ultrasonic spray coating process, and applied to fabrication process optimization for high-performing perovskite solar cells. Optimization based on physical wet film parameters instead of machine settings leads to better understanding of the key factors affecting film quality and enables process transfer to another fabrication environment. Spray coated PbI2 film morphology is analyzed under a range of coating conditions and strong correlation is observed between spray coating parameters and PbI2 film uniformity. Premature precipitation and sparse nucleation are suggested as causes of film non-uniformity, and optimal process parameters are identified. Device fabrication based on the optimized process is demonstrated under ambient conditions with a relative humidity of 50%, achieving a power conversion efficiency of 13% in 1 cm2 area devices, with negligible hysteresis.

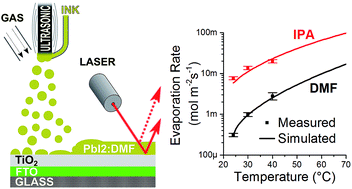

Graphical abstract: Transferrable optimization of spray-coated PbI2 films for perovskite solar cell fabrication

Back to tab navigation
Please wait while Download options loads

Supplementary files

Publication details

The article was received on 16 Nov 2016, accepted on 08 Feb 2017 and first published on 09 Feb 2017


Article type: Paper
DOI: 10.1039/C6TA09922J
Citation: J. Mater. Chem. A, 2017,5, 5709-5718
  •   Request permissions

    Transferrable optimization of spray-coated PbI2 films for perovskite solar cell fabrication

    M. Remeika, S. R. Raga, S. Zhang and Y. Qi, J. Mater. Chem. A, 2017, 5, 5709
