Swimming with a cage: low-Reynolds-number locomotion inside a droplet

Author affiliations

Abstract

Inspired by recent experiments using synthetic microswimmers to manipulate droplets, we investigate the low-Reynolds-number locomotion of a model swimmer (a spherical squirmer) encapsulated inside a droplet of a comparable size in another viscous fluid. Meditated solely by hydrodynamic interactions, the encaged swimmer is seen to be able to propel the droplet, and in some situations both remain in a stable co-swimming state. The problem is tackled using both an exact analytical theory and a numerical implementation based on a boundary element method, with a particular focus on the kinematics of the co-moving swimmer and the droplet in a concentric configuration, and we obtain excellent quantitative agreement between the two. The droplet always moves slower than a swimmer which uses purely tangential surface actuation but when it uses a particular combination of tangential and normal actuations, the squirmer and droplet are able to attain the same velocity and stay concentric for all times. We next employ numerical simulations to examine the stability of their concentric co-movement, and highlight several stability scenarios depending on the particular gait adopted by the swimmer. Furthermore, we show that the droplet reverses the nature of the far-field flow induced by the swimmer: a droplet cage turns a pusher swimmer into a puller, and vice versa. Our work sheds light on the potential development of droplets as self-contained carriers of both chemical content and self-propelled devices for controllable and precise drug deliveries.

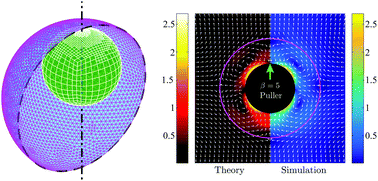

Graphical abstract: Swimming with a cage: low-Reynolds-number locomotion inside a droplet

Back to tab navigation

Publication details

The article was received on 18 Jul 2016, accepted on 09 Mar 2017 and first published on 10 Mar 2017


Article type: Paper
DOI: 10.1039/C6SM01636G
Citation: Soft Matter, 2017,13, 3161-3173
  • Open access: Creative Commons BY license
  •   Request permissions

    Swimming with a cage: low-Reynolds-number locomotion inside a droplet

    S. Y. Reigh, L. Zhu, F. Gallaire and E. Lauga, Soft Matter, 2017, 13, 3161
    DOI: 10.1039/C6SM01636G
