Evaporated manganese films as a starting point for the preparation of thin-layer MnOx water-oxidation anodes

Author affiliations

Abstract

A novel method to prepare anodes for water electrolysis cells has been developed, which starts from layers of elemental manganese deposited by physical vapour deposition (PVD) on indium-doped tin oxide (ITO). Oxidation in dry air at 300 °C transforms this metallic Mn layer into a manganese(II)-rich MnOx coating (x = 1–1.3), which also contains a buried layer of an In–Sn alloy originating from reactions with the ITO support. The MnOx films are well connected to the underlying substrate and act as efficient catalysts for water-oxidation catalysis (WOC) at neutral pH. Detailed post-operando analyses using XRD, SEM, TEM and XAS revealed that the dense MnO/Mn3O4 film is virtually not affected by 2 h of electrochemical WOC at E ≈ +1.8 V vs. RHE, corresponding well to the observed good stability of catalytic currents, which is unusual for such thin layers of a MnOx catalyst. The current densities during electrolyses are so far low (i ≈ 50–100 μA cm−2 at pH 7), but optimization of the preparation process may allow for significant improvements. This new, rather easy, and adaptable preparation method for stable, thin-layer MnOx water-oxidation anodes could thus prove to be very useful for a variety of applications.

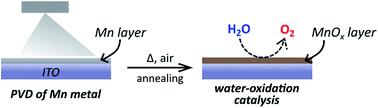

Graphical abstract: Evaporated manganese films as a starting point for the preparation of thin-layer MnOx water-oxidation anodes

Back to tab navigation

Supplementary files

Publication details

The article was received on 30 Mar 2017, accepted on 27 Apr 2017 and first published on 03 May 2017


Article type: Paper
DOI: 10.1039/C7SE00172J
Citation: Sustainable Energy Fuels, 2017,1, 1162-1170
  •   Request permissions

    Evaporated manganese films as a starting point for the preparation of thin-layer MnOx water-oxidation anodes

    C. E. Frey, F. Kwok, D. Gonzáles-Flores, J. Ohms, K. A. Cooley, H. Dau, I. Zaharieva, T. N. Walter, H. Simchi, S. E. Mohney and P. Kurz, Sustainable Energy Fuels, 2017, 1, 1162
    DOI: 10.1039/C7SE00172J
