High rate Li-ion storage properties of MOF-carbonized derivatives coated on MnO nanowires

Author affiliations

Abstract

Recently, metal–organic framework (MOF) derived porous carbon-based composites have become one of the most advanced electrode materials for high performance energy storage systems. In this work, zeolitic imidazolate framework (ZIF) types of MOF strung by MnO2 NWs, forming an interesting structure like Chinese candied hawthorn fruit on a stick, are used as precursors to prepare C/Co-coated MnO nanowires (C/Co-MnO NWs). It is interesting and exciting to observe that the simultaneously formed carbon coating derived from the ZIFs significantly promotes the cyclic and rate performances of manganese oxide because of the synergistic effect of the highly conductive uniform carbon coating and the high capacity contribution from the MnO NWs. The obtained C/Co-MnO NWs could deliver 848.4 and 718 mA h g−1 at 500 and 5000 mA g−1 after 40 charge/discharge cycles, respectively, which is superior to other reported MOF-derived nanostructured materials, and makes it a very promising candidate anode material for future high-power lithium ion batteries.

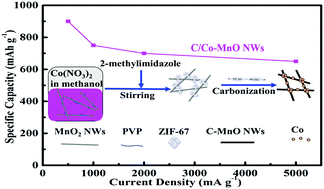

Graphical abstract: High rate Li-ion storage properties of MOF-carbonized derivatives coated on MnO nanowires

Back to tab navigation

Supplementary files

Publication details

The article was received on 23 Apr 2017, accepted on 01 Jun 2017 and first published on 02 Jun 2017


Article type: Research Article
DOI: 10.1039/C7QM00178A
Citation: Mater. Chem. Front., 2017,1, 1975-1981
  •   Request permissions

    High rate Li-ion storage properties of MOF-carbonized derivatives coated on MnO nanowires

    Z. Huang, Z. Gong, Q. Kang, Y. Fang, X. Yang, R. Liu, X. Lin, X. Feng, Y. Ma and D. Wang, Mater. Chem. Front., 2017, 1, 1975
    DOI: 10.1039/C7QM00178A
