Low-temperature aqueous solution processed ZnO as an electron transporting layer for efficient perovskite solar cells

Author affiliations

Abstract

Lead halide perovskite solar cells (PSCs) typically use high-temperature processed TiO2 as electron transporting layers (ETLs). Here, we report a low temperature and aqueous solution processed route to prepare ZnO ETLs for perovskite solar cells. The ZnO ETL was prepared by spin coating a stable aqueous solution of an ammine–hydroxo zinc complex, [Zn(NH3)x](OH)2, followed by thermal annealing at a relatively low temperature of 150 °C. The as-prepared ZnO film was highly transparent and uniform. Moreover, the relatively low work function of the ZnO film led to a high open circuit voltage (1.07 V), indicating its promise as the electron transporting layer. To further improve the photovoltaic performance, urea was introduced between the ZnO layer and the perovskite layer to improve the perovskite crystal growth. As a result, the PCE surged to 14.6%. We further exploited the low-temperature processed ZnO film for flexible PSCs, which have shown good mechanical stability with a respectable PCE of 11.9%.

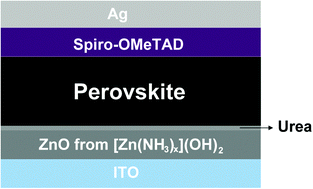

Graphical abstract: Low-temperature aqueous solution processed ZnO as an electron transporting layer for efficient perovskite solar cells

Back to tab navigation
Please wait while Download options loads

Supplementary files

Publication details

The article was received on 30 Sep 2016, accepted on 29 Nov 2016 and first published on 23 Dec 2016


Article type: Chemistry Frontiers
DOI: 10.1039/C6QM00248J
Citation: Mater. Chem. Front., 2017, Advance Article
  •   Request permissions

    Low-temperature aqueous solution processed ZnO as an electron transporting layer for efficient perovskite solar cells

    J. Zhou, X. Meng, X. Zhang, X. Tao, Z. Zhang, J. Hu, C. Wang, Y. Li and S. Yang, Mater. Chem. Front., 2017, Advance Article , DOI: 10.1039/C6QM00248J
