Layered SnSe nano-plates with excellent in-plane anisotropic properties of Raman spectrum and photo-response

Author affiliations

Abstract

In-plane anisotropy in optical, electronic and thermal properties of two-dimensional (2D) materials has attracted significant interest because of the huge potential applications for developing novel devices. In this work, outstanding angle-dependent Raman property of layered SnSe nano-plates is obtained via polarized Raman system and it is confirmed that the Raman polarization directions of two Ag modes (130 cm−1 and 150 cm−1) are consistent with specific crystalline directions (zigzag direction or armchair direction) of SnSe flakes under parallel polarization configuration at home temperature and low temperature. Furthermore, the SnSe nano-plate devices show excellent angle-resolved photo-response at home temperature and low temperature (150 K) with a 90° cycle period and the polarized directions are also along zigzag direction and armchair direction, which is ascribed to the unique in-plane asymmetric crystal structure. These prominent in-plane anisotropic properties provide a precise and rapid method to determine the crystal orientation of SnSe nano-flakes and open up the new applications of 2D asymmetric structure materials.

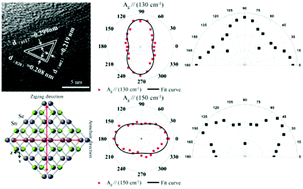

Graphical abstract: Layered SnSe nano-plates with excellent in-plane anisotropic properties of Raman spectrum and photo-response

Back to tab navigation

Supplementary files

Publication details

The article was received on 12 Jul 2017, accepted on 08 Sep 2017 and first published on 08 Sep 2017


Article type: Paper
DOI: 10.1039/C7NR05047J
Citation: Nanoscale, 2017,9, 14558-14564
  •   Request permissions

    Layered SnSe nano-plates with excellent in-plane anisotropic properties of Raman spectrum and photo-response

    X. Li, J. Xia, L. Wang, Y. Gu, H. Cheng and X. Meng, Nanoscale, 2017, 9, 14558
    DOI: 10.1039/C7NR05047J
