Assembly of hollow mesoporous nanoarchitectures composed of ultrafine Mo2C nanoparticles on N-doped carbon nanosheets for efficient electrocatalytic reduction of oxygen

Author affiliations

Abstract

A simple method is developed to assemble Mo2C nanocrystals on the surfaces of hollow, highly conductive mesoporous nanoparticles. Diblock copolymer (PS-b-PEO) micelles are used as templates to assist in the fast complexation of molybdate (MoO42−) and polydopamine (PDA) precursors to make hollow precursor MoO42−/PDA/PS-b-PEO particles. Then these particles are carbonized to generate mesoporous N-doped carbon nanosheets riddled with ultrafine molybdenum carbide (Mo2C) nanoparticles (MMo2C/NCS). An N-doped carbon matrix serves as an electron conductor and helps to prevent the aggregation of the Mo2C nanoparticles. The Mo2C nanoparticles in turn enhance the catalytic performance for the oxygen reduction reaction (ORR). The unique mesoporous 2D nanosheet and its derived 3D hollow structure expose numerous active catalytic sites while enabling free diffusion of the electrolyte and mass transfer. Based on these properties, MMo2C/NCS show enhanced catalytic activity for the ORR.

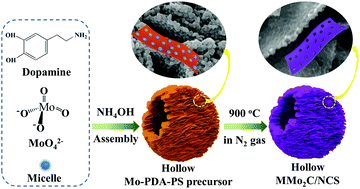

Graphical abstract: Assembly of hollow mesoporous nanoarchitectures composed of ultrafine Mo2C nanoparticles on N-doped carbon nanosheets for efficient electrocatalytic reduction of oxygen

Back to tab navigation

Supplementary files

Publication details

The article was received on 28 Jul 2017, accepted on 25 Sep 2017 and first published on 09 Oct 2017


Article type: Communication
DOI: 10.1039/C7MH00586E
Citation: Mater. Horiz., 2017, Advance Article
  •   Request permissions

    Assembly of hollow mesoporous nanoarchitectures composed of ultrafine Mo2C nanoparticles on N-doped carbon nanosheets for efficient electrocatalytic reduction of oxygen

    Y. Guo, J. Tang, J. Henzie, B. Jiang, H. Qian, Z. Wang, H. Tan, Y. Bando and Y. Yamauchi, Mater. Horiz., 2017, Advance Article , DOI: 10.1039/C7MH00586E
