Controlling the exciton lifetime of blue thermally activated delayed fluorescence emitters using a heteroatom-containing pyridoindole donor moiety

Author affiliations

Abstract

In this paper, we report a promising molecular design concept to attain short exciton lifetime, appropriate triplet energy and high photoluminescence quantum yield (PLQY) in blue thermally activated delayed fluorescence (TADF) emitters for high quantum efficiency and better efficiency roll-off characteristics in organic light emitting diodes (OLEDs). Herein, new TADF molecules with nitrogen at α- and δ-positions of the carboline donor moiety were synthesized and their effects on the photo-physical and electroluminescence properties were theoretically and experimentally investigated. The TADF molecule with a δ-carboline donor moiety was much favorable for short exciton lifetime, high delayed PLQY, good blue color, and small singlet and triplet splitting compared to the generally used carbazole. A maximum external quantum efficiency (EQE) of 22.5%, reduced efficiency roll-off and good color purity with Commission Internationale de l'Eclairage (CIE) 1931 color coordinates of (0.19, 0.34) were exhibited by the blue OLED using the TADF emitter, 4,5-bis(5H-pyrido[3,2-b]indol-5-yl)phthalonitrile (δ-2CbPN). Moreover, the effectiveness of the δ-carboline donor moiety was verified in another deep blue TADF emitter, 5,5′-(2-(9H-carbazol-9-yl)-5-(4,6-diphenyl-1,3,5-triazin-2-yl)-1,3-phenylene)bis(5H-pyrido[3,2-b]indole) (CzDCbTrz). A maximum EQE of 23.4%, deep blue color, and reduced efficiency roll-off were attained in the CzDCbTrz based OLED.

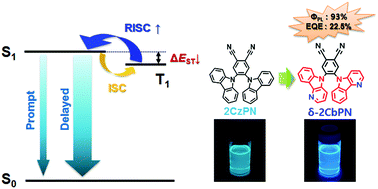

Graphical abstract: Controlling the exciton lifetime of blue thermally activated delayed fluorescence emitters using a heteroatom-containing pyridoindole donor moiety

Back to tab navigation
Please wait while Download options loads

Supplementary files

Publication details

The article was received on 14 Dec 2016, accepted on 10 Apr 2017 and first published on 10 Apr 2017


Article type: Communication
DOI: 10.1039/C6MH00579A
Citation: Mater. Horiz., 2017, Advance Article
  •   Request permissions

    Controlling the exciton lifetime of blue thermally activated delayed fluorescence emitters using a heteroatom-containing pyridoindole donor moiety

    G. H. Kim, R. Lampande, J. B. Im, J. M. Lee, J. Y. Lee and J. H. Kwon, Mater. Horiz., 2017, Advance Article , DOI: 10.1039/C6MH00579A
