Intercalation of solvated Na-ions into graphite

Author affiliations

Abstract

The reversible intercalation of solvated Na-ions into graphite and the concomitant formation of ternary Na–graphite intercalation compounds (GICs) are studied using several in operando techniques, such as X-ray-diffraction (XRD), electrochemical scanning tunnelling microscopy (EC-STM) and electrochemical quartz crystal microbalance techniques (EQCM). Linear ethylene glycol dimethyl ether homologues (“glymes”) Gx with x + 1 O-atoms were used as solvents, where x is 1–4. The intercalation mechanism of Na+(Gx)y-complexes was investigated with a focus on the phase transitions and diffusion rates of the Na+(Gx)y-complexes inside the graphite lattice. For the four shortest glymes (G1 to G4), it is found using XRD that an intermediate stage 2 Na–GIC (NaC48) is formed upon the partial sodiation of the graphite electrode. At full sodiation stage 1 Na–GIC (NaC18, 112 mA h g−1) is obtained for G1, G2 and G4, while the G3 system also forms a stage 1 Na–GIC but with less Na incorporated (NaC30, 70 mA h g−1). The phase transitions of a battery electrode upon ion-intercalation are visualised using STM on the atomic scale for the first time. In addition, the local diffusion rates of the intercalated species inside the electrode were determined, a unique approach for determining kinetic effects in batteries on the atomic scale. The formation of a solid electrolyte interphase (SEI) is observed with STM as well as with an EQCM, while the latter technique is used for novel in situ hydrodynamic spectroscopy, giving further insight into the intercalation mechanism.

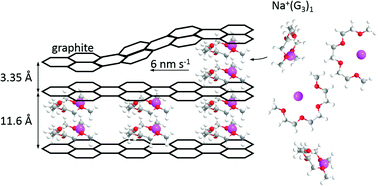

Graphical abstract: Intercalation of solvated Na-ions into graphite

Back to tab navigation

Supplementary files

Publication details

The article was received on 24 Feb 2017, accepted on 22 May 2017 and first published on 31 May 2017


Article type: Paper
DOI: 10.1039/C7EE00546F
Citation: Energy Environ. Sci., 2017, Advance Article
  •   Request permissions

    Intercalation of solvated Na-ions into graphite

    L. Seidl, N. Bucher, E. Chu, S. Hartung, S. Martens, O. Schneider and U. Stimming, Energy Environ. Sci., 2017, Advance Article , DOI: 10.1039/C7EE00546F
