Solvent-dependent selective cation exchange in anionic frameworks based on cobalt(II) and triphenylamine linkers: reactor-dependent synthesis and sorption properties

Author affiliations

Abstract

Two cobalt(II) coordination polymers with anionic networks of formulae {(Me2NH2)2[CoCl(ntb)]}n (JUMP-2) and {(Me2NH2)2[Co5(ntb)4(H2O)3(Me2NH)]}n (previously reported as MIL-144 by Livage et al., Microporous Mesoporous Mater., 2012, 157, 37) have been obtained via a solvothermal reaction of cobalt chloride and 4,4′,4′′-nitrilotribenzoic acid (H3ntb) in DMF employing two differently-sized reactors, while using the same absolute amount of reactants. Structure analysis revealed that JUMP-2 crystallized in the monoclinic space group P21/n and displays a two-dimensional (2D) network, which by topological analysis was characterized as a layered 3-connected hcb net. The topological analysis of MIL-144 revealed a 3,6-connected net with 3,6T80 topology. The magnetic properties of JUMP-2 are indicative of independent single-ion behavior of the tetrahedral cobalt(II) ions and showed an out-of-phase signal in the alternating-current (ac) magnetic susceptibility below 2.5 K, whereas for MIL-144 an overall antiferromagnetic interaction within the di- and trinuclear secondary building units is observed and no indication for slow magnetization dynamics. The organic cations in both frameworks could successfully be exchanged with inorganic cations under retention of the respective network structure. In the process of exchange, both compounds displayed cation selectivity based on which solvent was utilized for immersing the solids. JUMP-2 shows a preference for europium(III) ions in DMF, whereas MIL-144 preferentially takes up lithium ions when ethanol is used. The N2 adsorption isotherms were measured before and after exchange and revealed a considerable improvement in the sorption properties of the exchanged samples.

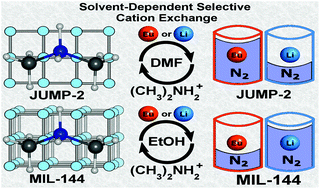

Graphical abstract: Solvent-dependent selective cation exchange in anionic frameworks based on cobalt(ii) and triphenylamine linkers: reactor-dependent synthesis and sorption properties

Back to tab navigation

Supplementary files

Publication details

The article was received on 18 Apr 2017, accepted on 25 May 2017 and first published on 25 May 2017


Article type: Paper
DOI: 10.1039/C7DT01405H
Citation: Dalton Trans., 2017, Advance Article
  •   Request permissions

    Solvent-dependent selective cation exchange in anionic frameworks based on cobalt(II) and triphenylamine linkers: reactor-dependent synthesis and sorption properties

    O. Akintola, D. Hornig, A. Buchholz, H. Görls and W. Plass, Dalton Trans., 2017, Advance Article , DOI: 10.1039/C7DT01405H
