High selectivity for n-dodecane hydroisomerization over highly siliceous ZSM-22 with low Pt loading

Author affiliations

Abstract

Highly siliceous ZSM-22 was synthesized under hydrothermal conditions with ZSM-22 seeds. Characterization by FT-IR and 1H and 29Si NMR spectroscopy confirms that due to the existence of defective sites in the siliceous ZSM-22, acidic silanol groups including vicinal silanol and silanol nests are detected. Acidic silanol groups are considered as the acid sites of siliceous ZSM-22. As a result, siliceous ZSM-22 shows much lower acid site density and lower acid strength than silica–alumina ZSM-22 which contains hydroxyl groups bridging Si and Al as acid sites. In n-dodecane isomerization, Pt/siliceous ZSM-22 shows much higher isomer selectivity than Pt/silica–alumina ZSM-22. Furthermore, a lower loading amount of Pt on siliceous ZSM-22 (about 0.2 wt% Pt) can lead to high isomer selectivity. Owing to the acidic silanol groups and the low acid site density of siliceous ZSM-22, a good balance between metal and acid function in Pt/siliceous ZSM-22 is achieved, which results in a lower allowable Pt loading value and higher isomer selectivity.

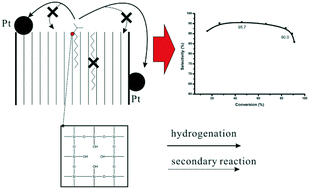

Graphical abstract: High selectivity for n-dodecane hydroisomerization over highly siliceous ZSM-22 with low Pt loading

Back to tab navigation

Supplementary files

Publication details

The article was received on 15 Aug 2017, accepted on 26 Sep 2017 and first published on 27 Sep 2017


Article type: Paper
DOI: 10.1039/C7CY01661A
Citation: Catal. Sci. Technol., 2017, Advance Article
  •   Request permissions

    High selectivity for n-dodecane hydroisomerization over highly siliceous ZSM-22 with low Pt loading

    P. Niu, H. Xi, J. Ren, M. Lin, Q. Wang, L. Jia, B. Hou and D. Li, Catal. Sci. Technol., 2017, Advance Article , DOI: 10.1039/C7CY01661A
