Non-interpenetrated Cu-based MOF constructed from a rediscovered tetrahedral ligand

Author affiliations

Abstract

A systematic expansion of the well-known non-interpenetrated and robust MOF-11 was accomplished through a rediscovery of the ligand tetrakis(4-carboxyphenyl)adamantane (L). The combination of a rigid tetrahedral L and copper(II) paddle-wheel secondary building unit (SBU) resulted in a stable non-interpenetrated metal–organic framework, UOF-1 (UOF = University of Otago framework), with the predicted PtS topology. This MOF exhibits permanent porosity, as established by X-ray diffraction (XRD) and gas adsorption studies. This low-density open framework possesses one open-metal site per Cu(II) cation which could be accessed by employing appropriate activation techniques such as the use of supercritical CO2 (s-CO2) or dry CH2Cl2. CO2 gas displayed higher affinity towards activated UOF-1 than CH4 and N2 gases at room temperature and low pressure. UOF-1 displayed excellent selectivity for CO2 over N2 of 52 : 1 at practical operating conditions of 15 : 85 CO2 : N2 mixture at 273 K and 1 bar.

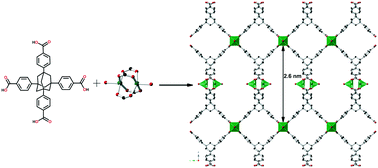

Graphical abstract: Non-interpenetrated Cu-based MOF constructed from a rediscovered tetrahedral ligand

Back to tab navigation

Supplementary files

Publication details

The article was received on 18 Oct 2017, accepted on 16 Nov 2017 and first published on 17 Nov 2017


Article type: Paper
DOI: 10.1039/C7CE01818E
Citation: CrystEngComm, 2017,19, 7236-7243
  •   Request permissions

    Non-interpenetrated Cu-based MOF constructed from a rediscovered tetrahedral ligand

    K. M. Patil, S. G. Telfer, S. C. Moratti, O. T. Qazvini and L. R. Hanton, CrystEngComm, 2017, 19, 7236
    DOI: 10.1039/C7CE01818E
