FTIR-spectroscopic and LA-ICP-MS imaging for combined hyperspectral image analysis of tumor models

Author affiliations

Abstract

Modern chemical imaging techniques provide spatially resolved information on the molecular and elemental composition of samples with both high spatial and spectral resolution. Over the past few decades these techniques, in particular, Fourier transform infrared (FTIR) spectroscopy and laser ablation inductively coupled plasma mass spectrometry (LA-ICP-MS) have been successfully applied in histopathological research. This work demonstrates that the multivariate analysis of combined FTIR and LA-ICP-MS microscopy hyperspectral images can bring additional knowledge to biomedical research. The concept of such analysis was demonstrated while investigating two different tumor samples subjected to anticancer therapy. Combined analysis has revealed a correlation between the lateral distribution of analytes and sample properties within the different techniques. Correlations between alterations in the average protein secondary structure and platinum distribution were found, as well as between changes in the cell nuclear morphology and a reduction of physiologically relevant trace elements. The results of combined analysis suggested different degrees of tumor viability. Univariate analysis and k-means clustering successfully discriminated dead tumor regions and supported the results of combined analysis.

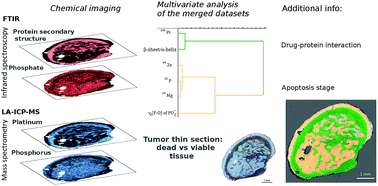

Graphical abstract: FTIR-spectroscopic and LA-ICP-MS imaging for combined hyperspectral image analysis of tumor models

Back to tab navigation

Supplementary files

Publication details

The article was received on 01 Jun 2017, accepted on 22 Aug 2017 and first published on 23 Aug 2017


Article type: Paper
DOI: 10.1039/C7AY01369H
Citation: Anal. Methods, 2017, Advance Article
  • Open access: Creative Commons BY license
  •   Request permissions

    FTIR-spectroscopic and LA-ICP-MS imaging for combined hyperspectral image analysis of tumor models

    A. Balbekova, M. Bonta, S. Török, J. Ofner, B. Döme, A. Limbeck and B. Lendl, Anal. Methods, 2017, Advance Article , DOI: 10.1039/C7AY01369H

    This article is licensed under a Creative Commons Attribution 3.0 Unported Licence. Material from this article can be used in other publications provided that the correct acknowledgement is given with the reproduced material.
