A trifunctional multi-walled carbon nanotubes/polyethylene glycol (MWCNT/PEG)-coated separator through a layer-by-layer coating strategy for high-energy Li–S batteries

Author affiliations

Abstract

A trifunctional separator fabricated by using a light-weight layer-by-layer multi-walled carbon nanotubes/polyethylene glycol (MWCNT/PEG) coating has been explored in lithium–sulfur (Li–S) batteries. The conductive MWCNT/PEG coating serves as (i) an upper current collector for accelerating the electron transport and benefiting the electrochemical reaction kinetics of the cell, (ii) a net-like filter for blocking and intercepting the migrating polysulfides through a synergistic effect including physical and chemical interactions, and (iii) a layered barrier for inhibiting the continuous diffusion and alleviating the volume change of the trapped active material by introducing a “buffer zone” in between the coated layers. The multi-layered MWCNT/PEG coating allows the use of the conventional pure sulfur cathode with a high sulfur content (78 wt%) and high sulfur loading (up to 6.5 mg cm−2) to achieve a high initial discharge capacity of 1206 mA h g−1 at C/5 rate, retaining a superior capacity of 630 mA h g−1 after 300 cycles. The MWCNT/PEG-coated separator optimized by the facile layer-by-layer coating method provides a promising and feasible option for advanced Li–S batteries with high energy density.

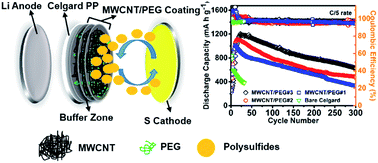

Graphical abstract: A trifunctional multi-walled carbon nanotubes/polyethylene glycol (MWCNT/PEG)-coated separator through a layer-by-layer coating strategy for high-energy Li–S batteries

Back to tab navigation

Supplementary files

Publication details

The article was received on 06 Sep 2016, accepted on 11 Oct 2016 and first published on 11 Oct 2016


Article type: Communication
DOI: 10.1039/C6TA07709A
Citation: J. Mater. Chem. A, 2016,4, 16805-16811
  •   Request permissions

    A trifunctional multi-walled carbon nanotubes/polyethylene glycol (MWCNT/PEG)-coated separator through a layer-by-layer coating strategy for high-energy Li–S batteries

    L. Luo, S. Chung and A. Manthiram, J. Mater. Chem. A, 2016, 4, 16805
    DOI: 10.1039/C6TA07709A
