Issue 102, 2016, Issue in Progress
Previous Article Next Article

Synthesis and characterization of two novel second-order nonlinear optical chromophores based on julolidine donors with excellent electro-optic activity

Author affiliations

Abstract

Julolidine and its derivatives are excellent electron-rich structures thus two novel second order nonlinear optical (NLO) chromophores based on julolidine donors and tricyanofuran (TCF) acceptors linked via isophorone bridge (zh-1) and modified isophorone bridge (zh-2) have been synthesized. Density functional theory (DFT) was used to optimize the geometrical structures, calculate the HOMO–LUMO energy gaps and first-order hyperpolarizability (β) of these chromophores. Besides, to determine the redox properties of these chromophores, cyclic voltammetry (CV) experiments were performed. The optimized structures suggest that chromophore zh-1 possesses better planarity which increases the ability of electron delocalization. These chromophores showed good thermal stability with their decomposition temperatures all above 210 °C. The electro-optic coefficients (r33) of poled films containing 25 wt% of these chromophores doped in amorphous polycarbonate (APC) afforded values of 170 and 101 pm V−1 at 1310 nm for chromophores zh-1 and zh-2, respectively. These properties show the potential use of the new chromophores as advanced material devices.

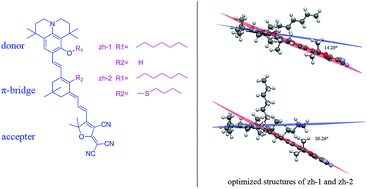

Graphical abstract: Synthesis and characterization of two novel second-order nonlinear optical chromophores based on julolidine donors with excellent electro-optic activity

Back to tab navigation
Please wait while Download options loads

Publication details

The article was received on 31 Aug 2016, accepted on 10 Oct 2016 and first published on 10 Oct 2016


Article type: Paper
DOI: 10.1039/C6RA21814H
Citation: RSC Adv., 2016,6, 99743-99751
  •   Request permissions

    Synthesis and characterization of two novel second-order nonlinear optical chromophores based on julolidine donors with excellent electro-optic activity

    H. Zhang, F. Huo, F. Liu, Z. Chen, J. Liu, S. Bo, Z. Zhen and L. Qiu, RSC Adv., 2016, 6, 99743
    DOI: 10.1039/C6RA21814H
