Porous TiNb24O62 microspheres as high-performance anode materials for lithium-ion batteries of electric vehicles

Author affiliations

Abstract

TiNb24O62 is explored as a new anode material for lithium-ion batteries. Microsized TiNb24O62 particles (M-TiNb24O62) are fabricated through a simple solid-state reaction method and porous TiNb24O62 microspheres (P-TiNb24O62) are synthesized through a facile solvothermal method for the first time. TiNb24O62 exhibits a Wadsley–Roth shear structure with a structural unit composed of a 3 × 4 octahedron-block and a 0.5 tetrahedron at the block-corner. P-TiNb24O62 with an average sphere size of ∼2 μm is constructed by nanoparticles with an average size of ∼100 nm, forming inter-particle pores with a size of ∼8 nm and inter-sphere pores with a size of ∼55 nm. Such desirable porous microspheres are an ideal architecture for enhancing the electrochemical performances by shortening the transport distance of electrons/Li+-ions and increasing the reaction area. Consequently, P-TiNb24O62 presents outstanding electrochemical performances in terms of specific capacity, rate capability and cyclic stability. The reversible capacities of P-TiNb24O62 are, respectively, as large as 296, 277, 261, 245, 222, 202 and 181 mA h g−1 at 0.1, 0.5, 1, 2, 5, 10 and 20 C, which are obviously larger than those of M-TiNb24O62 (258, 226, 210, 191, 166, 147 and 121 mA h g−1). At 10 C, the capacity of P-TiNb24O62 still remains at 183 mA h g−1 over 500 cycles with a decay of only 0.02% per cycle, whereas the corresponding values of M-TiNb24O62 are 119 mA h g−1 and 0.04%. These impressive results indicate that P-TiNb24O62 can be a promising anode material for lithium-ion batteries of electric vehicles.

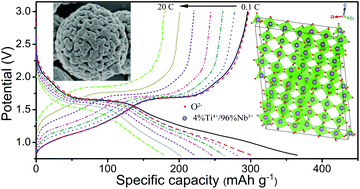

Graphical abstract: Porous TiNb24O62 microspheres as high-performance anode materials for lithium-ion batteries of electric vehicles

Back to tab navigation

Supplementary files

Publication details

The article was received on 21 Jun 2016, accepted on 14 Oct 2016 and first published on 17 Oct 2016


Article type: Paper
DOI: 10.1039/C6NR04992C
Citation: Nanoscale, 2016,8, 18792-18799
  •   Request permissions

    Porous TiNb24O62 microspheres as high-performance anode materials for lithium-ion batteries of electric vehicles

    C. Yang, S. Deng, C. Lin, S. Lin, Y. Chen, J. Li and H. Wu, Nanoscale, 2016, 8, 18792
    DOI: 10.1039/C6NR04992C
