Post-annealing of MAPbI3 perovskite films with methylamine for efficient perovskite solar cells

Author affiliations

Abstract

An organo-metal halide perovskite is a promising material for solar cell applications, but the polycrystalline nature of perovskites can cause thin films to be non-uniform with disconnected grains. These grain boundaries make the perovskite film vulnerable to the local chemical environment, or allow unwanted direct contact of the electron transporting layer and the hole transporting layer, increasing carrier recombination. We show that post-annealing with methylamine greatly reduces impurities at perovskite grain boundaries and promotes continuity between adjacent grains. When methylamine post-annealed perovskite films are compared to thermally or solvent-annealed films, the carrier lifetime is increased by 3 times. The recombination resistance for the planar perovskite solar cells with the methylamine post-annealing treatment is increased more than 10 times, and the efficiency is increased by 43.1% and 20.0% with respect to the thermally annealed and solvent-annealed perovskite solar cells, respectively. In addition, we show that methylamine post-annealed, meso-structured perovskite solar cells exhibited a power conversion efficiency of up to 18.4%, with significantly improved stability.

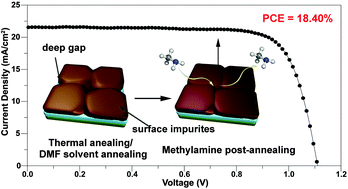

Graphical abstract: Post-annealing of MAPbI3 perovskite films with methylamine for efficient perovskite solar cells

Back to tab navigation
Please wait while Download options loads

Supplementary files

Publication details

The article was received on 24 May 2016, accepted on 05 Aug 2016 and first published on 05 Aug 2016


Article type: Communication
DOI: 10.1039/C6MH00160B
Citation: Mater. Horiz., 2016,3, 548-555
  • Open access: Creative Commons BY license
  •   Request permissions

    Post-annealing of MAPbI3 perovskite films with methylamine for efficient perovskite solar cells

    Y. Jiang, E. J. Juarez-Perez, Q. Ge, S. Wang, M. R. Leyden, L. K. Ono, S. R. Raga, J. Hu and Y. Qi, Mater. Horiz., 2016, 3, 548
    DOI: 10.1039/C6MH00160B
