Spontaneous transfer of droplets across microfluidic laminar interfaces

Author affiliations

Abstract

The precise manipulation of droplets in microfluidics has revolutionized a myriad of drop-based technologies, such as multiple emulsion preparation, drop fusion, drop fission, drop trapping and drop sorting, which offer promising new opportunities in chemical and biological fields. In this paper, we present an interfacial-tension-directed strategy for the migration of droplets across liquid–liquid laminar streams. By carefully controlling the interfacial energies, droplets of phase A are able to pass across the laminar interfaces of two immiscible fluids from phase B to phase C due to a positive spreading coefficient of phase C over phase B. To demonstrate this, we successfully perform the transfer of water droplets across an oil–oil laminar interface and the transfer of oil droplets across an oil–water laminar interface. The whole transfer process is spontaneous and only takes about 50 ms. We find that the fluid dynamics have an impact on the transfer processes. Only if the flowrate ratios are well matched will the droplets pass through the laminar interface successfully. This interfacial-tension-directed transfer of droplets provides a versatile procedure to make new structures and control microreactions as exemplified by the fabrication of giant unilamellar vesicles and cell-laden microgels.

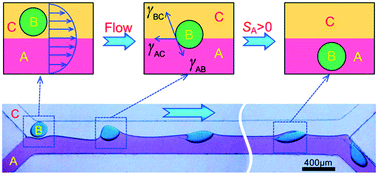

Graphical abstract: Spontaneous transfer of droplets across microfluidic laminar interfaces

Back to tab navigation

Supplementary files

Publication details

The article was received on 11 Aug 2016, accepted on 26 Sep 2016 and first published on 26 Sep 2016


Article type: Paper
DOI: 10.1039/C6LC01022A
Citation: Lab Chip, 2016,16, 4326-4332
  •   Request permissions

    Spontaneous transfer of droplets across microfluidic laminar interfaces

    N. Deng, W. Wang, X. Ju, R. Xie and L. Chu, Lab Chip, 2016, 16, 4326
    DOI: 10.1039/C6LC01022A
