Enhanced versatility of fluid control in centrifugal microfluidic platforms using two degrees of freedom

Author affiliations

Abstract

Centrifugal microfluidic platforms have significant potential in commercial applications because of their operational flexibility and minimal external infrastructure requirements. However, the dynamic and real-time control of fluid flow within traditional centrifugal microfluidic platforms is problematic. To address this significant limitation, we propose a two degrees of freedom platform, in which a digital servo is located at each end of an arm driven by a motor. This allows for reversible inward pumping between multiple chambers with perfect efficiency. Furthermore, the addition of a second degree of freedom allows position-based pressure controlled burst valves to be accessed and operated in an independent fashion. To demonstrate the efficacy of this technical innovation, we show rapid and configurable flow switching between three target chambers within a centrifugal microfluidic device.

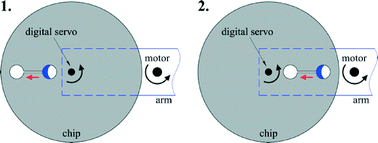

Graphical abstract: Enhanced versatility of fluid control in centrifugal microfluidic platforms using two degrees of freedom

Back to tab navigation
Please wait while Download options loads

Supplementary files

Publication details

The article was received on 14 Dec 2015, accepted on 18 Feb 2016 and first published on 19 Feb 2016


Article type: Paper
DOI: 10.1039/C5LC01530H
Citation: Lab Chip, 2016,16, 1197-1205
  • Open access: Creative Commons BY license
  •   Request permissions

    Enhanced versatility of fluid control in centrifugal microfluidic platforms using two degrees of freedom

    X. Cao, A. J. deMello and K. S. Elvira, Lab Chip, 2016, 16, 1197
    DOI: 10.1039/C5LC01530H
