Issue 21, 2016
Previous Article Next Article

Selective removal of Cu2−x(S,Se) phases from Cu2ZnSn(S,Se)4 thin films

Author affiliations

Abstract

The selective removal of Cu2−x(S,Se) impurity phases from Cu2ZnSn(S,Se)4 (CZTSSe) and Cu(In,Ga)Se2 (CIGS) thin films is a major barrier to achieving high efficiencies in solar cells based on these films. A toxic and hazardous potassium cyanide (KCN) solution is commonly used as a selective etchant to remove Cu2−x(S,Se) from CZTSSe and CIGS thin films. Herein, we report the selective removal of Cu2−x(S,Se) compounds from kesterite CZTSSe thin films using a mixture of ethylenediamine and 2-mercaptoethanol, a safer chemical mixture than KCN. We found that Cu2−xS and kesterite CZTS nanocrystals dissolve in this mixture in seconds and 6 hours, respectively, while wurtzite CZTS nanocrystals do not dissolve even after 6 hours. Etching CZTSSe thin films containing small amounts of Cu2−x(S,Se) phases for 20 minutes removes the Cu2−x(S,Se) phases completely.

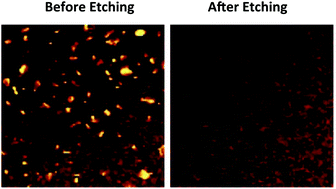

Graphical abstract: Selective removal of Cu2−x(S,Se) phases from Cu2ZnSn(S,Se)4 thin films

Back to tab navigation
Please wait while Download options loads

Supplementary files

Publication details

The article was received on 09 May 2016, accepted on 08 Aug 2016 and first published on 08 Aug 2016


Article type: Paper
DOI: 10.1039/C6GC01287F
Citation: Green Chem., 2016,18, 5814-5821
  •   Request permissions

    Selective removal of Cu2−x(S,Se) phases from Cu2ZnSn(S,Se)4 thin films

    A. H. Pinto, S. W. Shin, E. S. Aydil and R. L. Penn, Green Chem., 2016, 18, 5814
    DOI: 10.1039/C6GC01287F
