N–H⋯O and N–H⋯Cl supported 1D chains of heterobimetallic CuII/NiII–SnIV cocrystals

Author affiliations

Abstract

The Schiff base H2L1 [N,N′-ethylenebis(3-methoxysalicylaldimine)] or H2L2 [N,N′-ethylenebis(3-ethoxysalicylaldimine)] was reacted with MCl2·xH2O and SnCl4·5H2O to afford the supramolecular heterobimetallic systems (H2ED)2+·2[ML]·[SnCl6]2− [M = Cu, L = L1 (1), L = L2 (2); M = Ni, L = L1 (3), L = L2 (4); ED = 1,2-ethylenediamine], whose structures were established by single crystal X-ray analyses. Each structure includes different entities, viz. a mononuclear [CuL]/[NiL] neutral complex (coformer), a hexachlorostannate dianion [SnCl6]2−, a 1,2-ethylenediammonium dication (H2ED2+) and, only in 2 and 4, a methanol molecule. Based on the work of Grothe et al. (Cryst. Growth Des., 2016, 16, 3237–3243), compounds 1 and 3 are cocrystal salts, 2 and 4 are cocrystal salt solvates. The ionic pairs (H2ED)2+·[SnCl6]2− in 1–4 are encapsulated by the Cu- or Ni-complexes, and stabilized by N–H⋯O and one N–H⋯Cl bond interactions leading to infinite 1D chains. The antimicrobial studies of 1–4 against yeasts (C. albicans and S. cerevisiae) and Gram-positive (S. aureus and E. faecalis) and -negative bacteria (P. aeruginosa and E. coli) indicate that the Ni2Sn systems (3 and 4) are more active than the analogous Cu2Sn ones (1 and 2).

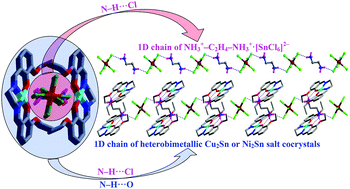

Graphical abstract: N–H⋯O and N–H⋯Cl supported 1D chains of heterobimetallic CuII/NiII–SnIV cocrystals

Back to tab navigation
Please wait while Download options loads

Supplementary files

Publication details

The article was received on 05 Aug 2016, accepted on 11 Oct 2016 and first published on 12 Oct 2016


Article type: Paper
DOI: 10.1039/C6DT03118H
Citation: Dalton Trans., 2016,45, 17929-17938
  •   Request permissions

    N–H⋯O and N–H⋯Cl supported 1D chains of heterobimetallic CuII/NiII–SnIV cocrystals

    S. Hazra, R. Meyrelles, A. J. Charmier, P. Rijo, M. F. C. Guedes da Silva and A. J. L. Pombeiro, Dalton Trans., 2016, 45, 17929
    DOI: 10.1039/C6DT03118H
