Capacitive mixing power production from salinity gradient energy enhanced through exoelectrogen-generated ionic currents

Author affiliations

Abstract

Several approaches to generate electrical power directly from salinity gradient energy using capacitive electrodes have recently been developed, but power densities have remained low. By immersing the capacitive electrodes in ionic fields generated by exoelectrogenic microorganisms in bioelectrochemical reactors, we found that energy capture using synthetic river and seawater could be increased ∼65 times, and power generation ∼46 times. Favorable electrochemical reactions due to microbial oxidation of organic matter, coupled to oxygen reduction at the cathode, created an ionic flow field that enabled more effective passive charging of the capacitive electrodes and higher energy capture. This ionic-based approach is not limited to the use of river water-seawater solutions. It can also be applied in industrial settings, as demonstrated using thermolytic solutions that can be used to capture waste heat energy as salinity gradient energy. Forced charging of the capacitive electrodes, using energy generated by the bioelectrochemical system and a thermolytic solution, further increased the maximum power density to 7 W m−2 (capacitive electrode).

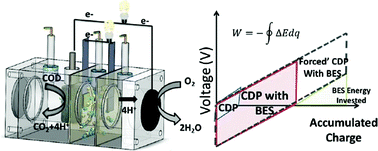

Graphical abstract: Capacitive mixing power production from salinity gradient energy enhanced through exoelectrogen-generated ionic currents

Back to tab navigation

Supplementary files

Publication details

The article was received on 23 Nov 2013, accepted on 28 Jan 2014 and first published on 29 Jan 2014


Article type: Paper
DOI: 10.1039/C3EE43823F
Author version available: Download Author version (PDF)
Citation: Energy Environ. Sci., 2014,7, 1159-1165
  •   Request permissions

    Capacitive mixing power production from salinity gradient energy enhanced through exoelectrogen-generated ionic currents

    M. C. Hatzell, R. D. Cusick and B. E. Logan, Energy Environ. Sci., 2014, 7, 1159
    DOI: 10.1039/C3EE43823F
