A hydrodynamically optimized nano-electrospray ionization source and vacuum interface

Author affiliations

Abstract

The coupling of atmospheric pressure ionization (API) sources like electrospray ionization (ESI) to vacuum based applications like mass spectrometry (MS) or ion beam deposition (IBD) is done by differential pumping, starting with a capillary or pinhole inlet. Because of its low ion transfer efficiency the inlet represents a major bottleneck for these applications. Here we present a nano-ESI vacuum interface optimized to exploit the hydrodynamic drag of the background gas for collimation and the reduction of space charge repulsion. Up to a space charge limit of 40 nA we observe 100% current transmission through a capillary with an inlet and show by MS and IBD experiments that the transmitted ion beams are well defined and free of additional contamination compared to a conventional interface. Based on computational fluid dynamics modelling and ion transport simulations, we show how the specific shape enhances the collimation of the ion cloud. Mass selected ion currents in the nanoampere range available further downstream in high vacuum open many perspectives for the efficient use of electrospray ion beam deposition (ES-IBD) as a surface coating method.

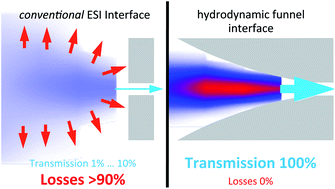

Graphical abstract: A hydrodynamically optimized nano-electrospray ionization source and vacuum interface

Back to tab navigation

Supplementary files

Publication details

The article was received on 26 Sep 2013, accepted on 11 Dec 2013 and first published on 30 Jan 2014


Article type: Paper
DOI: 10.1039/C3AN01836A
Citation: Analyst, 2014,139, 1856-1867
