Microfluidic electro-sonoporation: a multi-modal cell poration methodology through simultaneous application of electric field and ultrasonic wave

Author affiliations

Abstract

A microfluidic device that simultaneously applies the conditions required for microelectroporation and microsonoporation in a flow-through scheme toward high-efficiency and high-throughput molecular delivery into mammalian cells is presented. This multi-modal poration microdevice using simultaneous application of electric field and ultrasonic wave was realized by a three-dimensional (3D) microelectrode scheme where the electrodes function as both electroporation electrodes and cell flow channel so that acoustic wave can be applied perpendicular to the electric field simultaneously to cells flowing through the microfluidic channel. This 3D microelectrode configuration also allows a uniform electric field to be applied while making the device compatible with fluorescent microscopy. It is hypothesized that the simultaneous application of two different fields (electric field and acoustic wave) in perpendicular directions allows formation of transient pores along two axes of the cell membrane at reduced poration intensities, hence maximizing the delivery efficiency while minimizing cell death. The microfluidic electro-sonoporation system was characterized by delivering small molecules into mammalian cells, and showed average poration efficiency of 95.6% and cell viability of 97.3%. This proof of concept result shows that by combining electroporation and sonoporation together, significant improvement in molecule delivery efficiency could be achieved while maintaining high cell viability compared to electroporation or sonoporation alone. The microfluidic electro-sonoporation device presented here is, to the best of our knowledge, the first multi-modal cell poration device using simultaneous application of electric field and ultrasonic wave. This new multi-modal cell poration strategy and system is expected to have broad applications in delivery of small molecule therapeutics and ultimately in large molecule delivery such as gene transfection applications where high delivery efficiency and high viability are crucial.

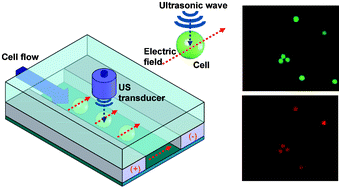

Graphical abstract: Microfluidic electro-sonoporation: a multi-modal cell poration methodology through simultaneous application of electric field and ultrasonic wave

Back to tab navigation

Supplementary files

Publication details

The article was received on 02 Aug 2012, accepted on 08 Apr 2013 and first published on 24 Apr 2013


Article type: Paper
DOI: 10.1039/C3LC40877A
Citation: Lab Chip, 2013,13, 2144-2152
  •   Request permissions

    Microfluidic electro-sonoporation: a multi-modal cell poration methodology through simultaneous application of electric field and ultrasonic wave

    W. Longsine-Parker, H. Wang, C. Koo, J. Kim, B. Kim, A. Jayaraman and A. Han, Lab Chip, 2013, 13, 2144
    DOI: 10.1039/C3LC40877A
