Facile preparation route for graphene oxide reinforced polyamide 6 composites via in situ anionic ring-opening polymerization

Author affiliations

Abstract

In this study, a new and facile route has been developed to prepare graphene oxide (GO) reinforced polyamide 6 (PA6) composites and synthesize simultaneously PA6 grafted GO hybrid materials: ε-caprolactam (CL) was firstly fixed onto the GO sheets coupling by 4,4′-methylenebis(phenyl isocyanate), and then PA6 was grafted from the GO surface by in situ anionic ring-opening polymerization. The polymerization processing was effectively carried out at relatively low reaction temperature (150 °C) and in a short reaction time (20 to 40 min) by using a caprolactam magnesium bromide (C1) initiator in combination with a difunctional hexamethylene-1,6-dicarbamoylcaprolactam (C20) activator. The PA6 grafted graphene oxide (g-GO) was verified by 1H NMR, FTIR, TGA, XPS and AFM. The PA6 grafted GO sheets (g-GO) contain about 74 wt% polymers, which make the GO sheets homogenously dispersed in matrix and gain good interfacial adhesion. The tensile results show that the tensile strength and Young's modulus of the nanocomposites can be obviously improved by incorporation of g-GO at low contents. Furthermore, the crystallization temperature and degree of crystallinity of PA6-GO nanocomposites both increased in the non-isothermal crystallization process, especially for the composites with GO loading less than 0.2 wt%. This simple and effective approach is believed to offer possibilities for broadening the graphene applications with the development of PA6-graphene nanocomposites.

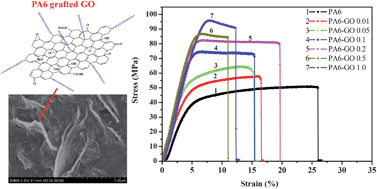

Graphical abstract: Facile preparation route for graphene oxide reinforced polyamide 6 composites via in situ anionic ring-opening polymerization

Back to tab navigation
Please wait while Download options loads

Supplementary files

Publication details

The article was received on 30 Jun 2012, accepted on 28 Sep 2012 and first published on 01 Oct 2012


Article type: Paper
DOI: 10.1039/C2JM34243J
Citation: J. Mater. Chem., 2012,22, 24081-24091
  •   Request permissions

    Facile preparation route for graphene oxide reinforced polyamide 6 composites via in situ anionic ring-opening polymerization

    X. Zhang, X. Fan, H. Li and C. Yan, J. Mater. Chem., 2012, 22, 24081
    DOI: 10.1039/C2JM34243J
