On-demand controlled release of docetaxel from a battery-less MEMS drug delivery device

Author affiliations

Abstract

We report the development of a magnetically controlled MEMS device capable of on-demand release of defined quantities of an antiproliferative drug, docetaxel (DTX). Controlled release of DTX with a dosage suitable for the treatment of diabetic retinopathy has been achieved for 35 days. The device consists of a drug-loaded microreservoir (∅6 mm × ∼550 μm), sealed by an elastic magnetic PDMS (polydimethylsiloxane) membrane (∅6 mm × 40 μm) with a laser-drilled aperture (∼100 × 100 μm2). By applying a magnetic field, the magnetic PDMS membrane deforms, causing the discharge of the drug solution from the device. Controlled DTX release at a rate of 171 ± 16.7 ng per actuation interval has been achieved for 35 days using a 255 mT magnetic field. The background leakage of drug solution through the aperture was negligible at 0.053 ± 0.014 ng min−1. The biological activity of the released drug was investigated using a cytotoxicity assay (cell apoptosis) for two cell lines, HUVEC (human umbilical vein endothelial cells) and PC3 (prostate cancer) cells. Reproducible release rates have been achieved and DTX within the PDMS MEMS reservoir maintains full pharmacological efficacy for more than two months. This device is a proof-of-concept development for targeted delivery of hydrophobic drugs such as DTX and other taxane-based agents that require accurate delivery in nanomolar concentrations.

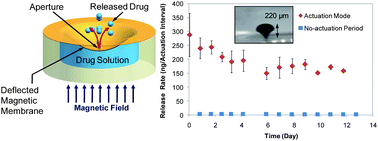

Graphical abstract: On-demand controlled release of docetaxel from a battery-less MEMS drug delivery device

Back to tab navigation
Please wait while Download options loads

Supplementary files

Publication details

The article was received on 16 Feb 2011, accepted on 12 May 2011 and first published on 23 Jun 2011


Article type: Paper
DOI: 10.1039/C1LC20134D
Citation: Lab Chip, 2011,11, 2744-2752
  •   Request permissions

    On-demand controlled release of docetaxel from a battery-less MEMS drug delivery device

    F. N. Pirmoradi, J. K. Jackson, H. M. Burt and M. Chiao, Lab Chip, 2011, 11, 2744
    DOI: 10.1039/C1LC20134D
