Reactivity of highly Lewis acidic diborane(4) towards pyridine and isocyanide: formation of boraalkene–pyridine complex and ortho-functionalized pyridine derivatives

Yuhei Katsuma a, Hiroki Asakawa a and Makoto Yamashita *b
aDepartment of Applied Chemistry, Faculty of Science and Engineering, Chuo University, 1-13-27 Kasuga, Bunkyo-ku, 112-8551, Tokyo, Japan
bDepartment of Molecular and Macromolecular Chemistry, Graduate School of Engineering, Nagoya University, Furo-cho, Chikusa-ku, Nagoya, 464-8603, Aichi, Japan. E-mail: makoto@oec.chembio.nagoya-u.ac.jp

Received 3rd November 2017 , Accepted 10th December 2017

First published on 11th December 2017


The reaction of pinB-BMes2 (pin = pinacolato, Mes = 2,4,6-Me3C6H2) with Xyl-NC (Xyl = 2,6-Me2C6H3) and pyridine results in the formation of a pyridine-coordinated boraalkene that exhibits an intense color caused by an intramolecular charge-transfer interaction. In the presence of an excess of pyridine, the ortho C–H bond of pyridine was selectively functionalized to afford a quinoid compound or an isocyanide-coupled product. Based on the concentration effect, the reaction stoichiometry, and previously reported DFT calculations, a reaction mechanism that involves several rearrangement reactions was proposed. Using the present method, substituted pyridines and N-heterocycles afforded the corresponding functionalized derivatives. A subsequent hydrolysis of one of the resulting products furnished an aminomethylated pyridine derivative in two steps from parent pyridine.


Introduction

Pyridine is an important building block in pharmaceutical, materials, and organometallic chemistry. Due to the presence of the nitrogen atom in the pyridine ring, it should be possible to selectively functionalize the C–H bonds at the 2-, 3- and 4-positions of pyridine to construct bespoke molecular skeletons. Although many reports on the selective functionalization of pyridine derivatives can be found in the scientific literature,1 transition-metal-catalyzed C–H functionalizations of pyridine have become important, as they represent step- and atom-economical synthetic routes.2 Following the very early discovery of a selective functionalization of pyridine with transition-metal-based catalysts,3 several other metal-catalyzed functionalizations of pyridine have been reported.1 Furthermore, a recently reported “cooperative catalyst” system has demonstrated high selectivity and catalytic activity toward the functionalization of pyridine.4 Historically, anionic nucleophiles5 or electron-rich radicals6 have been used to selectively functionalize the 2-position (“ortho”-position) of pyridine. Inspired by these strategies, further new methods based on nucleophilic functionalization7 and radical addition8 are currently developed. It should be noted that the ortho-metalation of pyridine might represent an important method to achieve the selective functionalization of pyridine at the 2-position.9

Diborane(4) compounds that contain a B–B single bond10 are widely used in organic synthesis, especially for metal-catalyzed borylation reactions.11 In contrast to the rich chemistry of metal-catalyzed borylations, direct reactions between diborane(4) compounds and organic compounds remain scarce.12 Halogen-substituted diborane(4) compounds can react with alkenes and alkynes in the absence of a catalyst.13 In contrast, there have been no reports of oxygen-substituted diborane(4)s undergoing direct reactions with organic molecules until recently. The addition of nucleophilic or basic activators enables diborane(4)s to react with organic molecules.14 It should also be noted that diazo compounds derived from tosylhydrazone or similar carbenoid species can react with diborane(4) to form the corresponding alkylboronates in the absence of a metal catalyst.15 Independent of these two-electron processes, effective radical activations have been discovered for borylation reactions with diborane(4)s.16 More recently, direct reactions of some pyridine derivatives with diborane(4)s via ionic or radical pathways have been reported.17

We have recently reported the operationally simple synthesis of unsymmetrical diborane(4) 1,18 its reactivity toward CO and tert-butyl isocyanide inducing a cleavage of multiple bond(s),18 its high Lewis acidity and one-electron reduction to form a radical anion,19 as well as its reactivity toward Xyl-NC (Xyl = 2,6-dimethylphenyl) to form a spirocyclic oxaboretane (2) or isocyanide-coordinated boraalkene (3)20 (Scheme 1). The formation of 2 is a rare example of a ring contraction reaction that affords a four-membered boracycle. DFT calculations showed that several rearrangement reactions are involved in these transformations,18,20 as Lewis-base-coordinated ligands on the diborane(4) are known to undergo migration.21 Herein, we report the selective C–H functionalization of pyridine and other N-heterocycles with 1 and Xyl-NC. The thus obtained products, i.e., pyridine-coordinated boraalkenes, dearomatized ortho-quinoid derivatives of pyridine, and ortho-functionalized pyridines from a reductive coupling of isocyanide, were fully characterized. Complex reaction mechanisms were postulated based on the structures of the products and previously reported DFT-based mechanisms.18,20 One of the obtained functionalized pyridines was subsequently hydrolyzed to afford an aminomethylated pyridine derivative.


image file: c7sc04759b-s1.tif
Scheme 1 Previously reported reactions of the unsymmetrical diborane(4) 1 with Xyl-NC (Xyl = 2,6-Me2C6H3).

Results and discussion

The reaction of a toluene solution of 1 with one equivalent of Xyl-NC in the presence of pyridine (10 equiv.) afforded pyridine-coordinated boraalkene 4. Compound 4 is probably formed via a cleavage of the B–B bond and a migration of the Mes group from the boron to the carbon atom (Scheme 2), as confirmed by a single-crystal X-ray diffraction analysis (Fig. 1; B1–C7: 1.441(3) Å). The length of the B–N (pyridine) bond (1.586(3) Å) is essentially identical to that of a twisted pyridine–boraalkene complex.22 It should be noted that 4 contains two Mes groups trans to each other, which is slightly different from the case of previously reported 3, and thus indicates that the steric difference between Xyl-NC and tBu-NC may determine the regiochemistry of the products 3 and 4 upon coordination to the boraalkene intermediate. Interestingly, the UV-vis spectrum of a hexane solution of boraalkene 4 showed an intense blue color, with an absorption maximum at 648 nm (Fig. 2). In hexane solution, boraalkene 4 gradually decomposed at room temperature (cf. ESI). This decomposition of 4 is decelerated in the presence of pyridine, indicating that the decomposition could be initiated by a dissociation of pyridine from 4. Although all the decomposed products could not be identified, monitoring the decomposition by 1H NMR spectroscopy indicated that 2 was involved as a reaction intermediate (cf. ESI). DFT calculations at the B3LYP/6-31+G(d) level of theory revealed that the HOMO orbital of 4 consists mainly of the B[double bond, length as m-dash]C π bond, and that the LUMO orbital corresponds to the π*-orbital of the pyridine moiety (Fig. 3). TDDFT calculations revealed that the absorption of 4 at 648 nm corresponds to the HOMO–LUMO transition, indicative of an intramolecular charge-transfer character from the electron-rich boraalkene moiety to the electron-poor acid-coordinated pyridine moiety.
image file: c7sc04759b-s2.tif
Scheme 2 Reaction of 1 with Xyl-NC and 10 equiv. of pyridine (yield estimated by 1H NMR spectroscopy).

image file: c7sc04759b-f1.tif
Fig. 1 Molecular structure of 4 (thermal ellipsoids set at 50% probability; one of the two independent molecules of 4 per unit cell and hydrogen atoms omitted for clarity). Selected bond distances (Å), angles (°) and dihedral angles (°): B1–N1 1.586(3), B1–C1 1.594(3), B1–C7 1.441(3), C7–N2 1.482(3), N2–B2 1.404(3), N2–C9 1.454(3), C7–C8 1.501(3); N1–B1–C1 110.09(18), N1–B1–C7 115.8(2), C1–B1–C7 134.1(2), B1–C7–N2 123.1(2), B1–C7–C8 123.36(19), N2–C7–C8 113.51(17), C7–N2–B2 123.60(18), C7–N2–C9 117.07(17), B2–N2–C9 119.31(18); C1–B1–C7–N2 7.8(4), N1–B1–C7–C8 8.9(3), B1–C7–N2–B2 61.6(3).

image file: c7sc04759b-f2.tif

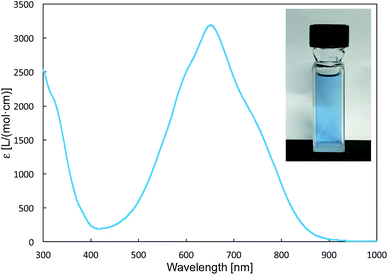

Fig. 2 UV-vis spectrum of 4 (hexane), inset: photo of a hexane solution of 4.

image file: c7sc04759b-f3.tif

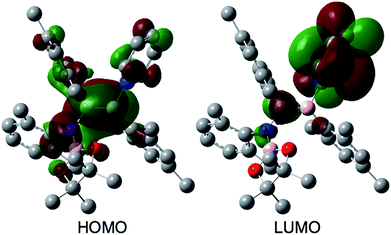

Fig. 3 Frontier orbitals of 4 calculated at the B3LYP/6-31+G(d) level of theory.

Using the same combination of reagents, albeit in higher concentration, i.e., by using pyridine as a solvent, afforded 5 (Scheme 3), which was formed via the cleavage of the B–B bond in 1 and the C–H bond in pyridine, in 81% NMR yield under concomitant formation of a small amount of 4 (16%). A single-crystal X-ray diffraction analysis revealed that 5 contains a dearomatized pyridine ring that exhibits a distorted quinoid structure, evident from the short B1–N1 and C5–C6 bond distances and the bond alternation in the pyridine ring (Fig. 4). Reflecting the restricted rotation of the substituents due to the distorted structure, the 1H and 13C NMR spectra of 5 exhibited several broad signals (cf. ESI). Reaction of 1 with two equivalents of Xyl-NC under slightly lower concentration resulted in the formation of 6, in which two carbon atoms of two isocyanide molecules were reductively coupled, and the resulting NCCN moiety was inserted into the B–B bond of 1 and the C–H bond of pyridine. A crystallographic analysis of 6 revealed an intramolecular coordination of the pyridine ring to the Bpin moiety, resulting in the formation of a spiroborate structure (Fig. 5). In solution, the 11B NMR spectrum of 6 showed three broad signals, implying an equilibrium of 1 with other isomers. This equilibrium prevented us from assigning all signals in the 1H NMR spectrum of 6 at room temperature. When a CD2Cl2 solution of 6 was cooled to −80 °C, some of the aromatic signals of each isomer, which can be distinguished by COSY measurements, changed their integration ratio to support the notion of such an equilibrium (cf. ESI). It should be noted that 5 could be considered as an intermediate for the formation of 6. This hypothesis was independently confirmed by addition of 1 equiv. of Xyl-NC to isolated 5, which result in the formation of 6 in high yield.


image file: c7sc04759b-s3.tif

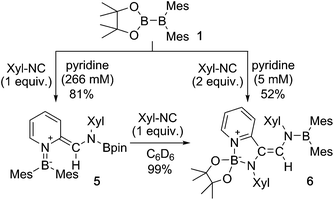

Scheme 3 Reaction of 1 with Xyl-NC in the presence of an excess of pyridine (yields estimated by 1H NMR spectroscopy. The concentration of 1 or 5 is given in parentheses below pyridine).

image file: c7sc04759b-f4.tif
Fig. 4 Molecular structure of 5 (thermal ellipsoids set at 50% probability; hydrogen atoms except for H6 omitted for clarity). Selected bond distances (Å), angles (°) and dihedral angles (°): B1–N1 1.428(4), N1–C1 1.425(4), C1–C2 1.334(5), C2–C3 1.449(5), C3–C4 1.344(5), C4–C5 1.467(5), N1–C5 1.457(4), C5–C6 1.354(4), C6–N2 1.412(4), N2–B2 1.425(5), B2–O1 1.376(4), B2–O2 1.386(4); B1–N1–C5 124.2(3), N1–C5–C6 114.8(3), C5–C6–N2 130.0(3), C6–N2–B2 118.6(3); B1–N1–C5–C6 −45.5(4), N1–C5–C6–N2 169.6(3), C5–C6–N2–B2 −167.2(3), C6–N2–B2–O1 −11.3(5).

image file: c7sc04759b-f5.tif

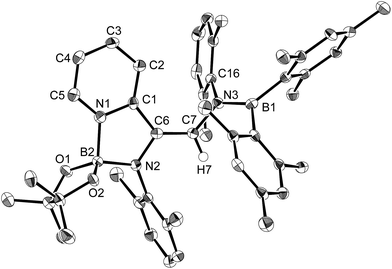

Fig. 5 Molecular structure of 6 (thermal ellipsoids set at 50% probability; co-crystallized molecules of benzene and hydrogen atoms apart from H7 omitted for clarity). Selected bond distances (Å) and angles (°): N1–B2 1.640(4), N1–C1 1.365(3), C1–C2 1.390(4), C2–C3 1.382(4), C3–C4 1.393(4), C4–C5 1.374(4), C1–C6 1.471(4), N1–C5 1.338(3), B2–N2 1.533(4), N2–C6 1.388(3), C6–C7 1.353(4), C7–N3 1.450(3), B1–N3 1.436(3); N2–B2–N1 94.5(2), C1–N1–B2 112.4(2), C6–N2–B2 116.3(2), N1–C1–C6 109.4(2), N2–C6–C1 106.9(2).

Next, we investigated the dependency of the product ratio between 4 and 5 on the concentration of 1 and the stoichiometry of pyridine in the reaction of 1 with 1 equiv. of Xyl-NC (Table 1). When pyridine was used as the solvent, dearomatized 5 was the major product for any concentration of 1 (runs 1–4). Maintaining the concentration of 1 at 266 mM, which produced the largest amount of 5 in run 1, by keeping the volume of the total solvent (0.300 mL) constant, the amount of the added toluene was varied to change the stoichiometry of pyridine (runs 1 and 5–7). Reducing the stoichiometry of pyridine led to a higher and lower yield of 4 and 5, respectively. These results indicate that the formation of 5, via a cleavage of the C–H bond requires an excess of pyridine.

Table 1 Dependency of the product ratio between 4 and 5 on the concentration of 1 and the stoichiometry of pyridine in the reaction of 1 with 1 equiv. of Xyl-NC

image file: c7sc04759b-u1.tif

Run Conc.a (mM) x (mL) y (mL) Pyridine (equiv.) Yieldb (%)
4 5
a Concentration of 1. b Estimated 1H NMR yield.
1 266 0.3 0 46 16 81
2 100 0.798 0 124 15 67
3 10 8 0 1240 15 79
4 5 16 0 2481 12 68
5 266 0.193 0.107 30 15 54
6 266 0.0970 0.203 15 22 54
7 266 0.0323 0.268 5 39 37


We also investigated the dependency of the product ratio among 3, 4 and 6 on the concentration of 1 and the stoichiometry of pyridine in the reaction of 1 with 2 equiv. of Xyl-NC (Table 2). When pyridine was used as the solvent, the yield of the C–C coupled product 6 increased upon lowering the concentration of 1 (runs 1–4), which stands in contrast to the results of Table 1. Maintaining the concentration of 1 at 5 mM, which produced the highest yield of 6 (run 4), and fixing the volume of the total solvent to 16 mL, the amount of toluene added was varied to reduce the stoichiometry of pyridine (runs 5–8). Considering that reducing the stoichiometry of pyridine led to a significant increase of 3 and 4, and that 5 is an intermediate for the formation of 6, it seems feasible to expect that a large amount of pyridine is required for the formation of 5 and 6. These results indicate that the complexation of 1 with pyridine prior to a reaction with Xyl-NC is the key step for the cleavage of the C–H bond of pyridine.

Table 2 Dependency of the product ratio among 4, 5 and 6 on the concentration of 1 and the stoichiometry of pyridine in the reaction of 1 with 2 equiv. of Xyl-NC

image file: c7sc04759b-u2.tif

Run Conc.a (mM) x (mL) y (mL) Pyridine (equiv.) Yieldb (%)
3 4 6
a Concentration of 1. b Estimated 1H NMR yield.
1 200 0.4 0 62 49 7 25
2 100 0.798 0 124 35 10 40
3 10 8 0 1240 5 9 49
4 5 16 0 2481 1 9 52
5 5 6.5 9.5 1000 6 13 50
6 5 0.645 15.4 100 20 40 18
7 5 0.0645 15.9 10 22 32 2
8 5 0.0323 16 5 28 46 1


In order to determine the mechanism for the formation of 5 and 6, a potential intermediate was synthesized and isolated from the reaction of 1 with pyridine (Scheme 4). Simple dissolution of 1 in pyridine followed by recrystallization from hexane afforded pyridine-coordinated sp2–sp3 species 7. A C6D6 solution of 7 exhibited two broad signals in the 11B NMR spectrum at δB = 37 and 26 ppm. The former signal was assigned to an sp3-hybridized BMes2 moiety, even though it is high-field shifted in comparison with the BMes2 moiety of 1 (δB = 89 ppm).18 The presence of this signal indicates that the coordination of pyridine is retained in C6D6. The sp2–sp3 structure of 7 was unambiguously determined by single-crystal X-ray diffraction analysis (Fig. 6). Despite the coordination of pyridine, the B–B bond (1.717(3) Å) of 7 was identical to that of 1 (1.722(4) Å).23,24 The hybridization of the B1 atom is slightly distorted (B2–B1–C6 = 94.31(16)°) from ideal sp3 hybridization as observed in similar sp2–sp3 diborane(4) derivatives that contain a BMes2 moiety,25 which is probably due to the steric demand of the Mes groups.


image file: c7sc04759b-s4.tif
Scheme 4 Reaction of 1 with pyridine.

image file: c7sc04759b-f6.tif

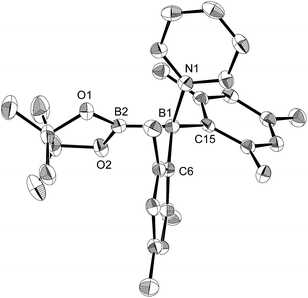

Fig. 6 Molecular structure of 7 (thermal ellipsoids set at 50% probability; hydrogen atoms omitted for clarity). Selected bond distances (Å) and angles (°): B1–N1 1.653(3), B1–B2 1.717(3), B1–C6 1.665(3), B1–C15 1.644(3), B2–O1 1.396(3), B2–O2 1.385(3); B2–B1–N1 111.34(16), B2–B1–C6 94.31(16), B2–B1–C15 119.02(17), C6–B1–C15 119.62(17), C6–B1–N1 112.34(16), C15–B1–N1 100.77(15).

Based on the product ratio and the formation of potential intermediate 7, we tentatively propose a mechanism for the formation of 4–7 (Scheme 5). In reaction mixtures of 1, Xyl-NC and pyridine, 1 should be coordinated by Xyl-NC and pyridine to form sp2–sp3 adducts 8 and 7 (Scheme 5a). According to our previous report on the reaction of 1 with tBu-NC, a boraalkene intermediate could be generated by three consecutive rearrangements, involving a pinB migration to the carbon atom of the isocyanide, a pinB capturing by the nitrogen atom, and an electrophilic migration of the Mes group toward the (push–pull-stabilized) carbenic carbon (Scheme 5b). Coordination of pyridine to the boraalkene intermediate furnished 4. This mechanism is consistent with the fact of that decreasing the amount of pyridine led to a higher yield of 4 (Tables 1 and 2). Pyridine-coordinated intermediate 7 was initially attacked by the isocyanide at the 2-position of pyridine leading to a dearomatization of the pyridine ring (Scheme 5c).26 A subsequent 1,2-hydride migration would lead to the formation of an imidoylpyridine-coordinated sp2–sp3 adduct, and an ensuing nucleophilic migration of the Bpin group to the nitrogen atom would directly afford dearomatized quinoid 5. Further coordination of a second molecule of isocyanide to 5 would induce the formation of a five-membered ring. The subsequent nitrogen-induced 1,2-hydride migration could cleave the N–B coordination bond and generate the three-membered cyclic intermediate. Breaking the azaaboracyclopropane ring should then furnish the diaminopyridylalkene intermediate. The subsequent formation of an intramolecular N–B coordination would finally generate 6.


image file: c7sc04759b-s5.tif

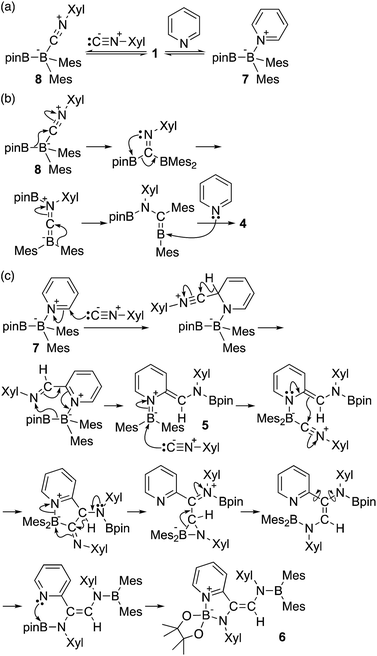

Scheme 5 Plausible reaction mechanism for the formation of 4–7.

Then, we examined the substrate scope of the present reaction with respect to pyridine derivatives (Scheme 6). In the case of ortho-substituted pyridines, such as 2-methylpyridine and 2-chloropyridine, only 2 and 3 were obtained without incorporation of pyridine-derivatives. The steric hindrance of the ortho-substituent should thus inhibit the coordination of pyridine and the subsequent reactions outlined in the proposed mechanism (Scheme 5c). In the case of pyridine derivatives that contain electron-donating or weakly electron-withdrawing groups,27 such as 3-MeO, 3-Cl and 4-MeO, pyridine-coordinated boraalkene derivatives 4a, 4b and 4c were obtained, respectively. Similar to the case of 4, 4a–c gradually decomposed in solution at room temperature, which hampered a characterization by 13C NMR spectroscopy. We were however able to confirm the formation of sp2–sp3 diborane intermediates 7a–c, which are similar to 7, through coordination of pyridine derivatives to 1 as evident from 11B NMR spectroscopy (cf. ESI). Therefore, we conclude that the nucleophilic attack of the Xyl-NC on the pyridine derivatives should be suppressed (Scheme 5c). Upon increasing the amount of Xyl-NC to two equivalents, mixtures of 2 and 4a–c were obtained. This result is consistent with Scheme 5a, where the equilibrium is shifted to the left upon increasing the amount of Xyl-NC in order to prevent the formation of pyridine-incorporated products 4a–c. When using pyridines that contain strongly electron-withdrawing groups, such as 3-CF3, 3-MeOCO, 4-CF3 or 4-MeOCO, ortho-functionalized pyridine derivatives 5a–d and 9a–d were obtained, depending on the stoichiometry of Xyl-NC. These compounds are similar to 5 and 6 in the reaction of non-substituted pyridine, although 9a–d do not exhibit intramolecular N–B coordination in the crystal structure (cf. ESI), which is probably due to the presence of the electron-withdrawing group on the pyridine. Reaction of 1 with one equivalent of Xyl-NC and 4-(N,N-dimethylamino)pyridine (DMAP) afforded oxaboretane 10 (Fig. 7), which can be considered as a ring-opened derivative of 2 upon coordination of DMAP to the boron atom in the four-membered ring. In fact, a reaction of isolated 2 and DMAP smoothly furnished 10. The reaction of 1 with two equivalents of Xyl-NC and DMAP simply afforded 3, whereby DMAP was not incorporated in the product. Thus, the balance of the coordinating ability of the pyridine derivative and the stoichiometry of Xyl-NC affects the structure of the products.


image file: c7sc04759b-s6.tif

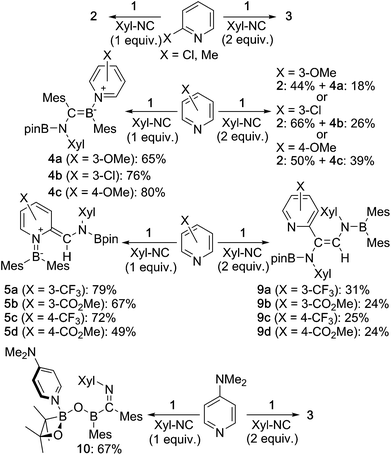

Scheme 6 Reaction of 1 with substituted pyridine derivatives and Xyl-NC (yields estimated by 1H NMR spectroscopy).

image file: c7sc04759b-f7.tif
Fig. 7 Molecular structure of 10 (thermal ellipsoids set at 50% probability; co-crystallized molecules of toluene and hydrogen atoms omitted for clarity). Selected bond distances (Å), angles (°) and dihedral angles (°): B1–O1 1.470(4), B1–O2 1.465(4), B1–C2 1.628(5), B1–N1 1.612(4), O1–B2 1.330(4), B2–C23 1.641(5), C23–N3 1.295(4); O2–B1–O1 117.0(3), O2–B1–N1 110.6(2), O1–B1–N1 105.2(2), O2–B1–C2 91.6(2), O1–B1–C2 118.4(3), N1–B1–C2 113.9(3), B1–O2–C1 91.2(2), B1–O1–B2 128.6(3), O1–B2–C23 118.1(3), B2–C23–N3 127.9(3); B1–O1–B2–C23 176.5(3), O1–B2–C23–N3 63.4(4).

The present reaction was also expanded to include N-heterocycles other than pyridines, which afforded a variety of products (Scheme 7) that were all characterized by single-crystal X-ray diffraction analysis (cf. ESI). The reaction of 1 with pyrazine and Xyl-NC furnished diboryl pyrazine 11, which contains a 1,4-dihydropyrazine core and an imine functionality that is derived from Xyl-NC (Fig. 8). The formation of 11 may be explained by a prior formation of a quinoid intermediate similar to 5a–d and a subsequent intramolecular 1,5-migration or intermolecular transfer of a Bpin group to the nitrogen atom (cf. ESI). In the case of pyrimidine, spirocyclic borate 12 with a dearomatized pyrimidine ring was obtained (Fig. 9). Although the mechanism for the formation of 12 is not clear yet, we would like to postulate a mechanism based on those for similar quinoid intermediates (cf. ESI). The reaction of 1 with pyridazine in the presence of Xyl-NC afforded ortho-quinodimethane 13 (Fig. 10), which contains two borylated nitrogen atoms. The formation of 13 could be explained by a direct addition of 1 to the N[double bond, length as m-dash]N double bond of pyridazine. Quinoline could also be used in the same reaction to give ortho-functionalized derivatives 5e and 9e, depending on the stoichiometry of Xyl-NC, similarly to the case of the formation of 5a–e and 9a–e (Scheme 5). On the contrary, isoquinoline also reacted with 1 and Xyl-NC, but C–H functionalized quinoline derivatives were not obtained.


image file: c7sc04759b-s7.tif

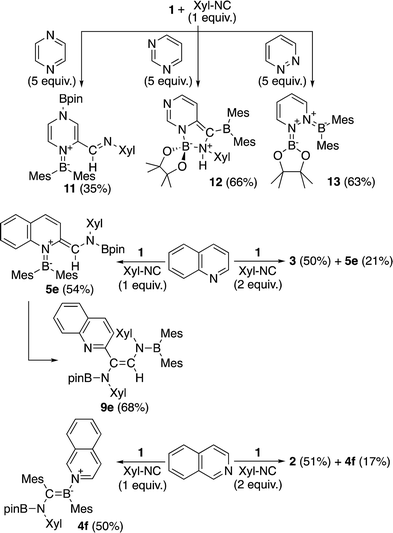

Scheme 7 Reaction of 1 with Xyl-NC in the presence of N-heterocycles other than pyridines (yields estimated by 1H NMR spectroscopy).

image file: c7sc04759b-f8.tif

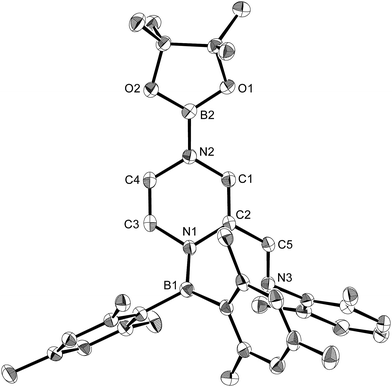

Fig. 8 Molecular structure of 11 (thermal ellipsoids set at 50% probability; hydrogen atoms omitted for clarity). Selected bond distances (Å), angles (°) and dihedral angles (°): N1–B1 1.421(2), N1–C2 1.435(2), N1–C3 1.431(2), C1–C2 1.346(2), N2–C1 1.395(2), N2–C4 1.421(2), C3–C4 1.321(3), C2–C5 1.459(2), C5–N3 1.278(2), O1–B2 1.370(2), O2–B2 1.373(2); B1–N1–C2 127.08(14), B1–N1–C3 120.90(14), N1–C2 C5 120.52(15), C2–C5–N3 122.87(15); B1–N1–C2–C5 43.8(2), N3–C5–C2–N1 6.6(3), C3–N1–C2–C1 26.6(2).

image file: c7sc04759b-f9.tif

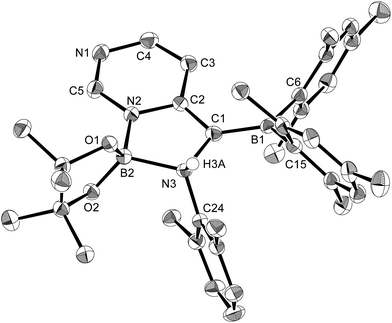

Fig. 9 Molecular structure of 12 (thermal ellipsoids set at 50% probability; hydrogen atoms except for H3A omitted for clarity). Selected bond distances (Å), angles (°) and dihedral angles (°): N2–B2 1.570(3), N3–B2 1.691(3), N2–C5 1.352(3), N1–C5 1.304(3), N1–C4 1.381(3), C4–C3 1.360(3), C3–C2 1.426(3), N2–C2 1.385(3), C1–C2 1.391(3), C1–B1 1.509(3), N3–C1 1.510(3), O1–B2 1.432(3), O2–B2 1.410(3); C5–N2–C2 120.4(2), C5–N2–B2 125.57(19), C2–N2–B2 113.99(18), N1–C5–N2 126.2(2), C3–C4–N1 124.5(2), C4–C3–C2 118.6(2), C2–C1–B1 128.1(2), C2–C1–N3 107.25(18), B1–C1–N3 123.21(19), O2–B2–O1 109.03(19), N2–B2–N3 95.50(16); C24–N3–C1–B1 −62.2(3), C24–N3–B2–O1 112.7(2), C24–N3–B2–N2 −127.28(18).

image file: c7sc04759b-f10.tif

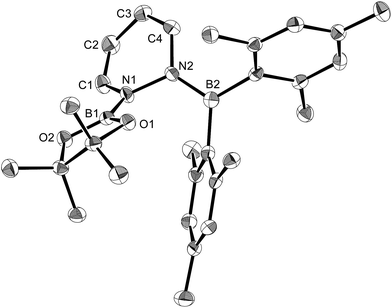

Fig. 10 Molecular structure of 13 (thermal ellipsoids set at 50% probability, hydrogen atoms omitted for clarity). Selected bond distances (Å), angles (°) and dihedral angles (°): N1–B1 1.418(3), C1–N1 1.407(3), C1–C2 1.328(3), C3–C2 1.453(3), C4–C3 1.334(3), N2–C4 1.418(3), N2–B2 1.410(3), O1–B1 1.370(3), O2–B1 1.369(3); C1–N1–B1 123.90(18), C1–N1–N2 115.70(17), B1–N1–N2 119.74(17), C2–C1–N1 119.9(2), C1–C2–C3 118.1(2), C4–C3–C2 119.7(2), C3–C4–N2 119.8(2), C4–N2–N1 112.21(16), B2–N2–C4 126.36(19), B2–N2–N1 121.17(18); B2–N2–N1–B1 58.4(3), B2–N2–N1–C1 −130.6(2), C4–N2–N1–C1 43.9(2).

The ortho-functionalized pyridine derivative 5 was then further converted (Scheme 8). Heating 5 with H2O in THF to 50 °C for 12 h afforded the aminomethylated pyridine 1428 in 76% yield. This two-step procedure to obtain 14 from non-substituted pyridine surpasses previously reported synthetic protocols which includes at least five steps.28,29 Therefore, the present method can be considered as an effective route for the functionalization of pyridine. However, limitations exist, especially for examples where the isocyanide substrate is not readily accessible. Although some metal-catalyzed ortho-functionalizations of pyridine with aldimine,30 carbon monoxide,3c and isocyanide,31 have been reported, this method is the only example for a selective formation of methylene-substituted pyridines. Also, the hydrolysis can be considered as a hydrogenative quenching of 5 under concomitant deoxygenation of water.


image file: c7sc04759b-s8.tif
Scheme 8 Hydrolysis of 5.

Conclusions

In conclusion, we have discovered a reaction of the previously reported diborane(4) pinB-BMes2 with Xyl-NC and pyridine that affords pyridine-coordinated boraalkenes, which show an intense color caused by an intramolecular charge-transfer interaction. In the presence of an excess of pyridine, the ortho C–H bond of pyridine was selectively functionalized to form a quinoid compound or an isocyanide-coupled product. Based on the concentration effect, reaction stoichiometry, and previously reported DFT calculations,18,20 a reaction mechanism was proposed that involves numerous rearrangement reactions. Substituted pyridines and other N-heterocycles can also be used in the present method to afford the corresponding functionalized derivatives. A subsequent hydrolysis of one of the resulting products furnished an aminomethylated pyridine derivative, which requires several steps when using a conventional synthetic procedure.

Conflicts of interest

There are no conflicts to declare.

Acknowledgements

This research was supported by Grants-in-Aid for Scientific Research (A) (MEXT KAKENHI, 17H01191). The authors thank Prof. T. Hiyama (Chuo University) for providing us with access to an X-ray diffractometer. Theoretical calculations were carried out using resources of the Research Center for Computational Science, Okazaki, Japan.
