A novel low-thermal-budget approach for the co-production of ethylene and hydrogen via the electrochemical non-oxidative deprotonation of ethane

Dong Ding *a, Yunya Zhang a, Wei Wu a, Dongchang Chen b, Meilin Liu b and Ting He *a
aEnergy & Environment Science and Technology, Idaho National Laboratory, Idaho Falls, ID 83415, USA. E-mail: dong.ding@inl.gov; ting.he@inl.gov
bSchool of Materials Science & Engineering, Georgia Institute of Technology, Atlanta, GA 30332, USA

Received 1st March 2018 , Accepted 28th March 2018

First published on 28th March 2018


The oversupply of ethane, a major component of natural gas liquids, has stimulated the wide applications of ethylene since the shale gas revolution. However, ethylene production is energy-intensive and represents the most energy-consuming single process in the chemical industry. In this communication, we report, for the first time, a novel low-thermal-budget process for the co-production of ethylene and pure hydrogen using a proton-conducting electrochemical deprotonation cell. At a constant current density of 1 A cm−2, corresponding to a hydrogen production rate of 0.448 mol cm−2 per day, and 400 °C, a close to 100% ethylene selectivity was achieved under an electrochemical overpotential of 140 mV. Compared to an industrial ethane steam cracker, the electrochemical deprotonation process can achieve a 65% saving in process energy and reduce the carbon footprint by as much as 72% or even more if renewable electricity and heat are used. If the heating value of produced hydrogen is taken into account, the electrochemical deprotonation process actually has a net gain in processing energy. The electrochemical deprotonation process at reduced temperatures in the present study provides a disruptive approach for petrochemical manufacturing, shifting the paradigm from thermal chemical practice to a clean energy regime.



Broader context

Ethylene, one of the largest building blocks in the petrochemical industry, is primarily used in the production of polymers and their derivatives. The predominant manufacturing routes are the steam thermal cracking of ethane and naphtha. The former has grown drastically in recent years, especially in the United States and Middle East due to the cheap price of ethane since the shale gas revolution. However, ethylene production is energy-intensive and represents the most energy-consuming single process in the chemical industry. Herein, we demonstrated concept feasibility for a low-thermal-budget and low-carbon-footprint electrochemical process for the co-production of ethylene and pure hydrogen. Compared to the industrial ethane steam cracking, the electrochemical process can achieve a 65% saving in process energy and reduce the carbon footprint by as much as 72% or even more if renewable electricity and heat are used. If the heating value of produced hydrogen is taken into account, it actually has a net gain in process energy. The success of this transformational technology can fundamentally change the petrochemical manufacturing paradigm from fossil energy fueled “thermal” practices to a “clean energy” scheme that incorporates renewable energies, leading eventually to industrial electrification.

Introduction

Ethylene, one of the largest building blocks in the petrochemical industry, is primarily used in the production of polymers and their derivatives. It reached an over 143 million tons yearly production worldwide in 2012.1 The predominant manufacturing routes by far are the thermal cracking of ethane (gas) and naphtha (liquid) feedstocks in the presence of steam (steam cracking). While naphtha steam cracking remains prevalent in Asian and European markets, the global share of ethane has grown drastically in recent years, especially in the United States and Middle East. This shift in emphasis from naphtha to ethane has been driven largely by the cheaper price of ethane (18 cents per gallon2) due to its oversupply since the shale gas revolution. Typically, the steam cracking of ethane has a conversion rate of 70%, with ethylene yields of about 50%.3 However, steam cracking is energy-intensive and represents the most energy-consuming single process in the chemical industry.4,5 For example, ethane steam cracking consumes typically 17–21 GJ (specific energy consumption, SEC) of process energy per ton of ethylene,6 of which 65% is used in high temperature pyrolysis, 15% in fractionation and compression, and 20% in product separation.7,8 It is estimated that the steam cracking process contributes 60% of the product cost and two-thirds of the manufacturing carbon footprint.

In addition to the matured industrial ethane steam cracking, the catalytic dehydrogenation of ethane has emerged by adopting highly selective catalysts such as Pt, Pd or CrOx.9 Because of the thermodynamic limitations, in particular for light carbon compounds,10 ethane conversion was greatly restrained. For example, the conversion was reported to be ∼15% at 600 °C11–13 and not more than 40% at 650–700 °C.14,15 This can be compensated by operating at higher temperatures, but side reactions, coke formation and catalyst deactivation are also accelerated.16

To improve the conversion at reduced temperatures, the oxidative dehydrogenation (oxydehydrogenation, ODH) of ethane was proposed.17 The conversion in ODH is theoretically close to unity and could bring potential energy saving of approximately 35%.6 Unfortunately, the choice of the catalysts limited its further market penetration to realize “true” ODH,18–20 especially due to the fact that the product subjected to catalyst surfaces is often oxidized more easily than the feedstock. As a result, the process must be operated at low conversions in order to reach high selectivity.21,22 This seems to be a paradox unless highly selective catalysts can be discovered.23 Moreover, the relatively low energy efficiency, higher CO2 emission and additional safety consideration are other major challenges when those variables, such as oxygen production and usage, and product combustion are taken into account.6,24 To achieve significant progress in the reduction of both the processing energy and the carbon footprint, simple process optimization may not be sufficient, owing to the maturity of the manufacturing industry (centralized and vertical integrated), where materials and energy efficiencies have been extensively optimized with a long track record of reliable operation. Therefore, it is vital to develop disruptive methods that are both low-thermal-budget (LTB) and low-carbon-footprint (LCF), aiming to fully exploit the potential of ethane as a feedstock.25

Apart from the search for better catalysts for catalytic dehydrogenation, hydrogen permeation membranes were also used to overcome the thermodynamic limit. For example, a thick SrCe0.95Yb0.05O3−δ membrane was used for the dehydrogenation of ethane at 700 °C26 and methane at 900 °C.27 Recently, Luo et al. reported the co-generation of electricity and ethylene using a proton conducting electrolyte based solid oxide fuel cell (SOFC) with ethane as the feedstock.28,29 Using a Co–Fe alloy anode catalyst, the ethane conversion increased from 13.5 to 45.4% when the temperature was increased from 650 to 750 °C, where ethylene selectivity was as high as 91%.30 Nevertheless, it should be noted that the proton conductors are actually a mixed oxygen-ion and proton conductor above 600 °C,31 so it can again be considered an ODH process. In addition, coking and fast degradation remain challenging at high operating temperatures.32–34 In fact, the concept of using protonic and oxygen ionic mixed conductors has been successfully applied for converting methane into aromatic chemicals at ∼700 °C.35

In this communication, we report an innovative approach to circumvent the current limitation of ethylene production by shifting the petrochemical manufacturing paradigm from widely used thermal practices to a clean energy regime. Specifically, we have developed a pure proton-conducting electrochemical cell for the co-production of ethylene and hydrogen via the electrochemical non-oxidative deprotonation (NDP) of ethane (400–500 °C). The electrochemical cell consisted of a superior proton-conducting electrolyte thin film, a porous anode support and a porous cathode. Ethane was fed to the anode and electrochemically deprotonated into ethylene and protons when an electrical field was applied. The generated protons transferred through the dense proton-conducting membrane to the cathode, where they combined with electrons and formed high-purity hydrogen. Fig. 1(a) is a schematic drawing of the reaction principle and the configuration of the electrochemical cell. The rate of the reaction was controlled by the flux of protons passing through the electrolyte, the kinetics of the ethane oxidation reaction (e.g., deprotonation), and the hydrogen evolution reaction. The flux of protons (H+), JH+, was controlled by the applied voltage across the membrane:

image file: c8ee00645h-t1.tif
where D, C, z, μ, φ, F, R and T are the diffusion coefficient, concentration, charge number, chemical potential, electrical potential, Faraday constant, gas constant, and temperature, respectively.


image file: c8ee00645h-f1.tif

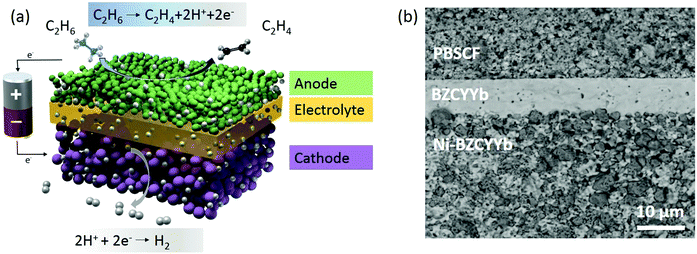

Fig. 1 Non-oxidative deprotonation process (NDP) and cell illustration. (a) Schematic of the co-production of ethylene and hydrogen via an NDP process of ethane in a proton conducting electrochemical cell. Ethane was fed into the anode and deprotonated to produce ethylene and protons, which transferred through the electrolyte membrane to the cathode and combined with electrons, and eventually formed hydrogen. (b) A cross-sectional SEM image of an actual electrochemical cell after testing at 400 °C. A porous BZCYYb-Ni anode (300 μm) supported BZCYYb electrolyte (10 μm) with a porous layer of PBSCF cathode on top (30 μm).

The electrolyte of the electrochemical NDP cells is acceptor-doped barium zirconate cerate (BaZr0.1Ce0.7Y0.1Yb0.1O3−δ, BZCYYb),36 which exhibits ionic conductivity as high as 6.2 × 10−3 S cm−1 at 400 °C with a small activation energy (Fig. S1, ESI). In addition, this type of material has a very high proton transfer number at temperatures lower than 550 °C,37 allowing pure proton conduction at high flux under reduced operating temperatures,38 where coking is restrained thermodynamically. A fully assembled cell consisted of a dense 10 μm-thick BZCYYb electrolyte thin film on a porous BZCYYb-Ni anode support (300 μm), and a porous double perovskite PrBa0.5Sr0.5Co1.5Fe0.5O5+δ (PBSCF) layer (30 μm) as a cathode (Fig. 1(b)). Ni is an excellent catalyst for the ethane oxidation reaction,39,40 and the PBSCF family has been demonstrated to be triple-conducting materials (H+/O2−/e),41 which have good activity for hydrogen evolution reactions.

Methods

Powder synthesis

BaZr0.1Ce0.7Y0.1Yb0.1O3−δ (BZCYYb) powder used for the electrolyte and anode was prepared by the solid state reaction from stoichiometric precursors barium carbonate (Sigma Aldrich, ≥99%, BaCO3), zirconium oxide (Alfa Aesar, 99%, ZrO2), cerium(IV) oxide (Aldrich, 99.9%, CeO2), yttrium(III) oxide (Alfa Aesar, 99.99%, Y2O3), and ytterbium(III) oxide (Alfa Aesar, 99.9%, Yb2O3). The powder was ball-milled for 24 h in ethanol, dried for 24 h, crushed, and calcined at 1100 °C for 10 h. The process was repeated to achieve a pure perovskite phase. The PrBa0.5Sr0.5Co1.5Fe0.5O5+δ (PBSCF) cathode material was synthesized by a glycine–nitrate process (GNP). Stoichiometric amounts of Pr(NO3)3·6H2O (Alfa Aesar, 99.9%, metal basis), Ba(NO3)2 (Alfa Aesar, 99.95%), Sr(NO3)2 (Alfa Aesar, 99.97%), Co(NO3)2·6H2O (Aldrich, 98 + %) and Fe(NO3)3·9H2O (Alfa Aesar, 98 + %) were dissolved in distilled water with an appropriate amount of glycine. The solution was heated up to 350 °C in air, followed by combustion to form a fine powder which was calcined at 600 °C for 4 h. The resulting powder was then ground and calcined again at 900 °C for 4 h.

Electrochemical cell fabrication

Button cells with a configuration of NiO-BZCYYb|BZCYYb|PBSCF were fabricated by a standard procedure. Firstly, a mixture of NiO (Alfa Aesar) and BZCYYb powder (a weight ratio of 60[thin space (1/6-em)]:[thin space (1/6-em)]40) was mixed in ethanol and toluene using a high-energy ball mill (SPEX, 8000M) for 20 min. Plasticizers and binders were added and then mixed for another 20 min to obtain a slip, which was degassed and tape-cast to form green tapes. After drying overnight, the green tape was punched into wafers (12.7 mm in diameter), followed by pre-firing at 950 °C for 2 h forming anode supports (∼0.3 mm thick). Secondly, a thin layer of BZCYYb (∼10 μm) was deposited on the anode support by a slurry coating process followed by co-firing at 1400 °C for 4 h.42 Thirdly, PBSCF ink was screen printed onto the top of the BZCYYb electrolyte and fired at 900 °C for 2 h to form a porous cathode. The active electrode area for all cells is 0.32 cm2 (Fig. S3(a), ESI).

Characterization

The phase purity of the BZCYYb electrolyte, NiO-BZCYYb anode and PBSCF cathode was examined using a Rigaku SmartLab X-Ray Diffraction (XRD) instrument in 20–90° angular range with a step of 0.04° and a resonance time of 1.6 s. The total conductivity of the BZCYYb electrolyte was measured in air between 400–650 °C using an electrochemical impedance spectroscope (EIS) from Solartron (1400 Cell Test System). The microstructure of the electrochemical cell was characterized either via SEM (JEOL 6700F) equipped with a back scattering electron (BSE) analyser, or a transmission electron microscope (TEM) equipped with an energy dispersive X-ray spectrometer (JEOL 4000 EX). Raman spectroscopic measurements were performed using a Renishaw RM1000 micro-spectrometer using a Melle-Griot Ar-ion Laser with a wavelength of 514 nm. In situ Raman measurements were performed using a pre-designed high temperature cell.

Performance testing

The electrochemical cell was sealed in a home-made reactor (Fig. S3(b), ESI) using a glass sealant (Schott, Germany). Silver mesh and platinum wire were used as the current collector and leads, respectively. A thermal couple was placed in the reactor to monitor the cell temperature. The cell was ramped up to 750 °C for 30 min and the temperature was then reduced to 500 °C during testing. Air (30 mL min−1) was used during ramping up and pure hydrogen, with a flow rate of 10 mL min−1, was switched in to reduce NiO to Ni at or above 600 °C. For each testing temperature, Ar was first swept in the anode to flush out hydrogen, and different concentrations of ethane (1%, 5%, 10%, 50% and 100%) in Ar was purged as the feedstock. In the cathode, pure oxygen was switched to pure Ar as the sweeping gas. The electrochemical NDP process started when a fixed current density was applied. The corresponding voltage was recorded over time. Gas compositions at both sides were analyzed using gas chromatography (GC, Shimadzu 2010 plus) at open circle voltage as well as when the voltage become stable.

Results and discussion

Electrochemical performance and product selectivity

The electrochemical NDP was carried out at 400 and 500 °C with ethane as a feedstock. As shown in Fig. 2(a), a constant current density of 1 A cm−2 was applied to the cell when 10% ethane in Ar was introduced. This corresponded to a proton flux of 10.37 μmol cm−2 s−1 or a hydrogen production rate of 0.448 mol cm−2 per day, which was confirmed by gas chromatography (GC) analysis on the cathode side (detailed GC data and corresponding calculations are shown in ESI). At 400 °C, the Gibbs free energy of the following reaction is 51.7 kJ mol−1, which is equivalent to a thermodynamic potential of −0.268 V.
C2H6 ⇌ C2H4 + H2

image file: c8ee00645h-f2.tif
Fig. 2 NDP performance with 10% ethane in Ar at 400 °C. (a) Proton flux and the corresponding voltage of the electrochemical cell at a constant current density of 1 A cm−2 as a function of time. An overpotential of 0.140 V was observed when the steady state was reached. (b) Ex situ Raman spectra of the anode in the electrochemical cell before (upon reduction) and after the test at 400 °C. The Raman bands of carbonaceous species were not detected, which normally appeared in the dashed rectangular area. (c) Voltage responses to the applied constant current density of 0.2, 0.5, 1.0, and 1.5 A cm−2. The data point was collected when the steady state was reached at each current density. (d) Durability test at a constant current density of 1 A cm−2. The stable voltage output over 90 h suggested durable operation.

The recorded voltage approached a constant value of −0.408 V in about 20 min, implying that a steady state had been reached. The overpotential under these conditions was calculated to be only 0.140 V. According to the conductivity of BZCYYb (Fig. S1, ESI), the Ohmic overpotential associated with the electrolyte was 0.083 V, while the overpotential contributed by electrode reactions was 0.057 V, including the ethane oxidation reaction (EOR) and the hydrogen evolution reaction (HER). The low overpotential demonstrated a successful assembly of the high-performing electrochemical cell and small electrical energy consumption.

In order to quantify the ethylene selectivity, an online GC analysis was employed to analyze the gaseous products of the electrochemical NDP. In our present study, the most possible products containing carbon species were ethylene, methane and acetylene. GC results indicated that the gaseous products were free of both acetylene and methane. In addition, both ex situ and in situ Raman spectroscopic measurements were performed to identify coke formation, which has been proven to be a powerful technique due to its chemical and surface sensitivity.43,44Fig. 2(b) shows the ex situ Raman spectra of the anode in the electrochemical cell before and after NDP testing at 400 °C. The Raman bands at the low wavenumber region correspond to the vibration bands of BZCYYb and agree well with those reported previously.45 It is obvious that no Raman band of carbonaceous species appeared in the cell after the test, as marked in the dashed region. This was further confirmed by in situ Raman spectroscopy in a predesigned in situ cell, where the cell was exposed to ethane for 45 min with an interval of 90 s (Fig. S4, ESI). These results concluded that the selectivity was close to 100%.

The relationship between current density and voltage was investigated to unveil the effect of input electrical energy on the reaction rate. As shown in Fig. 2(c), the voltages are −0.113, −0.275, −0.408, and −0.465 V at the current density of 0.2, 0.5, 1.0, and 1.5 A cm−2, respectively, when a steady state was reached at each current density. The total cell resistance, calculated from V/I, tended to decrease with the increasing current density. Further investigation, along with an electrochemical impedance spectrum, will help to gain more insight into the reaction mechanism and rate-limiting steps.

A long-term stability test was performed to confirm the durability of the electrochemical NDP as well as the materials used in the present study. Fig. 2(d) shows the voltage response at a constant current density of 1 A cm−2 with 10% ethane in Ar for over 90 h. The voltage fluctuated slightly in the range of −0.407 and −0.413 V, suggesting good durability under the operating conditions. This is also consistent with our Raman observation.

It should be noted that the small overpotential was also demonstrated with the identical current density at 500 °C (Fig. S5, ESI). However, the selectivity was expected to be decreased at 500 °C due to the coking formation, which was observed both visually and by Raman analysis (Fig. S5, ESI). The increase in the intensities of the carbon D and G bands of the Raman spectra implies an increase in the degree of coking as the temperature was increased from 450 °C to 500 °C under the operating conditions. The results suggested that the thermodynamic cracking of ethane into carbon was greatly inhibited when the temperature was reduced from 500 to 400 °C, implying the significance of reducing the operating temperatures in improving ethylene selectivity. It is further noted that hydrogen was not detectable in the anode compartment when the cell was at open circuit voltage or under operation, indicating that the catalytic dehydrogenation of ethane was minimal at 400 °C.

The relationship between the energy consumption and the ethane concentration was depicted in Fig. 3(a). The former was converted from recorded electrical voltages under equilibrium. The voltage dropped from −0.417 V to −0.395 V, which equalled a decrease in the energy input from 80.3 kJ mol−1 to 76.2 kJ mol−1, when the ethane concentration increased from 5% to 100%, while the proton flux was fixed. This indicates that the electrochemical NDP favors higher ethane concentration, whereas the ethane thermal-cracking favors lower ethane concentration,46 as shown in Fig. 3(b). For example, the conversion was reduced from 3.9% at 5% ethane to 0.9% at 100% ethane at 400 °C.


image file: c8ee00645h-f3.tif

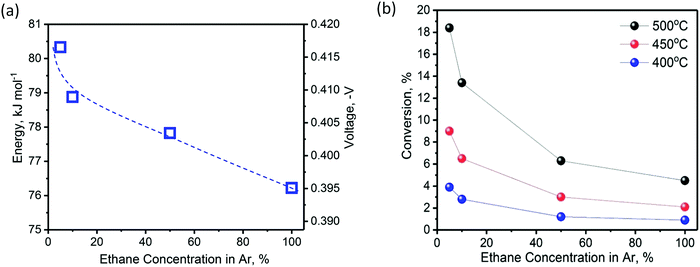

Fig. 3 Energy input vs. ethane concentration in NDP and conversion vs. ethane concentration in thermal cracking. (a) The cell voltage and corresponding energy input at a constant current density of 1 A cm−2 when equilibrated as a function of ethane concentration. The energy input decreases with the increasing concentration of ethane, indicating that NDP favors a higher ethane concentration in terms of energy consumption. (b) The calculated equilibrium conversion of ethane into ethylene as a function of ethane concentration at a constant pressure of 1 atm at 400–500 °C. The ethane conversion decreases with increasing ethane concentration, implying lower concentration is preferable with respect to the conversion in the process of thermal cracking.

Comparison of the process energy and CO2 emission in the NDP and ethane steam cracker

Based on the results at 400 °C, Fig. 4(a) shows a comparison of the process energies required in our electrochemical NDP to the industrial steam cracking in ethylene production (in kJ per mole of ethylene), where ΔH and ΔG are the enthalpy and Gibbs free energy, respectively, for the ethane conversion to ethylene and hydrogen. The industrial energy consumption from steam cracking was taken from a 2006 report, the newest publicly available and widely cited data.6,7 The typical SEC was 17–21 GJ per ton of ethylene. For simplification, the smallest energy consumption of 17 GJ per ton of ethylene production was used for comparison, of which 65% was thermal energy requirement and 35% was for fractionation, compression and separation. In contrast, our thermal and electrical energy consumptions, derived from the results above, were 3.2 and 2.8 GJ per ton of ethylene, respectively (for details, see the breakdown of the process energy consumption calculation in the ESI). It clearly indicates that our electrochemical process has a 71% thermal energy saving and about 65% total energy saving compared to industrial steam cracking. If we take the heating value of generated hydrogen into account, the electrochemical NDP process actually has a net process energy gain. It is worth noting that hydrogen generated in the electrochemical process is pure, no further separation is needed, and its can be directly used instead of being combusted as waste in the industrial steam cracking process due to its high separation cost.
image file: c8ee00645h-f4.tif

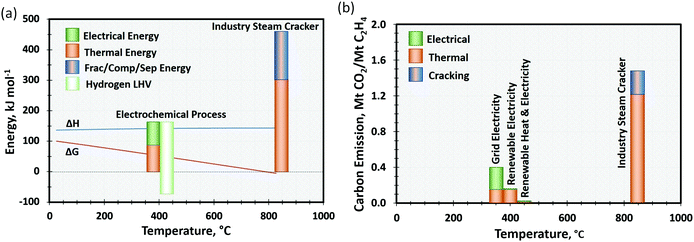

Fig. 4 Comparison of process energies and the carbon footprint in NDP and steam cracking. (a) A comparison of the process energies for ethylene production from ethane. (b) A comparison of the carbon footprint for ethylene production from ethane. The NDP was carried out at 400 °C, whereas the steam cracking was performed at 850 °C.

The electrochemical NDP also has a remarkable advantage in reducing the carbon footprint. Fig. 4(b) shows a comparison of CO2 emission in our electrochemical process to the industrial steam cracking in ethylene production (detailed breakdown calculations are summarized in the ESI). The steam cracking process emitted 0.27 ton of CO2 per ton of ethylene, and fuel combustion and utilities accounted for 1.20 tons of CO2 emissions per ton of ethylene, resulting in 1.47 tons of CO2 emission per ton of ethylene in total.6 In electrochemical NDP, there were two primary contributors to the carbon footprint: CO2 emission associated with the thermal energy supplied for ethane deprotonation and the electricity energy applied to the cell. The former gave 0.15 tons of CO2 emission per ton of ethylene, while the latter gave 0.25 tons of CO2 emission per ton of ethylene when fossil based electricity was used. This led to an over 72% reduction in the carbon footprint. Furthermore, it will result in an 89% reduction, or about one tenth of the carbon footprint of the industrial steam cracking, when renewable electricity (e.g. nuclear, wind and hydropower, which dominate the U.S. renewable energy supply47) is used. Eventually a 98% reduction in the carbon footprint can be achieved when renewable energy is used for both heat and electricity.

In comparison to the thermochemical processes of ethylene production, our work has the following advantageous implications: (1) the electrochemical process has the capability of overcoming the thermodynamic limitation, allowing operation at a reduced temperature in order to mitigate challenges associated with side reactions, coke formation and catalyst deactivation, etc.; (2) as our experimental results demonstrated, the EOR and HER are low overpotential processes at the operating temperatures, requiring a relatively small electrical energy input and having a close to unity Faraday efficiency; and (3) the electrochemical NDP can also overcome the challenge of the competitive reaction between the feedstock and the product, alleviate safety concerns and reduce the carbon footprint.

Conclusions

The co-production of ethylene and hydrogen has been successfully demonstrated through an electrochemical NDP process at 400 °C, with an ethylene selectivity close to 100% and a hydrogen generation rate of 0.448 mol cm−2 per day. Compared to the commercial ethane steam cracking process, the NDP at the reduced operating temperature can achieve a ∼65% reduction in the process energy, and a 72% reduction in the carbon footprint. Taking the estimated energy manufactured and serviced in the United States in 201648 as an example, 34% of the manufactured energy and 39% of the serviced energy were associated with industrial applications, of which 42% was consumed by the petrochemical industry. Given the intensity of energy consumption in this industry and its relevant carbon footprint, as much as 6.4 quadrillion BTU of energy could be saved (65%) if such low-thermal-budget technologies can be widely deployed. Clearly, enabling advanced process innovation in the thermodynamic and electrical domains can be disruptive for changing the manufacturing infrastructure and in establishing new businesses that drive economic prosperity.

As an emerging technology, there exists opportunities to modify electrode catalysts and proton conduction in electrolytes to further reduce the overpotential, i.e. the electrical energy consumption. Scaling-up of the electrochemical cells into a real reactor is ongoing to determine production and operation durability.
