Thermal deformations of crystal structures formed in the systems of malic acid enantiomers and L-valine–L-isoleucine enantiomers

Elena N. Kotelnikovaa, Anton I. Isakova and Heike Lorenz*b
aDepartment of Crystallography, Saint Petersburg State University, Universitetskaya emb. 7/9, 199034 Saint Petersburg, Russia
bMax Planck Institute for Dynamics of Complex Technical Systems, Sandtorstrasse 1, 39106 Magdeburg, Germany. E-mail: lorenz@mpi-magdeburg.mpg.de; Tel: +49 391 6110 293

Received 27th November 2017 , Accepted 23rd March 2018

First published on 17th April 2018


The thermal behavior of discrete phases formed in the respective systems of malic acid enantiomers and L-enantiomers of the amino acids valine and isoleucine was studied using the temperature-resolved PXRD method. In the (S)-malic acid–(R)-malic acid system, thermal deformations in crystal structures of stable compounds (enantiomer S, racemates RSI and RSII, and non-equimolar compound S3R) and polymorph transformations of metastable compounds (racemate RSIII and non-equimolar compound 3S1R) were examined. In the L-valine–L-isoleucine system, thermal deformations in crystal structures of stable compounds L-Val and L-Ile and non-equimolar compound V2I were investigated. Thermal deformation analysis included plotting the temperature dependence of the unit cell parameters and volume, calculating thermal deformation tensors, plotting figures of thermal expansion coefficients (CTE), and estimating the extent of thermal deformation anisotropy. In all the cases studied, the maximal thermal expansion was observed in the direction of the weakest hydrogen (malic acid) or van der Waals (valine and isoleucine) intermolecular bonds, i.e. in the directions closest to that perpendicular to the dimer molecule chains (malic acid) or to molecular layers (valine and isoleucine). The strongest anisotropy of thermal deformations in monoclinic crystals was observed in the ac plane, in which the symmetrically unfixed angle β can vary.


1. Introduction

In the published literature, there are many works concerning studies of phase relations in organic systems by means of temperature-resolved powder X-ray diffraction (TRPXRD). Usually, reported data are limited to temperatures of solid-phase transformations (e.g., polymorphic transitions) and determination of melting points and decomposition or sublimation temperatures. With regard to thermal expansion or thermal deformations in crystal structures, such studies are predominately considered for inorganic systems, including minerals.1–7

Examinations of thermal deformations in crystal structures of organic substances are much scarcer. This fact was mentioned by B. K. Saha8 in a recently published review that summarizes data on thermal expansion of organic crystals. Some years before, C. C. Sun9 reported statistics of such investigations based on a survey of the Cambridge Structural Database (CSD). Both reviews8,9 revealed significant progress in studies of this type within the last few decades. However, a relatively high percentage of the works concerns thermal expansion of organometallic compounds,10,11 solvates,12 and organic salts,13 while only a minority focuses on pure organic compounds14–25 and their various complexes, including co-crystals.26–29 Some authors reported thermal expansion data obtained for different polymorphs,18–24 isoskeletal compounds,25 and solid solutions.18,19 Among the papers we have found, only two works address substances formed in chiral systems, both of which published recently. An article by B. Nicolaï et al.30 presents results of the thermal expansion of L-ascorbic acid, and an article by N. Taratin et al.31 is related to thermal deformations in the crystal structures of diastereomeric L-threonine and L-allo-threonine and two particular solid solutions in this system. Chiral organic compounds participate in a vast variety of natural and industrial processes occurring at various temperatures; therefore, discovering the causalities governing their high-temperature behavior is not only of fundamental significance but also of an applied one.

This article presents results of studying thermal deformations in crystal structures of discrete phases in two chiral systems, namely, (S)-malic acid–(R)-malic acid and L-valine–L-isoleucine, using temperature-resolved PXRD. In the first system, composed of the malic acid enantiomers, non-equimolar 1[thin space (1/6-em)]:[thin space (1/6-em)]3 and 3[thin space (1/6-em)]:[thin space (1/6-em)]1 discrete compounds as well as three racemic compound polymorphs exist. L-Valine and L-isoleucine were shown to constitute a 2[thin space (1/6-em)]:[thin space (1/6-em)]1 intermolecular compound. The present work is a continuation of our previous research on these chiral systems.32–35

2. Materials and methods

2.1 Materials

(S)- and (R)-malic acid (C4H6O5) and the racemate of RSI modification, all having 98% purity, were provided by Merck Schuchardt OHG, Hohebrunn, Germany. L-Valine (C5H11NO2) and L-isoleucine (C6H13NO2) were obtained from Alfa Aesar, Massachusetts, USA with 99% purity. The techniques for preparation of intermolecular compounds in both systems and of racemic malic acid polymorphs are described in detail elsewhere.32–35

2.2 Experimental techniques

Powder X-ray diffraction (PXRD). Measurements for malic acid were performed using a Bruker D2 Phaser diffractometer (Germany) applying Cu radiation and collecting data in the 2θ range of 5–45° with a step size of 0.02°.32,33 Studies in the L-valine–L-isoleucine system were carried out using an X'Pert Pro diffractometer (PANalytical GmbH, Germany) with Cu radiation and an X'Celerator detector in a 2θ range of 3–40° with a step size of 0.017°.34 The diffraction patterns obtained were processed using an STOE WinXPOW software package. Unit cell parameters have been calculated via the least squares method using the UnitCell program. Germanium powder was used as the inner standard for peak position calibration. The ESI: Tables S1–S7 include experimentally observed and calculated values of interplanar distances d, diffraction angles 2θ and hkl indices of diffraction maxima of discrete compounds formed in the (S)-malic acid–(R)-malic acid system and in the L-valine–L-isoleucine system.
Temperature-resolved powder X-ray diffraction (TRPXRD). Malic acid system: an STOE STADI-P diffractometer (Germany) (Cu radiation) equipped with a high-temperature unit was used in air atmosphere. Temperature variation took place from room temperature to the substance decomposition point with a temperature step of 2–10 °C.36,37 L-Valine–L-isoleucine system: a Rigaku Ultima IV diffractometer (Japan) (Cu radiation) provided with high-temperature equipment was applied in air atmosphere. Temperature was varied between room temperature and the substance decomposition point with a temperature step of 20 °C. Computations of X-ray diffractograms were performed using the STOE WinXPOW software package as above. Unit cell parameters at various temperatures were calculated by means of the UnitCell program. Values of the parameters at various temperatures as well as approximation equations of their temperature dependences are given for all the compounds studied in ESI: Fig. S1–S7.

Approximated temperature dependencies of unit cell parameters were used for calculations of the crystal structure thermal expansion coefficients (CTE) α, 10−6 °C−1, along the three perpendicular axes of the thermal deformation tensor (α11, α22, α33), as well as parameters (αa, αb, αc, αα, αβ, αγ) and volume (αV). Calculated CTE values allowed plotting the figures of thermal expansion coefficients on the ac plane of the crystal structure for monoclinic compounds and plotting the 3D figure of CTE for the triclinic compound. μij is the angle between the corresponding tensor axis αii and unit cell axis j. The angle determines the orientation of the CTE figure with respect to the unit cell. Calculations of the thermal expansion tensor and plotting of the CTE figures were carried out using the programs DTC38 (monoclinic crystals) and RTT39 (triclinic crystals).

3. Thermal deformations of discrete phase crystal structures in the system of malic acid enantiomers

The binary (S)- and (R)-malic acid system (also known as L(−)- and D(+)-malic acid) has been repeatedly studied by various authors,40–46 as well as by the present authors,32,33,35–37,47 using diverse chemical, spectroscopic, diffraction, and other techniques. At present, it is stated33,35 that the phase diversity of this system includes the following discrete phases: enantiomers (S and R), equimolar racemic compounds of three modifications (RSI, RSII, and RSIII), and non-equimolar 1[thin space (1/6-em)]:[thin space (1/6-em)]3 and 3[thin space (1/6-em)]:[thin space (1/6-em)]1 stable (SR3 and S3R) and metastable (1S3R and 3S1R) compounds. The crystal structures of the S-enantiomer,41 racemates RSI42 and RSII43 and compound S3R are known.35 Detailed specifications of all the phases are given in our highlight article published recently.35 Structural peculiarities of the discrete compounds in this system are reflected in the particular character of their thermal deformations that will be described and discussed below.

3.1 Enantiomer

Earlier we reported that heating (S)-malic acid to its melting point (100 °C) did not cause any solid phase (polymorph) transformations.36 This means that heating only induces structural (thermal) deformations in the crystal structure, which should be reflected in variations of its monoclinic cell parameters (S.G. P21). The unit cell parameters were calculated using 29 peak positions (ESI: Table S1). The plotted temperature dependence of linear (a, b and c, Å) and angular (β, °) parameters and the volume (V, Å3) of the unit cell of (S)-malic acid (ESI: Fig. S1) show that all the parameters, including the volume, continuously increase with increasing temperature.

These temperature dependencies were used to calculate the coefficients of thermal expansion CTE (α, 10−6 °C−1) along the three mutually perpendicular axes of the thermal deformation tensor (α11, α22, α33), as well as the CTE of parameters (αa, αb, αc, αβ) and volume (αV) of the enantiomer monoclinic cell. The results are compiled in Table 1. In the conventional orientation of monoclinic crystals, one of the tensor axes (α22) is positioned along the direction b (the 2 or 21 axis or the axis normal to the plane of symmetry),1 and therefore, α22 = αb. In Fig. 1A, the projection of the CTE figure onto the ac plane, i.e. the plane that includes the symmetrically unfixed angle β of the enantiomer crystal structure, is shown. In order to plot a fragment of the crystal structure, the CSD data (COFRUK10)48 were applied. As seen in Fig. 1A, the maximal thermal expansion (α11) of the crystal structure of (S)-malic acid occurs along the direction of the bisector of the obtuse monoclinic angle a^c. This direction is close to that perpendicular to the elongation of dimer molecules' chains.

Table 1 Thermal deformation tensor parameters and thermal expansion coefficients α (10−6 °C−1) of the monoclinic cell parameters in the crystal structures of (S)-malic acid and malic acid racemates RSI and RSII
Compound α11 α22 α33 1μ3c = α33^c αa αb αc αβ
S 185.0 70.1 27.4 −42.0 125.0 70.1 98.0 94.4
RSI 179.0 58.5 5.88 −42.4 61.2 58.5 84.9 −92.8
RSII 14.5 59.4 183.0 −46.7 65.3 59.4 94.0 −89.6



image file: c7ce02047c-f1.tif

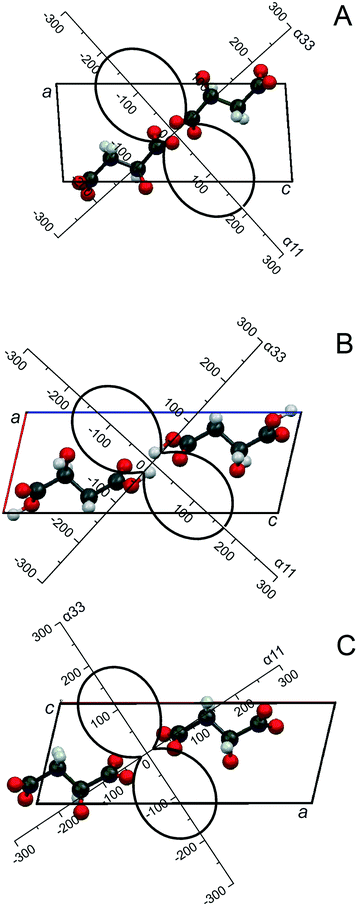

Fig. 1 Projections of the figures of thermal expansion coefficients (CTE) on the ac plane of monoclinic unit cells in the crystal structures of malic acid compounds S (A), RSI (B), and RSII (C). Only dimer molecules forming the same molecular chain are shown in unit cells.

3.2 Equimolar discrete compounds

RSI and RSII are monotropic monoclinic polymorphs of the malic acid racemic compound. Racemate RSI is a stable modification (S.G. P21/c), while racemate RSII is metastable (S.G. Cc).32,35,36 The thermal behavior of both compounds is in accordance with this. Heating racemate RSI up to its melting point (124 °C) only induces thermal deformations in the crystal structure. Metastable RSII in the vicinity of its melting point (∼120 °C) suffers from transformation into the stable modification, i.e. polymorphic transition RSII → RSI occurs,32,35 so thermal deformations of racemate RSII were only studied in the range of 25–108 °C. Monoclinic cell parameters of racemates RSI and RSII at various temperatures were calculated using 30 and 27 peak positions, respectively (ESI: Tables S2 and S3). Judging the character of their crystal structure thermal deformations, both racemates are close to each other. When the substances are being heated, linear parameters a, b, and c and the volume V of the racemates' monoclinic cells continuously increase, while the angle β decreases (ESI: Fig. S2 and S3). The decline of angle β with increasing temperature is a distinction between thermal behaviors of the racemates and (S)-malic acid, which is caused by the different orientations of the monoclinic cell in relation to the molecular chains for the racemates and the enantiomer.

The temperature dependencies were used to calculate the parameters of the thermal deformation tensor and the CTE parameters of the monoclinic cells of both racemates, given in Table 1. On that basis and applying CSD data,48 DLMALC11 (RSI) and DLMALC (RSII), the projection of the CTE figure onto the ac plane of the crystal structures of racemates RSI and RSII is plotted in Fig. 1B and C. Maximal thermal expansion of both compounds' crystal structures (α11 and α33, respectively for RSI and RSII) occurs along the direction of the bisector of the acute monoclinic angle a^c (Fig. 1B and C). This direction is close to that perpendicular to the axis of elongation of the dimer molecule chains.

Racemate RSIII was detected by the present authors32,33 and its crystallization conditions were reported in our earlier works.32,35 The melting point of RSIII (123 °C) is only one degree lower and three degrees higher than the melting points of RSI and RSII, respectively. It does not undergo polymorph transitions. This raises the question of which of the two modifications (RSI and RSIII) has to be considered as the more stable one.

Therefore, a sample consisting of a physical mixture of RSI and RSIII was prepared and used in heating experiments. The resulting PXRD patterns are shown in Fig. 2. For convenience, two of the characteristic peaks of each component are used for comparison. In the temperature range between 25 and 110 °C, the ratio of the peak intensities gradually shifted towards the RSI phase, at 120 °C, RSI became the predominating phase, and at 123 °C, the RSIII phase converted into RSI completely. Obviously, the solid–solid (polymorphic) phase transformation of one mixture component into the other in the presence of the latter49 occurred. The RSIII phase transformed into RSI in the presence of RSI. The TRPXRD results are in accordance with the DSC data, as well as with results of storing and slurring experiments.35 Thus, it was proven that the RSIII modification is metastable with respect to RSI.


image file: c7ce02047c-f2.tif

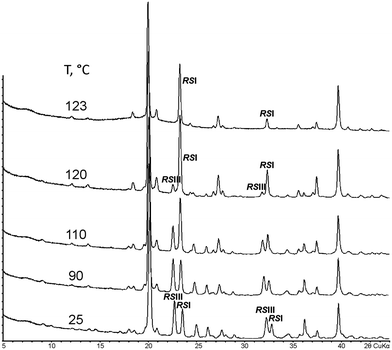

Fig. 2 PXRD patterns (2θCuKα) of a sample containing a physical mixture of equal amounts of malic acid racemates RSI and RSIII measured at various temperatures.

3.3 Non-equimolar 1[thin space (1/6-em)]:[thin space (1/6-em)]3/3[thin space (1/6-em)]:[thin space (1/6-em)]1 discrete compounds

Compound S3R was discovered some time ago,33 and its crystal structure was discussed in a previous work.35 It crystallizes in a triclinic cell and is the stable polymorph of the 1[thin space (1/6-em)]:[thin space (1/6-em)]3/3[thin space (1/6-em)]:[thin space (1/6-em)]1 discrete compound of malic acid. Triclinic cell parameters of compound S3R at various temperatures were calculated using 35 peak positions (ESI: Table S4). Heating this compound induces only thermal deformations: all the linear unit cell parameters a, b, and c, two angle parameters β and γ, and the unit cell volume V steadily increase, while the angle α undergoes continuous decrease (ESI: Fig. S4). The melting point of the compound is 117 °C.

Table 2 contains the calculated parameters of the thermal deformation tensor and the CTEs of the triclinic cell parameters of compound S3R, and Fig. 3 shows the resulting figure of its thermal expansion coefficients. The CTE figure is presented as a three-dimensional diagram for convenience and projected onto the triclinic cell of the S3R crystal structure. Data of our previous work35 were used to plot a fragment of the compound's crystal structure. It is revealed that the maximal thermal expansion (α22) of the S3R crystal structure occurs along the direction, which is substantially perpendicular to the elongation of its molecular chains.

Table 2 Thermal deformation tensor parameters and thermal expansion coefficients α (10−6 °C−1) of the triclinic cell parameters in the crystal structure of malic acids' non-equimolar discrete compound S3R
α11 α22 α33 μ1a = α11^a μ2b = α22^b μ3c = α33^c αa αb αc αα αβ αγ
63.0 146.4 2.7 59.5 55.6 35.4 91.0 87.8 34.4 28.5 55.4 32.0



image file: c7ce02047c-f3.tif
Fig. 3 The CTE figure of the crystal structure of malic acids' non-equimolar discrete compound S3R plotted as a projection onto the triclinic unit cell.

Compound 3S1R is a metastable monotropic polymorph of compound S3R.33,35 As shown in Fig. 4, with heating, it undergoes polymorphic phase transition into the stable S3R phase in the temperature range of 60–80 °C. At 110 °C, only S3R is left, which melts at 117 °C.


image file: c7ce02047c-f4.tif

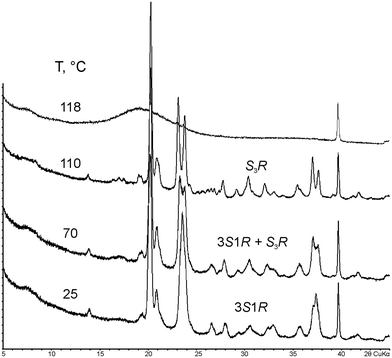

Fig. 4 PXRD patterns (2θCuKα) of malic acids' metastable non-equimolar discrete compound 3S1R measured at various (selected) temperatures.

3.4 Discussion of main characteristics of thermal deformations

In the following, both common and different features characterizing thermal deformations of the S-enantiomer, racemates RSI and RSII, and non-equimolar compound S3R of malic acid are discussed. Thermal deformations of the metastable compounds RSIII and 3S1R are not considered, since their crystal structures have not been deciphered yet.

The shapes of the CTE figures of compounds S, RSI, RSII (Fig. 1), and S3R (Fig. 3) are substantially similar reflecting the anisotropic behavior of their thermal deformations. The degree of anisotropy of crystal structure deformations in the ac plane can be expressed by the following formula:1 Δ13 = (α11α33)/(α11 + α33) providing degrees of anisotropy of 0.74, 0.94, and 0.85 for S-malic acid and racemates RSI and RSII, respectively. These values do not show considerable differences, and the least extent of thermal deformation anisotropy is observed for the enantiomer. The degrees of thermal deformation anisotropy of the S3R crystal structure in the ac, ab and bc planes can be calculated accordingly: Δ13 = (α11α33)/(α11 + α33) = 0.91, Δ21 = (α22α11)/(α22 + α11) = 0.40, and Δ23 = (α22α33)/(α22 + α33) = 0.96. Thus, the least anisotropic deformation occurs in the ab plane which can also be seen at the CTE figure of S3R in Fig. 3.

It is obvious that thermal expansion is inversely proportional to the strength of bonding between molecules or atoms. Hydrogen bonds between the molecular chains in the crystal structures of all studied compounds are much weaker than the bonding within the chains. For example, the average distance between molecules within the chains (O…O distance) in racemate RSI is 2.675 Å, while the O…O gap between these chains is not less than 2.859 Å.48 Consequently, when heating the substance, the space between the chains increases more intensely than that between molecules inside the chains. Therefore, the maximal thermal expansion occurs in the direction nearing the perpendicular to the elongation of the molecular chains. The deviation from the perpendicular does not exceed 17°. This deviation can also be indicative of shear deformations occuring in the crystal structure together with thermal deformations. The shear deformations cause shifting (slipping) of the dimer chains in relation to each other in the direction of their elongation. The shear deformations correlate with changes of the unit cell angle parameters, which are not symmetry-fixed.1 In the case of monoclinic crystals, this is the angle β, and in the case of triclinic crystals, these are angles α, β, and γ.

Depending on the crystal structure orientation with respect to coordinate axes, the directions of the maximal and minimal expansion are the tensor parameters α11 and α33 (S and RSI), α33 and α11 (RSII), and α22 and α33 (S3R), respectively (Tables 1 and 2). The maximal expansion direction in the monoclinic crystals of (S)-malic acid and racemates RSI and RSII lies along the bisector of the angle between the a and c(a^c) axes (Fig. 1). When the S-enantiomer is heated, the β angle increases (ESI: Fig. S1). The bisectors corresponding to the directions of the greatest and weakest expansions divide the related obtuse angle a^c and its adjacent angle in halves (Fig. 1A). Heating racemates RSI and RSII causes the β angle to decline (ESI: Fig. S2 and S3), while the bisectors corresponding to the directions of the maximal and minimal expansions halve the acute a^c angle and its adjacent angle, respectively (Fig. 1B and C).

The relative volume expansions, ΔV, of all the discrete compounds are rather close, being 2.1%, 2.3%, 2.2%, and 3.0% for S, RSI, RSII, and S3R, respectively. These values, however, were defined in the individual temperature ranges confined by the existence range of each compound, i.e. from room temperature to the melting point. As the latter differ, the correct way to compare ΔV of various compounds is to define a common temperature range, e.g., from ∼25 to 100 °C. In this case, the relative volume expansions of discrete compounds S, RSI, RSII, and S3R are 2.1% 1.8%, 1.9%, and 1.4%, respectively.

The S-enantiomer has the lowest melting point in the system. It is composed of alternating layers of molecules of the same chirality (–SSSS–), has hydrogen contacts between the molecular chains, and has the least value of Δ13 and the greatest ΔV. Compounds RSI, RSII and S3R exhibit relatively high melting points. The racemates contain alternating chains of molecules of different chiralities, i.e.SRSR–, while compound S3R is composed of alternating homochiral (–SSSS–) and heterochiral (–SRSR–) chains.35 Racemate RSI is characterized by the presence of hydrogen bonds between the molecular chains and a relatively high ΔV value, while RSII is distinguished by the absence of such bonding and a relatively small ΔV. Compound S3R has a triclinic cell and shows significantly lower volume expansion in comparison with the enantiomer and the racemates. The triclinic cell provides greater space for shear deformations, since it contains three non-fixed angle parameters α, β, and γ. Shear deformations can partially compensate thermal expansion. Most significant thermal deformations in the crystal structure of compound S3R were observed in the ac and bc planes, as shown by the related Δ13 and Δ23 parameters.

4. Thermal deformations of discrete phase crystal structures in the system of L-valine and L-isoleucine

This enantiomeric system is composed of two different natural L-amino acids, i.e. L-valine and L-isoleucine. The two molecules differ by one additional methylene group in isoleucine, resulting in an extra chiral center. According to our data35,37 and the literature,50 both substances sublime when heated. Thus, DSC, commonly used for melting point and melt phase diagram determination, is not applicable. The single system components were studied in other works;51–55 the whole binary system L-Val–L-Ile was investigated by Koolman and Rousseau,56 Kurosawa et al.,57 and the present authors34,35,37 as well. A distinguishing feature of this system is the formation of a non-equimolar discrete 2[thin space (1/6-em)]:[thin space (1/6-em)]1 compound V2I (with V and I for L-Val and L-Ile, respectively),34,35 which is the only example of a non-equimolar compound known, whose crystal structure contains molecules of different amino acids of the same chirality. The crystal structures of the compounds in the system are already established (L-Val,51 L-Ile,52 and V2I compound34).

Results of TRPXRD investigations demonstrated that L-Val, L-Ile, and V2I do not undergo any solid phase (polymorphic) transformations,37 which is supported by the temperature-resolved diffraction patterns shown in ESI: Fig. S8A–C. Therefore, the discussion below concerns the results of studying thermal deformations of the above-mentioned discrete phases.

4.1 Valine and isoleucine enantiomers

The monoclinic cells of Val and Ile enantiomers (both S.G. P21) are characterized by two crystallographically independent positions of the molecules. Calculations of L-Val and L-Ile unit cell parameters at various temperatures have been performed using 20 and 16 peak position values, respectively (ESI: Tables S5 and S6). Heating samples of L-valine and L-isoleucine causes all the linear parameters a, b, and c, as well as the volume V of the monoclinic cells to increase, while the angle parameter β decreases (ESI: Fig. S5 and S6, respectively). Sublimation of L-Val starts at 205 °C, while sublimation of L-Ile starts at 215 °C, both of which are accompanied by the onset of partial decomposition (see ESI: Fig. S8). The calculated parameters of the thermal deformation tensor and thermal expansion coefficients of the monoclinic cell parameters of Val and Ile are given in Table 3; the figures of the thermal expansion coefficients of the related crystal structures are shown in Fig. 5A and B, respectively. CSD data (LVALIN01 and LISLEU02)48 were used to plot projections of the Val and Ile crystal structure fragments onto the ac plane of their monoclinic cells. As seen, the directions of maximal thermal expansion α33 (Val) and α11 (Ile) in the ac plane of both enantiomers' crystal structures are close to that perpendicular to the molecular layers.
Table 3 Thermal deformation tensor parameters and thermal expansion coefficients α (10−6 °C−1) of the monoclinic cell parameters in crystal structures of L-Val, L-Ile and non-equimolar discrete compound V2I
Compound α11 α22 α33 μ3c = α33^c αa αb αc αβ
L-Val 17.6 67.1 82.9 77.0 21.3 67.1 79.6 −18.9
L-Ile 53.3 54.6 12.4 −36.0 22.8 54.6 39.2 −22.3
V2I 11.6 54.6 84.0 101.5 76.6 54.6 14.5 −21.3



image file: c7ce02047c-f5.tif
Fig. 5 Projections of the CTE figures on the ac plane of monoclinic unit cells in the crystal structures of compounds Val (A) and Ile (B) and discrete compound V2I (C) (adapted from ref. 37).

4.2 Non-equimolar discrete compound V2I

The monoclinic cell of the V2I compound (S.G. C2) comprises eight molecules, so it is doubled in comparison to monoclinic cells of Val and Ile.34 This is because of the neighboring molecular layers, which are symmetrically non-equivalent in the compound V2I, and the translation, which is perpendicular to them, involving two layers. Each of the two independent molecular positions is characterized by mixed population, i.e. it can be occupied either by valine or isoleucine molecules.34,35 Calculations of unit cell parameters at various temperatures have been performed using 12 peak position values (ESI: Table S7). At elevated temperatures, compound V2I behaves similarly to L-valine and L-isoleucine. When heated, the crystal structure exhibits solely thermal deformations: all the linear parameters a, b, and c and the volume V of its monoclinic cell continuously increase, while the angle β decreases (ESI: Fig. S7). The substance sublimes at 215 °C. Table 3 summarizes the calculated parameters of the thermal deformation tensor and thermal expansion coefficients of the monoclinic cell parameters, and Fig. 5C shows the corresponding CTE figure of the compounds' crystal structure. A projection of a fragment of its crystal structure onto the ac plane was plotted using the data of our previous work.34 It can be derived that the direction of the maximal thermal expansion α33 of the V2I crystal structure is close to that perpendicular to the molecular layers.

4.3 Elucidation of main characteristics of thermal deformations

A very detailed analysis of molecular packing in the crystal structures of valine, isoleucine and compound V2I is provided in our previous works.34,35 In particular, it should be mentioned here that all three compounds' molecules form hydrogen-bonded dimer molecules which are combined in layers via identical frameworks of relatively strong hydrogen bonds. This means that differences in the thermal behavior of the crystal structures of Val, Ile, and V2I are generally attributed to different principles of connection between the molecular layers via relatively weak van der Waals forces. Consequently, thermal deformations in the crystal structures of these discrete compounds occur mostly via elongation of the distances between the molecular layers. Peculiarities of the thermal expansion of the Val, V2I, and Ile crystal structures are more clearly seen in the projections of their CTE figures onto the ac plane of their monoclinic cells (Fig. 5). Projections plotted for all the three compounds are similar in shape. However, considering the parameters of the thermal deformation tensor and the orientation of the CTE figure projections in relation to the monoclinic cell axes, a closer similarity is observed between the CTE figures of Val (Fig. 5A) and compound V2I (Fig. 5C). Parameters of the thermal deformation tensor of the Ile CTE figure (Fig. 5B) have lower values, and the rotation angle of the figure with respect to the a and c axes of the monoclinic cell differs from that of the Val and V2I CTE figures.

The calculated degrees of thermal deformation anisotropy, Δ13, in the crystal structures of L-Val, L-Ile, and compound V2I are 0.65, 0.62, and 0.76, respectively. The differences between these values are not too great; however, compound V2I shows a slightly higher degree of deformation anisotropy than the others. The directions of the maximum thermal expansion in the three crystal structures are close to those perpendicular to the molecular layers, while the directions of the minimum thermal expansion lies on the plane of the molecular layer.

Relative volume expansions ΔV of enantiomers Val and Ile and compound V2I are 2.6%, 2.0%, and 2.5%, correspondingly. The beginning sublimation temperatures are found at 205 °C for Val and at 215 °C for Ile and compound V2I (±5 °C). Despite the analogous order of the molecular layer packing in the crystal structures of Val and Ile, the differences in their thermal expansions and the beginning sublimation temperatures are significant. In contrast, the extent of thermal expansion in the Val crystal structure is close to the corresponding parameters of compound V2I despite their different arrangements of molecular layers.

These relative similarities and dissimilarities in the thermal behavior of Val, V2I and Ile can be understood from quantitative estimation of the number of van der Waals contacts between the molecular layers in crystal structures of the compounds being studied.34,35 The reason for the relatively lower or higher number of contacts between the related molecular layers in Val and Ile is the nature of the end group, which is a hydrogen atom in the Val molecule and a methyl group in Ile. Therefore, the V2I compound (Val[thin space (1/6-em)]:[thin space (1/6-em)]Ile = 2[thin space (1/6-em)]:[thin space (1/6-em)]1) is similar to Val in terms of the number of van der Waals contacts. This explains why the volumetric thermal expansion αV of the V2I crystal structure is only slightly lower than that of Val, but significantly higher than that of Ile (Table 4).

Table 4 Coefficients of volumetric thermal expansion αV (10−6 °C−1) of the unit cells in crystal structures of phases in the systems of malic acid enantiomers, valine and isoleucine enantiomers, and threonine diastereomers30
(S)-Malic acid–(R)-malic acid L-Valine–L-isoleucine L-Threonine–L-allo-threonine30
Compound αV Compound αV Compound αV
S 282 L-Val 168 L-Thr 109
RSI 244 L-Ile 120 (L0.34,L-a0.66)-Thr 117
RSII 257 V2I 150 (L0.90,L-a0.10)-Thr 119
S3R 212     L-aThr 107


5. Summary and conclusions

The thermal behavior of the discrete compounds formed in the system of malic acid enantiomers and in the system composed of L-enantiomers of two different amino acids, valine and isoleucine, has been studied at elevated temperatures.

In the (S)-malic acid–(R)-malic acid system, the only changes the stable discrete compounds (enantiomers, racemate RSI and non-equimolar compounds S3R and SR3) undergo in the temperature range up to their melting point are thermal deformations (thermal expansion). This conclusion is supported by monotonically increasing or decreasing curves in the temperature dependencies of the monoclinic (S, RSI) and triclinic (S3R) unit cell parameters. Thermal deformation data obtained for discrete malic acid compounds as well as the figures of their thermal expansion coefficients are concordant with the peculiarities of the crystal structures of these phases. In all of these cases, maximal thermal expansion occurs in the direction which is close to that perpendicular to the plane of dimer molecule chains. In general, the shapes of thermal expansion figures of all studied crystal structures are similar and reflect the anisotropy of thermal deformations, where a noticeable part consists of shear deformations. In contrast, when heated, the metastable discrete compounds (racemates RSII and RSIII and compounds 3S1R and 1S3R) also experience thermal deformations, but in addition, in the vicinity of their melting points, they convert into stable phases as follows: RSII → RSI, RSIII → RSI, and 3S1R (1S3R) → S3R (SR3).

In the L-valine–L-isoleucine system, all discrete phases existing (L-Val, L-Ile and non-equimolar compound V2I) are stable. In the temperature range up to their respective sublimation temperatures, they show only thermal deformations, and the direction of their maximal thermal expansion is close to that perpendicular to the plane of their molecular layers. The reason for the differences observed in sublimation temperatures, volumetric expansion values, degrees of thermal deformation anisotropy and orientations of projections of the CTE figures in relation to the monoclinic cell axes arises from the different proportions of hydrogen atoms and methyl groups present in the molecule and, correspondingly, from the different proportions of van der Waals contacts between molecular layers in the crystal structures of L-Val, L-Ile and V2I.

Thermal deformations in the discrete phases discussed show certain similarities: 1) with thermal deformations of diastereomers and solid solutions in the amino acid L-threonine−L-allo-threonine system recently studied by the authors31 and 2) with thermal deformations of L-ascorbic acid published by B. Nicolaï et al.30

The system of the levorotatory diastereomers of threonine (C4H9NO3) is a representative of a rare class of chiral systems forming continuous solid solutions. When heated, both diastereomers, L-threonine (L-Thr) and L-allo-threonine (L-aThr), and the investigated solid solutions of composition (L0.34,L-a0.66)-Thr and (L0.90,L-a0.10)-Thr, experience only thermal deformations. The degree of thermal deformation anisotropy of the orthorhombic cells (S.G. P212121) varies depending on the composition. The most significant manifestations of anisotropy were observed for the single diastereomers; even negative thermal expansion was obtained in the direction close to the plane of the molecular layer. Anisotropy manifestations are considerably weaker in solid solutions; the greater the concentration of the admixture molecules in the crystal structure, the weaker the anisotropy nature. Such thermal behavior is based on different numbers, lengths, and geometries of hydrogen contacts.31 We think that peculiarities of thermal behavior of the discrete phases in the systems discussed above have a similar basis. The values of volumetric thermal expansion of phases formed in the system of malic acid enantiomers, valine and isoleucine enantiomers and threonine diastereomers are compared in Table 4.

According to Nicolaï et al.,30 L-ascorbic acid (C6H8O6) does not undergo polymorphic transitions when heated. Its monoclinic cell parameters (S.G. P21) linearly increase and the thermal expansion of its crystal structure is anisotropic in the observed temperature range (110–440 K). The maximal expansion is found along the b axis. Hydrogen bonding is practically perpendicular to this axis.30 In other words, hydrogen bonding occurs mostly within molecular layers. Therefore, the maximal thermal expansion takes place in the direction of the weak intermolecular forces, i.e. in the direction which is perpendicular to the molecular layers. This interpretation agrees with our discussion of thermal deformations for discrete compounds in the three chiral systems mentioned above. Further, the volumetric thermal expansion value of αV = 120 × 10−6 K−1 for L-ascorbic acid30 is comparable to the data provided for discrete compounds in Table 4.

The extent of thermal expansion of the linear unit cell parameters and volume of inorganic crystal structures1 is usually 1.5–2 times less than the corresponding values found in organic compounds (including chiral compounds). This is caused by the presence of hydrogen and van der Waals intermolecular bonds in the crystal structures of organic substances, which are significantly weaker than covalent, ionic, and metal chemical bonding in the structures of inorganic substances. The degree of anisotropy of the crystal structure thermal expansion of organic compounds is governed by the number and direction of hydrogen bonds. Thus, the value and anisotropy of thermal expansion (or compression) are general characteristics of crystalline materials and can be used to derive correlations of the composition–structure–properties type. Ascertainment of such correlations in chiral systems is essential for crystal chemistry and technology.

Conflicts of interest

There are no conflicts of interest to declare.

Acknowledgements

The investigations were performed using equipment of the Resource Centre “Centre for X-ray Diffraction Studies” of SPSU and equipment of the MPI Magdeburg PCF Lab. The authors thank Dr. M. G. Krzhizhanovskaya, Dr. L. Yu. Kryuchkova, Dr. S. N. Bocharov, and Dr. A. A. Zolotarev Jr. for their collaboration. The authors appreciate the financial support provided by the Saint Petersburg State University Foundation (NIR 2/15, project 3.38.243.2015) and the Russian Foundation for Basic Research (Project 16-05-00837-a). Open Access funding provided by the Max Planck Society.
