Intracellular investigation on the differential effects of 4 polyphenols on MCF-7 breast cancer cells by Raman imaging

A. Mignolet a, B. R. Wood b and E. Goormaghtigh *a
aCenter for Structural Biology and Bioinformatics, Laboratory for the Structure and Function of Biological Membranes; Université Libre de Bruxelles, Campus Plaine, Bld du Triomphe 2, CP206/2, B1050 Brussels, Belgium
bCentre for Biospectroscopy, School of Chemistry, Monash University, Victoria 3800, Australia

Received 4th September 2017 , Accepted 30th November 2017

First published on 1st December 2017


The past decades have seen significant interest in the study of polyphenolic compounds as potential therapeutic agents in medicine because they display a vast array of cellular effects beneficial to treat or manage a plethora of chronic diseases including inflammatory diseases, cardiovascular abnormalities and several types of cancer. These compounds act at different stages of carcinogenesis but deciphering their mode of action is a complex task. Live MCF-7 breast cancer cells were investigated using Raman imaging to evaluate the perturbations induced after incubating cells with four different polyphenols: EGCG, gallic acid, resveratrol and tannic acid. First, clear spectral changes could be observed between the spectra of the cytoplasm and the nucleus of live MCF-7 cancer cells demonstrating a difference in their respective global chemical composition. The treatments induced significant modifications in the cells but no clear common pattern of modifications from the 4 drugs could be observed in the cell spectra in the 1800–600 cm−1 region. The high spatial resolution of Raman confocal microscopy enabled both the nucleus and cytoplasm to be independently targeted to study the impact of the polyphenols on the cell line. Positive spectral variations at 2851 cm−1 and 2920 cm−1 as well as in the 1460–1420 cm−1 and 1660–1650 cm−1 spectral regions inside cell cytoplasm reflected an increase of the lipid content after exposure to polyphenols. Lipid accumulation appears to be an early biomarker of drug-induced cell stress and subsequent apoptosis. Interestingly an increase of cytochrome c into the cytosol was also induced by EGCG. These multiple events are possibly associated with cell apoptosis. In conclusion, Raman micro-spectroscopy provides a complementary spectroscopic method to realize biological investigations on live cancer cells and to evaluate the effects of polyphenols at the subcellular level.


Introduction

Polyphenolic compounds constitute one of the largest groups of plant metabolites. They display a vast array of molecular structures and cellular effects. In the past few decades, significant advances enabled researchers to investigate the potential use of phytochemicals to treat or manage a plethora of chronic diseases including inflammatory diseases, cardiovascular abnormalities and various types of cancers.1 In fact, antitumor properties of some polyphenols such as curcumin have been shown to affect the different stages of carcinogenesis.2,3 To better understand the effects of polyphenolic treatments on breast cancer cells for improved targeted therapies, a study of the metabolic modifications induced by polyphenols at subcellular level is required.

The range of cellular effects induced by a polyphenol can be very broad and therefore difficult to assess. In the last few years, vibrational spectroscopy, including Fourier transform infrared (FTIR) spectroscopy and Raman spectroscopy have been extensively applied to address various biomedical questions. Raman micro-spectroscopy (RMS) is a vibrational technique that enables molecular imaging of live cells at the cellular level. The Raman effect relies on the inelastic photon scattering of incoming monochromatic laser light (visible, near infrared or near-ultraviolet range laser) by the molecules of a sample. It combines high spatial resolution and non-destructive chemical analysis of biological samples.4,5

Almost all molecules are Raman active, so no external label is required and each biochemical constituent possesses a specific vibrational spectrum that can be used as potential biomarkers.6,7 Therefore the assessment of the global molecular composition of any biological sample, and even the detection of any disturbance of that composition, is possible. Moreover, because water is a weak Raman scatterer, the technique is ideally suited to investigating live cells. The main drawback of the technique is the low Raman scattering efficiency of biological macromolecules. This has been largely overcome by the emergence of high-quality lasers, very sensitive CCD cameras and high quality optical elements that allow the detection of Raman scattered light with much more efficiency.7

Early works on living cells using Raman spectroscopy were realized back into the 90s when Puppels and his team performed Raman spectroscopic measurements on chromosomes in a living Drosophila cell.7,8 The high spatial resolution enabled single cell analysis and provided information at the subcellular level.9,10 This paved the way for many investigations into various biological phenomena using RMS such as the identification of pathological states of cells, the monitoring of their differentiation, transformation and viability and providing insights into the metabolism and the intracellular chemical reactions.11

More recently, considerable advances enabled its use in various medical applications e.g. real-time in vivo cancer diagnosis (early detection of cancer),12,13 Alzheimer's disease early-diagnostics14 or even in-depth investigation of malaria15–17 at both the cellular and molecular level. As a potential clinical tool for cancer diagnosis, RMS combined with statistical methods enabled the discrimination of malignant and pre-malignant biochemical changes and the difference between normal and cancerous tissues and cells.18–21 Due to its high sensitivity and specificity to molecular and structural changes, RMS has become a cutting-edge tool to follow changes in bio-cellular processes. It is now well demonstrated that RMS is a well-suited tool to detect and monitor alterations in biochemical composition over time at the subcellular level.9,22

In the presence of polyphenols, breast cancer cells experience a large variety of biochemical modifications.23,24 By providing a unique fingerprint of the metabolic effects of drugs in vitro, this spectral technique could help obtain a more global and accurate insight into the multiple biochemical processes mediated by drugs. Understanding the biological events that are taking place at a cellular and subcellular level after exposure to a drug would contribute significantly to the development of more specific and personalized chemotherapies.25 Here a study at the subcellular level was performed on live MCF-7 breast cancer cells to evaluate the perturbations caused within the cells by four polyphenols: epigallocatechin gallate (EGCG), gallic acid, resveratrol and tannic acid. MCF-7 cancer cells were exposed to polyphenols at their respective IC50 during 24 hours before recording the Raman images.

Materials and methods

Cell culture

The human mammary breast cancer cell line MCF-7 was acquired from the American Type Culture Collection (ATCC, Manassas, VA) and was maintained according to the supplier's instructions. The cells were grown in a constant humidified atmosphere of 5% CO2 in air and were kept in exponential growth in α-MEM medium supplemented with 10% fetal bovine serum (FBS), 2% penicillin/streptomycin (an antibiotic solution) and 1% L-glutamine. Cell culture medium and antibiotics were purchased from Lonza Australia and the FBS from Life Technologies (Thermo Fisher Scientific Australia).

Drug concentrations used throughout this work to treat the cancer cells are the IC50 concentrations defined as the drug concentration required for decreasing the global growth of a given cell population by 50% after 72 h of cell culture. This concentration was evaluated for each studied drug using an adenosine triphosphate (ATP) monitoring system in cultured mammalian cells based on firefly luciferase. This cell viability test is based on a luminescence assay measuring the ATP using the firefly luciferase–luciferin system (ATP kit, ATPlite, PerkinElmer; USA).26 Thus, ATP is a marker for cell viability and its concentration decreases quickly when cells undergo necrosis and apoptosis. MCF-7 breast cancer cells were seeded in 96-microwell plates with 4000 cells per well and incubated for 24 h to ensure adequate cell adhesion before treatment. Cells were then exposed to increasing concentrations of polyphenols from 10 nM up to 100 μM for 72 h and treated-cell population growth was compared to the control one (non-treated cells) by means of the ATP assay. The number of living cells left after 72 h of exposure to the various compounds (or in absence of any treatment) is directly proportional to the intensity of the light emitted caused by the reaction of ATP with added luciferase and luciferin. The measure of light emitted was performed using a Berthold luminometer. Each experiment was carried out in sextuplicate.

Raman spectroscopy

Raman images were recorded using a WITec Confocal Raman Microscope (WITec alpha300 R, Ulm, Germany) equipped with an air cooled solid state laser working at 532 nm. For sample preparation, 400[thin space (1/6-em)]000 cells were seeded onto Raman grade CaF2 windows, and incubated for 24 h to ensure adequate cell adhesion to the substrate before treatment. The Raman grade CaF2 windows were purchased from Crystran (Dorset, United Kingdom). The cells were counted using a Neubauer cell counter and the number of cells was determined to reach about 70% of confluence after 48 h of incubation. Once the cells were exposed to the drug for 24 hours, the CaF2 slide was retrieved and placed into two baths of PBS (5 to 10 seconds each) prior to measurements to remove residual culture media. The slide was then immersed in PBS to maintain cells under osmotic conditions for at least 3 hours while recording Raman images. From each slide, 2 maps of 60 μm × 60 μm were collected with an integration time of 1 second. The spectra were collected every 1 μm. The laser power was never set higher than 10 mW to avoid damaging the cells.

Data analyses

Preprocessing. Raman images of live cells under the different conditions were pre-processed to maximise the signal and minimise the noise. Cosmic rays were removed using the WITec Project Plus Software. The next steps were background removal, baseline correction and vector normalization. They were all carried out by Kinetics, a custom-made program running under Matlab (Matlab, Mathworks Inc.). For each Raman image, pixels where the signal-to-noise ratio was under 8 were discarded (turned to black in the image), with the noise defined as the standard deviation in the 2000–1900 cm−1 region of the spectrum and the signal as the maximum of the curve found between 1600 and 1400 cm−1 after subtraction of a baseline passing through these two points. A background was then removed for each Raman image by subtracting the mean of all the spectra with a signal-to-noise ratio (SNR) smaller than this threshold. This criterion allowed collecting automatically the spectra from regions without cells. Spectra were finally baseline corrected (straight lines were interpolated between the spectral points at 3100, 3045, 2799, 2672, 1806, 1524, 1188, 1024, 804, 632, 613, 509 and 504 cm−1 and subtracted from each spectrum). Spectra were then vector normalized on the 1800–600 cm−1 spectral region.
Difference spectra and Student t-test. Difference spectra were built by subtraction of the mean spectrum of control cells from the mean spectrum of cells exposed to the treatment. This procedure allowed the emphasizing of the spectral variations present between the two conditions. Student t-test was then computed at every wavenumber with a significance level α of 5%. Wavenumber values where a significant difference was observed are indicated by black stars in the difference spectra (polyphenol-treated minus untreated).
Statistical analyses. A Raman spectrum contains about 1000 wavenumber variables depending on the range and spectral resolution. As the number of variables is very large principal component analysis (PCA) was performed on the entire Raman spectral data set. PCA enables reduction of the number of variables by matrix decomposition into a small number of new uncorrelated variables called principal components (PCs). The first PC accounts for the majority of variance present in the dataset and the second PC the second most variance and so on. Pre-processing, Student t-test and statistical analyses were also carried out by Kinetics.

Results

Determination of IC50 growth inhibitory concentrations for 4 polyphenolic compounds

The IC50 (concentration required to decrease cell growth by 50% after 72 hours) of the 4 polyphenols was evaluated for the MCF-7 breast cancer cell line using the ATP cell viability assay. This is a common method in pharmacology to normalize and compare the effects of various cytostatic/cytotoxic drugs. The IC50 values are summarized in Table 1 and vary between 10 and 60 μM.
Table 1 IC50 of the 4 polyphenols used in this work concentration reducing cell growth by 50% after 72 h. IC50 values were determined using the ATP viability assay (see the Materials and methods section). Each measurement has been performed in triplicate and the mean (with its respective standard deviation) is indicated in the table
Polyphenols MCF-7
IC50 (μM)
Tannic acid 17.7 ± 3.4
Gallic acid 54.9 ± 16.9
Resveratrol 9.6 ± 2.5
EGCG 34.6 ± 5.8


Raman images of untreated MCF-7 cells: nucleus versus cytoplasm compartment

Raman images of live MCF-7 breast cancer cells were recorded. Following image processing, the cell spectra were extracted for subsequent analysis. First we extracted the spectra associated with whole cells and a mean spectrum from 4 or 5 cells was calculated for each image to provide a global view of the polyphenol effects on MCF-7 cells. Then we extracted the spectra associated only with the nucleus and cytoplasm separately. This was achieved by segmenting the Raman images by computing the 1235/2844 cm−1 intensity ratio (nucleic acids vs. lipids). Spectra associated with the nuclei of cells appear red-orange when the 1235/2844 cm−1 intensity ratio is larger than 2 (I1235/I2844 > 2) (see Fig. 1B). Even though the nucleus cannot be identified on the bright-light visible image (see Fig. 1A), its shape and size in the Raman image perfectly match the nuclei of MCF-7 cells fixed and stained (not shown). The rest of the cell was assigned to the cytoplasm. A similar result was obtained upon computing the 1150/2844 cm−1 intensity ratio (carbohydrates vs. lipids). Now the pixels associated with the cytoplasm of cells appear in red (I1150/I2844 > −0.2) (see Fig. 1C). The mean spectra from whole cells and from the different compartments are shown in Fig. 2.
image file: c7an01460k-f1.tif

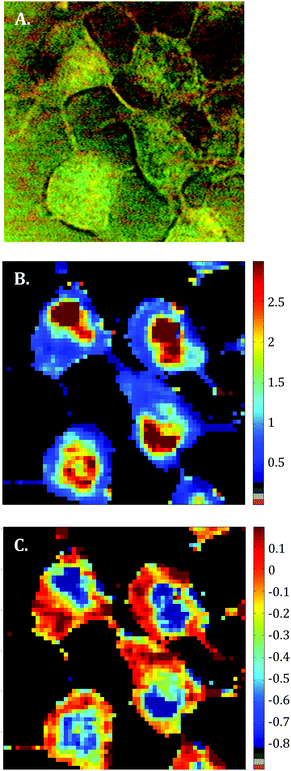

Fig. 1 Raman imaging of untreated MCF-7 breast cancer cells. A. Visible image of live MCF-7 cells present in a 60 × 60 μm2 field on a CaF2 window placed in PBS. 60 × 60 pixel Raman images of the same field (3600 spectra) built from the Raman 1235/2844 cm−1 intensity ratio (B – showing the cell nucleus in red) and from the Raman 1150/2844 cm−1 intensity ratio (C – showing the cell cytoplasm in red). All three images were recorded using a WITec alpha 300 confocal Raman imaging system which combines a high-throughput confocal microscope with a Raman spectrometer.

image file: c7an01460k-f2.tif
Fig. 2 Raman imaging of untreated MCF-7 breast cancer cells. Mean Raman spectra of whole MCF-7 cells (green), the cytoplasmic compartments (blue) and the nucleic compartments (red). For clarity purposes, the scale between the spectral region 1800–600 cm−1 (right-hand side) and 3000–2800 cm−1 (left-hand side) is different.

As expected, there are clear visible spectral variations between the mean spectra of the cytoplasm and nucleus compartments. When comparing the mean spectrum of the cytoplasm compartments (blue) with the mean spectrum of the nucleus compartment (red), more intense bands are observed near 743, 1127, 1580, 2850 and 2880 cm−1 and less intense bands near 785, 1254, 1337, 1375, 1660 and 2932 cm−1. The mean spectrum of whole cells (green) represents an average of the mean spectra of both compartments.

Principal component analysis (PCA) was performed on the extracted mean spectra from each Raman image for both the nucleus and cytoplasm. The PCA scores plot is presented in Fig. 3A. A clear discrimination along PC1 can be observed between the spectra of the cytoplasm (in blue) and the nucleus (in red) of MCF-7 cancer cells demonstrating differences in their chemical composition. The first principal component (PC1) shown in Fig. 3B is characterized by positive loadings near 785, 1210, 1254, 1337, 1377, 1416, 1464, 1490, 1507, 1675 and 2950 cm−1 and by negative loadings near 700, 743, 1127, 1585, 2850 and 2880 cm−1. The spectral variations observed in Fig. 2 are in agreement with the PC1 loadings plot, which explains the largest source of variance between the two sets of spectra.


image file: c7an01460k-f3.tif

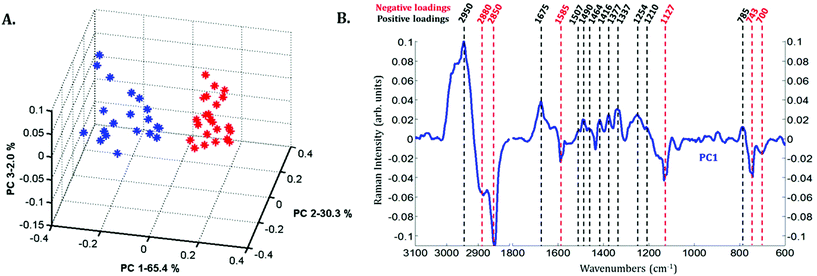

Fig. 3 Principal component analysis (PCA) applied to the extracted mean spectra for both the nucleus and cytoplasm from each Raman image of untreated MCF-7 cells. 23 and 20 spectra extracted from the nucleic (in red) and cytoplasmic (in blue) compartments from the 6 Raman images, respectively. A. PCA PC1 vs. PC2 vs. PC3 scores plot. The proportion of the variance explained is indicated on the axes. B. PC1 loadings plot.

Study of the effects of 4 polyphenols on live MCF-7 breast cancer cells

Raman images of live MCF-7 breast cancer cells exposed to EGCG, gallic acid, resveratrol and tannic acid at their respective IC50 values for 24 hours were recorded. At the same time, Raman images of the untreated MCF-7 breast cancer cells were also recorded as controls. Once the Raman images were completely pre-processed (background removal, baseline correction and vector normalization), the spectra of whole cells were extracted. To reveal the spectral variations induced by each of the four polyphenols, the mean spectrum of untreated cells (control) was subtracted from the mean spectrum of treated cells. The experiment was repeated three times for each treatment. A Student t-test was performed at every wavenumber value using a 5% significance level. Wavenumber values that show a significant difference are indicated by the thicker black lines on the difference spectra (polyphenol-treated minus untreated). Fig. 4 shows spectral variations between the mean spectrum of treated and untreated cells. These spectral variations are clearly not due to the spectral contribution of the polyphenol themselves which have quite distinct spectra (data not shown).
image file: c7an01460k-f4.tif

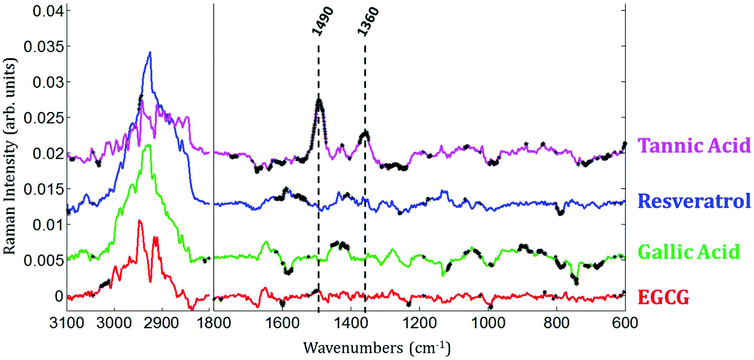

Fig. 4 Differences between mean spectra extracted from Raman images of MCF-7 breast cancer cells exposed to various polyphenols and control cells. A Student t-test performed was performed at every wavenumber value with a significance level α of 5%. Each wavenumber value marked by a black star indicates a statistically significant difference between the means. A color has been assigned to each polyphenol: EGCG in red, gallic acid in green, resveratrol in blue and tannic acid in pink. Each experiment (2 images recorded per experiment) was carried out in triplicate for each treatment. Spectra are offset for clarity.

The data set enables a statistical comparison between the spectra of live MCF-7 cells exposed to each of the polyphenols for 24 hours and control cells. The polyphenolic treatments induced significant modifications but no clear common pattern of modifications could be observed for the four polyphenols in the 1800–600 cm−1 spectral region. EGCG and resveratrol induced only a few spectral variations compared to gallic acid and tannic acid. The most significant variations can be found near the bands centered at 1360 cm−1 and 1490 cm−1 after tannic acid treatment but these changes were not observed when using the other compounds.

In the second step, the spectra associated with the nuclei and the cytoplasmic compartments, were analyzed individually. Difference spectra were calculated by subtracting the mean spectrum of untreated cells from the mean spectrum of treated cells for both compartments (nucleus and cytoplasm) and a Student t-test was performed to reveal any significant spectral variation due to the treatments.

Polyphenol effects on cell nuclei. While the major significant spectral differences were highlighted in Fig. 4 for the whole cells, the spectral variations in the spectrum of nuclei between treated and untreated cells are highlighted in Fig. 5A. The corresponding bands are centered on the following wavenumber values: 743, 1127, 1585 and 2950 cm−1. Interestingly, the variations observed around 743, 1127 and 1585 cm−1 follow a same tendency for each polyphenol. EGCG, gallic acid and tannic acid treatments all induce a decrease in intensity of these three bands on the contrary to resveratrol. Significant positive variations were still observed near 1360 and 1495 cm−1 after tannic acid treatment and significant negative variations near 1307 and 2850 cm−1 after EGCG treatment. These last two spectral bands are known to be associated with the CH2 groups inside saturated aliphatic chains.10,27,28 Isolate positive t-test data points are very likely to be false positive expected in view of the significance level applied.
image file: c7an01460k-f5.tif

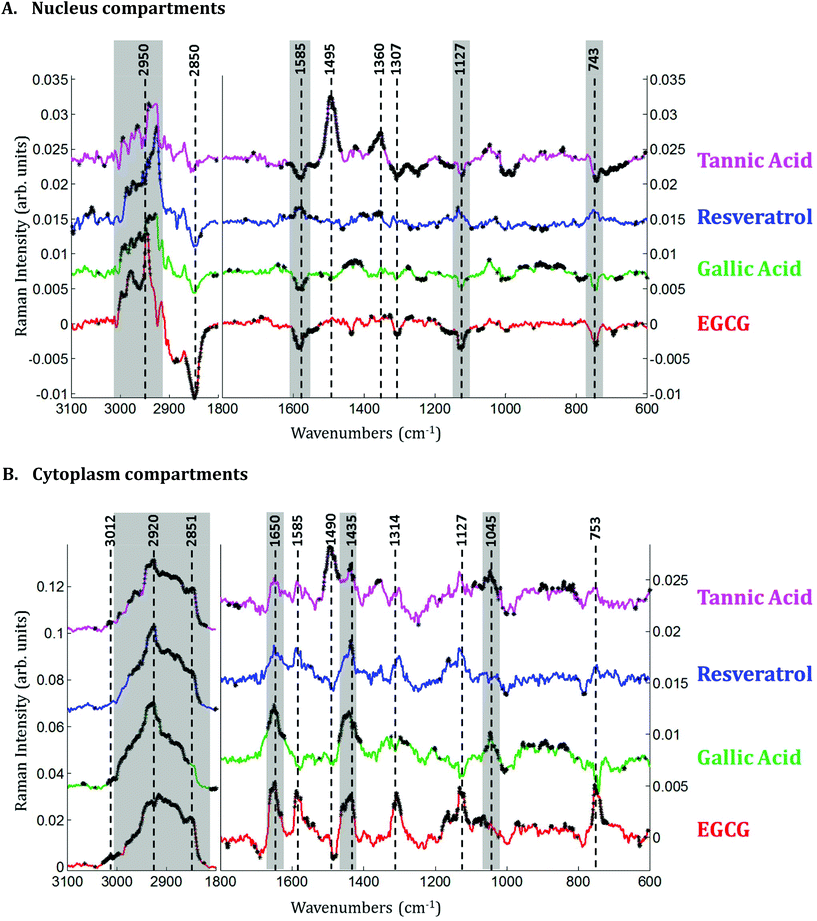

Fig. 5 Differences between mean spectra extracted from Raman images of MCF-7 breast cancer cells exposed to various polyphenols and control cells. A. Difference spectra from nucleus of MCF-7 cells. B. Difference spectra of cytoplasm of MCF-7 cells (for the sake of clarity, a different scale has been maintained between the 1800–1000 cm−1 spectral region and the 3000–2800 cm−1 spectral region for the cytoplasm). Student t-tests were performed at every wavenumber with a significance level α of 5%. Each wavenumber marked by a black star indicates a statistically significant difference between the mean values. A color has been attributed to each polyphenol: EGCG in red, gallic acid in green, resveratrol in blue and tannic acid in pink. Each experiment (2 images recorded per experiment) was carried out in triplicate for each treatment. Spectra are offset for clarity.
Polyphenol effects on cell cytoplasm. The spectral variations between the cytoplasm of treated and untreated cells are reported in Fig. 5B. Significant spectral variations could be observed in four spectral regions: 3020–2800 cm−1, 1660–1650 cm−1, 1460–1420 cm−1 and around 1045 cm−1. All polyphenols induced a large and significant increase in intensity in the spectral region between 3020 and 2800 cm−1 with the main differences in bands occurring at 2851 cm−1 and 2920 cm−1 (after EGCG, tannic acid and resveratrol treatments), which are assigned predominantly to C–H stretching bands mostly found in lipids. Significant differences were also observed in the 1460–1420 and 1660–1650 cm−1 spectral regions after treatment of the MCF-7 cells with gallic acid and EGCG. Significant differences can also be observed near 3012 cm−1, a band associated with unsaturated lipids. Tannic acid also exhibits a large increase of a band near 1490 cm−1. Tannic acid and resveratrol treated cells both show significant differences near the 1435 cm−1 band. In addition to these bands, EGCG shows 4 other bands where a significant increase is observed: 743, 1127, 1314 and 1585 cm−1. Those four bands are assigned to heme groups28 and have been associated with reduced cytochrome c.29–33
Variation in lipid content due to polyphenol treatments. The Raman intensity pseudo-colored images of the lipid/protein ratio for each of the polyphenolic treatment are shown in Fig. 6. Pixels that are yellow to red are of high intensity and conversely, pixels that are green to blue are of low intensity. To obtain the lipid/protein ratio, the spectral bands at 2851 and 1254 cm−1 were selected as being characteristic of lipid and protein (amide III) absorption, respectively. The pixels appearing in red on pseudo-colored images are mostly assigned to lipids. The distribution of Raman intensity values from each pixel for the Raman images MCF-7 cells are presented as diagrams in the bottom row of Fig. 6. A shift of Raman intensity can be noticed for treated cells compared to control cells from values lower than 1.4 to values higher than 1.4. Based on these pseudo-colored images and on the diagrams of each polyphenolic treatment, a statement could be made on the increase of intensity of lipid bands predominantly in the cytoplasm after drug treatment.
image file: c7an01460k-f6.tif

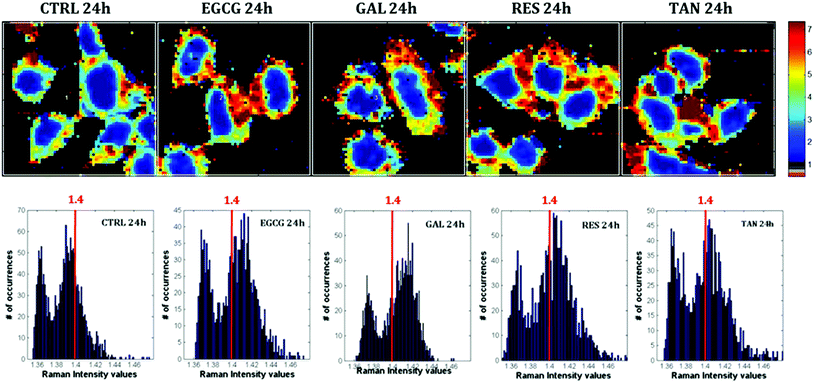

Fig. 6 Raman I2851/I1254 ratio images of MCF-7 breast cancer cells exposed to EGCG, gallic acid, resveratrol and tannic acid for 24 hours. Raman images, recorded using a WITec alpha 300 confocal Raman imaging system, were pre-processed, baseline corrected and vector normalized in the 1800–600 cm−1 spectral range. Pixels of high intensity appear yellow to red while pixels of low intensity appear green to blue. Top row: Ratio between lipids (2851 cm−1) and proteins (1254 cm−1 – amide III). Bottom row: Distribution of Raman I2851/I1254 ratios from every pixel of the pseudo-colored images of MCF-7 cells presented in the top row. A red line was drown at 1.4 for clarity purposes.

Discussion

Untreated MCF-7 cells: nucleus versus cytoplasm

Spectra of the nucleus and cytoplasm show clear differences and several bands were identified as distinguishing features, which are marked (see Fig. 2). As expected, bands associated with DNA vibrations (784, 1337 and 1370 cm−1)34,35 and proteins modes (amide I and amide III bands located near 1675 and 1254 cm−1, respectively) correspond to positive loadings showing that the nuclei contain more of these constituents than the cytoplasm. The three bands at 743, 1127 and 1585 cm−1 have been assigned to the vibration of heme groups28 and associated with mitochondrial cytochrome c in the literature.29–33 These bands are enhanced due to the use of a 532 nm laser, which is in resonance with the electronic transition assigned to the Qv band. These observations are also in agreement with the PCA performed on the extracted mean spectra from each Raman image for both the nucleus and cytoplasm. The PC1 loadings reported in Fig. 3B, show major differences between the nucleus and cytoplasm.

Polyphenol-treated MCF-7 cells: nucleus versus cytoplasm

In the cytoplasm, differences in the lipid bands were observed. Significant positive loadings were observed at 2851 and 2920 cm−1 after cell exposure to EGCG, tannic acid and resveratrol. These bands are mainly assigned to C–H vibrations of lipids. Significant differences could also be observed in the 1460–1420 cm−1 and 1660–1650 cm−1 spectral regions of cell spectra after gallic acid and EGCG treatments. According to literature,10,28 these bands are tentatively assigned to saturated and unsaturated lipids, respectively (see Fig. 5B). These variations would reflect an increase in saturated and unsaturated lipid content within cell cytoplasm due to the polyphenol treatments.

Similar positive variations near 1360 and 1490 cm−1 were observed in the spectra of the nucleus and cytoplasm after tannic acid treatment but no metabolic modifications could be assigned to these spectral variations and neither could they be related to the molecule itself (data not shown). Finally by comparing the difference spectra specific to the cytoplasm and the nucleus for each polyphenol, a majority of the significant spectral variations assigned to lipids are occurring in the cytoplasm (see Fig. 7). Interestingly, EGCG induces opposite spectral variations in the cytoplasm and in the nucleus. This might be the reason why the spectral signature associated with EGCG treatment of entire MCF-7 cells (see Fig. 4) does not present significant spectral variations while EGCG is efficient at slowing down cell growth. On the other hand, gallic acid and tannic acid show similar spectral signatures for both the nucleus and cytoplasm.


image file: c7an01460k-f7.tif

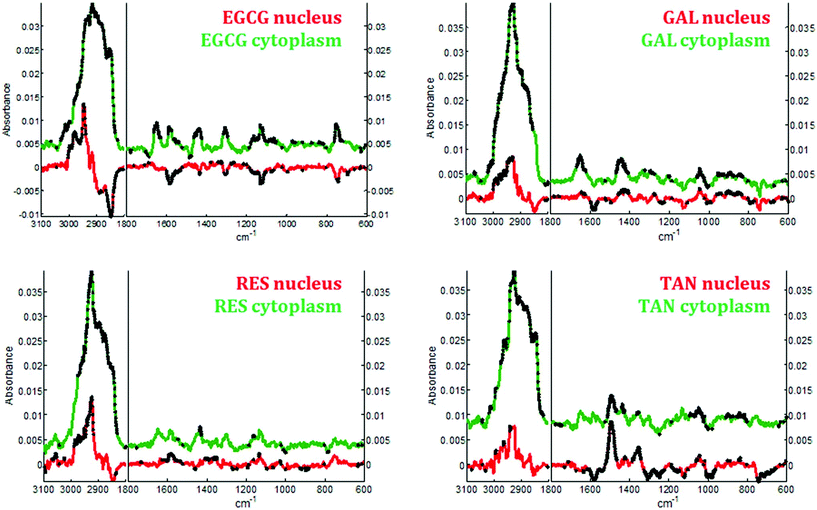

Fig. 7 Comparison of the difference spectra associated with the cytoplasm and the nucleus of MCF-7 breast cancer cells exposed to the different polyphenols. Student t-test was performed at every wavenumber value with a 5% significance level. Each wavenumber value marked by a black star indicates a statistically significant difference between the means. A color has been attributed to nucleus in red, and cytoplasm in green.
Increase in cytochrome in the cytoplasm. In Fig. 5B, EGCG spectral signature specific to the cytoplasm shows four spectral bands with a significant increase in intensity: 753, 1127, 1314 and 1585 cm−1. These four bands are assigned to heme groups found in cytochrome c. The presence of cytochrome c in a sample is easily detectable due to the strong resonance of heme groups by 532 nm excitation.36 Cytochrome c is a protein usually localized in the mitochondrial intermembrane space but under stress conditions such as anticancer drug treatments, the protein is released inside the cytosol where it binds Apaf-1 (apoptotic protease-activating factor-1) and deoxyadenosine triphosphate to activate caspase-9 and initiate the apoptotic protease cascade.37–39 In many publications the antitumor action of polyphenols and the connection with the release of cytochrome c triggering early apoptosis have already been adressed.40 EGCG has been demonstrated to cause time- and dose-dependent loss of mitochondrial membrane potential as well as a release of cytochrome c into the cytosol directly associated with the activation of pro-caspase enzymes in pancreatic cancer cells41 and estrogen receptor-negative breast cancer cells.42

Cytochrome c can be found in either an oxidized or reduced state inside the cells. There is evidence that only oxidized cytochrome c can activate the caspases and trigger apoptosis43 but this has not been confirmed yet in living cells. It has also been shown that exogenous cytochrome c becomes reduced within 5 minutes when added to cytosolic cell extracts.44 Ripple and her team demonstrated that endogenous cyt c was not maintained in the oxidized form by cytochrome oxidase (CytOx) upon release into the cytosol and in fact became highly reduced.39 Using a 532 nm excitation laser to acquire Raman spectral images of live MCF-7 cells, it has been shown that the Raman scattering of oxidized cyt c will be a lot weaker compared to the reduced form allowing only an effective monitoring of reduced cyt c present in the cytoplasm.31,33

Increase in the lipid content of polyphenol-treated MCF-7 cells. As previously mentioned, an increase in saturated and unsaturated lipid content occurs in cells after exposure to polyphenols (see Fig. 7). Lipid accumulation is an early biomarkers of drug-induced cell stress and subsequent apoptosis.45,46 A characteristic of apoptosis is the rapid accumulation of cytoplasmic lipid droplets composed largely of neutral saturated lipids, mainly triacylglycerides (TAG) and cholesterol esters.10,47 However unsaturated fatty acids are known to promote the formation of TAG-enriched lipid droplets with minimal effect on apoptosis in contrary to saturated fatty acids that are poorly converted into triglyceride-enriched lipid droplets but significantly induce apoptosis.48,49 Polyphenol-treated MCF-7 Raman images displaying the relative ratio between saturated lipids and proteins suggests that the amount of saturated fatty acids increased due to polyphenolic actions on cancer cells.

MCF-7 cancer cells have higher level of fatty acid synthase whose main function is to catalyze the synthesis of palmitic acid, a long-chain saturated fatty acid. Zeng showed that MCF-7 cancers cells are able to increase the basal levels of p21 and Bax, pro-apoptotic actors, in the presence of palmitic acid or myristic acid, two common long-chain saturated fatty acids.50 Moreover it has been demonstrated that increased fatty acids content is responsible for fatty acid-induced lipotoxicity and significantly induced apoptosis in hepatocellular carcinoma.48 A few publications have reported that unsaturated fatty acids are key players in the protection of cells against saturated fatty acids lipotoxicity.48,49,51

A relationship has been previously put forward by Hardy and his team correlating the increase in saturated fatty acids inside the cells and the release of cyt c into the cytosol. They correlated the increase in saturated fatty acids inside MDA-MB-231 breast cancer cells with decreased mitochondrial membrane potential triggering cytochrome c release into the cytosol.52

Conclusion

By applying Raman spectroscopy, we were able to monitor the global biological composition of live individual cells before and after exposure to polyphenols following 24 hours of incubation. Significant positive spectral variations due to polyphenols inside cell cytoplasm reflect an increase of the lipid content. Indeed, as reported elsewhere,53,54 lipid accumulation is an early biomarkers of drug-induced cell stress and subsequent apoptosis.

Interestingly EGCG appears to induce opposite biochemical changes as reported by the Raman spectra of the cytoplasm and of the nucleus (see Fig. 7) that are not evidenced in the spectral signature obtained from entire cells. Furthermore an increase in cytochrome c concentration into the cytosol could also be induced by this polyphenol as evidenced by a significant increase of four specific bands assigned to the vibration of heme groups found in cytochrome c. This increase is a biological event that might be associated with cell apoptosis.

Raman imaging offers high sensitivity and specificity to molecular and structural changes. When compared with FTIR imaging, Raman imaging also offers higher spatial resolution images of living cells, approaching 1 micron. This high resolution makes Raman micro-spectroscopy a powerful tool to study single cells and even providing useful information at a subcellular level in response polyphenols. Raman imaging also offers the unique possibility to work with live cells in an aqueous environment, which is very difficult to obtain by FTIR imaging.55,56 We have shown that Raman microscopy is an ideal method to evaluate the effects of drugs on subcellular features in cancer cells.
