A fiber-shaped solar cell showing a record power conversion efficiency of 10%

Xuemei Fu , Hao Sun , Songlin Xie , Jing Zhang , Zhiyong Pan , Meng Liao , Limin Xu , Zhuoer Li , Bingjie Wang , Xuemei Sun and Huisheng Peng *
State Key Laboratory of Molecular Engineering of Polymers, Department of Macromolecular Science, Laboratory of Advanced Materials, Fudan University, Shanghai 200438, China. E-mail: penghs@fudan.edu.cn

Received 30th September 2017 , Accepted 25th November 2017

First published on 27th November 2017


Fiber-shaped solar cells have aroused intensive attention both academically and industrially due to their light weight, flexibility, weavability and wearability. However, low power conversion efficiencies have largely limited their applications. Herein, a novel fiber-shaped dye-sensitized solar cell is discovered to show a record power conversion efficiency of 10.00% that far exceeds all other fiber-shaped solar cells. It is created by the design of new fiber electrodes with a hydrophobic aligned carbon nanotube core that provides both high electrical conductivity and mechanical strength and a hydrophilic aligned carbon nanotube sheath that can effectively incorporate other active phases. The fiber-shaped solar cells show high flexibility and are demonstrated to power a pedometer.


Introduction

With the unique advantages of being lightweight, weavable, wearable, and adaptive to a variety of curved surfaces like our bodies in comparison with planar photovoltaic devices,1–4 fiber-shaped solar cells are widely studied to possibly revolutionize the present electronics and reshape the future of electronics and related fields such as smart textiles5,6 and soft robotics.7,8 Despite the huge application prospect, the current fiber-shaped solar cells9–13 suffer from much lower power conversion efficiencies compared with their conventional planar counterparts.14–16 To this end, the main efforts have been made to develop high-performance fiber electrodes that are critical in enhancing the photovoltaic performances of fiber-shaped solar cells.17,18 Generally, for instance, fiber electrodes are expected to simultaneously possess high mechanical strength, electrical conductivity and electrochemical activity in the case of fiber-shaped dye-sensitized solar cells (DSSCs).18–20

A variety of electrically conducting materials have thus been extensively investigated for fiber electrodes, evolving from metal wires and conductive polymer fibers to carbon nanostructured fibers such as aligned carbon nanotube (CNT) fibers.20–24 Due to the unique aligned structure that can effectively extend the remarkable mechanical, thermal and electronic properties of CNTs from the nanoscale to the macroscale, the resulting CNT fibers generally exhibit high mechanical strength, thermal stability and electrical conductivity.25,26 However, they display relatively low electrochemical activities. A second phase with remarkable electrochemical properties has thus been widely proposed for enhancement.27–30 Unfortunately, due to the hydrophobic nature, it remains challenging to effectively incorporate other components through the widely used electrochemical deposition method.31,32 A lot of efforts have thus been made to modify aligned CNT fibers to make them hydrophilic after treatments like plasma.32–36 Although it is effective to introduce a second phase with high electrochemical activity into hydrophilic CNT fibers, the formation of a number of defects largely decreases their mechanical strengths and electrical conductivities33,35,36 that are also critical for the realization of high power conversion efficiencies. The balance between these two aspects requires to be struck, which makes it difficult to achieve higher power conversion efficiencies.

Herein, a novel family of core–sheath CNT (named CS-CNT) fibers was created by asymmetrically twisting an aligned CNT sheet with hydrophobic and hydrophilic CNTs at two sides (Fig. 1a). The core or sheath can be hydrophobic or hydrophilic, depending on the application requirement. As a demonstration in the following discussion, we focused on CS-CNT fibers with a hydrophobic core that provided both high mechanical strength and electrical conductivity and a hydrophilic sheath that made it easy to incorporate second phases with high electrochemical activities. When the CS-CNT fiber was used as a counter electrode to fabricate a fiber-shaped DSSC, a maximal power conversion efficiency of 10.00% has been achieved. To the best of our knowledge, it represents the highest power conversion efficiency among all kinds of fiber-shaped solar cells including but not limited to DSSCs.


image file: c7ta08637g-f1.tif
Fig. 1 (a) Schematic illustration of the fabrication of a CS-CNT fiber through an asymmetrical twisting. (b and c) SEM images of a CS-CNT fiber at low and high magnifications, respectively. (d and e) Cross-sectional SEM images of the core–sheath fiber containing 25% Si-modified CNTs as the sheath at low and high magnifications, respectively. (f) Lateral virtual slice of the core–sheath fiber with the Si sheath from XRM. (g) 3D volume rendering of the core–sheath fiber with the Si sheath using visualization and analysis software.

Experimental section

Preparation of pristine CNT sheets and hydrophilic CNT sheets

Spinnable CNT arrays were synthesized via chemical vapor deposition. Pristine hydrophobic CNT sheets were drawn from the spinnable CNT arrays over a glass slide with two ends covered with glass strips solidly. The hydrophobic CNT sheets were treated with an oxygen microwave plasma under an oxygen gas flow rate of 300 sccm and a power of 300 W (Plasma System 690, PVA Tepla) to produce hydrophilic CNT sheets. The treatment time was varied from 5 to 40 min to tune the degree of hydrophilicity.

Preparation and modification of CS-CNT fibers

The hydrophobic CNT sheet was first subjected to oxygen plasma treatment for the left or right part. An asymmetric twist was then made by using a motor to produce the CS-CNT fiber, e.g., a hydrophobic core and hydrophilic sheath. Different CS-CNT fibers with increasing hydrophilic CNT sheet content from 0 to 100 wt% were prepared. To demonstrate the advantage of the core–sheath structure, Pt-modified CS-CNT fibers were further synthesized by an electrochemical double potential step method with a platinum wire and Ag/AgCl electrode as counter and reference electrodes, respectively. The aqueous electrolyte consisted of 1 mM K2PtCl6 and 0.1 M KCl. The amount of Pt nanoparticles was determined by the consumed charge during the electrochemical reaction. The Pt-coated CS-CNT fiber was prepared by immersing the CS-CNT fiber in H2PtCl6·6H2O aqueous solution (concentration of 5 mg mL−1) for 10 min, followed by pyrolysis in air at 400 °C for 30 min. The Pt content was determined by the weight increase of the CS-CNT fiber after the H2PtCl6 pyrolysis. The resulting modified CS-CNT fibers were rinsed with deionized water and then dried at room temperature in ambient air prior to use.

Fabrication of fiber-shaped DSSCs

A Ti wire (diameter of 127 μm) was modified with a TiO2 nanotube array via an anodic oxidation method at a voltage of 60 V for 6 h in 0.3 wt% NH4F/ethylene glycol solution containing 8 wt% H2O in a 40 °C water bath. Afterwards, the Ti wires were washed with deionized water and annealed at 500 °C for 1 h in air. Subsequently, the as-prepared wires were treated with 100 mM TiCl4 aqueous solution at 70 °C for 30 min and rinsed using deionized water. Finally, the modified wires were heated to 450 °C for 30 min, followed by immersion in a mixture of dehydrated acetonitrile and tert-butanol (1/1, v/v) containing 0.3 mM N719 dye for 16 h after the temperature decreased to 120 °C. The resulting dye-absorbed Ti/TiO2 wire serving as a photoanode was twined with a Pt-modified CS-CNT fiber or Pt wire to produce the fiber-shaped DSSC. The redox electrolyte containing 0.1 M lithium iodide, 0.05 M iodine, 0.6 M 1,2-dimethyl-3-propylimidazolium iodide and 0.5 M 4-tertbutyl-pyridine in dehydrated acetonitrile was used for testing under AM 1.5 illumination. The electrolyte for cyclic voltammetry characterization was a dehydrated acetonitrile solution consisting of 5 mM lithium iodide, 0.5 mM iodine and 0.05 M lithium perchlorate.

Results and discussion

To prepare a CS-CNT fiber, an aligned CNT sheet was first pulled out of CNT arrays synthesized by chemical vapor deposition. The left side of the aligned CNT sheet was then submitted to oxygen microwave plasma treatment to produce hydrophilic CNTs (named O-CNTs) with the right side to be the as-prepared hydrophobic CNTs. After the above modification, no obvious damages were observed for the aligned structure of O-CNTs, confirmed by scanning electron microscopy (SEM) (Fig. 1b and c) compared with pristine CNTs (Fig. S1). The weight ratio of hydrophobic core and hydrophilic sheath can be tuned by simply adjusting the width of O-CNTs in the sheet before twisting, offering a general and effective method to obtain various core–sheath fiber materials. For example, a core–sheath hybrid fiber with a Si sheath can be achieved by just replacing the O-CNT sheet with a Si-decorated CNT sheet. Here Si was introduced through an electron beam evaporation process. Fig. 1d and e show the cross section of a core–sheath fiber with 25% Si-incorporated CNTs outside at low and high magnifications, respectively. Non-destructive images of the core–sheath structure were also obtained from the dynamic lateral virtual slice of the core–sheath fiber using a 3D X-ray microscope (Fig. 1f). 3D spatial distribution of Si-modified CNTs was clearly observed via a 3D rendering sketch (Fig. 1g).

Oxygen plasma interacted with CNTs by not only opening the double bonds but also introducing oxygen-containing functional groups onto the CNT surface,32,36 such as hydroxyl, carbonyl, ether and epoxy groups (Fig. S2), which was also verified by the significant enhancement of the O 1s peak in the X-ray photoelectron spectra (Fig. S3). Extending the oxygen plasma processing time from 0 to 40 min, the hydrophilic degree of CNTs went up with the water contact angle decreasing from 123° to 15° (Fig. 2a) due to the increased oxygen-containing functional groups. However, the damage of the π–π conjugated structure of CNTs resulted in the degradation of mechanical strength (Fig. S4) and electrical conductivity (Fig. S5) which both decreased severely at processing time beyond 40 min. Therefore, a processing time of 20 min was adopted and investigated later.


image file: c7ta08637g-f2.tif

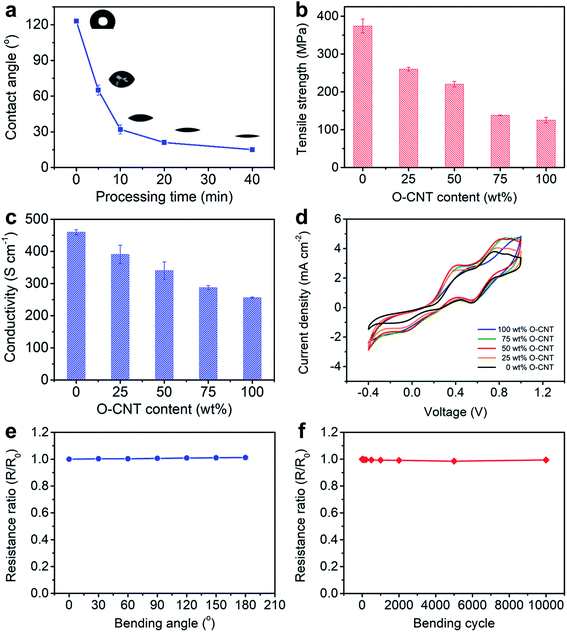

Fig. 2 (a) Water contact angle of modified CNT sheets as a function of O2 plasma processing time from 0 to 40 min. (b) Tensile strengths of CS-CNT fibers with increasing O-CNT content from 0 to 100 wt%. (c) Dependence of electrical conductivity of the CS-CNT fibers on O-CNT content. (d) Comparison of electrochemical properties of CS-CNT fibers with increasing O-CNT content from 0 to 100 wt%. (e and f) Electrical resistance of the CS-CNT fiber with 50 wt% O-CNTs as a function of bending angle and cycle, respectively. R0 and R correspond to the resistances before and after bending, respectively. The bending angle in (f) was 90°.

The CS-CNT fibers with different O-CNT contents were compared as counter electrodes of fiber-shaped DSSCs. As shown in Fig. 2b and c, the tensile strength and electrical conductivity of CS-CNT fibers decreased from 374 to 125 MPa and 460 to 256 S cm−1 when the O-CNT content increased from 0 to 100 wt%, respectively. Cyclic voltammograms (CVs) were compared for the catalytic activities of CS-CNT counter electrodes (Fig. 2d), which showed two pairs of oxidation/reduction peaks in each curve with the left pair corresponding to the redox action of I3/I. Typically, a more effective counter electrode yields a lower peak-to-peak voltage separation (Vpp) between the left pair and a higher peak current density. Interestingly, the introduced oxygen-containing functional groups together with the active defects can improve the electrochemical activity of CNTs.37,38 Compared with bare CNT fibers without the oxygen plasma treatment, the CS-CNT fibers demonstrated better performances in catalyzing the reduction of I3 to I with Vpp dropping from 0.71 to 0.48 V when the O-CNT content increased from 0 to 50 wt%. However, Vpp increased to 0.59 V for the total O-CNT fiber probably due to the deterioration in electrical conductivity. Considering the mechanical strength, electrical conductivity and electrochemical activity, CS-CNT fibers with 50 wt% O-CNTs were mainly discussed if not specified below. The CS-CNT fiber was highly flexible with only 1.2% variation of the electrical resistance with bending angles varying from 0 to 180° (Fig. 2e). In addition, the electrical resistance remained almost unchanged after bending for 10[thin space (1/6-em)]000 cycles (Fig. 2f).

The O-CNTs can serve as effective platforms for further modification. Electrochemical deposition of Pt nanoparticles onto the CS-CNT fiber showed quite distinct morphologies from that onto a pristine CNT fiber (Fig. 3a–d). On one hand, the CS-CNT fiber had a hydrophilic sheath which made it easy for the aqueous electrolyte containing K2PtCl6 to diffuse deeper into the fiber and react with more CNT bundles without a pre-impregnation procedure. On the other hand, the oxygen-containing functional groups and active defects provided more nucleation sites for Pt nanoparticle deposition.31,34 As a result, the Pt nanoparticles presented a smaller particle size even when 50% Pt was deposited (Fig. 3a and b). The smaller Pt nanoparticles showed better electrochemical properties with the same loading amount,35 so the Pt-electrodeposited CS-CNT fiber (Pt/CS-CNT fiber) could catalyze the reduction of I3 more efficiently.


image file: c7ta08637g-f3.tif
Fig. 3 (a and b) SEM images of the Pt/CS-CNT composite fiber with 50% Pt at low and high magnifications, respectively. (c and d) SEM images of the Pt/CNT composite fiber with 50% Pt at low and high magnifications, respectively. (e) Comparison of electrochemical properties of Pt/CS-CNT fibers with different Pt contents, Pt/CNT fiber and Pt wire at a scan rate of 50 mV s−1. (f) Schematic illustration of a fiber-shaped DSSC with Pt-composite fiber as the counter electrode. (g) Comparison of JV curves of fiber-shaped DSSCs using Pt/CS-CNT fibers with different Pt contents, Pt/CNT fiber and Pt wire as the counter electrodes. (h) JV curve of the fiber-shaped DSSC with the highest power conversion efficiency. The inserted table shows the corresponding photovoltaic parameters.

As expected, the Pt/CS-CNT fiber proved more effective as a counter electrode for fiber-shaped DSSCs. To optimize the catalytic activity of the CS-CNT fiber, the cyclic voltammograms of Pt/CS-CNT fibers with different Pt contents were compared. The Pt/CS-CNT fiber with 30% or more Pt nanoparticles produced lower and similar Vpp (Fig. 3e), while those with 50% and 70% Pt demonstrated higher peak current densities, i.e., higher catalytic activities. The JV characteristic curves under AM 1.5 illumination were also compared for the fiber-shaped DSSCs (Fig. 3f and S6) in Fig. 3g, the corresponding photovoltaic parameters of which are summarized in Table S1. The open-circuit voltage (VOC) remained adjacent to 0.73 V, while the short-circuit current density (JSC) and the fill factor (FF) were both enhanced from 13.14 to 19.43 mA cm−2 and 0.60 to 0.71 with increasing Pt content from 0 to 50%, respectively. All photovoltaic parameters were slightly changed when Pt loading increased further. The optimized power conversion efficiency (η) was achieved at a Pt content of 50%.

Under the same conditions, the DSSC based on the as-synthesized CNT fiber without modification demonstrated a lower η of 4.17% (Fig. S7). Note that if Pt was just coated on the surface of the CS-CNT fiber, the resulting DSSC showed an η of 7.21%, compared with 7.78% for the electrochemically deposited Pt/CS-CNT fiber (Fig. S8). The electrochemically deposited Pt/CS-CNT fiber showed higher electrochemical properties than the Pt wire and Pt-electrodeposited bare CNT fiber (Pt/CNT fiber). As shown in Fig. 3e, the Pt/CS-CNT fiber with a Pt content of 50% showed a Vpp of 0.20 V rather lower than the Pt/CNT fiber counterpart (0.39 V) and Pt wire (0.57 V). To exclude the impact of electrode surface area, the normalized current densities at the reduction peak were provided, where the Pt/CS-CNT fiber presented a higher current density of −1.83 mA cm−2 compared with the Pt/CNT fiber (−1.49 mA cm−2) and Pt wire (0.50 mA cm−2). Moreover, the Pt/CS-CNT fiber could offer more active sites for the reduction of I3 due to a smaller nanoparticle size than the Pt/CNT fiber based on the same Pt amount (Fig. 3a–d). The η of the resultant cell was increased by 19% and 64% compared with the Pt/CNT fiber and Pt wire counterparts, respectively (Fig. 3g and Table S1). A highest power conversion efficiency of 10.00% was obtained after optimization (Fig. 3h), which exceeded all other fiber-shaped solar cells.2–4,9–13,18–22,39,40 To fully understand the apparent high efficiency of the prepared fiber cells, further exploration is needed.

Besides the high power conversion efficiency, these fiber-shaped DSSCs were also flexible. The η was maintained at 86% under bending with increasing angle from 0 to 180° (Fig. 4a). After bending at 90° for 2000 cycles, the fiber-shaped DSSC could effectively work with only 18% of the initial power conversion efficiency sacrificed (Fig. 4b). The fiber-shaped DSSCs can be further woven onto flexible power textiles (Fig. 4c) and can also bear a variety of deformations like bending and twisting (Fig. 4d). They were demonstrated to power a pedometer effectively and steadily under outdoor sunlight (Fig. 4e and f).


image file: c7ta08637g-f4.tif
Fig. 4 (a and b) Power conversion efficiencies of the fiber-shaped DSSC as a function of bending angle and cycle, respectively. η0 and η correspond to the power conversion efficiencies before and after bending, respectively. The bending angle in (b) was 90°. (c) Five in-series connected fiber-shaped DSSCs with a length of 3 cm being woven onto a T-shirt. (d) Fiber-shaped DSSCs in (c) under bending and twisting states (the blue rectangle). (e) Fiber-shaped DSSCs in (c) and (d) connected with a commercial pedometer. The inserted dashed rectangle highlights the fiber-shaped DSSCs. (f) Step number displayed on the pedometer after 16 times of arm swing under outdoor sunlight.

Conclusion

In conclusion, a new family of hydrophobic core/hydrophilic sheath CNT fibers was designed to simultaneously realize high mechanical strength, electrical conductivity and electrochemical activity. When they were used as counter electrodes to fabricate fiber-shaped DSSCs, a record power conversion efficiency of 10.00% has been achieved. These novel fiber electrodes can also be widely explored for high-performance energy storage devices such as supercapacitors and aqueous lithium-ion batteries. This work may open up a new direction in the development of energy materials and devices with high properties.

Conflicts of interest

There are no conflicts of interest to declare.
