Extrusion of a nano-ordered active layer for organic photovoltaic cells

Ali Nourdine*ab, Lionel Flandinab, Nicole Albérolaab, Lara Perrinab, Emilie Planèsab, Anne Hiltnercd and Eric Baercd
aUniversité Savoie Mont-Blanc, LEPMI, F-73000 Chambéry, France. E-mail: ali.nourdine@univ-savoie.fr
bCNRS, LEPMI, F-38000 Grenoble, France
cCenter for Layered Polymeric Systems, Case Western Reserve University, Cleveland, OH 44106-7202, USA
dDepartment of Macromolecular Science and Engineering, Case Western Reserve University, Cleveland, OH 44106-7202, USA

Received 17th July 2017 , Accepted 2nd September 2017

First published on 27th September 2017


For the first time, an extrusion process is used to produce a perfectly nanostructured organic photoactive layer. Extrusion is an interesting, inexpensive and environment-friendly (solventless) option allowing an industrial production scale for polymer solar cell technology. In this paper, this plausible alternative to the usual large scale wet-processing techniques (inkjet printing, roll-to-roll coating…) was considered in order to elaborate bulk lamellar ordered heterojunctions employing polythiophene and fullerene based materials, as the electron donor and acceptor respectively, which were specifically elaborated for this work. An alternating donor/acceptor (D/A) lamellar structure close to the ideal interpenetrating system was targeted and successfully realized. Continuous D and A domains of about 24 nm were obtained, i.e. size close to the exciton diffusion length (20 nm) for π-conjugated organic materials; a photovoltaic response was evidenced under AM1.5 light simulator conditions. This photovoltaic effect, observed in spite of the presence of insulating polymers (∼61 wt%) added in both semi-conductor materials in order to adjust their viscosities, proves the possible achievement of such a perfect working nano-architectured structure via the extrusion process. The next step, consisting in the use of pure D and A extrudable polymers, should thus lead to high and durable photovoltaic performances. Therefore, this paper opens the way to a new promising OPV processing method: extrusion.


1. Introduction

First described in the 1970s, organic photovoltaic (OPV) technology has remarkable advantages such as low-cost, low-weight, flexibility and large-size processability. However, in order to make it a real alternative to inorganic technology, several challenges must be overcome by controlling the nanoscale morphology of the active layer1–5 and by including the development of processes compatible with large-scale production.6,7 In addition to the intrinsic properties of the donor and acceptor materials,4 the morphology of the active layer is a crucial parameter that controls the power conversion efficiency. The photovoltaic effect and the charge photogeneration in organic photovoltaic solar cells occur at the interfaces between the D and A materials. Thus, increasing the amount of D/A interface improves the photovoltaic efficiencies.8,9 This also implies a size reduction of D and A domains, which should be carefully kept lower than the exciton diffusion length (10–20 nm).4,8,10 Traditionally, morphology improvement can be realized during or after the active layer wet-deposition through several ways: – modification of the D/A ratio,11,12 – change of the solvent,13 – use of processing additives,14–16 – vapor17,18 or – thermal13,19,20 annealing treatments. Other new methods are also constantly developed in order to directly obtain an effective morphology. We can cite, in particular, the discontinuous stacking of several nanolayers of D and A materials by spin-coating,5 the alignment by soft lithography techniques,4 the genesis of lamellar structures using self-assembly materials,20–25 polymer demixing,26 nanoimprinting,27–30 nanoskiving,5 controlled organic vapor-phase deposition31 and photoinduced mass transport using an all-optical technique.32 These efficient methods yielded interesting new hetero-structures that satisfy some of the criteria required for an ordered bulk heterojunction but they imply the use of organic solvents and are limited to lab-scale production. For a large-scale production, the ideal process should involve processing of all layers on flexible substrates by the combination of as few coating and printing steps as possible. The process should be free from the costly indium, solvents and toxic chemicals and the final polymer solar cell product should have a low environmental impact and a high degree of recyclability. The conventional way to fabricate a flexible organic solar cell is roll to roll coating, but it presents the main drawback, the use of solvents.6,20 In the present paper, the groundbreaking concept proposed consists in the realization of an ideal nanoscale lamellar morphology by alternatively layering D and A polymeric materials via the “coextrusion forced assembly technique”. This process will open a new direction for future low-cost plastic electronic devices and can contribute to the efforts and research advances carried out in the development of clean energy-generating photovoltaic technologies such as green-solvent-processable OPVs33–35 and can be considered as a plausible solventless and environment-friendly processing alternative compared to the usual wet-processing techniques, using, for instance, printing6,36–38 or roll-to-roll coating6,39–41 and, especially, halogenated solvents.

This “forced assembly technique”, which has been developed by the Center for Layered Polymeric Systems (CLiPS) at Case Western Reserve University, allows for the layering of two polymers using layer multiplication coextrusion techniques.42–49 This original process has been used for structuring usual polymers, and the thickness of these layers has reached nanometer sizes, allowing for unique optical, mechanical, transport, and structural properties.42–49

With this ideal architecture applied to a photo-active layer, the photovoltaic devices should thus lead to high and stable photovoltaic efficiencies. Nevertheless, in order to maximize the uniformity of the layers and overall D/A heterojunction quality, D and A polymeric materials must be coextruded at a viscosity-match temperature50–52 and within a viscosity window determined by the extrusion pressure (upper limit of 0.1 MPa s) and the melt strength (lower limit of 0.01 MPa s).50 Indeed, two main defects related to the difference of rheological behaviors and viscoelastic characteristics of polymers can be observed: layer-to-layer non-uniformity of thickness52–57 and discontinuity of the phase due to interfacial instability.51,52,56,57 Accordingly, to study the feasibility of co-extrusion as a new concept for production of OPV layers, the principal criteria which we first considered in the present work is the processing ability of D and A materials, keeping in mind that their intrinsic functional properties could be adjusted subsequently in order to optimize performances.

Thus, the first part of the paper will describe D and A materials specifically formulated for the preparation of extrudable solar cells, taking into account several needed criteria – firstly – for the special processing conditions and – secondly – for the photovoltaic properties. Then, the fabrication of “multi-nanolayer” photo-active films using the forced assembly coextrusion process and the final realization of “D/A nanolayer solar cells” will be both expounded.

2. Results and discussion

2.1. Choice of D and A materials: selection and adjustment

The polythiophene/fullerene conventional donor/acceptor system was selected in order to realize the first OPV active layer by extrusion. The polythiophene family was chosen because of its interesting photovoltaic properties and compatibility with processing in a molten state.58–64 The regioregular poly(3-octylthiophene) P3OT was thus selected, as it exhibits a good compromise between photovoltaic properties and extrusion conditions compared to the other poly(3-alkylthiopene) derivatives.65,66 Furthermore, its commercial availability in large amounts makes it an obvious candidate. As a matter of fact, one co-extrusion test requires about 100 g. Regarding the fullerene derivative, it was chosen to synthesize a polystyrene grafted using fullerene C60. Indeed, intrinsic acceptor polymers reported in literature are mostly unprocessable from the melt, because they degrade at temperatures below the softening temperature.67–69 The use of a common polymer easy to be processed – like polystyrene (PS) – grafted using an efficient acceptor – like C60 fullerene – could thus be an interesting alternative. According to the electrical percolation threshold (Vc = 4 vol%) evidenced in our previous studies70,71 for such PS-grafted-C60 systems, an acceptor polymer was specifically synthesized in large quantity (∼100 g): PSNC60MS12 (containing 12 vol% of C60, corresponding to 19 wt%).
2.1.a. Adjustment of the D material. In order to validate the melt-processability of the chosen commercial P3OT polymer (Mw eq.PS = 92 kg mol−1), rheological tests were carried out using a melt flow indexer. The minimal temperature for coextrusion of a semi-crystalline polymer is limited to the temperature corresponding to its total melt (about 195 °C for P3OT, see Table 1). At a temperature of 200 °C, P3OT exhibits melt viscosity of 0.0081 MPa s.
Table 1 Thermal transitions of the extruded donor blend and its constituents (for crystallinity degree calculation ΔHP3OT0 = 73.6 J g−1 (ref. 62) and ΔHPP0 = 207 J g−1 (ref. 76) were used)
Materials Fusion Crystallization Crystallinity degree X (%)
Tpeakm (°C) Tendset (°C) ΔHf (J g−1) Tpeakc (°C) Tonsetc (°C) ΔHc (J g−1)
PP 164 169 90 109 113 −94 44
P3OT65/PP35 163 167 31 113 118 −28 26
P3OT 184 195 13 146 153 −13 18


This melt viscosity value is slightly below the range required for our coextrusion process (i.e. [0.01–0.1 MPa s]); an adjustment of the rheological behavior is thus essential. In order to overcome this limitation and modulate the melt viscosity of the donor material, several ways were considered and investigated: decrease of the coextrusion temperature,63 synthesis of P3OT with higher molecular weights,63,64 or use of a blend of commercial miscible polymers.72 First, the P3OT viscosity remains too low even at temperatures close to the melting temperature (0.0085 MPa s at 195 °C). Then, the synthesis way was explored and P3OT with a higher molecular weight was realized (Mw eq.PS = 140 kg mol−1). Unfortunately, one potential problem encountered in processing unsaturated polymers at high temperatures is the occurrence of crosslinking reactions, whose effect is emphasized when working with higher Mw.63 As a result, the newly synthesized P3OT becomes infusible due to cross-linkage at temperatures higher than the melting temperature and thus non-extrudable. Finally, a blend of P3OT with another semi-crystalline polymer having a similar processing temperature and higher viscosity was chosen.

To achieve the latter approach, a semi-crystalline polypropylene PP polymer was chosen as the diluent polymer. The P3OT/PP polymer blends were elaborated using a twin screw extruder at temperatures close to 195 °C. This temperature was chosen above the melting temperature of all constituents (see Table 1), and well below their TGA decomposition temperatures (higher than 300 °C under air, and 400 °C under nitrogen). A viscous P3OT/PP system was obtained; its composition and homogeneity were controlled by TGA and DSC analyses as shown in Fig. 1a and b, respectively.


image file: c7se00340d-f1.tif

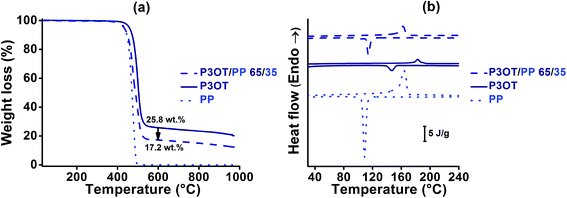

Fig. 1 (a) TGA thermograms under nitrogen of P3OT, PP and P3OT/PP 65/35 blend at a heating rate of 20 °C min−1; (b) DSC heating (solid lines) and cooling (dashed lines) traces of P3OT/PP 65/35, P3OT and PP (heating and cooling rate = 10 °C min−1).

The real composition of the D material after melt blending by extrusion can be checked using TGA analysis under an inert atmosphere as shown in Fig. 1a. A good agreement was found with the initial composition introduced in the extruder, which indicates the thermal stability of the P3OT/PP system during the extrusion process. A blend composition of 65 wt% and 35 wt% for P3OT and PP respectively, leading to a melt viscosity of 0.15 MPa s at 195 °C, was selected in order to be both inside the compatible process viscosity range and remain close to the viscosity of the acceptor system (see Fig. 3).

A good homogeneity of the system is also important in order to guarantee the success of the coextrusion process. As shown in Fig. 1b and Table 1, DSC analysis highlights the presence of co-crystallization phenomena for semi-crystalline PP and P3OT polymers: one single melting Tm and one single crystallization Tc temperatures were detected for the P3OT/PP 65/35 blend. Co-crystallization results in a homogeneous and miscible system, as also observed by optical microscopic analysis (not presented in this paper).

In order to verify that sufficient conductive properties for OPV application were preserved in the new donor material, electrical properties were measured for both pure and blended polythiophene based materials after one extrusion test. Electrical conductivities close to 1.1 × 10−6 and 2 × 10−9 S cm−1 were found for P3OT and P3OT/PP 65/35 respectively. As predicted, the conductive properties of the donor material decrease when an insulating polymer is added in a homogeneous blend with the conjugated polymer.73,74 Nevertheless, an acceptable compromise between the extrusion process and photovoltaic74,75 compatibilities was found using the P3OT/PP 65/35 blend.

2.1.b. Adjustment of the A material. A polystyrene grafted using 12 vol% of fullerene C60, which is above the C60 percolation threshold (4 vol%)70 and below the C60 aggregate formation threshold,71 was chosen and synthesized on a large scale. In order to validate the melt-processability of this PSCN60MS12 polymer, rheological tests were thus carried out using a melt flow indexer. The processing temperature for amorphous polymers is from 50 °C above Tg, which is about 100 °C for PSCN60MS12 (see Fig. 2b). Consequently, the temperature range chosen for the processing of the D material is also adequate for the extrusion of the A material.
image file: c7se00340d-f2.tif

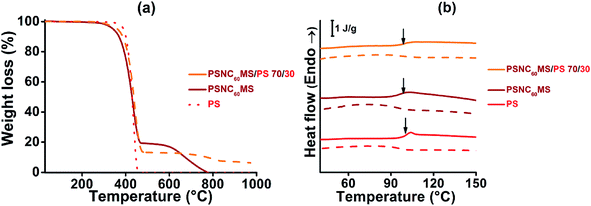

Fig. 2 (a) TGA thermograms under nitrogen of PSNC60MS12, PS and PSNC60MS12/PS 70/30 blend at a heating rate of 20 °C min−1; (b) DSC heating (solid lines) and cooling (dashed lines) traces of PSNC60MS12/PS 70/30, PSNC60MS12 and PS (heating and cooling rate = 10 °C min−1).

When controlling the melt viscosity of PSCN60MS12 using the Melt Flow Index (MFI), an unexpected behaviour was observed. Indeed, if the first melt viscosity value measured is well inside the coextrusion process compatibility range (i.e. [0.01–0.1 MPa s]), this value is not stable and increases drastically by two orders of magnitude after 3 MFI cycles as shown in Fig. 3 (0.015, 0.068 and 0.71 MPa s for cycles 1, 2 and 3, respectively, at a temperature of 200 °C). This behaviour could be explained by possible chemical cross-linking (formation of fullerene–fullerene covalent bonds by ageing) and/or by phase separation resulting in the formation of fullerene aggregates as previously evidenced for higher fullerene contents in our previous work.71 It was thus decided to reduce the fullerene content by adding a small amount of the polystyrene polymer with close viscosity, and it was found that the initial rheological behaviour of the PSNC60MS12/PS blend can be stabilized and maintained constant during the extrusion process. The addition of 30 wt% of PS into PSNC60MS12 enables adjustment of the melt viscosity to 0.02 MPa s at 195 °C, which is both compatible with the process and close to the one of the chosen D material. Moreover, the resulting C60 content (8 vol% or 13 wt%) remains over the percolation threshold. Thus, the semiconductor character and the applicability in photovoltaic solar cells are preserved.


image file: c7se00340d-f3.tif

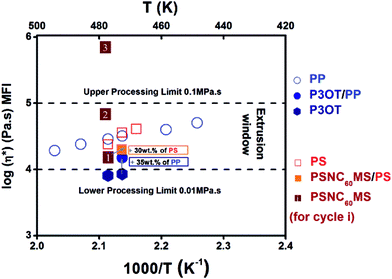

Fig. 3 Logarithmic viscosity (Melt Flow Index, MFI) of constitutive polymer materials as a function of temperature.

A PSNC60MS12/PS acceptor material with a blend composition of 70 wt% for PSNC60MS12 and 30 wt% for PS was elaborated using a twin screw extruder at the temperature of 195 °C. This temperature is well below the decomposition temperature of the selected A material (close to 300 °C for all constituents, determined by TGA under air). In addition, a TGA analysis performed under nitrogen (see Fig. 2a) on the PSNC60MS12/PS blend after extrusion indicates that the PS/C60 composition remains stable during extrusion (the C60 content being represented by the degradation residue at 550 °C).

Amorphous PS polymer was chosen as the diluent polymer because of its presumed physico-chemical compatibility with PSNC60MS in order to obtain a miscible and homogeneous system which was confirmed by optical microscopy analysis (not presented in this paper). The molecular mobility of macromolecular chains was also studied by DSC analysis of the temperature location of glass transition (Tg), which was found to be independent of the blend composition and approaching 100 ± 1 °C, as shown in Fig. 2b.

2.1.c. Compatibility of A and D materials with the extrusion process. Fig. 3 summarizes the logarithmic viscosities measured at different temperatures for D (P3OT/PP 65/35 wt%) and A (PSNC60MS12/PS 70/30 wt%) materials and their constitutive polymers (P3OT, PP, PSNC60MS12, PS). Upper and lower extrusion processing limits are also identified on the graph.

A reasonable processing temperature close to 195 °C was chosen. At this temperature, pure P3OT exhibits melt viscosity below the lower limit. The resulting readjusted viscosity by addition of 35 wt% of PP matches the required range of viscosity. In contrast, the melt viscosity of pure PSNC60MS12 at this range of temperature is adequate with the extrusion process but its rheological behaviour is unstable. The addition of 30 wt% of PS allowed a slight modulation of the viscosity while obtaining a stable rheological behaviour.

Another important parameter for success in the realization of the nanolayers using our process is the close rheological behaviour of the two selected materials at the chosen temperature. Indeed, the ratio of their viscosities should not exceed 3. This is fully the case of the selected materials at 195 °C: ηA/ηD = 1.3.

2.2. The photoactive layer realization: A/D multi-layers

2.2.a. Step 1. Fig. 4 presents the original extrusion process42–49 used here for the realization of the alternating D/A multilayer system. It consists, as the first step, in the co-extrusion of two materials (D and A) using two different twin screw extruders in order to form a bilayer in the ‘A/D feed block’. Then, this bilayer is cut through several appropriate cutting systems, namely ‘multipliers’, in order to multiply the layers.
image file: c7se00340d-f4.tif

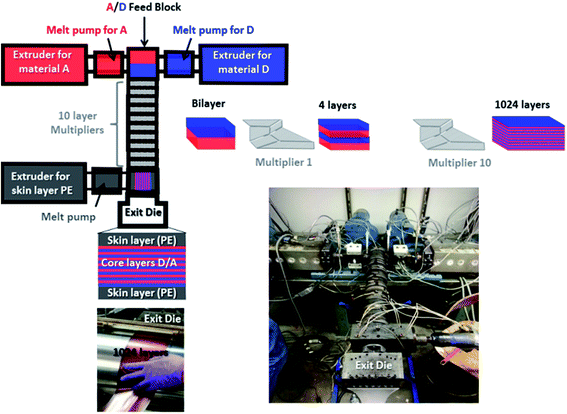

Fig. 4 Presentation of the extrusion process used and photographs taken during the fabrication of the nano-multilayer film.

Coextrusion experiments were performed at the Case Western Reserve University on a semi-laboratory scale coextrusion line that incorporates 10 multipliers, allowing the realization of 1024 alternating layers. This extrusion process is fully detailed in the literature42–49 and has already been used to nano-structure several common polymers like PP, PE, PEG, PMMA, PS, PC, SAN, PET, …. The originality and novelty of the present work lie in the use of this process for the elaboration of nano-structured photovoltaic active layers using specifically formulated high performance polymeric materials.

Prior to the real rush, several coextrusion tests were performed using only PS and PP model polymers for realization of the alternating nanolayered system (core layers). PS and PP polymers with specific grades indicated in the experimental section were selected because of their processing properties and microstructures being close to A and D materials respectively. LDPE was also used as the surface layer (skin layer), allowing the manipulation of the film while preserving its integrity. After optimization of the coextrusion conditions, optimal temperatures close to 195 °C for coextrusion of core layers, 190 °C for extrusion of skin layers and 165 °C at the exit die were determined and applied to real D (P3OT/PP 65/35 wt%) and A (PSNC60MS12/PS 70/30 wt%) materials. In order to avoid wasting D and A, which are expensive photoactive materials, previously reported PP and PS polymers were also used as carrier materials in order to both initiate and end the extrusion run.

A nanolayered film with 1024 alternating D/A layers was successfully extruded (see the photograph of the film in Fig. 4), and its continuous and uniform layered structure was revealed by atomic force microscopy observation (see the phase image presented in Fig. 5). D/A nanolayers are well-resolved with an average layer thickness of 24 nm, and the total thickness of the obtained film is close to 55 μm (PE 10 μm–multi-D/A 25 μm–PE 10 μm).


image file: c7se00340d-f5.tif

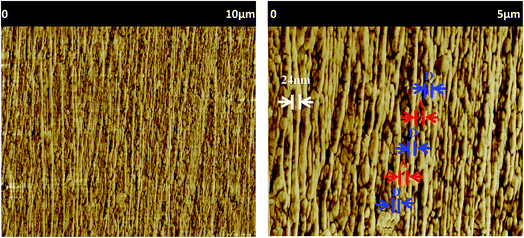

Fig. 5 AFM phase image of D/A extruded multi-nanolayers (tapping mode).
2.2.b. Step 2. Prior to assembling in solar cells, the multilayered-microfilms previously obtained should be stacked in order to obtain cells of reasonable active areas with nanolayers oriented perpendicular to electrodes. The idea is to optimize the D/A surface of the interface, which is the place where the photovoltaic process occurs. Thus, 37 microfilms were stacked and consolidated using an autoclave allowing us to obtain a microfilm with about 38[thin space (1/6-em)]000 alternating D/A layers (cf. Fig. 6a).
image file: c7se00340d-f6.tif

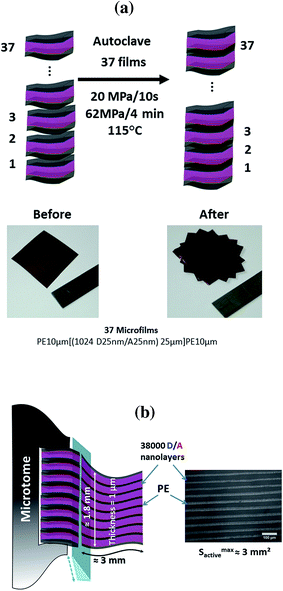

Fig. 6 (a) Explanation scheme of the consolidation approach. (b) Representation of the microtome cutting step with the optical micrograph of the consolidated photoactive films.

In order to better preserve the D/A-multilayered structure, the consolidation was performed with the LDPE skin layer. This allows working at rather low temperatures close to the LDPE melting temperature (between 90 and 120 °C). To define the optimal consolidation conditions, preliminary tests using different temperatures, pressures and times were performed beforehand on model multi-layered films (PE 10 μm–PP/PS 25 μm–PE 10 μm), which are very similar in mechanical behavior to the photo-active film (PE 10 μm–multiD/A 25 μm–PE 10 μm). The approach to achieve optimal conditions evidenced consist, in the first step, in consolidating the films at 115 °C under a pressure of 20 MPa for 10 s and then increasing the pressure to 62 MPa for 4 min before letting the consolidated films to cool down to room temperature.

The consolidation quality was evaluated by optical microscopy analysis after microtome cutting (cf. Fig. 6b, the light and dark bands corresponding respectively to the LDPE skin layer and D/A core multi-layers).

2.3. Solar cell realization and characterization

In our configuration, both electrodes should be deposited on the photo-active film, and not the reverse as for usual OPV cells. Thus, in order to develop a specific assembly procedure for “D/A nanolayer solar cells”, it was necessary to test different configurations and conditions including: active layer thickness (0.5 or 1 μm), cathode nature and deposition process (Al using Joule effect evaporation in a vacuum chamber or an InGa eutectic by drop casting), intermediate hole transporting monolayer (pure PEDOT–PSS, doped PEDOT–PSS/PEG or PEDOT–PSS/D-sorbitol with various ratios) or multilayer (PEDOT–PSS/P3OT or PEDOT–PSS/P3HT and PEDOT–PSS/D-sorbitol) with or without annealing (thermal or solvent vapor), lamination at various temperatures (room temperature, or around the melting temperature of D-sorbitol: 70 and 80 °C) under different pressures (0, ≈50 and ≈75 kPa) and for different times (2 and 5 min).

A large series of “D/A nanolayer solar cells” (>500 devices) has been tested. In this paper, we report the actual investigation of the optimal conditions, as described in Fig. 7. First, 40 to 50 nm of conducting PEDOT–PSS doped with D-sorbitol was deposited on pre-patterned ITO substrates. This transparent intermediate layer acts as an adhesive conductive layer between the active layer film and the ITO anode, helping during the lamination step and ensuring a good electrical contact between the two parts. An additional very thin layer (≈10 nm) of P3HT was also added, allowing both an improvement of the active/intermediate layer interface and an increase of the hole transport, while not affecting the adhesive properties of PEDOT–PSS/D-sorbitol. Then, an adhesive mask with six patterned “windows” (1 × 2 mm2) was placed. On each window, a “D/A nanolayer film” with thickness = 1 μm and area ≈ 1.8 × 3 mm2 was dropped, and the assembly was realized at 80 °C under a 50 kPa pressure for 5 min. Finally, an InGa metal droplet was deposited as the top cathode and the solar cell was encapsulated by sticking an encapsulation glass.


image file: c7se00340d-f7.tif

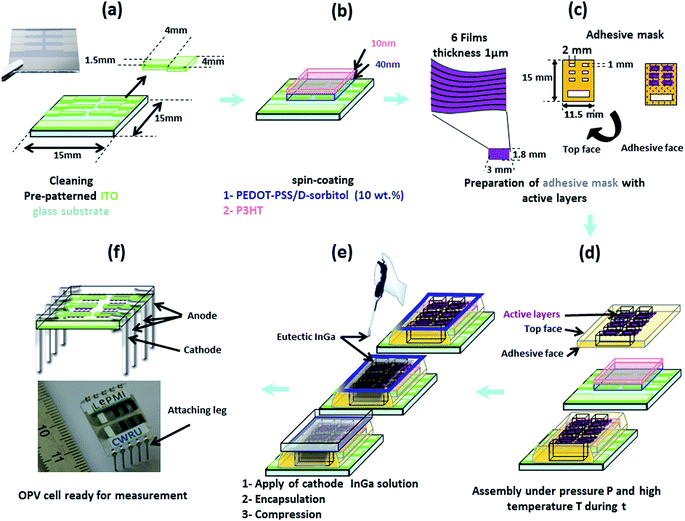

Fig. 7 The assembly process developed for “D/A nanolayer solar cell” realization.

For electrical characterization, electrical connection legs were then attached (Fig. 7f). And, as shown in Fig. 8, a reproducible photovoltaic result is observed using the “extruded D/A nanolayer film” as the photoactive layer. According to the JU photovoltaic characteristic curve under AM1.5 illumination, the open-circuit voltage Voc of the device is close to 0.92 V, and the short-circuit current density Jsc is close to 0.016 A m−2. This latter value thus evidences a photoinduced charge transfer within the “D/A nanolayer solar cell”.


image file: c7se00340d-f8.tif
Fig. 8 Current density–voltage curves of “D/A nanolayer solar cells” under illumination (AM1.5G, 100 mW cm−2) (image file: c7se00340d-u1.tif) and dark (image file: c7se00340d-u2.tif).

The high Voc (0.92 eV) measured for the “D/A nanolayer solar cell” could be attributed to (i) the solar cell assembly conditions;77 (ii) the effective interface percolated active D/active A ratio;78 (iii) the large number of D/A heterojunctions79 (19[thin space (1/6-em)]000 in our “D/A nanolayer solar cell”) and finally (iv) the compatibility of HOMO and LUMO energy levels of the percolated active constituent in D and A materials.80–85

To investigate the compatibility of HOMO and LUMO energy levels of the percolated active constituent in D and A materials and their applicability for photovoltaic application, electrochemical properties of the soluble phases in D (i.e. P3OT) and A (i.e. PSNC60MS) materials were investigated by using cyclic voltammetry (CV). The HOMO and LUMO energy levels were deduced from the oxidation and reduction under the experimental conditions performed and optimized in previously published studies.71,86 Table 2 summarizes the electronic properties (reduction and oxidation potentials, optical or electrochemical bandgap, and HOMO and LUMO energy levels).

Table 2 Electrochemical properties of P3OT (used with PP for elaboration of the extrudable D material), PSNC60MS12 (used with PS for the extrudable A material), and pure PSNC60MS8
Materials EoxOnset vs. Ag/AgCl (V) EoxOnset vs. Fc/Fc+ (V) EredOnset vs. Ag/AgCl (V) EredOnset vs. Fc/Fc+ (V) HOMO (eV) LUMO (eV) Ecvg (eV) Eoptg (eV)
a Measured on the film of the soluble polymers cast on a Pt electrode in propylene carbonate with 0.1 M Bu4NPF6 and a scan rate of 20 mV s−1.b Calculated using the following equation: EHOMO = ELUMOEoptg.c Calculated using the following equation: EHOMO or LUMO = −(Eox or redE1/2, Fc+/Fc + 4.8 eV) including the ferrocene value −4.8 eV (with respect to the vacuum level, which is defined as being zero), where E1/2, Fc+/Fc = 0.06 V.d Calculated using the following equation: Ecvg = ELUMOEHOMO.e Optical band gap calculated from the absorption band edge of the polymer films Eoptg = 1242/λedge.f Measured by ellipsometry on the film of the polymers cast on a silicon substrate.87
P3OT 0.55a 0.48a −1.23a −1.29a −5.28a,c −3.51a,c 1.77d 1.87e
PSNC60MS12 −1.13a −1.19a −6.21a,b −3.61a,c 2.60f


The HOMO and LUMO energy levels of the polymers are illustrated in Fig. 9. The high measured Voc values are consistent with the large difference of 1.7 eV measured between the LUMO energy levels of PSNC60MS (−3.6 eV) and HOMO energy level of P3OT (−5.3 eV) and the energy level configuration confirms the compatibility with the photovoltaic application of the active constituents chosen for elaboration of coextrudable D and A materials.


image file: c7se00340d-f9.tif
Fig. 9 Energy diagram of the HOMO–LUMO energy levels of the active polymers: P3OT, non-diluted PSNC60MS12 (corresponding to 8 vol% of fullerene volume content after dilution), and pure PSNC60MS8.

It should be noticed that, in order to ensure a successful approach and to validate the extrusion concept for the production of solar cells, it was wise to add about 80 vol% of additional PP and PS (which is a high percentage of insulating materials) which decrease the amount of active interface P3OT/PSNC60MS. This explains the high series resistance (3.6 MΩ) and the low current density of cells. The decrease of the current for diluted semiconductor polymers in the presence of an insulating polymer was evidenced in the literature.74,86 In other cases the addition of insulating polymers to the conjugated polymer may lead to improvement of the performances of the optoelectronic device while significantly lowering their cost.74 In contrast, the high shunt resistance (250 MΩ) indicates a good solar cell design (no or very low leakage current) and a performance assembly by lamination.88 Anyway, the detection of a photovoltaic effect for such a system is an extremely promising result that validates the extrusion concept for OPV, and allows considering the extrapolation of this approach to future purely (without insulating phases) active systems with required viscosities.

3. Conclusions and perspectives

This paper demonstrates the successful use of extrusion as a technique for the fabrication of lamellar nanostructured photo-active polymeric films, and suggests a potential application for large scale fabrication of organic photovoltaic solar cells. The originality and novelty of this work first consist in using a one-step continuous extrusion process in order to produce a photo-active nano-multilayer film based on 1024 D (24 nm)/A (24 nm) alternating layers. After this, the total number of D and A nano-layers was increased to 38[thin space (1/6-em)]000 (19[thin space (1/6-em)]000 D/A interfaces) by consolidation of 37 extruded nano-multilayered films. A photovoltaic response was evidenced under light, which confirms the achievement of this functional perfect nano-architectured structure by the extrusion process. The next step, consisting in the use of pure D and A extrudable polymers, should thus lead to high and durable photovoltaic performances and make the extrusion method even competitive.

4. Methods and materials

4.1. Materials

The structures of all constituents of the extruded film are presented in Scheme 1. A P3OT/PP blend and a PSNC60MS12/PS blend were used for the elaboration of, respectively, the donor and acceptor extrudable materials. LDPE was used for encapsulation and for stacking of the extruded films by the consolidation method.
image file: c7se00340d-s1.tif

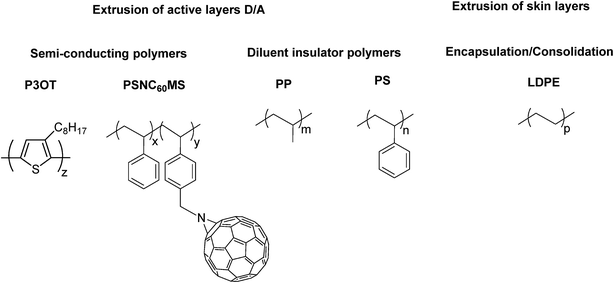

Scheme 1 Chemical structures of all used polymeric materials: poly(3-octylthiophene) P3OT, poly(styrene-co-NC60methylstyrene) PSNC60MS12, polypropylene PP, polystyrene PS and polyethylene LDPE.

The poly(3-octylthiophene) polymer (P3OT) with mass-average molecular weight ([M with combining macron]w eq.PS) close to 92 kg mol−1, dispersity (Đ = [M with combining macron]w/[M with combining macron]n) of 1.9 and regioregularity RR ≥ 98.5% was purchased from Rieke Metal. The poly(styrene-co-NC60methylstyrene12) (PSNC60MS12) polymer was laboratory synthesized ([M with combining macron]w true = 36 kg mol−1, Đ = 1.7). The synthesis was optimized in our laboratory in small quantities (≈1–2 g) as described in previous reports,70,71 and the large scale production (≈100 g) was subcontracted to Specific Polymers Company. A polypropylene polymer (PP) (MFI at 230 °C-2.16 kg of 12 g/10 min-ASTM D 1238) and a polystyrene polymer (PS) (MFI at 200 °C-5 kg of 30 g/10 min-ISO 1133H) were used as both the diluent (Table 4) and carrier polymers in the coextrusion process. The origin of all constitutive materials for the “D/A nanolayer solar cell” design is summarized in Table 3.

Table 3 Constitutive materials of the “D/A nanolayer solar cells”
Elements Material function Constituent Origin
a The nomenclature adopted is P3OT/PP X/Y or PSNC60MS12/PS X/Y, where X and Y are the weight fractions of each constituent.b Synthesized poly(styrene-co-NC60methylstyrene) with 12 vol% of fullerene C60.
D/A photoactive nano-multilayers Diluent/carrier PP Commercial (Dow Chemical Company PP H700-12)
Donor material P3OT Commercial (Rieke 4003 E)
Final donor blend P3OT/PP 65/35a Blended in an extruder
Diluent/carrier PS Commercial (Total Crystal 1960N)
Acceptor material PSNC60MS12b Lab synthesis (LEPMI laboratory/specific polymers)
Final acceptor blend PSNC60MS12/PS 70/30a Blended in an extruder
Skin layers Encapsulation & consolidation LDPE Commercial (Dow LDPE751A)
Anode Electrode ITO Commercial (Ossila S 101)
Intermediate layer Hole transport & adhesive conductive layer PEDOT–PSS, D-sorbitol, P3HT Commercial (Ossila P Al4083), commercial (Aldrich, purity 99.9%), commercial (Rieke RMI-001 EE)
Cathode Electrode InGa eutectic Commercial (Alfa Aesar, purity 99.9%)


Table 4 Densities of materials used in the active layer of “D/A nanolayer solar cells”
Material Density
PP 0.90 ± 0.01
P3OT 1.05 ± 0.02
P3OT/PP 65/35 0.98 ± 0.01
PS 1.063 ± 0.005
PSNC60MS12 1.08 ± 0.02
PSNC60MS12/PS 70/30 1.08 ± 0.03


4.2. Methods

4.2.a. Thermal transitions and crystallinity degree. The thermal transitions (melting, crystallization and glass transition temperatures) were investigated in order to evidence the plausible temperature range for processing by extrusion. The experiments were carried out with a PerkinElmer Series 7 differential scanning calorimeter (DSC) at a heating and cooling rate of 10 °C min−1. The DSC instrument was calibrated with indium and zinc as temperature calibration standards. Glass transition temperatures were determined from the second heating cycle.
4.2.b. Thermal stability and effective compositions of D and A blended materials. Thermo-gravimetric analyses (TGA) were performed using a TA Instruments TGA 2050 CE apparatus at a heating rate of 20 °C min−1 from 20 °C to 1000 °C under an air or nitrogen atmosphere. The maximal temperature for extrusion was determined under an oxidant atmosphere, and the composition of blended systems was controlled after extrusion using TGA under a nitrogen atmosphere.
4.2.c. Melt viscosity. A melt flow indexer (MFI) was used to obtain the melt viscosity of polymers in the molten state at different temperatures above glass transition for amorphous polymers (PS, PSNC60MS12, PSNC60MS70/PS30) and above the melting temperature for semi-crystalline polymers (PP, P3OT, P3OT65/PP35). Measurements were carried out in a Kayeness Galaxy I at a shear rate of 10 s−1. The melt flow rate was measured according to ASTM D1238-90B. Viscosity was calculated as the shear stress at the wall divided by the shear rate at the wall.
4.2.d. Conductivity measurements. The electrical measurements were carried out by impedance spectroscopy using a Solartron analytical (model 2100A) impedance analyzer. The measurements were performed at room temperature using an AC voltage amplitude of 1 V and a frequency sweep from 10 μHz to 10 kHz on thin films. The thin films of P3OT polymer and P3OT65/PP35 polymer blends were processed by hot melt compression to get 15 μm thick films. For this purpose, Specac Atlas Series heated platens were adapted on a Carver bench top pellet press and a Specac Atlas constant thickness film maker accessory was employed for a 3-step sample processing: (i) melting the material for 5 min at 195 °C with no loading, (ii) film processing for 5 min at 195 °C under a 28 MPa load, (ii) sample cooling for 5 minutes at 15 °C and 0 MPa.
4.2.e. Extrusion of D and A polymer blends. Prior to the realization of extruded films, both D and A extrudable materials were produced by blending using a Haake (Rheodrive 5000) twin screw extruder at 195 °C.
4.2.f. Extrusion and consolidation of multi-nanolayers. Multi-nanolayers were extruded in a laboratory at the Case Western Reserve University that incorporates layer-multiplying technology. The system consists of three 3/4 inch (19 mm) single screw extruders with melt pumps, an ABABABA coextrusion block, a series of 10 layer multiplier elements and an exit die of 6 inch (152 mm). The extruder temperatures were adjusted to 195 °C.
4.2.g. Morphology. The consolidation quality was evaluated by optical microscopy analysis of the layer integrity using a Leica DMLM system in light transmission mode and a Leica DFC420 CCD camera with 20× and 50× objectives. Consolidated microfilms (PE 10 μm–PP/PS 25 μm–PE 10 μm) × 37 and (PE 10 μm–D/A 25 μm–PE 10 μm) × 37 were sliced at 1 μm thickness using a microtome for optical microscopy observation. The quality of the extruded multi-D/A alternating nanolayers (uniformity, periodicity, continuity, and individual mono-nanolayer thickness) was examined by determining the film thickness using atomic force microscopy (AFM). The observed cross-sections were sectioned using an ultramicrotome (MT6000XL from RMC, Tucson, AZ) from epoxy embedded films (5 min kept in epoxy, 24 h curing at room temperature). The surfaces were examined under ambient conditions using the tapping mode of the Nanoscope IIIa MultiMode scanning probe (Digital Instruments). Phase and height images were recorded simultaneously. The phase image more clearly revealed the layered film structure. To resolve the layer structure at the nanoscale, measurements were performed using Si probes with a spring constant of 50 N m−1 and resonance frequency in the 284–362 kHz range. The probe radius was about 10 nm.
4.2.h. Photovoltaic device fabrication and characterization. Devices for the characterization of photovoltaic performances were elaborated with the following configuration “Glass/ITO/PEDOT–PSS + D-sorbitol/P3HT/alternating D/A nano-multilayers/InGa” according to the following procedure (cf. Fig. 6). Glass substrates (20 mm × 15 mm) supporting a 100 nm layer of pixelated anodes (4 mm × 1.5 mm ≈ 6 mm2) based on tin-doped indium oxide (ITO) (resistance ≈ 20 Ω sq−1, roughness ≈ 1.8 nm RMS) were sonicated in 10% NaOH solution for 5 min, rinsed thoroughly in deionized water, re-sonicated in fresh 10% NaOH solution for 5 min, rinsed thoroughly in deionized water, acetone, ethanol and isopropanol, before drying at 60 °C for 20 min. First, D-sorbitol (10 wt/vol%) was added to an aqueous solution (1.0–1.2 wt/vol%) of conducting poly(3,4-ethylenedioxythiophene)–poly(styrenesulfonate) PEDOT–PSS (0.1–1 S cm−1), before being deposited on the ITO substrate using a SCC-200 spin coater with a centrifugation step at 5000 rpm (ramp 3 s) for 30 s, and dried at 120 °C for 20 min (PEDOT–PSS:D-sorbitol thickness ∼40–50 nm). Secondly, a very thin interfacial layer based on P3HT with a targeted thickness of 10 nm was deposited by spin coating using a 0.5 g l−1 P3HT solution in o-DCB (prepared one day before deposition and filtered through a 0.2 μm filter) and a two-step program: 1500 rpm (ramp of 4 s)for 40 s, and 2000 rpm (ramp of 4 s) for 40 s. Then, the photo-active layer film, microtomed beforehand to 1 μm thickness using a Leica RM2165 microtone, was thermally laminated under pressure (50 kPa for 5 min at 80 °C). Finally, an indium gallium metal alloy (InGa eutectic) was dropped on the top of the active layers; and electrical connection legs were set up. Photovoltaic performance measurements via current–voltage (JU) characteristics were recorded under AM1.5 standard illumination (Oriel LCS-100 solar simulator, 100 mW cm−2) using an Agilent B2902A Source Measure Unit.
4.2.i. Electrochemical properties. Cyclic voltammetry (CV) was carried out in a standard three-electrode cell equipped with a platinum working electrode (2.01 mm2), a platinum wire counter electrode, and an Ag/AgNO3 reference electrode (silver wire in 0.01 M AgNO3 and 0.3 M Bu4NPF6 acetonitrile solution). The analyses were performed in an electrolyte solution of 0.3 M tetrabutylammonium hexafluorophosphate (Bu4NPF6) in degassed propylene carbonate under a nitrogen atmosphere, and the ferrocenium/ferrocene (Fc+/Fc) redox couple was used as the external standard. All I = f (V) measurements were realized at a scan rate of 20 mV s−1 using polymer thin films deposited on the working electrode (drop casting by evaporation of a dilute chloroform solution).
4.2.j. Optical band gap. The optical band gap energies were determined using a UVISEL ellipsometer from HORIBA Jobin Yvon. Measurements were carried out on solid films spin-coated on quartz plates for UV-visible spectroscopy and on silicon wafers for ellipsometry.

Conflicts of interest

There are no conflicts to declare.

Acknowledgements

This work was performed within the framework of the Centre of Excellence of Multifunctional Architectured Materials “CEMAM” no. ANR-10-LABX-44-01. The Institut National de l'Energie Solaire (INES) and the financial supports from Assemblée des Pays de Savoie, Université de Savoie are gratefully acknowledged. The authors also thank J. CARR and S. ARMSTRONG for their fruitful help and valuable scientific exchange.
