Light-responsive paper strips as CO-releasing material with a colourimetric response

Upendar Reddy G.a, Jingjing Liua, Patrick Hoffmannbc, Johannes Steinmetzerd, Helmar Görlsa, Stephan Kupferd, Sven H. C. Askesa, Ute Neugebauerbc, Stefanie Gräfed and Alexander Schiller*a
aInstitute for Inorganic and Analytical Chemistry (IAAC), Friedrich Schiller University Jena, Humboldtstr. 8, D-07743 Jena, Germany. E-mail: alexander.schiller@uni-jena.de
bLeibniz Institute of Photonic Technology, Albert-Einstein-Str. 9, D-07745 Jena, Germany
cCenter for Sepsis Control and Care (CSCC), Jena University Hospital, Am Klinikum 1, D-07747 Jena, Germany
dInstitute of Physical Chemistry (IPC), Abbe Center for Photonics Friedrich Schiller University Jena, Helmholtzweg 4, D-07743 Jena, Germany

Received 16th April 2017 , Accepted 25th July 2017

First published on 26th July 2017


Carbon monoxide (CO) is known for its multifaceted role in human physiology, and molecules that release CO in a controlled way have been proposed as therapeutic drugs. In this work, a light-responsive CO-releasing molecule (CORM-Dabsyl) showed a strong colourimetric response upon photochemical CO-release, owing to the tight conjugation of a Mn(I) tricarbonyl centre to a dabsyl chromophoric ligand (L). Whereas the complex was very stable in the dark in nitrogen-purged aqueous media, CO-release was effectively triggered using 405 nm irradiation. CORM-Dabsyl, L and the inactive product iCORM-Dabsyl have been investigated by DFT and TD-DFT calculations. Only mild toxicity of CORM-Dabsyl was observed against LX-2 and HepaRG® human cell lines (IC50 ∼ 30 μM). Finally, to develop a CO storage and release material that is readily applicable to therapeutic situations, CORM-Dabsyl was loaded on low-cost and easily disposable paper strips, from which the light triggered CO-release was conveniently visible with the naked eye.


Introduction

In recent years, carbon monoxide (CO) has been identified as a vital messenger molecule in mammals, similar to nitric oxide (NO) and hydrogen sulfide (H2S), with physiological significance and potential as a therapeutic agent.1 CO imparts significant anti-inflammatory, cytoprotective and vasodilatory effects in mammalian physiology through various pathways.2 It also provides protection from myocardial infarction, has been employed to protect and preserve organs during transplantation procedures, and has been proposed as antibacterial and anticancer agent.3 Altogether, CO has been shown as an alternative drug to be employed when inflammation plays a damaging role. Despite the beneficial biological properties, the application of CO as a therapeutic agent is still in its infancy due to the technical challenge of delivering gaseous CO to a specific location with control over dosage and timing.4 Consequently, stable molecules that are able to store CO and release it upon an external stimulus (CO-releasing molecules; CORMs) are of great medical interest.

Several methodologies have been adopted for efficient CO-release which includes solvent-assisted CO-release,5 light-triggered CO-release (photo-CORMs),6 enzyme-triggered CO-release (ET-CORMs)7 and chemical-triggered CO-release (CT-CORM)8 that feature transition metal carbonyl complexes as possible prodrugs.9,10 However, localized administration of CO through a molecular CORM is difficult due to rapid diffusion, which may cause toxicity to untargeted healthy tissues; either because of released CO or metal and spectator ligand fragments that are released upon dissociation. These drawbacks motivated us and others to design hybrid polymer and inorganic matrices for CO-release (CO-releasing materials; CORMAs). The hybridization of carbonyl complexes into macromolecular or inorganic scaffolds may additionally stabilize the CORM or improve the cellular uptake.11 So far, photo-CORMs have been embedded in various macromolecular carriers such as dendritic structures,12 covalently immobilized onto the surfaces of nanoparticles13 and protein cages,14 or trapped in polymer fibers.15 Mascharak et al. recently incorporated photo-CORMs into pores of aluminosilicate nanoparticles.16 Ford and coworkers described water-soluble light-upconverting nanoparticles that were functionalized with a Mn(I) carbonyl complex, which released CO upon near-infrared irradiation.17 Recently, Kitagawa et al. reported a CO-releasing metal organic framework (CORF) based on a Mn(I) bipyridine tricarbonyl building block.18 Although these CORMAs are intriguing from a scientific point of view, they require elaborate and time-consuming fabrication methods and are therefore not readily applicable.

In addition to other carrier materials, paper strips are an alternative technology for fabricating simple, inexpensive, portable and disposable analytical devices, assembled from only filter paper and designed molecules.19 Due to the development of paper-based microfluidics,19b paper strips have become a promising platform for lab-on-a-chip devices. These devices can act as portable diagnostic tools. Khan et al. described paper strips as low-cost material for blood sensors and blood group analysis,19c Li et al. developed a paper-based testing disc for multiplex whole cell bacteria analysis.19d For these reasons, we were interested in combining CORMs and paper strips for the development of a quickly and easily prepared CORMA in potential medical applications. To the best of our knowledge, release of CO from paper strips has not been reported yet.

In this work, a dabsyl moiety (i.e., 4-(dimethylamino)azobenzene-4′-sulfonyl chloride) was tethered to di-(2-picolyl)amine (DPA) to synthesize a symmetrical tridentate ligand (L) that can coordinate facially to a Mn(I) carbonyl centre, thereby producing Mn(I) complex CORM-Dabsyl. As an overall strategy, dabsyl was selected as a strong chromophore, which originates from a strong intramolecular charge transfer in the excited state (tertiary amine to azobenzene-bridge),20 and conjugating it directly to the Mn(I)-centre to elicit a colour-change upon CO-release. Such a colourimetric response would allow for easy observation whether or not the molecule has released CO. In a next step, CORM-Dabsyl was immobilized on a paper strip to allow convenient and efficient CO-release upon blue light from the material.

Results and discussion

Analytical and spectroscopic data confirmed the successful synthesis and purity of ligand L and CORM-Dabsyl (ESI). The solid-state X-ray crystal structure of CORM-Dabsyl shows that the three carbonyl ligands are facially coordinated to the Mn centre and opposite to the facially coordinated dipicolyl amine moiety (Fig. 1). The Mn–N(sp3) bond length (2.161(3) Å) was found to be unusually longer than the other Mn–N (sp2) bond distances (generally ∼2.050(4) Å to 2.052(4) Å) and confirms the superior coordinating ability of the sp2 hybridized pyridine nitrogens compared to the sp3 hybridized amine. The IR spectrum of CORM-Dabsyl displayed two νCO bands (2037 and 1928 cm−1) instead of three due to the high symmetry (no splitting at 1928 cm−1). Furthermore, comparison of 1H NMR spectra of L and CORM-Dabsyl shows that the methylene protons of the dipicolylamine moiety have singlet multiplicity for L and become two doublets for CORM-Dabsyl, which is explained by the fact that one pair projects towards and the other pair projects away from the carbonyl ligands.8 In addition, a complex with [Mn(CO)3]+ and dipicolyl(methyl)amine8 was used as control compound for unambiguous assignment of the spectral responses of CORM-Dabsyl upon release of CO molecules as well as the influence of the –SO2 unit and the dye moiety.
image file: c7sc01692a-f1.tif

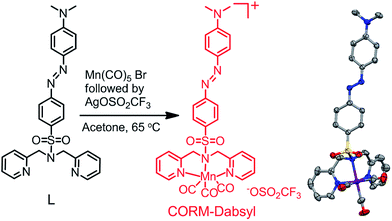

Fig. 1 Reaction scheme for the synthesis of CORM-Dabsyl. X-ray crystal structure shown on the right. Solvent molecules, triflate anion and hydrogens in crystal structure are omitted for clarity; gray = carbon, blue = nitrogen, red = oxygen, purple = manganese and yellow = sulphur. For details, see the ESI.

UV-Vis absorption

The electronic absorption spectra of L and CORM-Dabsyl were measured in aqueous phosphate buffer PB[thin space (1/6-em)]:[thin space (1/6-em)]DMSO (99[thin space (1/6-em)]:[thin space (1/6-em)]1, v/v) solution and compared to calculated spectra obtained by the TD-DFT (Fig. 2a). Ligand L shows a strong absorption band at 415 nm (ε = 3.2 × 104 mol−1 L cm−1), which is assigned to an intramolecular charge transfer (ICT) process from the N,N′-dimethylamine donor moiety to the azo (–N[double bond, length as m-dash]N–) fragment by means of quantum chemical simulations. TD-DFT predicts a bright state (S2) at 424 nm that corresponds to the HOMO → LUMO ICT-transition on the dabsyl moiety. CORM-Dabsyl exhibits an intense absorption band in the visible region at 500 nm (ε = 3.3 × 104 mol−1 L cm−1). TD-DFT estimates the bright excitation (S0–S2) at 464 nm, that corresponds to the same HOMO → LUMO transition, but with a distinct redshift compared to the ICT transition in LE = 0.37 eV, Δλmax = 84 nm).
image file: c7sc01692a-f2.tif

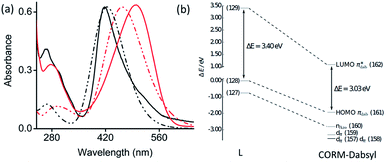

Fig. 2 (a) Normalized experimental (solid) and theoretical (dashed) absorbance spectra of L (black) and CORM-Dabsyl (red) in aqueous phosphate buffer[thin space (1/6-em)]:[thin space (1/6-em)]DMSO (99[thin space (1/6-em)]:[thin space (1/6-em)]1 v/v, pH 7.4). (b) Energy scheme of the frontier orbitals of L and CORM-Dabsyl obtained at the M06/def2-TZVP level. All energies are in relation to the energy of the HOMO of L (MO 128). The orbital pairs (127, 160), (128, 161) and (129, 162) have the same character in L and CORM-Dabsyl. For details, see the ESI.

When going from L to CORM-Dabsyl, coordination of the [Mn(CO)3]+ fragment leads to an introduction of a positive charge into the molecular system. Analyzing the atomic charges in CORM-Dabsyl using intrinsic atomic orbitals (IAO) reveals that the [Mn(CO)3] fragment possesses only a charge of +0.4e upon coordination.21 The majority of the positive charge (+0.6e) is delocalized over the coligand and leads to a stabilization of the frontier orbitals of CORM-Dabsyl. The HOMO of CORM-Dabsyl is stabilized by 1.94 eV, whereas the LUMO is stabilized by 2.31 eV, resulting in a smaller HOMO–LUMO gap in CORM-Dabsyl compared to L and explaining the observable redshift of the bright absorption feature assigned to the S2 state (Fig. 2b).

Colourimetric response of CORM-Dabsyl and investigation of the CO-release mechanism

To investigate whether CORM-Dabsyl is able to photochemically release CO, a DMSO solution of CORM-Dabsyl (50 μM, 3 mL) was irradiated with 424 nm while recording UV-Vis absorption spectra every second. The absorption band at 490 nm was found to decrease gradually with a concomitant increase in absorbance around 385 nm. The colour of the solution changed from dark red to pale yellow (Fig. 3). A clear isosbestic point was observed at 411 nm, indicating that the photoreaction proceeds cleanly and gives only one photoproduct, without observable intermediate species. From these data, a photoreaction quantum yield of 0.5 ± 0.1% was calculated (Experimental section). The photoreaction was also performed in phosphate buffer (99[thin space (1/6-em)]:[thin space (1/6-em)]1 PB[thin space (1/6-em)]:[thin space (1/6-em)]DMSO, Fig S10a). The same reduction in 490 nm absorbance was observed with at a very similar initial reaction rate, but the photoreaction could not be studied in detail due to precipitation of the photoproduct in this medium. Due to the similar reaction rate, we assume that the photoreaction quantum yield is similar in phosphate buffer and in neat DMSO. Meanwhile, in dark conditions in phosphate buffer no changes in absorbance were observed over a course of 12 h (Fig. S10), showing an exceptional stability of CORM-Dabsyl versus oxidation and decomposition in solution. Moreover, no spectral changes were observed when only ligand L was irradiated at 405 nm (Fig. S11), which mitigates the possibility that photo-induced transcis isomerization plays a role in the observed spectral changes during irradiation of CORM-Dabsyl.
image file: c7sc01692a-f3.tif

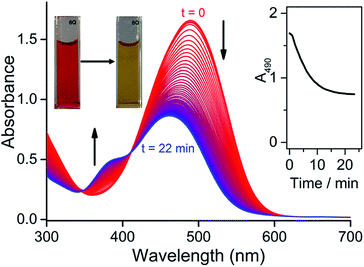

Fig. 3 Evolution of absorption spectra of CORM-Dabsyl (50 μM) in DMSO solution during blue light irradiation (424 nm, 23 mW). Time between spectra is 40 s. Inset: absorbance at 490 nm as a function of irradiation time. Pictures show the solution in a cuvette before (left) and after (right) the photoreaction.

Next, the photo-induced release of CO was investigated using a myoglobin (Mb) assay based on the spectral changes in absorption when deoxy-Mb is converted to Mb–CO (Fig. 4).15 Briefly, a freshly prepared concentrated solution of CORM-Dabsyl in DMSO was added to a buffered solution of horse skeletal myoglobin (Mb), which had been reduced with sodium dithionite in absence of oxygen. Upon illumination of this mixture with light (405 nm, 8 mW cm−2), the absorbance of deoxy-Mb at 557 nm decreased and the characteristic absorbance bands of Mb–CO at 540 and 577 nm grew and stabilized after 4 min, thereby confirming the binding of CO to Mb. To know the influence of sodium dithionite on CO-release from CORM-Dabsyl, a reference myoglobin assay setup was kept in the dark for 60 min, where no absorbance changes at 540 and 577 nm were observed (Fig. S12). This confirms not only the stability of CORM-Dabsyl in the dark, but also the stability against sodium dithionite. Hence, the release of CO was actually induced by light illumination and not by the sodium dithionite. Thus, these data demonstrate that CORM-Dabsyl successfully releases CO upon irradiation. The amount of CO per CORM was calculated from these data and amounted to the near-complete release of three equivalents CO for each molecule CORM-Dabsyl (Fig. 4). The previously calculated photoreaction quantum yield was therefore multiplied by 3, which gave a quantum yield of CO-release of 1.5 ± 0.2% (with 424 nm irradiation).


image file: c7sc01692a-f4.tif

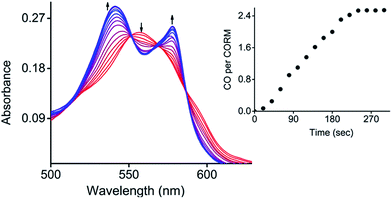

Fig. 4 Conversion of deoxy-Mb to Mb–CO in a mixture of CORM-Dabsyl (15 μM) and deoxy-Mb (60 μM) in phosphate buffer (pH 7.4) upon exposure to light (405 nm, 8 mW cm−2). Inset: CO release per CORM-Dabsyl versus time.

To identify which molecular orbitals are associated to the photochemical release of CO upon blue light illumination, TD-DFT calculations were performed. Several excited states (S4–S6) were identified between 418 and 396 nm that correspond to excitations from the three (Mn–CO)-bonding dπ-orbitals (MOs 157–159), responsible for π-backbonding to CO, to (Mn–CO)-antibonding orbitals (MOs 167 and 168, Fig. S20). While the dπ-orbitals feature mainly d-character, the MOs 167 and 168 correspond to antibonding linear combinations between image file: c7sc01692a-t1.tif- and the eg-orbitals.22 These data suggest that the photochemical activity of CORM-Dabsyl originates from orbitals around the Mn centre and is not occurring from ligand excited states that are populated with light above 418 nm (up to 600 nm, recall Fig. 2). Indeed, upon excitation with 480 nm light, which is very strongly absorbed by the dabsyl moiety in CORM-Dabsyl, no CO-release is observed at all (Fig. S13b). This result clarifies that the complex only reacts with deep-blue light and that the dabsyl functions act as colourimetric marker without contributing to the photochemical release of CO, however, the charge distribution in vicinity of the Mn centre (electronic ground state) is highly influenced by means of the CT character of L. Overall, it was established that CORM-Dabsyl is a highly stable CORM that releases all three carbonyls upon low intensity light exposure, while a marked colourimetric response can be easily observed by the naked eye.

Characterization of the inactive product after irradiation

The photochemical reaction of CORM-Dabsyl produces not only CO, but also an “inactive” Mn product (iCORM), which was characterized by ESR, NMR, IR spectroscopy, as well as by ESI-MS (ESI) and computational methods. The X-band ESR spectrum (at 295 K) of the photolyzed solution of CORM-Dabsyl exhibits a six-line spectrum indicative of a paramagnetic Mn(II) species (d5, high spin, sextet, Fig. S14). The paramagnetic nature of the product was also confirmed by 1H NMR, which showed that all proton signals of CORM-Dabsyl broadened upon irradiation. However, no shifts of the proton signals were observed, which confirmed that ligand L is still bound to the Mn centre. In addition, 13C NMR spectroscopy revealed that the signal for the CO molecules of CORM-Dabsyl at 217.8 ppm disappeared upon irradiation of CORM-Dabsyl (Fig. S15). Next, a solution of CORM-Dabsyl in dichloromethane was photolyzed with blue light (405 nm, 8 mW cm−2) and the dried residue was examined with IR spectroscopy. No CO stretches were observed in the entire 1900–2100 cm−1 region, which clearly confirms that all three CO ligands were released from CORM-Dabsyl (Fig. S16). This is in accordance with data from the Mb-assay in aqueous solution (see Fig. 4). However, HRMS reported that the iCORM, generated by irradiation of solid CORM-Dabsyl, had a mass of 541.1222 m/z. This value was attributed to [L + Mn] with a Mn(I) species (Fig. S17). Overall, these data show that upon irradiation and CO-release, the Mn centre is still bound to the ligand. The oxidation state I or II in the iCORM is dependent on the reaction conditions. We speculate that the three CO ligands are replaced by three H2O ligands in aqueous media, leading to iCORM-Dabsyl, i.e. [MnL(H2O)3]2+. Unfortunately, we were not able to isolate or synthesize the inactive product as Mn(II) complex. However, the different possible spin states of iCORM-Dabsyl were investigated by DFT calculation. Considering the first three doublet, quartet and sextet states, within their equilibrium structures, MS-RASPT2 predicts a high spin sextet ground state, energetically favoured with respect to the doublet (+1.79 eV) and quartet (+2.48 eV) ground state (ESI Table 3). In agreement with ESR, the sextet ground state corresponds to a 3d5 configuration on the Mn. Subsequently, the nature of the bright excitations underlying the absorption spectrum of the photoproduct were unraveled by means TD-DFT within sextet multiplicity. For iCORM-Dabsyl TD-DFT estimates two bright states (S9 and S11) at 496 nm and 477 nm. Their character is similar to the bright S2 state as in L and CORM-Dabysl (ESI, Tables 1 and 2) with additional charge-transfer from the azobenzene into the image file: c7sc01692a-t2.tif-orbitals.

Toxicity of CORM-Dabsyl against human cell lines

To determine the potential cytotoxicity, CORM-Dabsyl was tested against two human hepatic model cell lines (HepaRG® and LX-2) by applying a common resazurin-based cell viability assay in the dark at standard cell culture conditions (Fig. 5).8 In vitro experiments revealed that CORM-Dabsyl is mildly cytotoxic to both cell lines with EC50 values of 31 ± 5 μM (LX-2) and 26 ± 7 μM (HepaRG®) for an incubation time of 24 h. Nevertheless, these results convey the need for CORMs to be immobilized in a carrier material in order to prevent or reduce cytotoxic effects at the desired site of CO-release.
image file: c7sc01692a-f5.tif

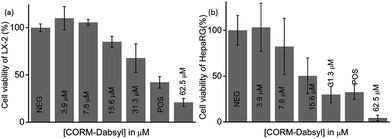

Fig. 5 Relative percentage of cell viability of (a) LX-2 cells and (b) HepaRG® cells that were treated for 24 h with medium only (NEG), 5 μM alpha-toxin (POS), or a concentration series of CORM-Dabsyl (3.9 μM to 62.5 μM).

Light-induced CO-release from paper strips

Encouraged by the efficacious photoreactivity and stability of CORM-Dabsyl, we endeavoured to develop a low-cost and photoactive CO delivery material with a colourimetric feedback. A 1 × 3 cm paper strip was soaked in a DCM solution (0.5 mL) of CORM-Dabsyl (0.5 mg). Within 2 min the entire fluid had been homogeneously absorbed due to capillary forces. The red paper was air-dried for 3–4 min. The colour of the paper strips remained unchanged during several weeks in the open air, which indicates the stability of CORM-Dabsyl in the material. CORM leaching in aqueous solution within 15 min was negligible (Fig. S19). In order to investigate whether CO could be photochemically produced from the paper strips, the strips were irradiated in a closed desiccator with 405 nm LED-lights (8 mW cm−2), while monitoring the CO concentration with a portable CO-sensor.15 Interestingly, upon exposure of light (λirr = 405 nm; 8 mW cm−2) the strips turned from red to yellow (Fig. 6), similar to the colour changes observed previously for CORM-Dabsyl in solution. The amount of CO-release from one paper strip (0.5 mg of CORM-Dabsyl loaded) under illumination within 10 minutes, was 1.5 μmol mg−1.
image file: c7sc01692a-f6.tif

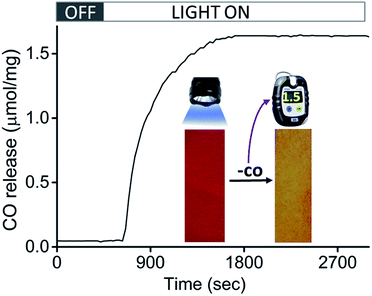

Fig. 6 Amount of CO released as a function of time during irradiation with LED light (λirr = 405 nm; 8 mW cm−2) of paper strips loaded with CORM-Dabsyl in a closed desiccator. The inset shows the colour change from red (before) to yellow (after) due to irradiation.

To furthermore confirm the CO-release, the paper strip was characterized with ATR-IR spectroscopy immediately after light exposure (Fig. S18). The CO vibration bands that were present before irradiation (1900–2100 cm−1) had completely vanished as a result of light exposure. As a control, the experiment was repeated in ambient light conditions without LED irradiation: no released CO was detected during 16 h measurement time (Fig. S18). Overall, these results signify that CO is only released upon photolysis (λirr = 405 nm; 8 mW cm−2). The strategy of using a paper strip with an immobilized photo-CORM is highly promising for the development of a simple, inexpensive, and portable CO-releasing wound cover that may be used to release CO on demand at a disease site. Moreover, the clearly visible colourimetric response of the paper strips give instant feedback whether or not the CO has been released.

Conclusions

In brief, we have reported a stable and water-soluble colourimetric CO-releasing molecule (CORM-Dabsyl) that releases three CO molecules upon photolysis. The associated colour change is easily observed by the naked eye. DTF and TD-DFT calculations gave insight into the CO release mechanism, dye contribution and the properties of the inactive CORM. For the first time, paper strips based on CORM-Dabsyl were fabricated, which could act as a CO-releasing material for convenient and efficient CO-release under light illumination with a strong colourimetric response. These paper strips are highly useful for on-demand release of CO at a biological site, while it is directly visible whether CO has been released or not. The ease of preparation, the cost-effectiveness, and the stability of the material render the paper strips immediately applicable to medical situations where CO is needed as drug, and will pave the way for a next generation of CO-releasing materials.

Conflict of interest

There are no conflicts of interest to declare.

Acknowledgements

U. N. and A. S. are grateful to the German Research Foundation (DFG) for supporting FOR 1738 (grant number SCHI 1175/2-2). A. S. thanks the DFG for a Heisenberg fellowship (grant numbers SCHI 1175/4-1 and SCHI 1175/5-1). This work was also supported by a grant from the Federal Ministry of Education and Research (Germany), grant number MF130124. All calculations have been performed at the computing centre of the Friedrich Schiller University of Jena and the computers of the Theoretical Chemistry group of Jena. We thank Prof. Winfried Plass and Florian Reinhardt for ESR measurements.

Notes and references

  1. C. Romao, W. A. Blattler, J. D. Seixas and G. J. L. Bernardes, Chem. Soc. Rev., 2012, 41, 3571 RSC; S. H. Heinemann, T. Hoshi, M. Westerhausen and A. Schiller, Chem. Commun., 2014, 50, 3644 RSC.
  2. R. Motterlini and L. Otterbein, Nat. Rev. Drug Discovery, 2010, 9, 728 CrossRef CAS PubMed.
  3. J. Kohmoto, A. Nakao, D. B. Stolz, T. Kaizu, A. Tsung, A. Ikeda, H. Shimizu, T. Takahashi, K. Tomiyama, R. Sugimoto, A. M. K. Choi, T. R. Billiar, N. Murase and K. R. McCurry, Am. J. Transplant., 2007, 7, 2279 CrossRef CAS PubMed.
  4. (a) B. Wang, L. Hu and T. Siahaan, in Wiley Series in Drug Discovery and Development, John Wiley and Sons, Hoboken, New Jersey, 2nd edn, 2016 Search PubMed; (b) Y. Zheng, B. Yu, K. Ji, Z. Pan, V. Chittavong and B. Wang, Angew. Chem., Int. Ed., 2016, 55, 4514 CrossRef CAS PubMed.
  5. (a) M. C. Ferreira, I. S. Albuquerque, D. M. Vinkovic, A. C. Coelho, S. M. Carvalho, L. M. Saraiva, C. C. Romao and G. J. L. Bernardes, Angew. Chem., Int. Ed., 2015, 54, 1172 CrossRef PubMed; (b) A. J. Atkin, S. Williams, P. Sawle, R. Motterlini, J. M. Lynam and I. J. S. Fairlamb, Dalton Trans., 2009, 3653 RSC; (c) F. Zobi, A. Degonda, M. C. Schaub and A. Y. Bogdanova, Inorg. Chem., 2010, 49, 7313 CrossRef CAS PubMed.
  6. (a) H. Pfeiffer, A. Rojas, J. Niesel and U. Schatzschneider, Dalton Trans., 2009, 4292 RSC; (b) R. D. Rimmer, H. Richter and P. C. Ford, Inorg. Chem., 2010, 49, 1180 CrossRef CAS PubMed; (c) R. Kretschmer, G. Gessner, H. Görls, S. H. Heinemann and M. Westerhausen, J. Inorg. Biochem., 2011, 105, 6 CrossRef CAS PubMed; (d) S. J. Carrington, I. Chakraborty and P. K. Mascharak, Dalton Trans., 2015, 44, 13828 RSC; (e) M. A. Gonzalez, M. A. Yim, S. Cheng, A. Moyes, A. J. Hobbs and P. K. Mascharak, Inorg. Chem., 2012, 51, 601 CrossRef CAS PubMed; (f) R. Mede, V. P. Lorett-Velasquez, M. Klein, H. Görls, M. Schmitt, G. Gessner, S. H. Heinemann, J. Popp and M. Westerhausen, Dalton Trans., 2015, 44, 3020 RSC; (g) E. Kottelat, A. Ruggi and F. Zobi, Dalton Trans., 2016, 45, 6920 RSC; (h) I. Chakraborty, J. Jimenez, W. M. C. Sameera, M. Kato and P. K. Mascharak, Inorg. Chem., 2017, 56, 2863 CrossRef CAS PubMed; (i) U. Sachs, G. Schaper, D. Winkler, D. Kratzert and P. Kurz, Dalton Trans., 2016, 45, 17464 RSC; (j) H.-M. Berends and P. Kurz, Inorg. Chim. Acta, 2012, 380, 141–147 CrossRef CAS.
  7. J. M. Neudorfl, S. Amslinger and H. G. Schmalz, Angew. Chem., Int. Ed., 2011, 50, 2392 CrossRef PubMed.
  8. U. G. Reddy, J. Axthelm, P. Hoffmann, N. Taye, S. Gläser, H. Görls, S. L. Hopkins, W. Plass, U. Neugebauer, S. Bonnet and A. Schiller, J. Am. Chem. Soc., 2017, 139, 4991 Search PubMed.
  9. (a) I. Chakraborty, S. J. Carrington and P. K. Mascharak, Acc. Chem. Res., 2014, 47, 2603 CrossRef CAS PubMed; (b) M. A. Wright and J. A. Wright, Dalton Trans., 2016, 45, 6801 RSC; (c) U. Schatzschneider, Br. J. Pharmacol., 2016, 82, 900 CrossRef PubMed.
  10. (a) X. Ji, C. Zhou, K. Ji, R. E. Aghoghovbia, Z. Pan, V. Chittavong, B. Ke and B. Wang, Angew. Chem., Int. Ed., 2016, 55, 15846 CrossRef CAS PubMed; (b) Z. Pan, V. Chittavong, W. Li, J. Zhang, K. Ji, M. Zhu, X. Ji and B. Wang, Chem.–Eur. J., 2017, 23, 9838–9845 CrossRef CAS PubMed; (c) X. Ji, K. Ji, V. Chittavong, B. Yu, Z. Pan and B. Wang, Chem. Commun., 2017, 53, 8296–8299 RSC.
  11. D. Nguyen and C. Boyer, ACS Biomater. Sci. Eng., 2015, 1, 895 CrossRef CAS.
  12. P. Govender, S. Pai, U. Schatzschneider and G. S. Smith, Inorg. Chem., 2013, 52, 5470 CrossRef CAS PubMed.
  13. G. Dordelmann, T. Meinhardt, T. Sowik, A. Krueger and U. Schatzschneider, Chem. Commun., 2012, 48, 11528 RSC.
  14. K. Fujita, Y. Tanaka, S. Abe and T. Ueno, Angew. Chem., Int. Ed., 2016, 55, 1056 CrossRef CAS PubMed.
  15. (a) S. Gläser, R. Mede, H. Görls, S. Seupel, C. Bohlender, R. Wyrwa, S. Schirmer, S. Dochow, G. U. Reddy, J. Popp, M. Westerhausen and A. Schiller, Dalton Trans., 2016, 45, 13222 RSC; (b) C. Bohlender, S. Glaser, M. Klein, J. Weisser, S. Thein, U. Neugebauer, J. Popp, R. Wyrwa and A. Schiller, J. Mater. Chem. B, 2014, 2, 1454 RSC.
  16. (a) I. Chakraborty, S. J. Carrington, J. Hauser, S. R. J. Oliver and P. K. Mascharak, Chem. Mater., 2015, 27, 8387 CrossRef CAS; (b) M. A. Gonzales, H. Han, A. Moyes, A. Radinos, A. J. Hobbs, N. Coombs, S. R. J. Oliver and P. K. Mascharak, J. Mater. Chem. B, 2014, 2, 2107 RSC.
  17. A. E. Pierri, P.-J. Huang, J. V. Garcia, J. G. Stanfill, M. Chui, G. Wu, N. Zheng and P. C. Ford, Chem. Commun., 2015, 51, 2072 RSC.
  18. S. Diring, A. C. Sánchez, J. Zhang, S. Ikemura, C. Kim, H. Inaba, S. Kitagawa and S. Furukawa, Chem. Sci., 2017, 8, 2381 RSC.
  19. (a) D. D. Liana, B. Raguse, J. J. Gooding and E. Chow, Sensors, 2012, 12, 11505 CrossRef CAS PubMed; (b) E. Fu, B. Lutz, P. Kauffman and P. Yager, Lab Chip, 2010, 10, 918 RSC; (c) M. S. Khan, G. Thouas, W. Shen, G. Whyte and G. Garnier, Anal. Chem., 2010, 82, 4158 CrossRef CAS PubMed; (d) C. Z. Li, K. Vandenberg, S. Prabhulkar, X. N. Zhu, L. Schneper, K. Methee, C. J. Rosser and E. Almeide, Biosens. Bioelectron., 2011, 26, 4342 CrossRef CAS PubMed.
  20. (a) M. H. Lee, J. S. Kim and J. L. Sessler, Chem. Soc. Rev., 2015, 44, 4185 RSC; (b) P. Das, A. Ghosh, H. Bhatt and A. Das, RSC Adv., 2012, 2, 3714 RSC.
  21. G. Knizia, J. Chem. Theory Comput., 2013, 9, 4834 CrossRef CAS PubMed.
  22. P. Rudolf, F. Kanal, J. Knorr, C. Nagel, J. Niesel, T. Brixner, U. Schatzschneider and P. Nuernberger, J. Phys. Chem. Lett., 2013, 4, 596 CrossRef CAS PubMed.

Footnote

Electronic supplementary information (ESI) available. CCDC 1534335. For ESI and crystallographic data in CIF or other electronic format see DOI: 10.1039/c7sc01692a
