Formylation or methylation: what determines the chemoselectivity of the reaction of amine, CO2, and hydrosilane catalyzed by 1,3,2-diazaphospholene?

Yu Lu a, Zhong-Hua Gao b, Xiang-Yu Chen b, Jiandong Guo a, Zheyuan Liu a, Yanfeng Dang a, Song Ye *b and Zhi-Xiang Wang *a
aSchool of Chemistry and Chemical Engineering, University of the Chinese Academy of Sciences, Beijing 100049, China. E-mail:
bInstitute of Chemistry, Chinese Academy of Sciences, Beijing, 100190, China. E-mail:

Received 21st February 2017 , Accepted 6th September 2017

First published on 11th September 2017

DFT computations have been performed to gain insight into the mechanisms of formylation/methylation of amines (e.g. methylaniline (1a)/2,2,4,4-tetramethylpiperidine (2a)) with CO2 and hydrosilane ([Si]H2, [Si] = Ph2Si), catalyzed by 1,3,2-diazaphospholene ([NHP]H). Different from the generally proposed sequential mechanism for the methylation of amine with CO2, i.e. methylation proceeds via formylation, followed by further reduction of formamide to give an N-methylated amine, the study characterized a competition mechanism between formylation and methylation. The chemoselectivity originates from the competition between the amine and [NHP]H hydride to attack the formyloxy carbon of [Si](OCHO)2 (the insertion product of CO2 into [Si]H2). When the attack of an amine (e.g.1a) wins, the transformation affords formamide (1b) but would otherwise (e.g.2a) result in an N-methylated amine (2c). The reduction of formamide by [Si]H2 or [NHP]H is highly unfavorable kinetically, thus we call attention to the sequential mechanism for understanding the methylation of amine with CO2. In addition, the study has the following key mechanistic findings. The activation of CO2 by [NHP]H establishes an equilibrium: [NHP]H + CO2[NHP]OCHO ⇄ [NHP]+ + HCO2. The ions play catalytic roles to promote formylation via HCO2 or methylation via[NHP]+. In 1a formylation, HCO2 initiates the reaction, giving 1b and silanol byproducts. However, after the initiation, the silanol byproducts acting as hydrogen transfer shuttles are more effective than HCO2 to promote formylation. In 2a methylation, [NHP]+ promotes the generation of the key species, formaldehyde and a carbocation species (IM17+). Our experimental study corroborates our computed mechanisms.

1. Introduction

The rising concentration of carbon dioxide (CO2) in the atmosphere is one of the key factors for global warming, leading to great efforts to develop effective catalytic routes that convert CO2 to value-added chemicals.1–3 Formylation and methylation of amines with CO2 are promising synthetic strategies to use CO2 as a C1 carbon source.4 In 1998, Vaska and coworkers developed the first Pt-catalyzed formylation of amine with CO2 and H2.5 This study has encouraged further developments using other transition metal catalysts6 or metal-free catalysts.7 In 2012, Cantat and coworkers achieved the first organocatalytic formylation of amines with CO2 and hydrosilane, catalyzed by triazabicyclodecene (TBD).8 Since then, more similar transformations were reported.9 In 2013, Beller and coworkers reported the first methylation of amine with CO2 and hydrosilane, catalyzed by a ruthenium complex.10 More similar transformations were later developed.11 It is worth mentioning that Cantat et al. also developed metal-free methylation of CO2 with amines.12 Furthermore, transition metal catalyzed methylation of amines with CO2 and H2 has also been accomplished by several groups.13

Previously, we studied the catalytic mechanisms of CO2 reduction to methanol14 and methane.15 In this context, we were intrigued by the catalytic reactions developed by Kinjo and coworkers.16 They used 1,3,2-diazaphospholene ([NHP]H) to catalyze the formylation of amines ([N]H) with CO2 and hydrosilane (Ph2SiH2 = [Si]H2) (e.g. eqn (1) in Scheme 1). Interestingly, two amines (2a and 3a) were found to be exceptional, affording N-methylated amines (2c and 3c). They attributed 2c and 3c to the further reductions of 2b and 3b, respectively, complying with the general consideration that methylation takes place sequentially through formylation, giving formamide, followed by the reduction of formamide.10,17 Nevertheless, we conceived that this mechanism may not be true in the present system. First, due to the smaller steric effect of 1b compared to 2b, 1b should be reduced more easily than 2b, but eqn (1) affords 1b rather than 1c. Second, if the methylation mechanism is true, N-methylated amines could be at least detected in eqn (1). In addition, Cantat et al.18 showed that in the TBD-catalyzed aminal synthesis from amine, CO2, and hydrosilane, which is somewhat similar to methylation, the formation of an aminal product takes place after forming [Si]OCH2O[Si] via two sequential 2-electron reductions of CO2 with hydrosilane and the HC([double bond, length as m-dash]O)O[Si] intermediate resulting from the first 2-electron reduction of CO2 with hydrosilane does not react with amine to give formamide. Thus, the formation of aminal does not pass formamide as an intermediate. Given these analyses, we carried out a DFT mechanistic study to deeply understand the catalytic system, in combination with experimental verifications. To our knowledge, there has been no systematic study on the mechanisms of formylation and methylation of amines with CO2, although Cantat and coworkers reported some computational results in their experimental study.19

image file: c7sc00824d-s1.tif

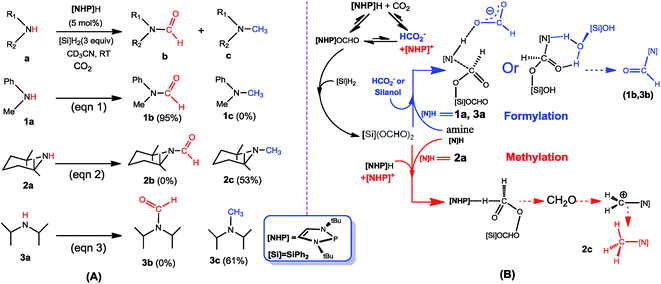

Scheme 1 (A) Formylation (eqn (1)) and methylation (eqn (2) and (3)) of amines with CO2 and hydrosilane ([Si]H2 = Ph2SiH2), reported by Kinjo et al. (B) Schematic illustration of our proposed mechanism.

Scheme 1B sketches our computed mechanisms. CO2 first inserts into the P–H bond of [NHP]H, giving [NHP]OCHO. The insertion is only slightly exergonic and the insertion product can easily dissociate into HCO2 and [NHP]+ ions, thus resulting in a microscopic equilibrium: [NHP]H + CO2[NHP]OCHO ⇄ [NHP]+ + HCO2. Subsequently, [NHP]OCHO reacts with [Si]H2, giving [Si](OCHO)2. Finally, [Si](OCHO)2 reacts with amine, giving either a formamide or an N-methylated amine, with the chemoselectivity controlled by the competition between the amine nucleophilic attack (blue pathway) and [NHP]H hydride transfer (red pathway). For small amines such as 1a, the blue pathway is preferred, giving formamide (e.g.1b) under the catalytic effect of HCO2 or silanol (e.g. [Si](OH)2). For bulky amines (e.g.2a), the red pathway is favored, giving the N-methylated amine (e.g.2c) with the involvement of [NHP]H and [NHP]+. Instead of formamide being the intermediate of methylation, formaldehyde and a carbocation species were found to be the key intermediates of the methylation. Note that our results show that 3a prefers formylation, giving 3b rather than 3c, as reported previously (eqn (3)).

2. Computational details

Experimentally, the reactions were carried out in a polar solvent (acetonitrile, ε = 35.7). Considering the possible significant effects of the strong polar solvent, all geometries were optimized and characterized as minima (no imaginary frequency) or transition states (TSs, having one unique imaginary frequency) at the M06-2X20/6-31G(d,p) level with the solvation effect of acetonitrile simulated by the SMD21 solvent model. At the M06-2X/6-31G(d,p) geometries, the energies were further refined by M06-2X/6-311++G(d,p) single-point energy calculations with the solvent effect accounted for by the SMD solvent model. All DFT calculations adopted ultrafine integration grids (Int = ultrafine) to ensure stable numerical integrations. The M06-2X/6-31G(d,p) frequencies were used for thermal and entropic corrections at 298.15 K and 1 atm. It should be emphasized that such a correction approach is based on the ideal gas phase model, which inevitably overestimates entropy contributions to free energies for reactions in solvent, in particular for reactions involving a multicomponent change, because they ignore the suppressing effect of solvent on the rotational and transitional freedoms of substrates. The entropy overestimation of the approach was also demonstrated experimentally.22,23 While no standard quantum mechanics-based method is available to accurately calculate entropy in solution, approximate methods were proposed. According to the proposal of Martin et al.24 we previously applied a correction of (nm) × 4.3 kcal mol−1 for a process from m- to n-components and found that such corrected free energies were more reasonable than enthalpies and uncorrected free energies,15,25 although the protocol is by no means accurate. Other correction factors (e.g. 1.9,26 2.6,3a,27 and 5.4 kcal mol−1 (ref. 28)) were adopted in the literature depending on the approximate approaches. As will be seen, our studied reactions involve multicomponent changes. As a conservative consideration, we applied a correction factor of 1.9 kcal mol−1 in this study. The corrected free energies are discussed and the uncorrected ones are given in the parentheses for references, unless otherwise specified. Note that using a correction factor of 4.3 kcal mol−1 does not alter our conclusions except for the numerical values. Natural bond orbital (NBO) analyses were performed at the M06-2X/6-311++G(d,p) level to assign partial atomic charges (Q).29 All calculations were carried out using Gaussian 09.30

3. Results and discussion

In this study, we use eqn (1) as a representative to compute the formylation mechanism of amine 1a (Section 3.1). In Section 3.2, using eqn (2), we investigate the methylation mechanism of amine (2a). After characterizing the mechanisms of formylation and methylation, we discuss the origins of chemoselectivity and experimentally verify our proposed mechanism in Section 3.3. Our computed mechanisms involve ionic species, thus we explicitly label the charges of all species when applicable for simplicity of the descriptions.

3.1 Mechanism for 1a formylation (eqn (1))

The catalytic cycle for 1a formylation (eqn (1)) consists of three stages, namely, hydrophosphination of CO2 (stage I), formation of diformyloxysilane (stage II), and C–N bond formation (stage III). We below characterize how these stages proceed in order.
Hydrophosphination of CO2 (stage I). Fig. 1 illustrates the mechanism for CO2 hydrophosphination, along with the key optimized structures. The catalyst [NHP]H is a hydride with P and H bearing 0.921 and −0.069e partial charges, respectively. Conventionally, CO2 prefers inserting into an E–H bond (e.g. E = B or Ni) via a four-membered TS, forming C–H and E–O bonds concertedly.14b,15 However, the optimized structure of TS1 targeting for an insertion TS describes a hydrogen abstraction process. Zhu et al. reported a similar TS.31 The IRC (intrinsic reaction coordinate) calculation toward the product stopped after 129 steps (Fig. S1), giving a structure (namely, IRCF-129) which can be viewed as an ion pair resulting from CO2 abstraction of the Hδ atom of [NHP]H. However, geometric optimization starting from IRCF-129 reached an insertion product [NHP]OCHO (IM1). We attribute the abnormal insertion to the difference between the Pδ+–Hδ bond in [NHP]H and Eδ+–Hδ bond (e.g. B–H or Ni–H);14b,15 the P center has a lone pair disfavoring P–O bond formation, while the E center features an empty orbital favoring E–O bond formation. IM1 is different from the X-ray structure of the CO2 hydrophosphination product (IM3) but can convert to the more stable IM3 easily (see Fig. 1). Overall, the insertion crosses a barrier of 16.7 kcal mol−1 and is exergonic by 6.9 kcal mol−1, indicating the feasibility of the process.
image file: c7sc00824d-f1.tif

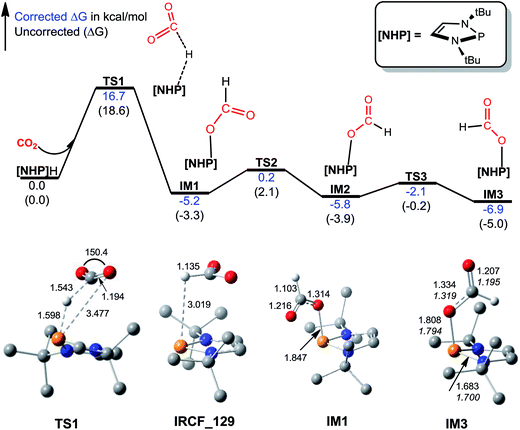

Fig. 1 Free energy profile for hydrophosphination of CO2, together with key optimized structures with key bond lengths in angstroms and bond angles in degrees. All optimized structures are displayed in Fig. S2. The italic values in IM3 are X-ray geometric parameters.

Kinjo et al. observed zwitterionic character of IM3. Consistently, the [NHP] and HCO2 moieties in IM3 bear charges of 0.658 and −0.658e, respectively. Because of the zwitterionic nature, we conceived that IM3 can dissociate easily in the strong polar acetonitrile solvent, as demonstrated by the small dissociation energy (4.6 kcal mol−1, see Scheme 2). Thus a microscopic equilibrium is expected in this catalytic system. As will be shown, the free [NHP]+ and HCO2 ions play catalytic roles to mediate subsequent steps of the transformation.

image file: c7sc00824d-s2.tif
Scheme 2 Microscopic equilibrium in the system. Values are relative free energies.
Formation of diformyloxysilane[Si](OCHO)2 (stage II). Experimentally, it has been demonstrated that [Si](OCHO)2 is involved in the transformation.16Fig. 2 illustrates the possible pathways leading to [Si](OCHO)2, along with the key optimized structures. The black pathway from IM3 to H[Si]OCHO in Fig. 2A can be considered as a stepwise σ-bond metathesis between IM3 and [Si]H2, which forms Si–O and P–H bonds and meanwhile breaks Si–H and P–O bonds, leading to H[Si]OCHO and [NHP]H. When we attempted to locate a similar metathesis pathway leading H[Si]OCHO to [Si](OCHO)2, we were able to obtain a TS (i.e.TS6) similar to TS4 but the counterpart of TS5 could not be located. TS6 leads to an intermediate IM5 tending to dissociate, giving [NHP]+ and an anionic component which can isomerize to IM7 easily (the details for the isomerization are given in Fig. S3). Subsequently, [NHP]+ extracts the H(–Si) atom in IM7viaTS7, giving [Si](OCHO)2 and regenerating the catalyst [NHP]H. The metathesis process from IM3 to H[Si]OCHO is energetically feasible with a RDS (rate determining step) barrier of 21.2 kcal mol−1 (TS5) relative to IM3. Yet, we speculated that the stage may proceed via an ionic mechanism because free HCO2 is available via the equilibrium (Scheme 2). The red pathway in Fig. 2A illustrates the ionic mechanism. Once IM3 dissociates, the resulting HCO2 attacks the Siδ+ center of [Si]H2, forming a HCO2–[Si]H2 complex (IM6). Although the nucleophilic attack is unfavorable by 10.2 kcal mol−1 mainly due to the entropic penalty of the association, HCO2 activates its trans Si–H bond significantly, as reflected by the stretched Si–H bond (R = 1.564 Å in IM6versus 1.485 Å in [Si]H2). Subsequently, the cationic species [NHP]+ extracts the activated Hδ of the HCO2–[Si]H2 complex (IM6) via a SN2-like transition state TS8, resulting in H[Si]OCHO and regenerating [NHP]H. Comparing the two mechanisms, the ionic mechanism is 3.0 kcal mol−1 (the energy difference of TS5 and TS8) kinetically more favorable than the metathesis mechanism. The lower TS8 compared to TS5 can be attributed to the more favorable trans Si–H bond activation by HCO2 in TS8, compared to the cis activation in TS5 (see Fig. 2B). The Si–H bond marked at 1.564 Å in IM6 is activated more significantly than that marked at 1.498 Å in IM4. Thus, the dissociation of IM3 to free HCO2 and [NHP]+ essentially benefits the achievement of optimal trans activation of the Si–H bond in spite of the energy cost of 4.6 kcal mol−1 for the dissociation. For the conversion of H[Si]OCHO to [Si](OCHO)2, because HCO2 as a free species can attack H[Si]OCHO directly, forming IM7, a TS similar to TS6 is not necessary. Overall, the transformation (2CO2 + [Si]H2 → [Si](OCHO)2) is exergonic by 20.5 kcal mol−1 and the RDS barrier is 18.2 kcal mol−1 (ionic mechanism) or 21.2 kcal mol−1 (metathesis mechanism), thus [Si](OCHO)2 can be produced easily, in agreement with the experimental observation.16
image file: c7sc00824d-f2.tif

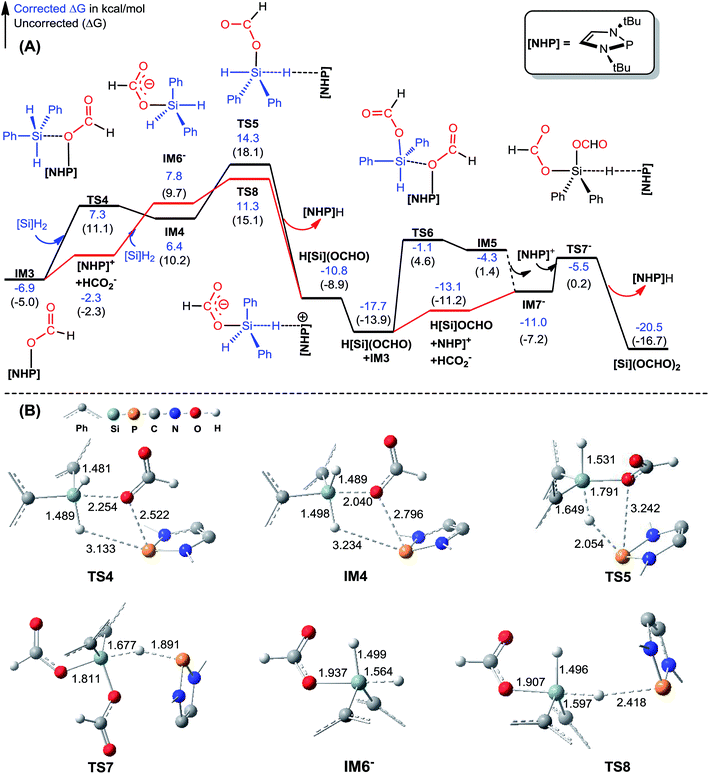

Fig. 2 (A) Free energy profiles for the formation of [Si](OCHO)2. Energies are relative to [NHP]H, CO2, and [Si]H2 and are mass balanced. (B) Key optimized structures with key bond lengths given in angstroms. Other optimized structures are given in Fig. S4. The details for the isomerization of IM5 to IM7 are given in Fig. S3.
C–N bond formation (stage III). After forming [Si](OCHO)2, a C–N bond starts to form (eqn (4) in Scheme 3). Intuitively, the bond can be formed via the nucleophilic attacks of amine, illustrated by mode A and B in Scheme 3, yet the high barriers, 41.1 (mode A) and 31.6 kcal mol−1 (mode B), rule out the two modes, considering that the reaction could occur under mild conditions (see eqn (1)). We explored other alternatives discussed below.
image file: c7sc00824d-s3.tif

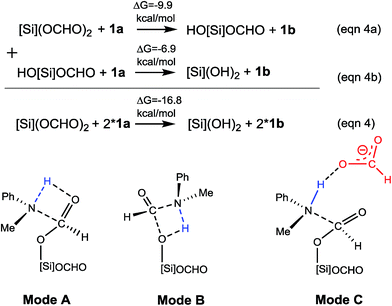

Scheme 3 C–N bond formation stage (eqn (4)) and possible modes to form the bond.

C–N bond formation catalyzed by HCO2. As discussed above, HCO2 is available via microscopic equilibrium (Scheme 2). Thus, we considered whether a HCO2 ion can facilitate the C–N bond formation via H-bonding to the N–H bond of 1a (i.e. mode C in Scheme 3), because the bonding of the anionic species can enhance the nucleophilicity of amine 1a. Fig. 3 depicts the mechanism for eqn (4a) under the catalytic effect of HCO2, along with key optimized structures. First, HCO2 and 1a form a H-bond complex IM8, then the complex attacks [Si](OCHO)2viaTS9, giving IM9 with a C–N bond formed. Interestingly, the C–N bond formation shifts the N–H1⋯O3 H-bond pattern (R(N–H1)/R(H1⋯O3) = 1.033/1.791 Å) in IM8 to the N⋯H1–O3 pattern (R(N⋯H1)/R(H–O3) = 1.617/1.031 Å) in IM9. Meanwhile, the formal negative charge of HCO2 is shifted to the O1C1O2 moiety, as reflected by the bond equalization of the two C–O bonds from 1.348/1.198 Å in [Si](OCHO)2 to 1.379/1.396 Å in IM9. The charge transfer shortens the O2⋯Si distance to 1.741 Å due to the attraction of Siδ+ and (O2)δ and elongates the Si–O1 bond (from 1.683 to 1.816 Å) because of the disruption of the original Si–O1 single bond, resulting in the four-membered ring (SiO1C1O2) in IM9. Subsequently, the HCO2H moiety in IM9 swings to the O2 site by crossing a lower barrier (TS10, 2.7 kcal mol−1 relative to IM9), giving IM10, in which the four-membered SiO1C1O2 ring and the O2⋯H1–O3 H-bond pattern (R(O2⋯H1)/R(H1–O3) = 1.569/1.011 Å) are maintained. TS11 leads IM10 to the formamide product (1b) and IM11. In addition to breaking the C–O2 and Si–O1 bonds to give 1b, TS11 alters the O2⋯H1–O3 H-bond pattern in IM10 to the O2–H1⋯O3 H-bond pattern (R(O2–H1)/R(H1⋯O3) = 1.045/1.455 Å) in IM11. The dissociation of HCO2 from IM11 to regenerate the active HCO2 species costs only 5.0 kcal mol−1. The mechanism discussed above indicates that HCO2 is not just a H-bond partner to enhance the nucleophilicity of amine 1a. By altering the H-bond pattern between X⋯H–O and X–H⋯O (X = N or O) and shifting the charge between the HCO2 and O1C1O2 unit, HCO2 catalyzes bond formations (i.e. C–N and Si–O2 bonds in IM9) and cleavages (i.e. C–O2 and Si–O1 bonds in IM10). It is interesting that CO2 can be activated to an active species to facilitate its transformation. Following the same mechanism in Fig. 3, eqn (4b) takes place, producing another formamide (1b) and silanol [Si](OH)2. Without going into detail (see Fig. S5 for the energy profile of eqn (4b)), we mention that the RDS barrier of eqn (4b) is 27.3 kcal mol−1, 5.5 kcal mol−1 higher than that of eqn (4a).
image file: c7sc00824d-f3.tif
Fig. 3 (A) Free energy profile for eqn (4a). Energies are relative to [NHP]H, CO2, 1a, and [Si]H2 and are mass balanced. (B) Key optimized structures with key bond lengths in angstroms. Other optimized structures are given in Fig. S4.

C–N bond formation facilitated by hydrogen transfer shuttle. The C–N bond formation through mode A and B involves a four-membered TS featuring hydrogen transfer (see Scheme 3). Thus a protic molecule such as water may act as a hydrogen transfer shuttle (H-shuttle)32,33 to facilitate the stage. In the present system, the possible H-shuttles could be water (trace water could not be excluded absolutely), N-methylaniline 1a, and silanol (HO[Si]OCHO and [Si](OH)2), which are available when the reaction is initiated. Using water as a representative, we characterize the H-shuttle-aided pathway (eqn (4)) through mode A, as illustrated in Fig. 4. Without going into detail, we mention that the water-aided C–N bond formation involves two hydrogen transfer steps, sequentially forming C–N and breaking C–O (CO2 deoxygenation) bonds, as described by TS12 and TS13 for eqn (4a), respectively.
image file: c7sc00824d-f4.tif

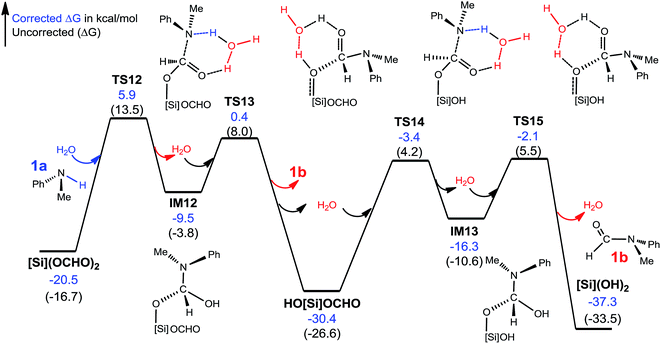

Fig. 4 Free energy profile for the conversion of [Si](OCHO)2 + 2 × 1a→ 2 × 1b + [Si](OH)2. Optimized structures of key stationary points are displayed in Fig. S7. Energies are relative to [NHP]H, CO2, 1a, H2O, and [Si]H2 and are mass balanced.

Table 1 compares the RDS barriers for eqn (4a) and (4b), mediated by various H-shuttles and HCO2. Note that, because the hydrogen transfers do not involve IM3 or [NHP]+/HCO2 ions, their RDS barriers were measured relative to [Si](OCHO)2 for eqn (4a) or HO[Si](OCHO) for eqn (4b). As compared, water is a more effective H-shuttle than amine 1a, which is consistent with our previous study of C–N bond formation in the dehydrogenative coupling of alcohol and amine.25d Both HO[Si]OCHO and [Si](OH)2 are better than water with HO[Si]OCHO being even better, which is due to the more polar O–H bond in silanol compared to that in water (see Fig. S6). HCO2 is more effective than water but less effective than silanol.

Table 1 Comparisons of the RDS barriers for eqn (4a) and (4b), facilitated by various promoters
Mediator Eqn (4a) Eqn (4b)
a Complete pathway is given in Fig. S8. b Complete pathway is given in Fig. S9. c Complete pathway is given in Fig. S10. ND: not determined.
HCO2 21.8(23.7) 27.3(29.2)
No (mode A) 41.1(43.0) ND
Water (mode A) 26.4(30.2) 28.3(32.1)
Amine 1a (mode A)a 28.7(32.5) 34.1(37.9)
HO[Si]OCHO (mode A)b 18.8(22.6) 19.9(23.7)
[Si](OH)2 (mode A)c 20.4(24.2) 24.8(28.6)
No (mode B) 31.6(33.5) ND
Water (mode B) 30.5(34.3) ND
HO[Si]OCHO (mode B) 27.3(31.1) ND

For the formation of the C–N bond through mode B (Scheme 3), the water H-shuttle does not help much with only a slightly lower barrier (30.5 kcal mol−1), compared to 31.6 kcal mol−1 without the H-shuttle. The most effective H-shuttle, HO[Si]OCHO, in the case of mode A has a barrier of 27.3 kcal mol−1 in the case of mode B, which is much higher than 18.8 kcal mol−1 through mode A. We thus do not expect that other H-shuttles could aid the stage through the mode B mechanism more efficiently than that through mode A and did not pursue the mode further.

After characterizing the efficiency of these hydrogen transfer mediators in prompting C–N bond formation, we now discuss how the C–N bond could actually be formed. Both eqn (4a) and (4b) are thermodynamically favorable, being exergonic by 9.9 and 6.9 kcal mol−1, respectively. We focus on the kinetics of the reactions using eqn (4a) as an example for simplicity.

It was reported that in the absence of [NHP]H and CO2, [Si](OCHO)2 alone could react with 1a to give 1b. As the efficiency of the reaction was not reported, our energetic results show that the reaction is able to take place, because the barrier for eqn (4a), when using water as a H-shuttle, is 26.4 kcal mol−1, which is somewhat high but in a reasonable range for a reaction to occur. Importantly, when the reaction is initiated to produce silanol, the silanol byproducts can promote the reaction more effectively, with lower barriers (see Table 1). In the presence of [NHP]H and CO2, HCO2 plays the role of initiating the reaction rather than water, because the RDS barrier of 21.8 kcal mol−1 using HCO2 as a catalyst is much lower than 26.4 kcal mol−1 using a water H-shuttle as a promoter. As the reaction proceeds, more and more silanols (HO[Si]OCHO or [Si](OH)2) are produced, thus, silanols take the role of HCO2 to promote C–N bond formation.

3.2 Mechanism for 2a methylation (eqn (2))

Kinjo et al.16 have applied an [NHP]H catalyst to perform formylations of a range of primary and secondary amines. Intriguingly, 2,2,4,4-tetramethylpiperidine (2a) and diisopropylamine (3a) were found to afford N-methylated amines, 2c (eqn (2)) and 3c (eqn (3)), respectively. In general, formamide (the formylation product) was considered to be the intermediate for the methylation of amine with CO2.10,17 The mechanism was also adopted to elucidate the methylation products (2c and 3c). Nevertheless, we reasoned that this could not be true in the present catalytic system (supra infra). Using eqn (2) as an example, we investigate the methylation mechanism.

The C–N bond in formylation is formed via the nucleophilic attack of amine (1a) to [Si](OCHO)2 (see TS9 in Fig. 3). Alternatively, we speculated that the hydrides, either [Si]H2 or [NHP]H, may compete with the amine to attack [Si](OCHO)2. Fig. 5 illustrates our computed pathway for 2a methylation, along with key optimized structures. Starting from [Si](OCHO)2, [NHP]H first transfers its Hδ to a formyloxy carbon of [Si](OCHO)2 with a barrier of 25.1 kcal mol−1 (TS16). Under the catalytic effect of HCO2, [Si]H2 offers its Hδ with the higher barrier (27.1 kcal mol−1 at TS16′). Regardless of which hydride attacks [Si](OCHO)2, the hydride transfer results in an anionic four-membered intermediate IM14, which corresponds to IM9 in Fig. 3. Subsequently, the [NHP]+ cation attacks an O atom of the four-membered ring viaTS17, breaking the C1–O1 and Si–O2 bonds, resulting in formaldehyde (CH2O) and [NHP]O[Si]OCHO (IM15). The in situ generated CH2O then attacks 2a electrophilically, forming a C–N bond and meanwhile transferring the (N–)H atom of amine to the carbonyl group of the formaldehyde moiety viaTS18, resulting in IM16. The barrier for the process is 26.8 kcal mol−1 (TS18 relative to IM15), which is somewhat high but can be greatly lowered when a H-shuttle is used. For example, a water H-shuttle can lower the barrier to 14.1 kcal mol−1 (TS18′).

image file: c7sc00824d-f5.tif

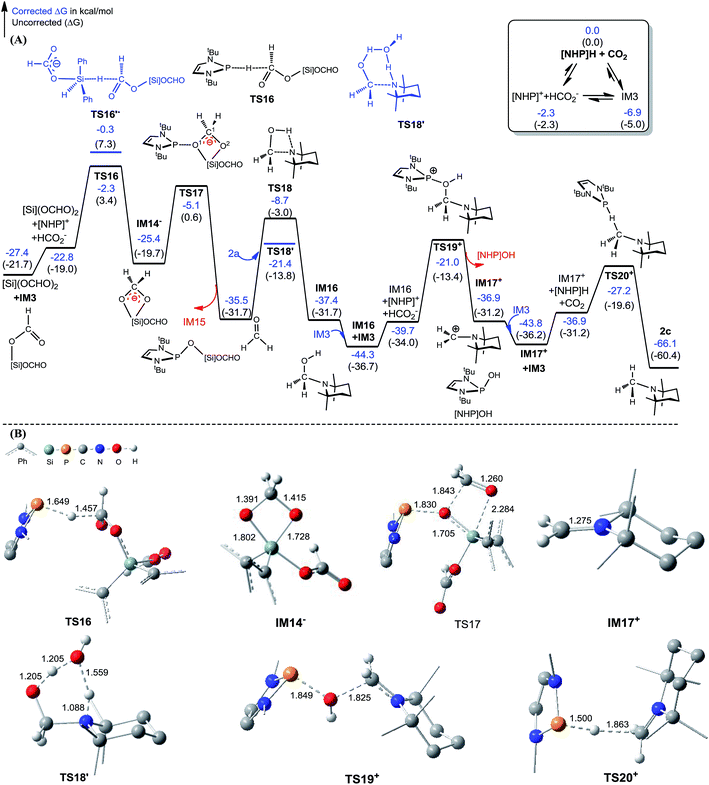

Fig. 5 (A) Free energy profile for the methylation of [Si](OCHO)2 + 2a2c + H[Si]OCHO. (B) Optimized structures of key stationary points with key bond lengths given in angstroms. Those of others are given in Fig. S11. Energies are relative to [NHP]H, CO2, 2a, H2O, and [Si]H2 and are mass balanced.

Subsequently, another [NHP]+ attacks the hydroxyl group of IM16viaTS19+, leading to a carbocation species (IM17+) and [NHP]OH with a barrier of 23.3 kcal mol−1 (TS19+ relative to IM16 + IM3). After receiving a Hδ of [NHP]H or [Si]H2, the carbocation species converts to an N-methylated amine (2c). Our calculations showed that for this step, [NHP]H is a preferred hydride donor with a barrier of 16.6 kcal mol−1 (TS20+ relative to IM17+ + IM3). An attempt using HCO2 to promote the Hδ transfer of [Si]H2 was not successful, and the geometric optimization to locate the Hδ transfer TS indicated that the steric effect between the bulky amine and [Si]H2 prevents the hydride transfer.

According to the methylation pathway (Fig. 5A), the reaction seems to consume the catalyst by forming [NHP]O[Si]OCHO (i.e.IM15) and [NHP]OH by-products. However, as detailed in ESI 2, the two intermediates can be recovered to catalyst [NHP]H feasibly in terms of both kinetics and thermodynamics.

The methylation mechanism involves formaldehyde and a carbocation species IM17+ as the key intermediates. For the viability of formaldehyde, we call attention to the fact that Bontemps, Sabo-Etienne and coworkers experimentally detected formaldehyde in their Ru-catalyzed conversion of CO2 to C2 species with pinacolborane as a reducing reagent.34 Previously, we predicted that formaldehyde could be involved in the NHC- and Ni-catalyzed CO2 conversion to CH3OH.14 The involvement of a carbocation species in CO2 conversion has not ever been reported. For the viability of the carbocation species (IM17+), the cationic species must not form stable species (namely, IM17OCHO) with the anionic HCO2, because a deep trap would raise the hydrogen transfer barrier from IM17+ + IM3 to TS20+ (Fig. 5A). To estimate the stability of IM17OCHO, we computed the reaction energy of eqn (5). The small endergonicity (1.8 kcal mol−1) of the equation indicates that IM17OCHO is only slightly more stable than IM3.

image file: c7sc00824d-u1.tif

It is interesting to compare the roles of the [NHP]+ and HCO2 ions in formylation and methylation. In 1a formylation (Fig. 3), only the HCO2 component plays the catalytic role and [NHP]+ is a spectator. Differently, in 2a methylation (Fig. 5) the cationic component [NHP]+ plays the catalytic role, and [NHP]+ promotes the generation of CH2O (from IM14 to IM15) and the carbocation species (IM17+) from IM16.

3.3 The origins for chemoselectivities of formylation and methylation

The detailed characterizations of the mechanisms of eqn (1) and (2) facilitate our understanding of the chemoselectivities of the catalytic system. Using the conversion of the first formyloxy group of [Si](OCHO)2 as a representative case, we discuss the origins of the chemoselectivities. Key results for the conversion of the second formyloxy group of [Si](OCHO)2 (i.e. that in HO[Si]OCHO given in Table S1) support the discussions below. According to the discussion in Section 3.2, the formylation/methylation preference stems from the competition between nucleophilic attacks of amine and hydride (i.e.TS9 in Fig. 3 and TS16 in Fig. 5) to [Si](OCHO)2. Table 2 compares the barriers of the two attacks for different amines. Note that the barrier for methylation is independent of amines. For 1a formylation, the barrier is 21.8 kcal mol−1, which is well below the barrier of 25.1 kcal mol−1 for methylation, thus eqn (1) prefers formylation. In contrast, the barrier (29.3 kcal mol−1, TS9-2a in Fig. 6) for 2a formylation is much higher than the barrier of 25.1 kcal mol−1 for its methylation, rationalizing the production of N-methylated amine (i.e.2c) in eqn (2). The higher formylation barrier of 2a compared to 1a can be attributed to the greater steric effect in TS9-2a than that in TS9, as indicated by the shorter H1⋯H2 distance (2.112 Å) than that (2.261 Å) in TS9. In addition, TS9-2a suffers steric repulsion between H1 and H3.
Table 2 Comparisons of the barriers for formylation, methylation, and hydride transfer from [NHP]H and HCO2–[Si]H2 to formamidesa
Substrate Formylation Methylation Hydride transfer to formamide
Hydride source Hydride source
[NHP]H HCO2–[Si]H2 [NHP]H HCO2–[Si]H2
a All optimized structures of the transition states are displayed in Fig. S12. b Values in parentheses are the free energy barriers without corrections.
1a image file: c7sc00824d-u2.tif 21.8(23.7)b 25.1(25.1) 27.1(29.0) 1b 37.3(37.3) 36.7(38.6)
2a image file: c7sc00824d-u3.tif 29.3(31.2) 2b 46.5(46.5) 41.8(43.7)
3a image file: c7sc00824d-u4.tif 20.5(22.4) 3b 44.1(44.1) 43.6(45.5)
4a image file: c7sc00824d-u5.tif 18.8(20.7) 4b 43.3(43.3) 43.7(45.6)
5a image file: c7sc00824d-u6.tif 20.7(22.6) 5b 38.3(38.3) 36.5(38.4)
6a image file: c7sc00824d-u7.tif 17.3(19.2) 6b 42.5(42.5) 39.8(41.7)
7a image file: c7sc00824d-u8.tif 22.5(24.4) 7b 35.7(35.7) 34.6(36.5)

image file: c7sc00824d-f6.tif

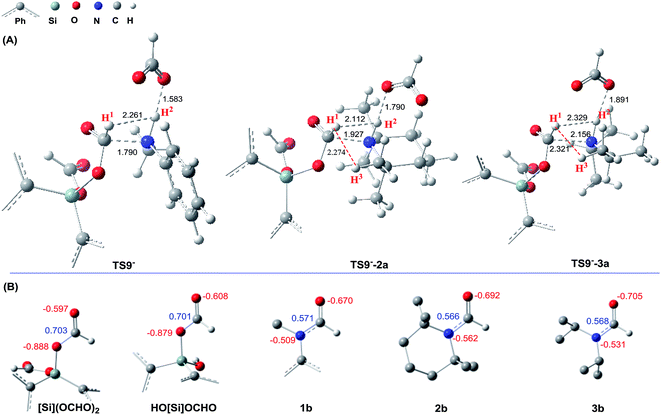

Fig. 6 (A) Comparing the structures of the transition states (TS9, TS9-2a, and TS9-3a) resulting in 1a, 2a, and 3a formylations. (B) Comparing the NBO charges (in e) of [Si](OCHO)2 and HO[Si]OCHO with those of formamides (1b–3b).

The competition mechanisms rationalize the chemoselectivities of eqn (1) and (2), but the energetic results disagree with the reported experimental result of eqn (3), affording N-methylated amine 3c. The formylation barrier of 20.5 kcal mol−1 (TS9-3a in Fig. 6A) for 3a is lower than that (25.1 kcal mol−1) for its methylation. On the other hand, comparing the structures of TS9-3a and TS9 (the TSs for 3a and 1a formylations respectively), the H1–H2 distance (2.329 Å) in the former is even longer than that (2.261 Å) in the latter, indicating a smaller steric effect in TS9-3a than in TS9. In addition, the N atom in 3a bears more negative charge (−0.728e) than that (−0.658e) in 1a, indicating that 3a is more nucleophilic than 1a. Thus both the steric and electronic effect agree with the slightly lower formylation barrier (20.5 kcal mol−1) of 3a than that of 1a (21.8 kcal mol−1). We doubt that eqn (3) might actually produce formamide (3b).

To verify our computed mechanisms and the production of 3b in eqn (3), we performed experiments to study the reactions of 1a–3a (see ESI 3 for experimental details).35Scheme 4 shows our experimental results. Under the same experimental conditions, we were successful in reproducing the reported results of eqn (1), giving 1a in 96% yield (see eqn (6)). However, our study shows that 3a prefers to undergo formylation, affording formamide (3b) in 56% yield (eqn (8)), rather than N-methylated amine 3c as reported previously (eqn (3)), supporting our computational prediction. For 2a, under the same experimental conditions, we could only obtain traces of 2c. Based on our computed mechanism, we reasoned that the poor performance of the reaction could be due to (a) the barrier for methylation (25.1 kcal mol−1) being higher than that for formylation (e.g. 21.8 kcal mol−1 for 1a formylation) and (b) [NHP]H being required to finally reduce IM17+ to 2c (see Fig. 5), but it could be consumed during the process reaching IM17+. Thus, we modified the experimental conditions as shown in eqn (7) of Scheme 4. Delightedly, under the modified conditions, the methylated amine 2c could be produced in 65% yield. Overall the experimental results corroborate our computational prediction satisfactorily.

image file: c7sc00824d-s4.tif

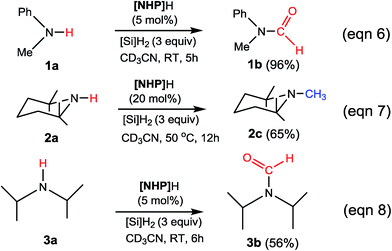

Scheme 4 Our experimental results. See ESI 3 for experimental details.

We have shown that, in the present catalytic system, it is unlikely that methylation passes through formamide as an intermediate. We analyze why this is true. To further reduce formamide, the hydride (either [NHP]H or [Si]H2) should transfer its Hδ to the carbonyl carbon of formamide, thus the electrophilicity of the carbon should be a factor to determine how favorably the formamide accepts a hydridic hydrogen of a hydride donor. Fig. 6B compares the NBO charges of formamides (1b–3b) with those of [Si](OCHO)2 and HO[Si]OCHO. It can be found that the formyloxy carbon in [Si](OCHO)2 and HO[Si]OCHO bears significantly more positive charge (>0.70e) than that in formamides (<0.58e). Thus [Si](OCHO)2 and HO[Si]OCHO can be reduced more easily than formamides. Consistently, the hydride transfer barriers from [NHP]H to 1b, 2b, and 3b are substantially higher (37.3–44.1 kcal mol−1) than that (25.1 kcal mol−1) to [Si](OCHO)2. This is also true when [Si]H2 is used as the hydride donor with HCO2 as the promoter (see Table 2).

To further corroborate our conclusions, we calculated the RDS barriers for formylation of the other four amines (4a–7a in Table 2) reported in ref. 16. The barriers for formylation of the four amines, ranging from 18.8–22.5 kcal mol−1, are all lower than the barrier for methylation (25.1 kcal mol−1), in excellent agreement with the experimental fact that these amines prefer formylation. Again, the barriers for hydride transfers to their corresponding formamides (4b–5b) are substantially high (>34.6 kcal mol−1). The high reduction barriers of formamides call attention to the sequential mechanism for understanding the methylation of amine with CO2.

4. Conclusions

In this study, we have performed a DFT study to investigate the catalytic mechanisms of the 1,3,2-diazaphospholene ([NHP]H)-mediated formylation/methylation of amines (methylaniline (1a)/2,2,4,4-tetramethylpiperidine (2a)) with CO2 and hydrosilane (Ph2SiH2 = [Si]H2) as a reducing reagent. Formylation of 1a proceeds via three stages, including hydrophosphination of CO2, giving [NHP]OCHO (stage I), reaction of [NHP]OCHO with [Si]H2 to form [Si](OCHO)2 (stage II), and aminolysis of [Si](OCHO)2 to form a C–N bond, finally affording formamide (stage III). Methylation of 2a shares the first two stages of formylation but is different in stage III. After stages I and II, the resultant [Si](OCHO)2 is preferentially subjected to the attack of an [NPH]H hydride, resulting in formaldehyde which then couples with 2a to form a C–N bond in IM16. Subsequently, IM16 converts to a carbocation species. The methyl group is finally formed via hydride transfer of [NHP]H to the carbocation species. Thus, different from the general consideration that methylation passes through formamide as reduced intermediates of CO2, the formylation and methylation in the present catalytic system are two competitive reaction channels. The chemoselectivity originates from the competition between amines and [NHP]H to attack the formyloxy carbon of [Si](OCHO)2. If the attack of an amine (e.g.1a) wins the competition, the transformation affords formamide (1b) and otherwise (e.g.2a) results in N-methylated amine (2c). The reduction of formamides is highly kinetically unfavorable, which calls attention to the sequential mechanism for understanding amine methylation with CO2.

On the basis of the detailed pathways, we have the following key findings in terms of reaction modes. The activation of CO2 by [NHP]H establishes a microscopic equilibrium: [NHP]H + CO2[NHP]OCHO ⇄ [NHP]+ + HCO2. The ions play catalytic roles to facilitate formylation with HCO2 or methylation with [NHP]+. In 1a formylation, HCO2 initially forms a N–H⋯O (of HCO2) H-bond complex with 1a to attack [Si](OCHO)2. By altering the H-bond pattern between X–H⋯O and X⋯H–O (X = N or O) and shifting the formal charge between HCO2 and the OCO unit in [Si](OCHO)2, HCO2 promotes C–N bond formation and CO2 deoxygenation, finally resulting in formamide. However, it should be noted that, after the formylation is initiated, the silanol byproduct (either HO[Si]OCHO or [Si](OH)2) is more effective than HCO2 to promote the formylation. Formaldehyde and a carbocation (IM17+) were characterized to be two important species to tunnel methylation and the generations of the species require the catalytic action of [NHP]+.
