[MIII2MII3]n+ trigonal bipyramidal cages based on diamagnetic and paramagnetic metalloligands

S. Sanz *a, H. M. O'Connor a, V. Martí-Centelles a, P. Comar a, M. B. Pitak b, S. J. Coles b, G. Lorusso c, E. Palacios c, M. Evangelisti c, A. Baldansuren d, N. F. Chilton d, H. Weihe e, E. J. L. McInnes *d, P. J. Lusby *a, S. Piligkos *e and E. K. Brechin *a
aEaStCHEM School of Chemistry, The University of Edinburgh, David Brewster Road, Edinburgh, EH9 3FJ, UK. E-mail: E.Brechin@ed.ac.uk; S.Calvo@ed.ac.uk; Paul.Lusby@ed.ac.uk
bUK National Crystallography Service, Chemistry, University of Southampton, Highfield Campus, Southampton, SO17 1BJ, UK
cInstituto de Ciencia de Materiales de Aragón (ICMA), CSIC – Universidad de Zaragoza, Departamento de Física de la Materia Condensada, 50009 Zaragoza, Spain
dSchool of Chemistry, The University of Manchester, Oxford Road, Manchester, M13 9PL, UK. E-mail: eric.mcinnes@manchester.ac.uk
eDepartment of Chemistry, University of Copenhagen, Universitetsparken 5, DK-2100, Copenhagen, Denmark. E-mail: piligkos@chem.ku.dk

Received 1st February 2017 , Accepted 18th May 2017

First published on 19th May 2017


A family of five [MIII2MII3]n+ trigonal bipyramidal cages (MIII = Fe, Cr and Al; MII = Co, Zn and Pd; n = 0 for 1–3 and n = 6 for 4–5) of formulae [Fe2Co3L6Cl6] (1), [Fe2Zn3L6Br6] (2), [Cr2Zn3L6Br6] (3), [Cr2Pd3L6(dppp)3](OTf)6 (4) and [Al2Pd3L6(dppp)3](OTf)6 (5) (where HL is 1-(4-pyridyl)butane-1,3-dione and dppp is 1,3-bis(diphenylphosphino)propane) are reported. Neutral cages 1–3 were synthesised using the tritopic [MIIIL3] metalloligand in combination with the salts CoIICl2 and ZnIIBr2, which both act as tetrahedral linkers. The assembly of the cis-protected [PdII(dppp)(OTf)2] with [MIIIL3] afforded the anionic cages 4–5 of general formula [MIII2PdII3](OTf)6. The metallic skeleton of all cages describes a trigonal bipyramid with the MIII ions occupying the two axial sites and the MII ions sitting in the three equatorial positions. Direct current (DC) magnetic susceptibility, magnetisation and heat capacity measurements on 1 reveal weak antiferromagnetic exchange between the FeIII and CoII ions. EPR spectroscopy demonstrates that the distortion imposed on the {MO6} coordination sphere of [MIIIL3] by complexation in the {MIII2MII3} supramolecules results in a small, but measurable, increase of the zero field splitting at MIII. Complete active space self-consistent field (CASSCF) calculations on the three unique CoII sites of 1 suggest DCo ≈ −14 cm−1 and E/D ≈ 0.1, consistent with the magnetothermal and spectroscopic data.


Introduction

Molecular magnetism relies on the ability of the synthetic chemist to make an enormous breadth of structurally diverse polymetallic cages spanning the d- and f-block of the periodic table.1–10 The structural and magnetic characterisation of such species details the magneto-structural relationship and often uncovers fascinating magnetic phenomena which, in turn, feedback into the synthesis of new complexes designed to enhance and improve properties toward application.11–18 Synthetic strategies for the design of polymetallic clusters containing multiple paramagnetic metal ions span the range from serendipitous self-assembly in which coordinatively flexible metal ions, that can often exist in multiple oxidation states, are combined with organic ligands capable of bridging in numerous ways to form complexes whose absolute structures are difficult to predict, through to a more ‘supramolecular’ approach whereby metal ions with defined coordination geometries are paired with rigid ligands containing donor atoms with a single, predesigned orientation preference that afford, in most cases, a predicted structure. In the field of molecular magnetism, the latter is perhaps best exemplified by cyanometalate chemistry.19–23

A similar synthetic approach is followed in the metallosupramolecular chemistry of diamagnetic cages and capsules where the combination of directional metal–ligand bonding and rigorously rigid ligands creates cages with permanent internal cavities capable of hosting guest molecules, constructed primarily for potential application in, for example, catalysis,24 the stabilisation of reactive molecules25 and photochemistry.26 Due to the difficulties associated with performing solution-based one- and two-dimensional NMR spectroscopy on paramagnetic species, where broad signals and a wide chemical shift range are commonplace,27 it is perhaps not surprising that the majority of metallosupramolecular chemistry has focused on the use of diamagnetic metal centres, albeit with some notable exceptions.28

We recently initiated a project that would enable heterometallic, paramagnetic coordination cages to be accessed in a modular and predictable fashion,29 an approach centred around the tritopic metalloligand [MIIIL3] (where HL = 1-(4-pyridyl)butane-1,3-dione), which features a tris(acac) octahedral transition metal core functionalised with three p-pyridyl donor groups (Fig. 1).30 Combination of the fac-isomer of [MIIIL3] with a square-planar MII connector leads to the formation of [MIII8MII6]n+ molecular cubes.29,30 Herein we show that replacement of the square planar connector with tetrahedral or cis-capped square planar metal salts leads to the formation of trigonal bipyramidal [MIII2MII3]n+ cages,31 where MIII = Fe, Cr, Al and MII = Co, Zn, Pd. Reports of magnetic clusters based on this skeleton are rare, the only previous examples employing cyano bridging ligands.32–34


image file: c7sc00487g-f1.tif
Fig. 1 The molecular structure of the fac-isomer of the metalloligand [MIIIL3] (M = Fe, Cr, Al). Colour code: MIII = green, O = red, N = blue, C = black. Hydrogen atoms have been omitted for clarity.

Experimental section

Syntheses

1-(4-Pyridyl)butane-1,3-dione (HL) and the metalloligand [CrIIIL3] were prepared according to previously published procedures.29,35 All reactions were performed under aerobic conditions. Solvents and reagents were used as received from commercial suppliers. Elemental analyses were carried by Medac Ltd.

[FeIIIL3]

FeCl3 (1 mmol, 0.162 g), 1-(4-pyridyl)butane-1,3-dione (3.5 mmol, 0.57 g) and NaOMe (3.5 mmol, 0.189 g) were dissolved in 100 mL of MeOH/H2O (1[thin space (1/6-em)]:[thin space (1/6-em)]1 v/v) and left to stir until a red product precipitated (∼24 h). The resultant red precipitate was filtered and washed with water. The crude product was extracted with CHCl3 and dried over anhydrous MgSO4. The CHCl3 was removed under reduced pressure to afford the product as a red solid. Yield (0.46 g, 85%). Elemental analysis (%) calculated (found): C 59.79 (59.53), H 4.46 (4.39), N 7.75 (7.67).

[AlIIIL3]

Al(NO3)3·9H2O (1 mmol, 0.375 g), 1-(4-pyridyl)butane-1,3-dione (3.5 mmol, 0.57 g) and NaOMe (3.5 mmol, 0.189 g) were dissolved in 100 mL of MeOH/H2O (1[thin space (1/6-em)]:[thin space (1/6-em)]1 v/v) and left to stir until a white product precipitated (∼1 h). The resultant white precipitate was filtered and washed with water. The crude product was extracted with CHCl3 and dried over anhydrous MgSO4. The CHCl3 was removed under reduced pressure to afford the product as a white solid. Yield (0.39 g, 76%). Elemental analysis (%) calculated (found): C 63.16 (63.06), H 4.71 (4.53), N 8.18 (8.11).

[Fe2Co3L6Cl6] (1)

To a solution of the metalloligand [FeIIIL3] (108 mg, 0.2 mmol) in 35 mL of acetone, was added CoCl2 (39 mg, 0.3 mmol). The resultant mixture was stirred for 30 minutes, before being filtered and layered with Et2O. Orange, plate-shaped X-ray quality crystals were obtained after 20 days. Yield (98 mg, 67%). Elemental analysis (%) calculated for C54H48N6O12Cl6Fe2Co3: C 44.00, H 3.28, N 5.70. Found: C 44.12, H 3.39, N 5.77.

[Fe2Zn3L6Br6] (2)

To a solution of the metalloligand [FeIIIL3] (108 mg, 0.2 mmol) in 35 mL of dichloromethane/acetone (1[thin space (1/6-em)]:[thin space (1/6-em)]1 v/v) was added ZnBr2 (67 mg, 0.3 mmol). The solution was stirred for 30 minutes, before being evaporated to dryness. The dark-red product was re-dissolved in nitromethane, filtered and allowed to stand. Dark-red, prism-shaped X-ray quality crystals were obtained after room temperature evaporation of the mother liquor after 10 days. Yield (133 mg, 76%). Elemental analysis (%) calculated for C54H48N6O12Br6Fe2Zn3: C 36.85, H 2.75, N 4.77. Found: C 36.97, H 2.87, N 4.91.

[Cr2Zn3L6Br6] (3)

To a solution of the metalloligand [CrIIIL3] (108 mg, 0.2 mmol) in 35 mL of dichloromethane was added ZnBr2 (67 mg, 0.3 mmol). After 1 hour of reaction a precipitate appeared. The dark-red solid product was isolated by filtration, re-dissolved in DMF and layered with MeOH. Dark-red, prism-shaped X-ray quality crystals were obtained after 10 days. Yield (142 mg, 81%). Elemental analysis (%) calculated for C54H48N6O12Br6Cr2Zn3: C 37.01, H 2.76, N 4.80. Found: C 36.92, H 2.67, N 4.67.

[Cr2Pd3L6(dppp)3](OTf)6 (4)

To a solution of the metalloligand [CrIIIL3] (108 mg, 0.2 mmol) in 35 mL of methanol was added [Pd(dppp)2(CF3SO3)2] (245 mg, 0.3 mmol; dppp is 1,3-bis(diphenylphosphino)propane). The solution was stirred for 30 minutes, before being filtered and allowed to stand. Orange, rod-shaped X-ray quality crystals were obtained after room temperature evaporation of the mother liquor after 5 days. Yield (275 mg, 78%). Elemental analysis (%) calculated for C141H126O30N6F18P6S6Cr2Pd3: C 48.00, H 3.60, N 2.38. Found: C 47.89, H 3.47, N 2.27.

[Al2Pd3L6(dppp)3](OTf)6 (5)

To a solution of the metalloligand [AlIIIL3] (103 mg, 0.2 mmol) in 35 mL of acetonitrile was added [Pd(dppp)2(CF3SO3)2] (245 mg, 0.3 mmol). The solution was stirred for 15 hours at 50 °C, before being filtered and layered with diethyl ether. Colourless, rod-shaped X-ray quality crystals were obtained after 5 days. Yield (288 mg, 83%).1H NMR (500 MHz, CD3CN): δ 8.61 (bs, 12H, Py-H), 7.79–7.67 (m, 12H, dppp-ArH), 7.48–7.44 (m, 12H, dppp-ArH), 7.42–7.39 (m, 12H, dppp-ArH), 7.34–7.27 (m, 12H, dppp-ArH), 7.26–7.22 (m, 12H, dppp-ArH), 7.18 (d, J = 6.5 Hz, 12H, Py-H), 6.13 (s, 6H, COCHCO), 3.28–3.11 (m, 6H, dppp-CH2), 3.10–2.92 (m, 6H, dppp-CH2), 2.60–2.36 (m, 3H, dppp-CH2), 2.15 (s, 18H, CH3), 1.93–1.75 (m, 3H, dppp-CH2) ppm. 13C NMR (126 MHz, CD3CN): δ 198.79, 177.61, 151.26, 147.79, 134.91–134.82 (m, 2 signals), 133.70, 133.07–132.99 (m, 3 signals), 130.60–130.51 (m, 2 signals), 130.42–130.33 (m, 2 signals), 127.58–126.88 (m), 125.52–124.82 (m), 124.37, 122.06 (q, J = 321.0 Hz), 99.58, 28.10, 22.25–21.92 (m), 18.30 ppm. 31P NMR (202 MHz, CD3CN) δ 6.97 ppm. 19F NMR (471 MHz, CD3CN) δ −79.05 ppm. Diffusion coefficient (DOSY, 500 MHz, CD3CN, 298 K) 5.99 × 10−10 m2 s−1, hydrodynamic radius 9.9 Å. ESI TOF HRMS m/z: found 1010.1238 [M − 3OTf]3+, calculated for [C138H126Al2F9N6O21P6Pd3S3]3+ 1010.1069. Elemental analysis (%) calculated for C141H126O30N6F18P6S6Al2Pd3: C 48.69, H 3.65, N 2.42. Found: C 48.42, H 3.57, N 2.35.

Crystal structure information

For compounds 1, 2 and 3 single-crystal X-ray diffraction data were collected at T = 100 K on a Rigaku AFC12 goniometer equipped with an enhanced sensitivity (HG) Saturn 724+ detector mounted at the window of an FR-E+ Superbright MoKα rotating anode generator with HF Varimax optics (70 μm focus)36 using Rigaku Crystal Clear and CrysalisPro software37,38 for data collection and reduction. The crystals were sensitive to solvent loss and were therefore ‘cold-mounted’ using X-Temp 2 System apparatus at T = 70 °C and then quickly transferred to diffractometer.

For compounds 4 and 5 single crystal X-ray diffraction data were measured on a Rigaku Oxford Diffraction SuperNova diffractometer using Cu radiation at T = 120 K. The CrysalisPro software package was used for instrument control, unit cell determination and data reduction.39 Unit cell parameters in all cases were refined against all data. Crystal structures were solved using the charge flipping method implemented in SUPERFLIP40 (1, 2, and 3), or by direct methods with ShelXS (4 and 5). All structures were refined on Fo2 by full-matrix least-squares refinements using ShelXL41 within the OLEX2 suite.42 All non-hydrogen atoms were refined with anisotropic displacement parameters, and all hydrogen atoms were added at calculated positions and refined using a riding model with isotropic displacement parameters based on the equivalent isotropic displacement parameter (Ueq.) of the parent atom. All five structures contain accessible voids and channels that are filled with diffuse electron density belonging to uncoordinated solvent, and CF3SO3 anions in the case of compounds 4–5. The SQUEEZE routine of PLATON43 was used to remove remaining electron density corresponding to solvent and anions not reported in the calculated formula. Crystallographic summary and structure refinement details are presented in Table 1. CCDC: 1520425–1520429.

Table 1 X-ray data collection and refinement details
1 2·2MeNO2 3·2MeOH 4·17MeOH 5·6CH3CN
Formula C54H48N6O12Cl6Fe2Co3 C56H48Br6Fe2N8O16Zn3 C56H48Br6Cr2N6O14Zn3 C158H194Cr2F18N6O47P6Pd3S6 C153H144N12O30F18Al2P6S6Pd3
MWt [g mol−1] 1474.17 1876.29 1816.57 4072.56 3724.13
T [K] 100 100 100 120 120
λ [Å] 0.71075 0.71075 0.71075 1.5418 1.5418
Crystal system Trigonal Trigonal Trigonal Triclinic Cubic
Space group P3221 P3221 P3221 P[1 with combining macron] I[4 with combining macron]3d
Unit cell [Å/°] a = 12.7708(5) a = 12.8153(16) a = 13.2429(10) a = 18.4407(9) a = 43.73712(7)
b = 12.7708(5) b = 12.8153(16) b = 13.2429(10) b = 22.0037(9) b = 43.73712(7)
c = 39.0709(12) c = 12.8153(16) c = 38.380(3) c = 27.1925(10) c = 43.73712(7)
α = 90 α = 90 α = 90 α = 104.146(3) α = 90
β = 90 β = 90 β = 90 β = 109.298(4) β = 90
γ = 120 γ = 120 γ = 120 γ = 95.522(4) γ = 90
Volume [Å3] 5518.5(5) 5520.9(16) 5829.1(10) 9907.3(8) 83[thin space (1/6-em)]666.3(4)
Z 3 3 3 2 16
Density (calculated) [g cm−3] 1.333 1.693 1.546 1.365 1.183
μ [mm−1] 1.318 4.668 4.322 4.843 3.770
Reflections collected 21[thin space (1/6-em)]773 32[thin space (1/6-em)]005 8827 66[thin space (1/6-em)]752 498[thin space (1/6-em)]156
Independent reflections 8331 6717 8827 12[thin space (1/6-em)]021 14[thin space (1/6-em)]608
R int 0.1233 0.0627 0.0356 0.0871 0.0934
Goodness-of-fit on F2 1.020 1.040 0.971
Final R indices [F2 > 2σ(F2)] 0.0732 0.0379 0.0512 0.0806 0.0869
R indices (all data) 0.0887 0.0409 0.0605 0.1050 0.0897


Physical measurements

Magnetisation measurements were carried out on a Quantum Design SQUID MPMS-XL magnetometer, operating between 1.8 and 300 K for DC applied magnetic fields ranging from 0 to 5 T. Microcrystalline samples were dispersed in eicosane in order to avoid torquing of the crystallites. Heat capacity measurements were carried out for temperatures down to ca. 0.3 K by using a Quantum Design 9T-PPMS, equipped with a 3He cryostat. The experiments were performed on thin pressed pellets (ca. 1 mg) of a polycrystalline sample, thermalised by ca. 0.2 mg of Apiezon N grease, whose contribution was subtracted by using a phenomenological expression. X- and Q-band EPR spectra were collected on powdered microcrystalline samples of [FeL3] and compounds 1–4 at the UK National EPR Facility in Manchester.

Results and discussion

Solution self-assembly and structure

It could be reasonably expected that reaction of the metalloligand [AlIIIL3] with a cis-protected square planar complex should yield a trigonal bipyramid. However, in the case of the archetypal 90° acceptor complex [(en)Pd(NO3)2],44 it had previously been shown that instead, displacement of the bidentate ethylene diamine ligand occurs to yield the [Al8Pd6]12+ cube.29b We were thus pleased to find that when we switched to the more strongly coordinating bis(diphenylphosphino)propane (dppp), we were able to isolate the [Al2Pd3]6+ trigonal bipyramidal complex, 5, in 83% yield following reaction overnight at 50 °C between [AlIIIL3] and [Pd(dppp)(OTf)2] in acetonitrile. All the spectroscopic data indicate that the structure of 5, confirmed by X-ray crystallography (see below), is preserved in solution. As well as ESI-MS, which reveals the 3+ charge state corresponding to [5 − 3OTf]3+ matching the expected isotopic distribution (see ESI), the 1H NMR spectrum of the product (Fig. 2b) shows just a single set of signals. The 1H DOSY spectrum also indicates that all the resonances possess the same diffusion coefficient, which corresponds to a hydrodynamic radius of 9.9 Å, closely matching the data obtained by XRD.
image file: c7sc00487g-f2.tif

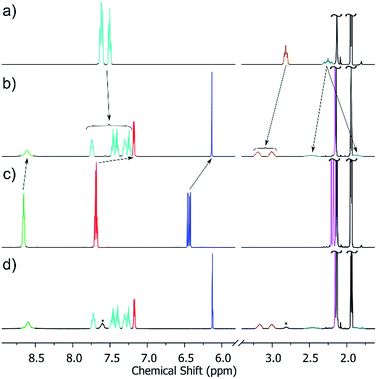

Fig. 2 Partial 1H NMR spectra (CD3CN, 500 MHz, 300 K) of (a) [Pd(dppp)(CF3SO3)2]; (b) cage 5 (re-dissolved crystalline material) (c) [AlIIIL3]; (d) the crude self-assembly reaction between a slight excess of [Pd(dppp)2(CF3SO3)2] and [AlIIIL3] in CD3CN (signals for excess [Pd(dppp)2(CF3SO3)2] marked *). Colour code: o-Py, green; m-Py, red; dppp ArH, turquoise; acac CH, blue; dppp-CH2, brown and pale blue; acac-CH3, magenta.

It is also interesting to note that the starting metalloligand [AlIIIL3] exists as a mixture of the mer and fac configurations, clearly evidenced by the multiplet for the acac CH and CH3 signals in the 1H NMR spectrum (Fig. 2c, resonances shown in blue and magenta), which is replaced by a singlet in the crude reaction mixture (Fig. 2d). This indicates that under the conditions of the reaction, [AlIIIL3] is configurationally dynamic, and that the self-assembly process amplifies the proportion of the fac configuration through the formation of 5. While mer tris(bidentate) octahedral complexes are also known to generate discrete metallosupramolecular cages,45 the divergent disposition of the pendant donor groups create larger closed systems, which with a dynamic system such as this will rapidly rearrange to give the entropically more favourable trigonal bipyramid. A comparison of the 1H NMR spectra of the re-dissolved crystalline sample of 5 (Fig. 2b) and the crude reaction solution, obtained by treating a slight excess of [Pd(dppp)(OTf)2] with [AlIIIL3] in CD3CN (Fig. 2d), shows that this amplification is not a solid-state packing effect, rather a solution-based effect. The single set of signals in the 1H NMR spectrum of the product (Fig. 2b/d) also indicates that 5 is formed with complete diastereoselectivity.46 This represents a second tier of self-sorting, which, unusually, involves Pd-mediated heterochiral recognition of Δ and Λ-[AlIIIL3] enantiomers (see below).

Solid-state structure descriptions

The heterometallic trigonal bipyramid cages [Fe2Co3L6Cl6] (1), [Fe2Zn3L6Br6] (2), [Cr2Zn3L6Br6] (3), [Cr2Pd3L6(dppp)3](OTf)6 (4) and [Al2Pd3L6(dppp)3](OTf)6 (5) (Fig. 3 and 4) were all synthesised in a similar manner, by addition of either tetrahedral or cis-protected square planar MII compounds to the metalloligand [MIIIL3] (MIII = Fe, Cr or Al) in acetone, methanol, acetonitrile or a mixed solvent system, with crystals isolated from slow evaporation of the mother liquor, or diffusion of Et2O or MeOH (see the Experimental section for full details). The metallic skeletons of the cages in 1–5 describe a trigonal bipyramid with the MIII ions situated on the axial positions and the MII ions on the equatorial sites. The approximate dimensions of the [MIII2MII3]n+ metallic skeleton are MIII⋯MII (8.77–8.99 Å), MII⋯MII (11.72–12.80 Å) and MIII⋯MIII (10.75–11.20 Å).
image file: c7sc00487g-f3.tif

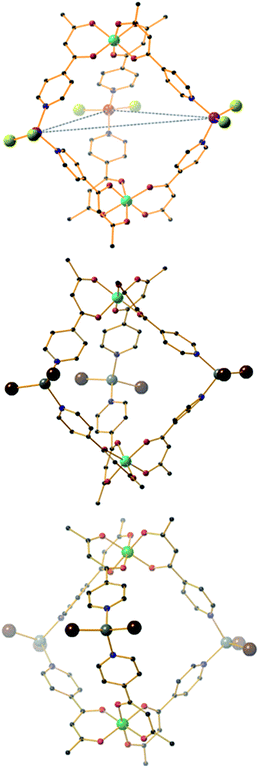

Fig. 3 From top to bottom, molecular structures of (ΛΛ)-1, 2 and 3. Colour code: Fe = cyan, Co = magenta, Cr = green, Zn = grey, O = red, N = blue, Cl = green, Br = brown, C = black. H-atoms omitted for clarity. The dashed blue line in the upper figure highlights the trigonal plane of MII ions.

image file: c7sc00487g-f4.tif

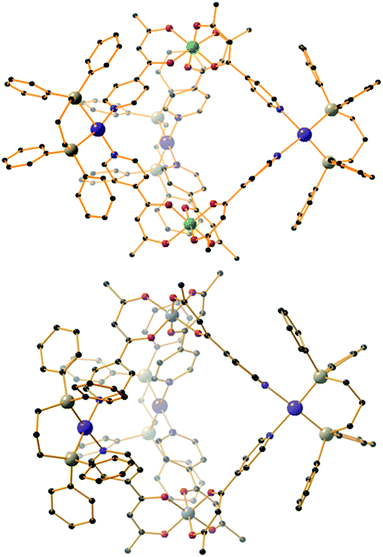

Fig. 4 Molecular structures of (ΛΔ)-4 (top) and 5 (bottom). Colour code: Cr = green, Al = grey, Pd = magenta, P = silver, O = red, N = blue, C = black. H-atoms and OTf counteranions omitted for clarity.

Each of the three MII metal ions is coordinated by two N donors from the pyridyl groups of [MIIIL3]. The N–MII–N angle of the tetrahedral CoN2Cl2/ZnN2Br2 moiety for compounds 1–3 lies in the range 90.63–103.57°; in 4–5 the equivalent N–Pd–N angle is in the range 84.40–85.39°. Each [MIIIL3] corner unit consists of a six-coordinate MIII ion with regular {MO6} octahedral geometry. For the three different [MIIIL3] metalloligands used in the synthesis the MIII–O distances and angles are: Fe–O 1.98–2.02 Å, Fe–O cis/trans angles 83.48–95.17° and 169.99–178.40°, respectively; Cr–O 1.91–1.98 Å, Cr–O cis/trans angles 86.82–94.04° and 176.35–179.85°, respectively; Al–O 1.86–1.89 Å, Al–O cis/trans angles 88.84–91.43° and 179.03–179.54°, respectively. The CoII and ZnII ions lie in distorted tetrahedral environments with bond distances in the range 2.05–2.35 Å (Co–Cl ∼ 2.23 Å, Co–N ∼ 2.05 Å, Zn–Br ∼ 2.35 Å and Zn–N ∼ 2.06 Å) and bond angles around the metal centres ranging from 90.62° to 120.08°. In compounds 4 and 5, the PdII ion is 90° cis-blocked through the use of the dppp ligand (Pd–P bond distance ∼ 2.27 Å). The coordination of Pd to [MIIIL3] through the use of Pd–N bonds (ranging from 2.08–2.14 Å) creates a distorted square planar geometry around the Pd centre with cis/trans bond angles in the range 84.40–93.50° and 165.49–178.57°, respectively. While complexes 1–3 are neutral, charge balance is maintained in 4 and 5 through the presence of a total of six CF3SO3 anions, lying outside the cage.

While the intrametallic distances of the five trigonal bipyramids are similar, there is nonetheless a distinct diastereomeric difference between structures 1–3 and 4–5. Whereas 1–3 are all homochiral racemates in which each intact capsule features two [MIIIL3] units that possess the same Λ or Δ chirality, in contrast structures 4 and 5 are both the achiral heterodiastereomer. While sorting of chiral octahedral metal motifs has been frequently observed in metallosupramolecular assembly reactions, for the vast majority homochiral assemblies are energetically preferred.47 The commonality of the [Pd(dppp)] unit in both 4 and 5 that feature different [MIIIL3] metalloligands would suggest that either the small change in angle between pyridine donors at each MII connector and/or the interactions of the dppp protecting ligand with these donors cause the change in diastereomeric preference. Solution studies with 5 would also indicate this is not simply due to selective crystallization from a complex mixture (see above). Outwith cyanometalate chemistry,32–34 compounds 1–4 represent the first examples of trigonal bipyramids built with paramagnetic metal ions, and join a small family of analogous compounds containing diamagnetic metal ions.48–52

SQUID magnetometry

The dc (direct current) molar magnetic susceptibility, χ, of a polycrystalline sample of 1 was measured in an applied magnetic field, B, of 0.1 T, over the 2–300 K temperature, T, range. The experimental results are shown in Fig. 5 in the form of the χT product, where χ = M/B, and M is the magnetisation of the sample. At room temperature, the χT product of 1 has a value of 14.4 cm3 K mol−1, in good agreement with the sum of Curie constants for a [FeIII2CoII3] unit (14.375 cm3 K mol−1, gFe = gCo = 2.0). Note that the estimation of the g-value of the CoII ions here is an approximation and subject to error (e.g. lattice solvent lost upon sample drying will result in a variation of the samples diamagnetism), and a better measure comes from the EPR spectroscopy, which is consistent with gCo = 2.3 (vide infra). Upon cooling, the χT product of 1 remains essentially constant down to approximately 100 K, wherefrom it decreases upon further cooling to 9.5 cm3 K mol−1 at 2 K. Given that the anisotropy of FeIII is negligible, this behaviour is consistent with a relatively large single-ion magnetic anisotropy for the CoII centres and/or an antiferromagnetic exchange interaction between the FeIII and CoII centres. To better define the low-temperature magnetic properties of 1, low temperature variable-temperature-and-variable-field (VTVB) magnetisation data were measured in the temperature and magnetic field ranges T = 2–12 K and B = 0–5 T (Fig. 5). At the highest investigated field (5 T) and the lowest investigated temperature (2 K), the magnetisation of 1 is of 13.7 μB (μB is the Bohr magneton). Furthermore, when the VTVB data of 1 are plotted against the reduced quantity μBB/kT, little nesting of the VTVB data is observed. This observation indicates that the part of the energy spectrum of 1 probed under these experimental conditions does not present significant anisotropy splitting with respect to the temperature of measurement at zero magnetic field.
image file: c7sc00487g-f5.tif

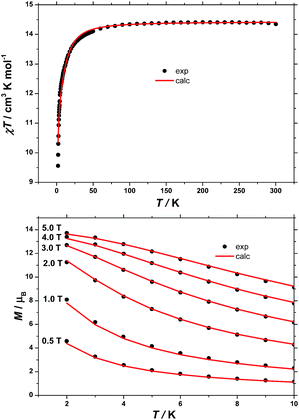

Fig. 5 (Top) Temperature dependence of the χT product of a polycrystalline sample of 1 with B = 0.1 T. (Bottom) VTVB magnetisation data of 1 in the field and temperature ranges 0.5 to 5 T and 2 to 10 K, respectively. Solid lines are the best-fit curves, see text for details.

For the quantitative interpretation of the magnetisation data, we used spin-Hamiltonian (1)


image file: c7sc00487g-t1.tif(1)
where the summation indexes i, j run through the constitutive metal centres, gi is the g-factor of the ith centre, Ŝ is a spin operator, J is the isotropic exchange interaction parameter, D is the uniaxial anisotropy parameter and S is the total spin.

In our spin-Hamiltonian model, we assume for simplicity that all g-factors are equal to 2, SFeIII = 5/2, SCoII = 3/2, we only consider exchange interactions between CoII and FeIII centres, and neglect the single-ion anisotropy of FeIII. Furthermore, we fix the uniaxial anisotropy of CoII to DCo = −14 cm−1, as extracted from the modelling of the EPR data and theoretical calculations, which are discussed further in the following sections. Thus, at this point our model contains only one free parameter, namely, the isotropic exchange between FeIII and CoII, JFe–Co. The χT product of 1 was fitted to spin-Hamiltonian (1) by full matrix numerical diagonalisation of the spin-Hamiltonian of the full system of dimension 2304 by 2304, through use of the Levenberg–Marquardt algorithm.53 This resulted in the best-fit parameter JFe–Co = −0.04 cm−1. In order to verify the validity of our model, JFe–Co was fixed to the determined best-fit value, JFe–Co = −0.04 cm−1, and DCo was maintained fixed at −14 cm−1. At this point our model contains no free parameters. Thereafter, the VTVB data of 1 were simulated by use of spin-Hamiltonian (1). The simulated curves are shown as solid red lines in Fig. 5. With these parameters, the energy spectrum of 1 consists of four groups of densely packed states, each separated by approximately 2DCo (Fig. 6). It is interesting to note that multiple ground level crossings simultaneously occur at approximately 0.47 T when the magnetic field is applied parallel to the quantisation axis.


image file: c7sc00487g-f6.tif

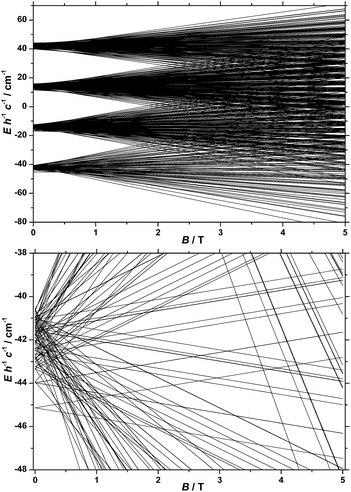

Fig. 6 (Top) Energy spectrum of 1 determined with the best-fit parameters (see text) and the magnetic field applied along the quantisation axis. (Bottom) Low-lying states of the energy spectrum of 1, determined as described in the text.

Heat capacity

Fig. 7 shows the collected heat capacity data, normalised to the gas constant, cp/R of 1 as a function of temperature (between ca. 0.3 K and 30 K) for zero-applied magnetic field. As is typical for molecular magnetic materials,54 lattice vibrations contribute predominantly to cp as a rapid increase above liquid-helium temperature. The lattice contribution can be described by the Debye model (dotted line in Fig. 7), which simplifies to a cp/R = aT3 dependence at the lowest temperatures, where a = 7.6 × 10−3 K−3 for 1.
image file: c7sc00487g-f7.tif

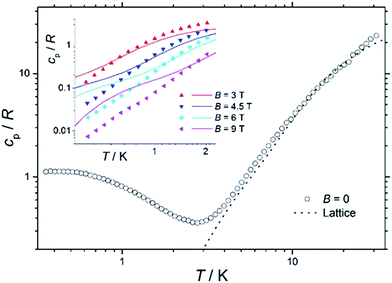

Fig. 7 Temperature dependence of the zero-field heat capacity cp, normalised to the gas constant R, for a polycrystalline sample of 1. The dotted line is the lattice contribution. Inset: temperature dependence of cp/R of 1 for T < 2 K and B ≥ 3 T. Solid lines are the best-fit curves, see text for details.

For T < ca. 3 K, the zero-field cp shows a wide bump-like anomaly, which we attribute to the splitting of the spin levels by zero-field splitting and magnetic interactions. At such low temperatures, the magnetic measurements are very sensitive to the applied magnetic field, as seen in the experimental behaviour for fields of 3 T and higher (inset of Fig. 7). Such large intensities of the applied magnetic field are sufficient for promoting full decoupling between the individual spin centres (we recall that the exchange interaction is as small as JFe–Co = −0.04 cm−1 on the basis of the fit of the magnetometry data). Therefore, the temperature and field dependence of the cp data in Fig. 7 (inset), collected for B ≥ 3 T, are particularly suitable for probing the influence of crystal fields on 1, down to temperatures significantly lower than the ones obtained in the magnetisation measurements.

The solid lines in Fig. 7 are the curves calculated for Hamiltonian (1), using the best-fit parameters from the magnetothermal and spectroscopic data and theoretical calculations, i.e., DCo = −14 cm−1 and the here-negligible JFe–Co = −0.04 cm−1. The agreement with the experimental data is good, though not outstanding. Anticipating the discussion on the EPR spectra (vide infra), we have checked that adding a zero-field splitting (ZFS) of DFe = −0.2 cm−1 at the FeIII sites does not improve the fit. The discrepancy is most evident below ca. 1 K, where the experimental data have lower values than the calculated ones. This behaviour can be explained by a wider broadening of the low-lying energy spectrum, likely induced by higher-order anisotropy terms, which are not taken into account in Hamiltonian (1).

EPR spectroscopy

We previously reported EPR spectra of [CrL3], giving the ZFS of the CrIII, s = 3/2 ion as D = −0.55 cm−1 with a small rhombicity of |E/D| = 0.045.29 Q-Band spectra of 3 and 4 are similar to that of [CrIIIL3], and give D = −0.64 and −0.61 cm−1, respectively (Fig. S11; |E/D| = 0.03–0.04).55 Hence, the distortion imposed on the {CrO6} coordination sphere of [CrIIIL3] by complexation in the {CrIII2MII3} supramolecules results in a small, but measurable, increase of the ZFS at CrIII. The {CrO6} metric parameters do not appear to be very different.

Such an increase in D is also found for the FeIII (s = 5/2) systems. X- and Q-band EPR spectra of [FeIIIL3] reveal a rather small ZFS of D = 0.08 cm−1 with |E/D| = 1/3 (Fig. 8 and S12; note the sign of D has no significance with a fully rhombic D-tensor). These values are similar to those reported for [Fe(acac)3] (|D| = 0.16 cm−1, E/D = 0.3)56 and [Fe(dpm)3] (dpm = dipivaloylmethane; D = −0.20 cm−1, |E/D| = 0.25).57 On incorporation into the {FeIII2ZnII3} complex 2, a much richer spectrum is observed (Fig. 8 and S12), giving D = 0.20 cm−1 (E/D = 1/3). Angular overlap model studies on [Fe(acac)3] and [Fe(dpm)3] show D to be very sensitive to the trigonal distortion at FeIII,57 and there is a more significant structural difference in the {FeIIIO6} coordination spheres when bound in {FeIII2ZnII3}, with longer Fe–O bonds and wider O–Fe–O angles in the {py}3 face, than in the equivalent CrIII systems.


image file: c7sc00487g-f8.tif

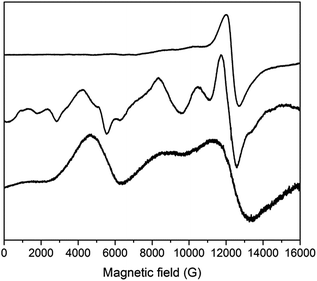

Fig. 8 Q-Band EPR spectra of powdered samples of (from top to bottom) [FeL3], 2 and 1 at 5 K.

The {FeIII2CoII3} complex 1 gives Q-band EPR spectra with very broad features at ca. 5, 9 and 12 kG that line up with the main features of the spectrum of the {FeIII2ZnII3} complex 2. Hence, the ZFS at FeIII must be similar. The very large ZFS at CoII means that only transitions within the ground Kramers doublet of this ion are observed (the microwave energy, ≪ |D|), and there must be a significant rhombicity in order for these transitions to fall within the observed features. The spectra also show that the JFeCo exchange interaction must be very weak, resulting only in severe broadening of the peaks. Test calculations on a simple {FeIIICoII} model, with fixed ZFS at the s = 5/2 and 3/2 spins (the latter taking D = −14 cm−1 with E/D = 0.1; averaging the results of CASSCF calculations – see below) suggest that if |JFeCo| > ca. 0.02 cm−1 then additional features would be observed in the Q-band EPR spectrum. Note that the limit for the full, five-spin system would be different.

The DFe values obtained from EPR would have a negligible effect on the calculated χT(T) and cp(T,B) curves for 1, and a negligible effect on the global level structure in Fig. 6a, because both |DFe| and |JFeCo| are ≪|DCo|. However, it would affect the detail of the states within each of the densely packed multiplets of Fig. 6a, because |DFe| and |JFeCo| are of similar magnitude.

Theoretical studies

In order to independently verify the large ZFS of CoII we have performed complete active space self-consistent field (CASSCF) calculations on the three unique CoII sites of 1, see the SI for details. The results suggest DCo = −14 cm−1, E/D = 0.1 (Table S1) which is entirely consistent with the magnetometry and heat capacity data. The calculations also suggest that the principal axes of the local ZFS tensors are oriented roughly perpendicular to the FeIII–FeIII axis and canted approximately 120° with respect to one another in the plane (Fig. 9). Accounting for the non-collinearity in spin-Hamiltonian (1) did not improve the quality of the fits to the magnetometry or heat capacity data.
image file: c7sc00487g-f9.tif
Fig. 9 Orientation of the principal anisotropy axis for the CoII sites in 1 (yellow rods); orange = Fe, pink = Co, green = Cl, red = O, blue = N, beige = C, white = H.

Conclusions

Complexes 1–5 represent a novel, and unusual family of trigonal bipyramidal cage complexes, built with the tritopic [ML3] metalloligand, featuring a tris(acac) octahedral transition metal core functionalised with three p-pyridyl donor groups, and a series of transition metal salts. Outwith cyanometalate chemistry, compound 1 represents the first example of such a cage containing paramagnetic metal ions. Complementary studies investigating the diamagnetic variants using 1H NMR spectroscopy reveal some interesting features about the solution self-assembly process. Firstly, the [MIIIL3] metalloligand is a highly dynamic tritopic building block as evidenced by fac configurational isomer being amplified at the expense of the mer during the course of cage formation. The self-assembly process also occurs with high and unusual stereoselectivity wherein the trigonal bipyramids are formed exclusively from twisted pyramidal components of opposite Δ/Λ-handedness. Solution stability of the cage is also confirmed via mass spectrometry. SQUID magnetometry and heat capacity measurements on 1 reveal weak antiferromagnetic exchange between the FeIII and CoII ions, with |DCo| = 14 cm−1. EPR spectroscopy reveals that the distortion imposed on the {MO6} coordination sphere of [MIIIL3] by complexation in the {MIII2MII3} supramolecules results in a small, but measurable, increase of the zero field splitting at MIII. CASSCF calculations on the three unique CoII sites of 1 suggest that the principal axes of the local ZFS tensors are oriented perpendicular to the FeIII–FeIII axis, but canted ∼120° with respect to each other.

Acknowledgements

EKB thanks the EPSRC for funding, and the Velux Foundations for a Villum Visiting Professor Programme Grant. PJL thanks the Leverhulme Trust (RPG-2015-232). GL, EP and ME thank the Spanish Ministry of Economy, Industry and Competitiveness (MAT2013-44063-R and MAT2015-68204-R). We thank the EPSRC for funding the UK National Crystallography service and the UK National EPR Facility. NFC thanks the Ramsay Memorial Trust for a Research Fellowship.

Notes and references

  1. A. Fernandez, J. Ferrando-Soria, E. Moreno Pineda, F. Tuna, I. J. Vitorica-Yrezabal, C. Knappke, J. Ujma, C. A. Muryn, G. A. Timco, P. E. Barran, A. Ardavan and R. E. P. Winpenny, Nat. Commun., 2016, 7, 10240 CrossRef CAS PubMed .
  2. D. Aguilà, L. A. Barrios, V. Velasco, O. Roubeau, A. Repollés, P. J. Alonso, J. Sesé, S. J. Teat, F. Luis and G. Aromí, J. Am. Chem. Soc., 2014, 136, 14215–14222 CrossRef PubMed .
  3. M. Manoli, S. Alexandrou, L. Pham, G. Lorusso, W. Wernsdorfer, M. Evangelisti, G. Christou and A. J. Tasiopoulos, Angew. Chem., Int. Ed., 2016, 55, 679–684 CrossRef CAS PubMed .
  4. K. E. R. Marriott, L. Bhaskaran, C. Wilson, M. Medarde, S. T. Ochsenbein, S. Hill and M. Murrie, Chem. Sci., 2015, 6, 6823–6828 RSC .
  5. J. Martinez-Lillo, J. Faus, F. Lloret and M. Julve, Coord. Chem. Rev., 2015, 289–290, 215–237 CrossRef CAS .
  6. M. Ibrahim, V. Mereacre, N. Leblanc, W. Wernsdorfer, C. E. Anson and A. K. Powell, Angew. Chem., Int. Ed., 2015, 54, 15574–15578 CrossRef CAS PubMed .
  7. K. R. Meihaus, M. E. Fieser, J. J. Corbey, W. J. Evans and J. R. Long, J. Am. Chem. Soc., 2015, 137, 9855–9860 CrossRef CAS PubMed .
  8. S. T. Liddle and J. van Slageren, Chem. Soc. Rev., 2015, 44, 6655–6669 RSC .
  9. S. K. Langley, D. P. Wielechowski, V. Vieru, N. F. Chilton, B. Moubaraki, L. F. Chibotaru and K. S. Murray, Chem. Sci., 2014, 5, 3246–3256 RSC .
  10. M. Atzori, L. Tesi, E. Morra, M. Chiesa, L. Sorace and R. Sessoli, J. Am. Chem. Soc., 2016, 138, 2154–2157 CrossRef CAS PubMed .
  11. S. Thiele, F. Balestro, R. Ballou, S. Klyatskaya, M. Ruben and W. Wernsdorfer, Science, 2014, 344, 1135–1138 CrossRef CAS PubMed .
  12. M. Ganzhorn, S. Klyatskaya, M. Ruben and W. Wernsdorfer, Nat. Nanotechnol., 2013, 8, 165–169 CrossRef CAS PubMed .
  13. M. L. Baker, T. Guidi, S. Carretta, J. Ollivier, H. Mutka, H. U. Güdel, G. A. Timco, E. J. L. McInnes, G. Amoretti, R. E. P. Winpenny and P. Santini, Nat. Phys., 2012, 8, 906–911 CrossRef CAS .
  14. Y. Rechkemmer, F. D. Breitgoff, M. van der Meer, M. Atanasov, M. Hakl, M. Orlita, P. Neugebauer, F. Neese, B. Sarkar and J. van Slageren, Nat. Commun., 2016, 7, 10467 CrossRef CAS PubMed .
  15. G. Lorusso, O. Roubeau and M. Evangelisti, Angew. Chem., Int. Ed., 2016, 55, 3360–3363 CrossRef CAS PubMed .
  16. L. Tesi, E. Lucaccini, I. Cimatti, M. Perfetti, M. Mannini, M. Atzori, E. Morra, M. Chiesa, A. Caneschi, L. Sorace and R. Sessoli, Chem. Sci., 2016, 7, 2074–2083 RSC .
  17. H. Atkinson, R. Inglis, E. del Barco and E. K. Brechin, Phys. Rev. Lett., 2014, 113, 087201 CrossRef PubMed .
  18. M. Shiddiq, D. Komijani, Y. Duan, A. Gaita-Ariño, E. Coronado and S. Hill, Nature, 2016, 531, 348–351 CrossRef CAS PubMed .
  19. J.-N. Rebilly and T. Mallah, Struct. Bonding, 2006, 122, 103–131 CrossRef CAS .
  20. V. Marvaud, C. Decroix, A. Scuiller, F. Tuyèras, C. Guyard-Duhayon, J. Vaissermann, J. Marrot, F. Gonnet and M. Verdaguer, Chem.–Eur. J., 2003, 9, 1692–1705 CrossRef CAS PubMed .
  21. M. Nihei, Y. Sekine, N. Suganami, K. Nakazawa, A. Nakao, H. Nakao, Y. Murakami and H. Oshio, J. Am. Chem. Soc., 2011, 133, 3592–3600 CrossRef CAS PubMed .
  22. J. M. Zadrozny, D. E. Freedman, D. M. Jenkins, T. D. Harris, A. T. Iavarone, C. Mathonière, R. Clérac and J. R. Long, Inorg. Chem., 2010, 49, 8886–8896 CrossRef CAS PubMed .
  23. T. Glaser, Chem. Commun., 2011, 47, 116–130 RSC .
  24. C. Zhao, F. D. Toste, K. N. Raymond and R. G. Bergman, J. Am. Chem. Soc., 2014, 136, 14409–14412 CrossRef CAS PubMed .
  25. P. Mal, B. Breiner, K. Rissanen and J. R. Nitschke, Science, 2009, 324, 1697–1699 CrossRef CAS PubMed .
  26. O. Chepelin, J. Ujma, X. Wu, A. M. Z. Slawin, M. B. Pitak, S. J. Coles, J. Michel, A. C. Jones, P. E. Barran and P. J. Lusby, J. Am. Chem. Soc., 2012, 134, 19334–19337 CrossRef CAS PubMed .
  27. A. Pastor and E. Martínez-Viviente, Coord. Chem. Rev., 2008, 252, 2314–2345 CrossRef CAS .
  28. See for example: W. Cullen, K. A. Thomas, C. A. Hunter and M. D. Ward, Chem. Sci., 2015, 6, 4025–4028 RSC .
  29. (a) S. Sanz, H. M. O'Connor, E. M. Pineda, K. S. Pedersen, G. S. Nichol, O. Mønsted, H. Weihe, S. Piligkos, E. J. L. McInnes, P. J. Lusby and E. K. Brechin, Angew. Chem., Int. Ed., 2015, 54, 6761–6764 CrossRef CAS PubMed ; an analogous cage of diamagnetic metals has also been published, 2009, see: (b) H.-B. Wu and Q.-M. Wang, Angew. Chem., Int. Ed. Engl., 2009, 48, 7343–7345 CrossRef CAS PubMed .
  30. H. M. O'Connor, S. Sanz, M. B. Pitak, S. J. Coles, G. S. Nichol, S. Piligkos, P. J. Lusby and E. K. Brechin, CrystEngComm, 2016, 18, 4914–4920 RSC .
  31. R. Chakrabarty, P. S. Mukherjee and P. J. Stang, Chem. Rev., 2011, 111, 6810–6918 CrossRef CAS PubMed .
  32. K. Van Langenberg, S. R. Batten, K. J. Berry, D. C. R. Hockless, B. Moubaraki and K. S. Murray, Inorg. Chem., 1997, 36, 5006–5015 CrossRef CAS .
  33. (a) C. F. Wang, J. L. Zuo, B. M. Bartlett, Y. Song, J. R. Long and X. Z. You, J. Am. Chem. Soc., 2006, 128, 7162–7163 CrossRef CAS PubMed ; (b) B. M. Bartlett, T. D. Harris, M. W. DeGroot and J. R. Long, Z. Anorg. Allg. Chem., 2007, 633, 2380–2385 CrossRef CAS .
  34. M.-X. Yao, Z.-Y. Wei, Z.-G. Gu, Q. Zheng, Y. Xu and J.-L. Zuo, Inorg. Chem., 2011, 50, 8636–8644 CrossRef CAS PubMed .
  35. B. Singh, G. Y. Lesher, K. C. Pluncket, E. D. Pagani, D. C. Bode, R. G. Bentley, M. J. Connell, L. T. Hamel and P. J. Silver, J. Med. Chem., 1992, 35, 4858–4865 CrossRef CAS PubMed .
  36. S. J. Coles and P. A. Gale, Chem. Sci., 2012, 3, 683–689 RSC .
  37. Rigaku Oxford Diffraction, in CrystalClear-SM Expert 3.1 b27, 2012 Search PubMed .
  38. Rigaku Oxford Diffraction, in CrysAlisPro 1.171.38.41, 2015 Search PubMed .
  39. Rigaku Oxford Diffraction, in CrysAlisPro, 2016 Search PubMed .
  40. L. Palatinus and G. Chapuis, J. Appl. Crystallogr., 2007, 40, 786–790 CrossRef CAS .
  41. G. M. Sheldrick, Acta Crystallogr., Sect. C: Struct. Chem., 2015, 71, 3–8 CrossRef PubMed .
  42. O. V. Dolomanov, A. J. Blake, N. R. Champness and M. Schröder, J. Appl. Crystallogr., 2003, 36, 1283–1284 CrossRef CAS .
  43. A. L. Spek, Acta Crystallogr., Sect. C: Struct. Chem., 2015, 71, 9–18 CrossRef CAS PubMed .
  44. M. Fujita, J. Yazaki and K. Ogura, J. Am. Chem. Soc., 1990, 112, 5647–5648 CrossRef .
  45. I. A. Riddell, M. M. J. Smulders, J. K. Clegg, Y. R. Hristova, B. Breiner, J. D. Thoburn and J. R. Nitschke, Nat. Chem., 2012, 4, 751–756 CrossRef CAS PubMed ; A. J. Metherell and M. D. Ward, Chem. Sci., 2016, 7, 910–915 RSC .
  46. While a single set of signals could also indicate dynamic exchange of the components relative to the NMR timescale, this is unlikely with a Pd-based system. Furthermore, in situ monitoring of the self-assembly reaction in CD3CN with excess Pd salt using 1H NMR spectroscopy (e.g.Fig. 2d), showed this not to be in fast exchange..
  47. A. M. Castilla, W. J. Ramsay and W. J. J. R. Nitschke, Acc. Chem. Res., 2014, 47, 2063–2073 CrossRef CAS PubMed .
  48. N. R. Voss and M. Gerstein, Nucleic Acids Res., 2010, 38, 555–562 CrossRef PubMed .
  49. M. Wang, V. Vajpayee, S. Shanmugaraju, Y. R. Zheng, Z. Zhao, H. Kim, P. S. Mukherjee, K. W. Chi and P. J. Stang, Inorg. Chem., 2011, 50, 1506–1512 CrossRef CAS PubMed .
  50. X. Sun, D. W. Johnson, D. L. Caulder, K. N. Raymond and E. H. Wong, J. Am. Chem. Soc., 2001, 123, 2752–2763 CrossRef CAS PubMed .
  51. S. Hiraoka, Y. Sakata and M. Shionoya, J. Am. Chem. Soc., 2008, 2, 1–15 Search PubMed .
  52. Y. Sakata, S. Hiraoka and M. Shionoya, Chem.–Eur. J., 2010, 16, 3318–3325 CrossRef CAS PubMed .
  53. W. H. Press, S. A. Teukolsky, W. T. Vetterling and B. P. Flannery, Numerical recipes in C: The Art of Scientific Computing, 2nd edn, Cambridge University Press, Cambridge, 1992 Search PubMed .
  54. M. Evangelisti, F. Luis, L. J. de Jongh and M. Affronte, J. Mater. Chem., 2006, 16, 2534–2549 RSC .
  55. H. Weihe, SIM-EPR, Copenhagen University Search PubMed .
  56. D. Collison and A. K. Powell, Inorg. Chem., 1990, 29, 4735–4746 CrossRef CAS .
  57. A.-L. Barra, A. Caneschi, A. Cornia, F. Fabrizi de Biani, D. Gatteschi, C. Sangregorio, R. Sessolia and L. Sorace, J. Am. Chem. Soc., 1999, 121, 5302–5310 CrossRef CAS .

Footnotes

Electronic supplementary information (ESI) available: Additional NMR, IR, PXRD, ICPOES, MS, EPR data and CASSCF methodology. CCDC 1520425–1520429. Crystallographic data (including structure factors) for 1–5 have been deposited with the Cambridge Crystallographic Data Centre. For ESI and crystallographic data in CIF or other electronic format see DOI: 10.1039/c7sc00487g
S. Sanz and H. M. O'Connor contributed equally to this work.
