Cationic disulfide-functionalized worm gels

L. P. D. Ratcliffe *a, K. J. Bentley a, R. Wehr a, N. J. Warren *b, B. R. Saunders c and S. P. Armes *a
aDainton Building, Department of Chemistry, University of Sheffield, Brook Hill, Sheffield, South Yorkshire S3 7HF, UK. E-mail: l.p.ratcliffe@gmail.com; s.p.armes@sheffield.ac.uk
bSchool of Chemical and Process Engineering, University of Leeds, Leeds, LS2 9JT, UK. E-mail: N.Warren@leeds.ac.uk
cSchool of Materials, The University of Manchester, MSS Tower, Manchester, M13 9PL, UK

Received 9th August 2017 , Accepted 6th September 2017

First published on 6th September 2017


The recent development of polymerization-induced self-assembly (PISA) has facilitated the rational synthesis of a range of diblock copolymer worms, which hitherto could only be prepared via traditional post-polymerization processing in dilute solution. Herein we explore a new synthetic route to aqueous dispersions of cationic disulfide-functionalized worm gels. This is achieved via the PISA synthesis of poly[(glycerol monomethacrylate-stat-glycidyl methacrylate)]-block-poly(2-hydroxypropyl methacrylate) (P(GMA-stat-GlyMA)-PHPMA) block copolymer worms via reversible addition–fragmentation chain transfer (RAFT) aqueous dispersion polymerization of HPMA. A water-soluble reagent, cystamine, is then reacted with the pendent epoxy groups located within the P(GMA-stat-GlyMA) stabilizer chains to introduce disulfide functionality, while simultaneously conferring cationic character via formation of secondary amine groups. Moreover, systematic variation of the cystamine/epoxy molar ratio enables either chemically cross-linked worm gels or physical (linear) primary amine-functionalized disulfide-based worm gels to be obtained. These new worm gels were characterized using gel permeation chromatography, 1H NMR spectroscopy, transmission electron microscopy, dynamic light scattering, aqueous electrophoresis and rheology. In principle, such hydrogels may offer enhanced mucoadhesive properties.


Introduction

The synthesis of well-defined functional block copolymers has been transformed over the past two decades by the development of controlled radical polymerization chemistries such as reversible addition–fragmentation chain transfer (RAFT) polymerization.1,2 In particular, the recent development of RAFT-mediated polymerization-induced self-assembly (PISA)3–5 has facilitated the rational synthesis of diblock copolymer worms,6–8 which previously had only been prepared via traditional post-polymerization processing in dilute solution.9–12 Recently, numerous examples of diblock copolymer worms have been reported via PISA syntheses conducted in water,6,8,13–20 alcohol21,22 or non-polar solvents.23–27

Relatively soft, free-standing worm gels are typically obtained, with macroscopic gelation likely to be the result of multiple physical contacts between neighbouring worms, rather than inter-worm entanglements. In particular, aqueous worm gels offer potential biomedical applications. For example, poly(glycerol monomethacrylate)-poly(2-hydroxypropyl methacrylate) (PGMA-PHPMA) diblock copolymer worm gels are thermoresponsive, undergoing degelation on cooling from 20 °C to 5 °C via a reversible worm-to-sphere transition. Such gels can induce stasis in human embryonic stem cells28 and enable solvent-free cryopreservation of red blood cells.29 Aqueous worm gels can also be used as 3D matrices for long-term cell culture.30 However, in this case it proved necessary to introduce covalent disulfide bonds between adjacent worms to preserve gel integrity over extended culture periods (e.g. 10–12 days). In principle, this can be achieved either by copolymerizing glycerol monomethacrylate (GMA) with a minor fraction of disulfide dimethacrylate (DSDMA) to give a disulfide-functionalized macro-CTA, or by using a disulfide-based CTA to polymerize GMA.31 In each case, the RAFT aqueous dispersion polymerization of HPMA resulted in block copolymer worms with disulfide functionality located within the PGMA stabilizer chains. As expected, increasing the disulfide content led to the formation of stronger gels. Such (light) crosslinking also led to lower critical gelation temperatures, because inter-worm covalent disulfide linkages hinder the worm-to-sphere transition. At a sufficiently high disulfide content, thermoresponsive behavior was no longer observed. Addition of excess tris(2-carboxyethyl)phosphine (TCEP) cleaved the disulfide bonds and so removed all inter-worm crosslinks, thus lowering the gel strength to that of a conventional non-disulfide functionalized PGMA-PHPMA worm gel.

Epoxy groups are highly reactive and strongly electrophilic, so they are readily attacked by nucleophiles such as primary amines, undergoing nucleophilic substitution to give an alkoxide anion, followed by rapid proton transfer.32,33 However, under appropriate conditions (e.g. neutral pH, moderate temperature) epoxides are relatively unreactive towards water,34 so epoxy–amine chemistry can be conducted in aqueous solution. Indeed, this approach was recently reported by Lovett and co-workers, who statistically copolymerized glycidyl methacrylate (GlyMA) with HPMA to prepare aqueous dispersions of block copolymer worms that could be subsequently core-crosslinked by reaction with 3-aminopropyltriethoxysilane (APTES) at pH 9–10.35 A similar strategy was also used by Chambon et al. to prepare the analogous covalently-stabilized vesicles using water-soluble diamines.36

In the present study, we explore a new and convenient synthetic route to cationic disulfide-functionalized worm gels. This is achieved via the PISA synthesis of poly[(glycerol monomethacrylate-stat-glycidyl methacrylate)]-block-poly(2-hydroxypropyl methacrylate) (P(GMA-stat-GlyMA)-PHPMA) block copolymer worms via RAFT aqueous dispersion polymerization. A water-soluble reagent, cystamine, is then reacted with the pendent epoxy groups located within the P(GMA-stat-GlyMA) stabilizer chains to introduce disulfide functionality while simultaneously conferring cationic character via formation of secondary amine groups. This approach has the advantage of utilizing only relatively cheap, commercially-available starting materials, rather than bespoke disulfide-based comonomers or RAFT agents. In principle, systematic variation of the cystamine/epoxy molar ratio should dictate whether either covalently cross-linked disulfide-bridged worm gels or physical primary amine-functionalized worm gels are obtained (see Fig. 4). This concept is explored herein.

Experimental

Materials

Glycerol monomethacrylate (GMA; 99.8%) and 2-hydroxypropyl methacrylate (HPMA, 97%) were donated by GEO Specialty Chemicals (Hythe, UK) and used without further purification. Glycidyl methacrylate (GlyMA; 97%), 4,4′-azobis(4-cyanopentanoic acid) (ACVA/V501; 99%), were purchased from Sigma-Aldrich UK and used as received. 2-Cyano-2-propyl dithiobenzoate (CPDB) was purchased from Strem Chemicals (Cambridge, UK). 2,2′-Azobis[2-(2-imidazolin-2-yl)propane]dihydrochloride (VA-044) was purchased from Wako Speciality Chemicals (Osaka, Japan) and used as received. Cystamine dihydrochloride (97%) was purchased from Acros Organics (Geel, Belgium). Deuterated methanol (CD3OD) was purchased from Goss Scientific (Nantwich, UK). All other solvents were HPLC-grade, purchased from Fisher Scientific (Loughborough, UK), and used as received. BioDesign Dialysis Tubing™, MWCO = 3500, was also purchased from Fisher Scientific (Loughborough, UK). Deionized water was used for all experiments.

Synthesis of P(GMA65-stat-GlyMA1.8) macro-CTA via RAFT solution polymerization

GMA monomer (208.22 g, 1.30 mol), GlyMA monomer (5.38 g, 37.83 mmol;), CPDB RAFT agent (4.55 g, 20.58 mmol; target DP = 65), ACVA initiator (1.15 g, 4.11 mmol; CPDB/ACVA molar ratio = 5.0) and ethanol (227.4 mL) were added to a 500 mL round-bottomed flask. On stirring, this mixture formed a red 55% w/w alcoholic solution. This solution was cooled to 0 °C using an ice bath and purged with N2 gas for 45 min. The flask was subsequently sealed and immersed in an oil bath set at 70 °C. After 120 min, the statistical copolymerization was quenched by immersion of the flask in ice, exposing the reaction solution to air and diluting with methanol (150 mL). A final comonomer conversion of 81% was determined by 1H NMR analysis. The crude copolymer was purified by three consecutive precipitations into a ten-fold excess of dichloromethane. The purified copolymer was then dissolved in water and freeze-dried for 48 h to yield a pink powder. 1H NMR analysis of this macro-CTA indicated 65 GMA and 1.8 GlyMA units per copolymer chain, as determined by comparing aromatic proton signals arising from the dithiobenzoate end-group (7.4–8.0 ppm) to those assigned to pendent GMA units (3.4–4.2 ppm), the methacrylic copolymer backbone (1.7–2.3 ppm), and GlyMA epoxy protons (2.8–3.0 ppm). DMF GPC analysis using a refractive index detector and a series of near-monodisperse poly(methyl methacrylate) calibration standards indicated an Mn of 15[thin space (1/6-em)]500 g mol−1 and an Mw/Mn of 1.13.

Synthesis of PGMA62 macro-CTA via RAFT solution polymerization

GMA monomer (208.22 g, 1.30 mol), CPDB RAFT agent (4.43 g, 20.0 mmol; target DP = 65), ACVA initiator (1.12 g, 4.00 mmol; CPDB/ACVA molar ratio = 5.0) and ethanol (221.7 mL) were added to a 500 mL round-bottomed flask. On stirring, this mixture formed a red 55% w/w alcoholic solution. This solution was cooled to 0 °C using an ice bath and purged with N2 gas for 45 min. The flask was subsequently sealed and immersed in an oil bath set at 70 °C. After 120 min, the polymerization was quenched by immersing the flask in ice, exposing the reaction solution to air and diluting with methanol (150 mL). A final GMA conversion of 80% was determined by 1H NMR analysis. The crude polymer was purified by three consecutive precipitations into a ten-fold excess of dichloromethane. The purified polymer was dissolved in water and freeze-dried for 48 h to yield a pink powder. 1H NMR analysis of the PGMA macro-CTA indicated a mean degree of polymerization of 62, as determined by comparing aromatic proton signals from the dithiobenzoate end-group (7.4–8.0 ppm) to proton signals on pendent GMA units (3.4–4.2 ppm) and the methacrylic backbone (1.7–2.3 ppm). DMF GPC analysis using a refractive index detector and a series of near-monodisperse poly(methyl methacrylate) calibration standards indicated an Mn of 14[thin space (1/6-em)]600 g mol−1 and an Mw/Mn of 1.12.

Synthesis of P(GMA65-stat-GlyMA1.7)-PHPMAy block copolymer worms by RAFT aqueous dispersion polymerization

A typical protocol for the synthesis of a P(GMA65-stat-GlyMA1.7)-PHPMA140 diblock copolymer is as follows: P(GMA65-stat-GlyMA1.8) macro-CTA (9.50 g, 0.87 mmol), HPMA monomer (17.63 g, 0.12 mol; target DP = 140), VA-044 initiator (70 mg, 0.22 mmol; CPDB/VA-044 molar ratio = 4.0) and water (108.72 g) were weighed into a 250 mL round-bottomed flask and purged with N2 for 45 min. The flask was subsequently sealed and immersed in an oil bath set at 50 °C and the reaction solution was stirred for 90 min. After quenching by immersing the flask in ice and exposing to air, 1H NMR analysis indicated more than 99% HPMA conversion (as judged by the complete disappearance of vinyl proton signals at 5.5 and 6.2 ppm), with no discernible loss of epoxide functionality. A series of related diblock copolymers were prepared targeting alternative PHPMA DPs (y = 120 or 130) using the same protocol; in all cases more than 99% conversion was achieved.

Synthesis of PGMA62-PHPMA140 block copolymer worms by RAFT aqueous dispersion polymerization

A typical protocol for the synthesis of a PGMA62-PHPMA140 diblock copolymer is as follows: PGMA62 macro-CTA (0.32 g, 0.032 mmol), HPMA monomer (0.63 g, 4.41 mmol), VA-044 initiator (2.5 mg, 0.008 mmol; CPDB/VA-044 molar ratio = 4.0) and water (3.84 g) were weighed into a glass vial and purged with N2 for 20 min. The flask was subsequently sealed and immersed into an oil bath set at 50 °C and the reaction solution was stirred for 90 min. After quenching by immersion in an ice bath and exposure to air, 1H NMR analysis indicated more than 99% HPMA monomer conversion (as judged by complete disappearance of the vinyl protons at 5.5 and 6.2 ppm).

Functionalization of P(GMA65-stat-GlyMA1.7)-PHPMAy worm gels with cystamine

A typical protocol for cystamine functionalization of a P(GMA65-stat-GlyMA1.7)-PHPMA140 worm gel is as follows: a 20% w/w copolymer worm gel (1.00 g, 0.0064 mmol) was adjusted to pH 8–9 using aqueous NaOH. Cystamine (0.0492 g, 0.218 mmol; [cystamine]/[epoxide] molar ratio = 20) was then dissolved in water and adjusted to pH 8–9 using aqueous NaOH, before being added to the worm gel via pipette. The final copolymer concentration was then adjusted to 10% w/w using mildly alkaline water (pH 8–9) and the aqueous copolymer dispersion was stirred for 24 h at 22 °C. For 1H NMR studies, samples were dialyzed against deionized water for three days (changing the water twice daily), before lyophilization and dissolution in CD3OD.

1H NMR spectroscopy

Copolymers were dissolved in deuterated methanol (CD3OD) and 1H NMR spectra were recorded using a 400 MHz Bruker Avance spectrometer (64 scans averaged per spectrum).

Gel permeation chromatography (GPC)

Molecular weight distributions were assessed using a DMF GPC instrument operating at 60 °C. The set-up comprised two Polymer Laboratories PL gel 5 μm Mixed-C columns and one PL polar gel 5 μm guard column connected in series to an Agilent Technologies 1260 Infinity multidetector suite and an Agilent Technologies 1260 Infinity pump injection module. The GPC eluent was HPLC-grade DMF containing 10 mM LiBr and was filtered prior to use. The flow rate was 1.0 ml min−1 and DMSO was used as a flow-rate marker. Calibration was conducted using a series of ten near-monodisperse poly(methyl methacrylate) standards ranging from 625 to 618[thin space (1/6-em)]000 g mol−1. Chromatograms were analyzed using Varian Cirrus GPC software (version 3.3).

Transmission electron microscopy (TEM)

0.20% w/w copolymer dispersions were prepared at 20 °C. Copper/palladium TEM grids (Agar Scientific, UK) were surface-coated in-house to produce a thin film of amorphous carbon, then plasma glow-discharged for 30 seconds to create a hydrophilic surface. Droplets of freshly-prepared aqueous copolymer dispersions (9 μL; 0.20% w/w) were placed on a hydrophilic grid for 1 min and then blotted with filter paper to remove excess solution. The deposited nanoparticles were then negatively stained with an aqueous solution of uranyl formate (9 μL; 0.75% w/w) for a further 20 seconds, then carefully blotted to remove excess stain and dried with a vacuum hose. TEM grids were imaged using a FEI Tecnai Spirit TEM instrument equipped with a Gatan 1kMS600CW CCD camera operating at 120 kV.

Dynamic light scattering (DLS) and aqueous electrophoresis

Measurements were conducted at 25 °C using a Malvern Instruments Zetasizer Nano series instrument equipped with a 4 mW He–Ne laser (λ = 633 nm) and an avalanche photodiode detector. Scattered light was detected at 173°. Copolymer dispersions were diluted to 0.20% w/w. Intensity-average hydrodynamic diameters were calculated via the Stokes–Einstein equation. For zeta potential measurements, each aqueous worm dispersion was dialyzed against deionized water prior to analysis to remove excess cystamine, lyophilized and then redispersed at 10% w/w copolymer in mildly alkaline aqueous solution (pH 9) prior to dilution to 0.20% w/w copolymer in the presence of 1 mM KCl and the pH was adjusted using KOH as required. Zeta potentials were calculated using the Smoluchowski equation.

Oscillatory rheology measurements

An AR-G2 stress-controlled rheometer equipped with a variable temperature Peltier plate and a 40 mL 2° aluminium cone. A solvent trap was used for all experiments, to prevent evaporation of water over the time scale of the experiment. Loss moduli (G′′) and storage moduli (G′) were measured as a function of applied strain and temperature to identify the linear viscoelastic region and determine the CGT, respectively. Temperature sweeps were conducted at a fixed angular frequency of 1.0 rad s−1 and a constant strain of 1.0%. In these experiments, the temperature was decreased by 1.0 °C (from 27 °C to 2 °C) between each measurement, allowing an equilibration time of 2 min in each case. Gels were prepared at 20% w/w copolymer, diluted to 10% w/w using deionized water and adjusted to pH 8–9.

Results and discussion

In initial experiments, a PGMA62 macro-CTA and an epoxy-functional P(GMA65-stat-GlyMA1.8) macro-CTA were each prepared by RAFT solution polymerization in ethanol (see Scheme 1a). Comparable DPs were targeted to assess whether the addition of GlyMA comonomer led to a reduction in RAFT control. After 2 h, 1H NMR studies indicated (co)monomer conversions of 80% and 81% for the PGMA62 and P(GMA65-stat-GlyMA1.8) syntheses, respectively. In the latter case, 1H NMR analysis suggests approximately statistical incorporation of GlyMA (data not shown). This is not unexpected given the similar chemical structures of GlyMA and GMA. After purification, DMF GPC analyses of these PGMA62 and P(GMA65-stat-GlyMA1.8) macro-CTAs indicated similar Mn values (14[thin space (1/6-em)]600 g mol−1vs. 15[thin space (1/6-em)]500 g mol−1) and comparable Mw/Mn values (1.12 and 1.13 respectively), see Fig. S1a.
image file: c7py01306j-s1.tif

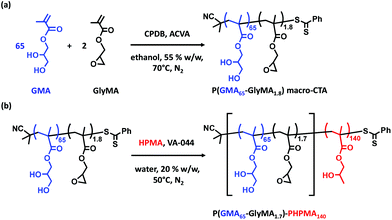

Scheme 1 (a) Synthesis of poly(glycerol monomethacrylate-stat-glycidyl methacrylate) [P(GMA65-stat-GlyMA1.8)] macro-CTA via statistical copolymerization of GMA and GlyMA using 2-cyano-2-propyl benzodithioate (CPDB) RAFT agent and 4,4′-azobis(4-cyanovaleric acid) (ACVA) initiator (CTA/ACVA molar ratio = 5.0) at 55% w/w solids in ethanol at 70 °C. (b) Synthesis of poly(glycerol monomethacrylate-stat-glycidyl methacrylate)-poly(2-hydroxypropyl methacrylate) [P(GMA65-stat-GlyMA1.7)-PHPMA140] diblock copolymer via RAFT aqueous dispersion polymerization of HPMA at 50 °C and pH 6–7 using a P(GMA65-stat-GlyMA1.8) macro-CTA at 20% w/w solids (CTA/VA-044 = 4.0). The modest reduction in GlyMA content from 1.8 mol% to 1.7 mol% is the result of in situ ring-opening of the epoxide group by water, which affords GMA residues.

Moreover, 1H NMR analysis indicated that at least 92% of the epoxy groups on the GlyMA residues remained intact during RAFT solution polymerization in ethanol at 70 °C for 1.5 h (see Fig. 1). Subsequently, P(GMA65-stat-GlyMA1.7)-PHPMA140 and PGMA62-PHPMA140 worm gels were prepared via RAFT aqueous dispersion polymerization of HPMA in water at 20% w/w solids (see Scheme 1b). Previous work by Lovett and co-workers indicated that using an ACVA initiator at 70 °C led to significant loss of epoxy functionality during similar aqueous PISA syntheses.35 Thus an azo initiator with a lower 10 h half-life (VA-044) was utilized to allow the reaction temperature to be lowered to 50 °C. In addition, the reaction solution was adjusted to approximately neutral pH. These milder conditions minimized loss of epoxide functionality (∼92% GlyMA residues remained intact), while enabling very high (>99%) HPMA conversions to be achieved in both cases (see Fig. 1b).


image file: c7py01306j-f1.tif

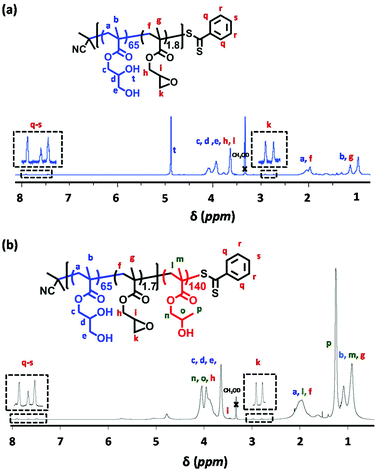

Fig. 1 1H NMR spectrum in CD3OD recorded for (a) P(GMA65-stat-GlyMA1.8) and (b) P(GMA65-stat-GlyMA1.7)-PHPMA140, with expansions to show retention of the two epoxide signals at 2.8–3.0 ppm and the CTA signals at 7.4–7.9 ppm. The water signal (4.8 ppm) has been suppressed for the P(GMA65-stat-GlyMA1.7)-PHPMA140 spectrum to improve the clarity of this spectrum.

DMF GPC analyses indicated an Mn of 37[thin space (1/6-em)]200 g mol−1 (Mw/Mn = 1.17) for P(GMA65-stat-GlyMA1.7)-PHPMA140 and an Mn of 36[thin space (1/6-em)]300 g mol−1 (Mw/Mn = 1.13) for PGMA62-PHPMA140 (see Fig. S1b). A weak high molecular weight shoulder was observed for the former copolymer, which suggests light branching as a result of intermolecular reaction of the hydroxyl groups on the GMA residues with GlyMA residues on a second chain. There is little or no evidence for light branching for the latter copolymer, which suggests that any dimethacrylate impurities in the HPMA monomer must be negligible.37,38

Two further P(GMA65-stat-GlyMA1.7)-PHPMAy diblock copolymers were also synthesized targeting y = 120 or 130, but free-standing gels were not obtained in these cases (see Fig. S2). These observations illustrate that pure worms occupy relatively narrow phase space, as expected.39 Thus, all the following experiments in this study were conducted with the P(GMA65-stat-GlyMA1.7)-PHPMA140 copolymer.

After establishing a robust protocol for the PISA synthesis of epoxy-functional block copolymer worms, we examined their chemical derivatization using cystamine. In principle, stoichiometric quantities of this diamine with the pendent epoxy groups in the stabilizer chains should introduce inter-worm crosslinks, hence leading to stronger, less thermoresponsive gels. Alternatively, if a large excess of cystamine is employed, then only one of the two amines is likely to react with an epoxy group, leading to predominantly linear disulfide-based worms with pendent primary amine groups. Notably, cationic character is introduced in both cases, because epoxy–amine chemistry always leads to the formation of secondary amines (in addition to the pendent primary amines obtained when using excess cystamine). This clearly differentiates the present synthetic strategy from that previously reported by Warren and co-workers for the production of disulfide-functionalized worm gels.31 Moreover, such cationic character could be important for potential biomedical applications of these worm gels, because it is known that cationic copolymers can exhibit antimicrobial properties40–45 and stronger mucoadhesion.46

In view of the above considerations, three regimes were examined for cystamine derivatization: (i) sub-stoichiometric (diamine/epoxide molar ratio = 0.05–0.125), (ii) equimolar (diamine/epoxide molar ratio = 0.50) and (iii) excess (diamine/epoxide molar ratio = 1.0–20.0). One complication here is that the cystamine reagent is likely to react with the RAFT end-groups,47,48 which are present at comparable concentrations to that of the epoxy groups. In principle, access to these dithiobenzoate end-groups should be hindered because they are located within the worm cores, but in practice the PHPMA block is highly plasticized and hence rather permeable to small molecules.6,49 In principle, other possible side-reactions include (i) amidation of methacrylic ester groups and (ii) epoxide ring-opening by water (or by hydroxyl groups located on the PGMA stabilizer chains). In addition, the initially-formed secondary amine groups may react further to produce tertiary amines. Thus the equimolar conditions implied by utilizing a diamine/epoxy molar ratio of 0.50 are best considered as only approximately equimolar.

Epoxide functionality proved to be essential for functionalization with cystamine, because control experiments indicated that this reagent did not react with PGMA62-PHPMA140 (see Fig. S3). This suggests that amidation of methacrylic ester groups is negligible under mild conditions. Cystamine derivatization studies were conducted on P(GMA65-stat-GlyMA1.7)-PHPMA140 at 22 °C to limit side reactions and pH 8–9 was chosen to ensure that a significant fraction of this reagent was present in its neutral reactive form.

Faster reactions were observed when cystamine derivatization was conducted using more concentrated copolymer dispersions (data not shown). However, no significant change in the molecular weight distribution was observed for copolymer concentrations ranging from 5 to 20% w/w when using a diamine/epoxy molar ratio of 0.50 (see Fig. S4). This is perhaps surprising, because higher concentrations might be expected to favour inter-worm crosslinking. In view of these preliminary observations, all further cystamine derivatizations were conducted at 10% w/w copolymer for 24 h at 22 °C, with these conditions being selected to allow efficient stirring. Fig. 2 illustrates the effect of varying the diamine/epoxy molar ratio on the final molecular weight distribution under such conditions, as judged by DMF GPC analysis. The high molecular weight shoulder observed for the P(GMA65-stat-GlyMA1.7)-PHPMA140 precursor is attributed to light branching (see above). However, the subsequent increase in Mn and Mw/Mn varied dramatically depending on whether the amount of cystamine was sub-stoichiometric, approximately equimolar or in excess.


image file: c7py01306j-f2.tif

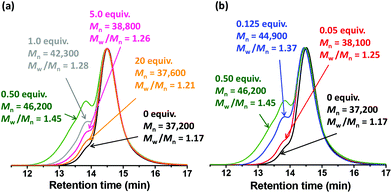

Fig. 2 DMF GPC chromatograms obtained for the original (black traces) and cystamine-derivatized P(GMA65-stat-GlyMA1.7)-PHPMA140 worm gels. Cystamine derivation was conducted at 10% w/w copolymer for 24 h at 22 °C using (a) excess cystamine (diamine/epoxide molar ratio = 1.0, 5.0 or 20) or (b) sub-stoichiometric cystamine (diamine/epoxide molar ratio = 0.50, 0.125 or 0.05), with equimolar cystamine (diamine/epoxide molar ratio = 0.50) included for comparison in each case (see green GPC traces). [N.B. In practice, the cystamine reagent may also react with the RAFT end-groups which means that the equimolar condition is only an approximation.]

1H NMR studies confirmed successful derivatization of P(GMA65-stat-GlyMA1.7)-PHPMA140 using various amounts of cystamine (see Fig. 3). After allowing the epoxy–amine reaction to proceed at 22 °C for 24 h, each copolymer was dialyzed for three days against deionized water to remove any unreacted cystamine prior to lyophilization. The original epoxy proton signals at 2.8–3.0 ppm disappeared, while new broad (i.e. polymeric) cystamine signals appeared at 2.9–3.2 ppm; the latter signals became progressively more prominent when employing higher diamine/epoxy molar ratios.


image file: c7py01306j-f3.tif

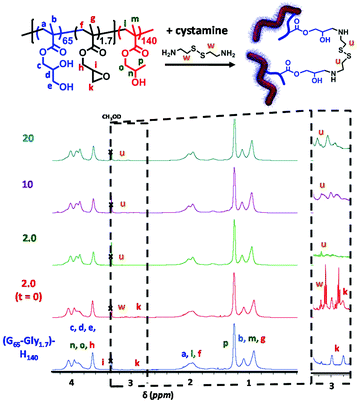

Fig. 3 1H NMR spectra (CD3OD) obtained for cystamine-derivatized P(GMA65-stat-GlyMA1.7)-HPMA140 worm gels functionalized at 10% w/w copolymer using a diamine/epoxy molar ratio of zero, 2.0 immediately after cystamine addition (e.g. prior to significant epoxy ring-opening), 2.0, 10 or 20. Each worm gel was reacted at 10% w/w solids at 22 °C for 24 h. Expansion of the 2.6–3.4 ppm region is shown, indicating loss of epoxide signals and the appearance of four new broad (polymeric) cystamine signals at 3.0–3.2 ppm.

These observations can be rationalized by considering the four reaction schemes shown in Fig. 4. After the initial monoamination reaction shown in Fig. 4a, there are two likely scenarios. The largest increases in Mn and Mw/Mn values are observed when using an equimolar amount of cystamine, see Fig. 4b. This was anticipated, because such conditions should lead to maximum intermolecular (and inter-worm) crosslinking. In contrast, sub-stoichiometric quantities of cystamine should only lead to light branching (not shown), while excess cystamine should result in mainly monoamination and hence minimal crosslinking with pendent primary amine groups (see Fig. 4c). In principle, after reaction of its first primary amine, the second primary amine on the cystamine could react with another epoxy group on the same copolymer chain. Again, such intra-chain reactions would not lead to any crosslinking. In practice, this latter reaction is rather unlikely in the present study because on average there are less than two epoxy groups per copolymer chain.


image file: c7py01306j-f4.tif

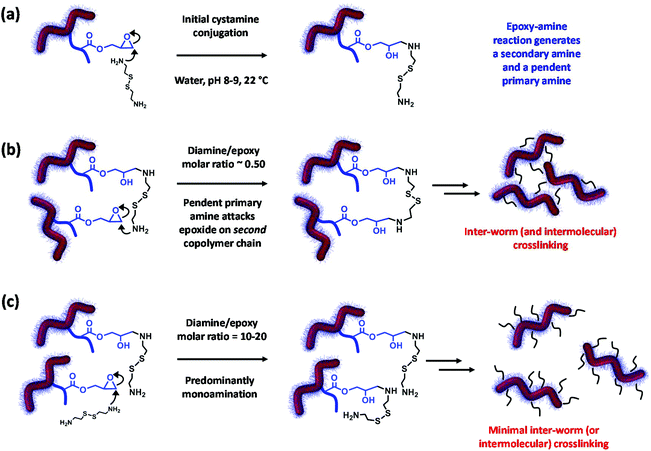

Fig. 4 Summary of two possible scenarios for cystamine derivatization of 10% w/w P(GMA65-stat-GlyMA1.7)-PHPMA140 worm gels when systematically varying the diamine/epoxy molar ratio at 22 °C for 24 h at pH 8–9. (a) Initial reaction of cystamine with an epoxy group with concomitant proton transfer. (b) The resulting pendent primary amine can then attack an epoxide ring on another copolymer chain: if such intermolecular cross-linking occurs between adjacent worms, this leads to a covalently-crosslinked gel. (c) Using excess cystamine leads to mainly monoamination with minimal inter-worm (or inter-chain) crosslinking to produce a linear, primary amine-functionalized worm gel.

Given that this epoxy–amine chemistry leads to the formation of secondary amines, aqueous electrophoresis studies were undertaken to determine whether such cystamine derivatization led to the development of cationic character for the worms. Fig. 5 shows a series of zeta potential vs. pH curves obtained for both the unmodified copolymer precursor (0 equiv.) and five cystamine-functionalized P(GMA65-stat-GlyMA1.7)-PHPMA140 worm gels prepared using diamine/epoxy molar ratios ranging from 0.50 to 20.


image file: c7py01306j-f5.tif

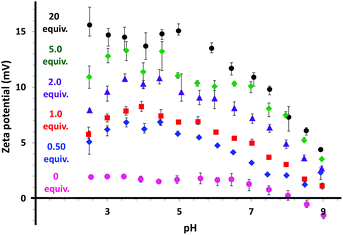

Fig. 5 Zeta potential vs. pH measurements obtained for the unmodified copolymer precursor (0 equiv.) and cystamine-derivatized P(GMA65-stat-GlyMA1.7)-PHPMA140 worms prepared using diamine/epoxy molar ratios of 0.50, 1.0, 2.0, 5.0 or 20. All pH titrations were performed from high pH to low pH. Error bars indicate one standard deviation. Positive zeta potentials observed at low pH are ascribed to protonation of the secondary amine groups formed during cystamine derivatization.

Zeta potentials recorded for the P(GMA65-stat-GlyMA1.7)-PHPMA140 precursor worms range from around −1 mV at pH 9 to approximately +2 mV at pH 3. This essentially neutral character is in good agreement with previous studies of closely-related non-ionic PGMA-PHPMA diblock copolymer worms.50,51 For the cystamine-derivatized copolymers, the 1–2 secondary amine groups introduced per stabilizer chain as a result of the epoxy–amine chemistry become protonated at low pH. This confers modest cationic character, which increases with the amount of cystamine utilized for derivatization. Zeta potentials of up to +15 mV are observed at around pH 3 when employing a diamine/epoxy molar ratio of 20. Fig. 6a shows the DLS size distributions recorded at pH 2 for the precursor P(GMA65-stat-GlyMA1.7)-PHPMA140 worms (control) and a series of seven cystamine-derivatized P(GMA65-stat-GlyMA1.7)-PHPMA140 worms. The precursor worms exhibit a broad size distribution with an apparent sphere-equivalent diameter of 138 nm. This is typically characteristic24 of the rather polydisperse worms observed by TEM (see Fig. 7).


image file: c7py01306j-f6.tif

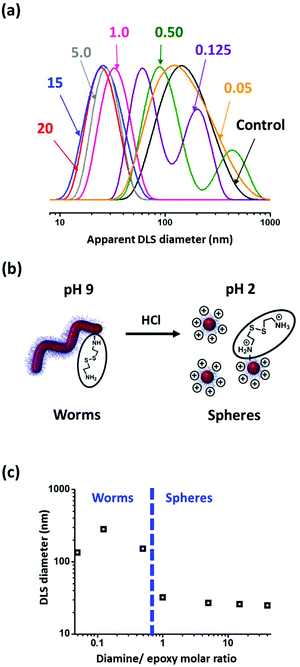

Fig. 6 (a) DLS size distributions recorded for the precursor P(GMA65-stat-GlyMA1.7)-PHPMA140 worms (control, black curve) and cystamine-derivatized P(GMA65-stat-GlyMA1.7)-PHPMA140 worms prepared using diamine/epoxy molar ratios of 0.05, 0.125, 0.50, 1.0, 5.0, 15 or 20. DLS studies were conducted on 0.20% w/w copolymer dispersions at pH 2 immediately after dilution of a 10% w/w copolymer dispersion using dilute HCl. (b) At this low pH, worms derivatized using diamine/epoxy molar ratios ≥1.0 undergo a worm-to-sphere transition, as indicated by (c) a substantial reduction in the apparent sphere-equivalent DLS diameter. In contrast, worms prepared using diamine/epoxy molar ratios below unity remain intact.

image file: c7py01306j-f7.tif

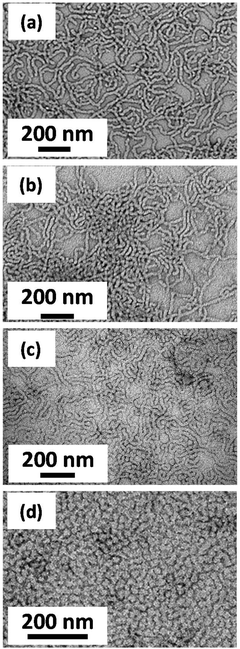

Fig. 7 Representative TEM images recorded for: (a) PGMA62-PHPMA140 worms (control); (b) P(GMA65-stat-GlyMA1.7)-PHPMA140 worms prior to cystamine derivatization; (c) P(GMA65-GlyMA1.7)-PHPMA140 worms dried from acidic aqueous solution (pH 2) after derivatization using a diamine/epoxy molar ratio of 0.05; (d) mixture of P(GMA65-stat-GlyMA1.7)-PHPMA140 spheres and short worms obtained under the same conditions after derivatization using a diamine/epoxy molar ratio of 15.

For cystamine derivatization performed using a diamine/epoxy molar ratio of ≤0.50, the DLS size distribution stays relatively constant at pH 2, indicating that worms remain the dominant morphology under these conditions (see Fig. 6c). However, if higher molar ratios are employed, then smaller, more uniform nanoparticles are detected and there is also a significant reduction in the scattered light intensity (data not shown): the mean sphere-equivalent diameter lies between 25 and 32 nm, suggesting a worm-to-sphere transition (or at least a substantial reduction in the mean worm contour length). Presumably, the weakly cationic character of the stabilizer block at low pH increases its relative volume fraction, leading to a reduction in the packing parameter and hence favoring spheres over worms. Similar observations were reported by Penfold and co-workers for PGMA50-PHPMA140 worms containing just a single amine group located on the stabilizer chain-ends.51 In the present work, this change in copolymer morphology was confirmed by TEM studies (see Fig. 7c and d).

However, worms were not reformed on returning to pH 8, as judged by DLS studies (data not shown). Such irreversibility may be related to the weakly cationic character of the spheres at around pH 7 (see Fig. 5), since this would impede the multiple sphere–sphere fusion events that are required to reform the worms. Alternatively, the relatively low copolymer concentration may be sufficient to prevent efficient sphere–sphere fusion, which becomes much less likely under such conditions. Hence further studies are warranted to establish whether the worm-to-sphere transition remains irreversible if performed at higher concentrations (e.g. 10% w/w copolymer).

Preliminary rheology studies of concentrated dispersions of P(GMA65-stat-GlyMA1.7)-PHPMA140 worm gels indicate that the degree of cystamine derivatization can also significantly affect their storage moduli (G′) and loss moduli (G′′). Fig. 8 shows rheological data recorded both for the precursor P(GMA65-stat-GlyMA1.7)-PHPMA140 worm gel and after its cystamine derivatization using diamine/epoxy molar ratios of 0.50 or 20, which correspond to approximately stoichiometric conditions and a substantial excess of cystamine, respectively.


image file: c7py01306j-f8.tif

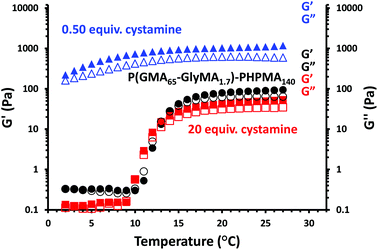

Fig. 8 Oscillatory rheology studies showing storage moduli (G′, filled symbols) and loss moduli (G′′, open symbols) obtained on cooling 10% w/w aqueous dispersions of precursor (black circles) and cystamine-functionalized P(GMA65-stat-GlyMA1.7)-PHPMA140 worm gels, with the latter being prepared at pH 8–9 using diamine/epoxide molar ratios of either 0.50 (blue triangles) or 20 (red squares).

The precursor P(GMA65-stat-GlyMA1.7)-PHPMA140 worm gel undergoes a worm-to-sphere transition on cooling, which leads to in situ degelation. Similar observations were reported by Blanazs and co-workers for closely related PGMA54-PHPMA140 worm gels.6 This change in copolymer morphology is attributed to surface plasticization of the PHPMA block, which leads to a reduction in the packing parameter.7 Similar thermoresponsive behavior is also observed for the P(GMA65-stat-GlyMA1.7)-PHPMA140 worm gel after its derivatization using a diamine/epoxy molar ratio of 20 (see Fig. 6). The temperature at which the G′ and G′′ curves intersect corresponds the critical gelation temperature (CGT).52 The CGT for the cystamine-derivatized P(GMA65-stat-GlyMA1.7)-PHPMA140 worm gel is 10 °C, which is close to that observed for the copolymer precursor (CGT = 13 °C). This suggests that minimal inter-worm crosslinking occurs under these conditions. This is consistent with DMF GPC analysis, which indicates that minimal intermolecular crosslinking has occurred (see Fig. 2). In contrast, when using 0.50 equivalents of cystamine, the bulk modulus of the worm gel increases by more than an order of magnitude (G′ ∼103 Pa) and a worm-to-sphere transition is no longer observed on cooling to 5 °C. This is in good agreement with the much higher levels of intermolecular crosslinking observed by GPC for the latter copolymer and also with observations made by Warren et al. regarding the physical properties of disulfide-functionalized PGMA-PHPMA worm gels.31

Conclusions

Statistical copolymerization of a small amount of glycidyl methacrylate with glycerol monomethacrylate via RAFT solution polymerization in ethanol enables the synthesis of a near-monodisperse epoxy-functional macro-CTA. This water-soluble precursor can be chain-extended via RAFT aqueous dispersion polymerization of HPMA to form epoxy-functional diblock copolymer worm gels with minimal loss of epoxy groups. The epoxy groups on the steric stabilizer chains of such worms can be ring-opened with cystamine: this derivatization proceeds efficiently in aqueous solution and two types of worm gels can be obtained depending on the cystamine/epoxy molar ratio. Using a large excess of cystamine (i.e. a cystamine/epoxy molar ratio of 20) produces essentially linear, primary amine-functionalized worms which form a soft relatively gel that retains the thermoresponsive character of the precursor epoxy-functional worm gel. In contrast, employing a stoichiometric amount of cystamine (i.e. a cystamine/epoxy molar ratio of 0.50) leads to a much stronger chemically crosslinked worm gel that no longer exhibits thermoresponsive behavior. Such new hydrogels are expected to offer potential biomedical applications as next-generation mucoadhesives.

Conflicts of interest

The authors declare no competing financial interest.

Acknowledgements

EPSRC is thanked for financial support (EP/L024160 and EP/K030949). SPA also acknowledges an ERC Advanced Investigator grant (PISA 320372).

Notes and references

  1. J. Chiefari, Y. K. Chong, F. Ercole, J. Krstina, J. Jeffery, T. P. T. Le, R. T. A. Mayadunne, G. F. Meijs, C. L. Moad, G. Moad, E. Rizzardo and S. H. Thang, Macromolecules, 1998, 31, 5559–5562 CrossRef CAS .
  2. G. Moad, E. Rizzardo and S. H. Thang, Aust. J. Chem., 2012, 65, 985–1076 CrossRef CAS .
  3. N. J. Warren and S. P. Armes, J. Am. Chem. Soc., 2014, 136, 10174–10185 CrossRef CAS PubMed .
  4. S. L. Canning, G. N. Smith and S. P. Armes, Macromolecules, 2016, 49, 1985–2001 CrossRef CAS PubMed .
  5. B. Charleux, G. Delaittre, J. Rieger and F. D'Agosto, Macromolecules, 2012, 45, 6753–6765 CrossRef CAS .
  6. A. Blanazs, R. Verber, O. O. Mykhaylyk, A. J. Ryan, J. Z. Heath, C. W. I. Douglas and S. P. Armes, J. Am. Chem. Soc., 2012, 134, 9741–9748 CrossRef CAS PubMed .
  7. L. A. Fielding, J. A. Lane, M. J. Derry, O. O. Mykhaylyk and S. P. Armes, J. Am. Chem. Soc., 2014, 136, 5790–5798 CrossRef CAS PubMed .
  8. W. Zhang, B. Charleux and P. Cassagnau, Macromolecules, 2012, 45, 5273–5280 CrossRef CAS .
  9. Z. Bai and T. P. Lodge, J. Am. Chem. Soc., 2010, 132, 16265–16270 CrossRef CAS PubMed .
  10. Y.-Y. Won, H. T. Davis and F. S. Bates, Science, 1999, 283, 960–963 CrossRef CAS PubMed .
  11. Y. Mai and A. Eisenberg, Chem. Soc. Rev., 2012, 41, 5969–5985 RSC .
  12. S. Jain and F. S. Bates, Science, 2003, 300, 460–464 CrossRef CAS PubMed .
  13. S. Sugihara, A. Blanazs, S. P. Armes, A. J. Ryan and A. L. Lewis, J. Am. Chem. Soc., 2011, 133, 15707–15713 CrossRef CAS PubMed .
  14. N. J. Warren, O. O. Mykhaylyk, D. Mahmood, A. J. Ryan and S. P. Armes, J. Am. Chem. Soc., 2014, 136, 1023–1033 CrossRef CAS PubMed .
  15. V. J. Cunningham, L. P. D. Ratcliffe, A. Blanazs, N. J. Warren, A. J. Smith, O. O. Mykhaylyk and S. P. Armes, Polym. Chem., 2014, 5, 6307–6317 RSC .
  16. E. Groison, S. Brusseau, F. D'Agosto, S. Magnet, R. Inoubli, L. Couvreur and B. Charleux, ACS Macro Lett., 2011, 1, 47–51 CrossRef .
  17. S. Boissé, J. Rieger, G. Pembouong, P. Beaunier and B. Charleux, J. Polym. Sci., Part A: Polym. Chem., 2011, 49, 3346–3354 CrossRef .
  18. W. Zhang, F. D'Agosto, P.-Y. Dugas, J. Rieger and B. Charleux, Polymer, 2013, 54, 2011–2019 CrossRef CAS .
  19. N. P. Truong, J. F. Quinn, A. Anastasaki, D. M. Haddleton, M. R. Whittaker and T. P. Davis, Chem. Commun., 2016, 52, 4497–4500 RSC .
  20. Z. Jia, V. A. Bobrin, N. P. Truong, M. Gillard and M. J. Monteiro, J. Am. Chem. Soc., 2014, 136, 5824–5827 CrossRef CAS PubMed .
  21. Y. Pei, K. Jarrett, M. Saunders, P. J. Roth, C. E. Buckley and A. B. Lowe, Polym. Chem., 2016, 7, 2740–2750 RSC .
  22. J. Zhou, W. Zhang, C. Hong and C. Pan, Polym. Chem., 2016, 7, 3259–3267 RSC .
  23. M. J. Derry, L. A. Fielding and S. P. Armes, Polym. Chem., 2015, 6, 3054–3062 RSC .
  24. L. P. D. Ratcliffe, B. E. McKenzie, G. M. D. Le Bouëdec, C. N. Williams, S. L. Brown and S. P. Armes, Macromolecules, 2015, 48, 8594–8607 CrossRef CAS .
  25. L. A. Fielding, J. A. Lane, M. J. Derry, O. O. Mykhaylyk and S. P. Armes, J. Am. Chem. Soc., 2014, 136, 5790–5798 CrossRef CAS PubMed .
  26. Y. W. Pei, O. R. Sugita, L. Thurairajah and A. B. Lowe, RSC Adv., 2015, 5, 17636–17646 RSC .
  27. Y. Pei, L. Thurairajah, O. R. Sugita and A. B. Lowe, Macromolecules, 2015, 48, 236–244 CrossRef CAS .
  28. I. Canton, N. J. Warren, A. Chahal, K. Amps, A. Wood, R. Weightman, E. Wang, H. Moore and S. P. Armes, ACS Cent. Sci., 2016, 2, 65–74 CrossRef CAS PubMed .
  29. D. E. Mitchell, J. R. Lovett, S. P. Armes and M. I. Gibson, Angew. Chem., Int. Ed., 2016, 55, 2801–2804 CrossRef CAS PubMed .
  30. K. A. Simon, N. J. Warren, B. Mosadegh, M. R. Mohammady, G. M. Whitesides and S. P. Armes, Biomacromolecules, 2015, 16, 3952–3958 CrossRef CAS PubMed .
  31. N. J. Warren, J. Rosselgong, J. Madsen and S. P. Armes, Biomacromolecules, 2015, 16, 2514–2521 CrossRef CAS PubMed .
  32. M. Benaglia, A. Alberti, L. Giorgini, F. Magnoni and S. Tozzi, Polym. Chem., 2013, 4, 124–132 RSC .
  33. M. B. Smith and J. March, in March's Advanced Organic Chemistry, John Wiley & Sons, Inc., 2006, pp. 425–656,  DOI:10.1002/9780470084960.ch10 .
  34. L. P. D. Ratcliffe, A. J. Ryan and S. P. Armes, Macromolecules, 2013, 46, 769–777 CrossRef CAS .
  35. J. R. Lovett, L. P. D. Ratcliffe, N. J. Warren, S. P. Armes, M. J. Smallridge, R. B. Cracknell and B. R. Saunders, Macromolecules, 2016, 49, 2928–2941 CrossRef CAS PubMed .
  36. P. Chambon, A. Blanazs, G. Battaglia and S. P. Armes, Langmuir, 2011, 28, 1196–1205 CrossRef PubMed .
  37. Y. Li and S. P. Armes, Angew. Chem., Int. Ed., 2010, 49, 4042–4046 CrossRef CAS PubMed .
  38. A. Blanazs, J. Madsen, G. Battaglia, A. J. Ryan and S. P. Armes, J. Am. Chem. Soc., 2011, 133, 16581–16587 CrossRef CAS PubMed .
  39. A. Blanazs, A. J. Ryan and S. P. Armes, Macromolecules, 2012, 45, 5099–5107 CrossRef CAS .
  40. H. Murata, R. R. Koepsel, K. Matyjaszewski and A. J. Russell, Biomaterials, 2007, 28, 4870–4879 CrossRef CAS PubMed .
  41. E.-R. Kenawy, S. D. Worley and R. Broughton, Biomacromolecules, 2007, 8, 1359–1384 CrossRef CAS PubMed .
  42. G. S. Irmukhametova, G. A. Mun and V. V. Khutoryanskiy, Langmuir, 2011, 27, 9551–9556 CrossRef CAS PubMed .
  43. A. Storha, E. A. Mun and V. V. Khutoryanskiy, RSC Adv., 2013, 3, 12275–12279 RSC .
  44. A. Bernkop-Schnürch, C. E. Kast and M. F. Richter, J. Controlled Release, 2001, 71, 277–285 CrossRef .
  45. A. Bernkop-Schnürch and S. Steininger, Int. J. Pharm., 2000, 194, 239–247 CrossRef .
  46. C. E. Kast and A. Bernkop-Schnürch, Biomaterials, 2001, 22, 2345–2352 CrossRef CAS PubMed .
  47. G. Moad, E. Rizzardo and S. H. Thang, Polym. Int., 2011, 60, 9–25 CrossRef CAS .
  48. J. Xu, J. He, D. Fan, X. Wang and Y. Yang, Macromolecules, 2006, 39, 8616–8624 CrossRef CAS .
  49. C. P. Jesson, C. M. Pearce, H. Simon, A. Werner, V. J. Cunningham, J. R. Lovett, M. J. Smallridge, N. J. Warren and S. P. Armes, Macromolecules, 2017, 50, 182–191 CrossRef CAS .
  50. J. R. Lovett, N. J. Warren, L. P. D. Ratcliffe, M. K. Kocik and S. P. Armes, Angew. Chem., Int. Ed., 2015, 54, 1279–1283 CrossRef CAS PubMed .
  51. N. J. W. Penfold, J. R. Lovett, N. J. Warren, P. Verstraete, J. Smets and S. P. Armes, Polym. Chem., 2016, 7, 79–88 RSC .
  52. R. Verber, A. Blanazs and S. P. Armes, Soft Matter, 2012, 8, 9915–9922 RSC .
