Poly(acryloyl hydrazide), a versatile scaffold for the preparation of functional polymers: synthesis and post-polymerisation modification

Daniel N. Crisana, Oliver Creesea, Ranadeb Balla, Jose Luis Briosoa, Ben Martynb, Javier Montenegro*c and Francisco Fernandez-Trillo*a
aSchool of Chemistry, University of Birmingham B15 2TT, UK. E-mail: f.fernandez-trillo@bham.ac.uk
bSchool of Chemistry, University of Warwick CV47AL, UK
cDepartamento de Química Orgánica y Centro Singular de Investigación en Química Biolóxica e Materiais Moleculares (CIQUS), Universidade de Santiago de Compostela E-15782, Spain. E-mail: javier.montenegro@usc.es

Received 30th March 2017 , Accepted 2nd July 2017

First published on 3rd July 2017


Here we present the synthesis and post-polymerisation modification of poly(acryloyl hydrazide), a versatile scaffold for the preparation of functional polymers: poly(acryloyl hydrazide) was prepared from commercially available starting materials in a three step synthesis on a large scale, in good yields and high purity. Our synthetic approach included the synthesis of a Boc-protected acryloyl hydrazide, the preparation of polymers via RAFT polymerisation and the deprotection of the corresponding Boc-protected poly(acryloyl hydrazide). Post-polymerisation modification of poly(acryloyl hydrazide) was then demonstrated using a range of conditions for both hydrophilic and hydrophobic aldehydes. These experiments demonstrate the potential of poly(acryloyl hydrazide) as a scaffold in the synthesis of functional polymers, in particular those applications where in situ screening of the activity of the functionalised polymers may be required (e.g. biological applications).


Introduction

There is an increasing interest in developing polymers for biomedical applications and we now increasingly see polymers that play an “active” role in biology and reproduce or interact with biological functions. Representative examples include glycopolymers that mimic and interfere with glycan recognition,1–4 polymers for gene delivery that mimic some of the characteristics of viral vectors,5–9 or therapeutic polymers such as antimicrobial polymers.10–13 One common requirement when developing polymers for these applications is the need to synthesise libraries of polymers that incorporate highly functional monomers based on for instance carbohydrates, amine or cationic moieties. However, and despite the availability of a large toolbox for the synthesis of polymers,14–17 there are still many functional groups which are incompatible with existing polymerisation techniques. A common approach to solve this incompatibility is to employ post-polymerisation modification,18–20 where polymer “scaffolds” are made with reactive moieties that are inert to the polymerisation conditions, but can then be modified post-polymerisation to give other functional groups. The success of this strategy relies on the nearly quantitative conversion of this initial reactive moiety to give functionalised polymers. Not surprisingly, these post-polymerisation protocols have often relied on highly efficient and orthogonal chemistries, i.e. click chemistries.21–26

Despite the progress in this area, one potential limitation of these post-polymerisation strategies is the low aqueous solubility and stability of some of these reactive polymer scaffolds. Thus, additional steps must be employed following post-polymerisation modification and prior to biological evaluation, including the removal of protecting groups. Moreover, the current paradigm assumes that candidate polymers need to be isolated/purified prior to biological evaluation. However, this is inefficient, time-consuming and expensive, since efforts are invested in isolating candidate polymers that do not show any biological activity. The introduction of automation to polymer synthesis has the potential to facilitate some of these steps,27 but it can result in even larger libraries of functional polymers, with the subsequent increase in cost associated to purification and isolation.

To address some of these limitations, we have recently reported the application of poly(acryloyl hydrazide) as a reactive polymer scaffold for the in situ preparation of polymeric gene vectors for the delivery of siRNA.27 Polymers carrying hydrazides as reactive moieties are ideal to develop a post-polymerisation strategy that works in aqueous conditions, and that eliminates purification and isolation steps following post-polymerisation modification. The coupling reaction between hydrazides and aldehydes is orthogonal to many biologically relevant functional groups (e.g. hydroxyls, acids or amines) and produces water as a by-product.28 Thus, in the absence of interference from the used aldehydes, there is no need to purify candidate polymers after the post-polymerisation reaction. This is often the case for biological applications that benefit from a multivalent effect such as lectin binding.29 Also, the formed hydrazone is relatively stable at physiological pH (i.e. 5–7),29 and the biological activity of the functional polymers can be evaluated without having to reduce the hydrazone.27,30 Finally, hydrazides are weakly protonated under physiological conditions (pKaH ∼ 5) and thus poly(hydrazide)s are normally non-toxic.27 Despite all of these features, the use of poly(hydrazide)s as a reactive scaffold had been limited to the preparation of glycopolymers,29,31 and for pH-responsive drug delivery.32–36 Alternative elegant strategies using poly(alkoxyamine)s37,38 and poly(aldehyde)s39–41 have also been explored.

Here, we evaluate the potential of poly(acryloyl hydrazide) as a reactive scaffold for post-polymerisation functionalisation. First, we report the synthesis of poly(acryloyl hydrazide) from a Boc-protected monomer using RAFT polymerisation. Then, we evaluate its functionalisation by reacting with aldehydes and explore a range of conditions. Overall, our results demonstrate that poly(acryloyl hydrazide) is a versatile reactive scaffold that can mediate the synthesis of polymers carrying a wide range of functionalities, including acidic and basic moieties, biologically relevant functionalities, and aliphatic and aromatic side-chains. The efficiency of the hydrazide–aldehyde coupling can be modulated by tuning the reaction conditions, including the use of both aqueous and organic conditions, to yield polymers with a consistent degree of functionalisation.

Experimental

Materials

2-((Ethylthio)carbonothioyl)thio-2-methylpropanoic acid (CTA1) was synthesised according to protocols described in the literature.42 Cyanomethyl methyl(4-pyridyl)carbamodithioate (CTA2) was purchased from Sigma-Aldrich® and used without further purification. 2,2′-Azobis[2-(2-imidazolin-2-yl)propane] dihydrochloride (VA-044) was purchased from Fluorochem and used without further purification. All other chemicals were purchased from Sigma-Aldrich®, Fisher Scientific®, VWR® or Acros®, and used without further purification. All solvents were Reagent grade or above, purchased from Sigma-Aldrich®, Fisher Scientific® or VWR®, and used without further purification.

Nuclear Magnetic Resonance (NMR) spectra were recorded on either a Bruker Avance III 300 MHz or a Bruker Avance III 400 MHz spectrometer. Chemical shifts are reported in ppm (units) referenced to the following solvent signals: dimethylsulfoxide (DMSO)-d6 H 2.50 and D2O H 4.79. Infrared (IR) spectra were recorded on a PerkinElmer Spectrum Two FT-IR spectrometer. Ultraviolet–visible (UV-vis) spectra were recorded on a Cary 50 Spectrophotometer. Gel Permeation Chromatography (GPC) was performed with a Shimadzu Prominence LC-20A fitted with a Thermo Fisher Refractomax 521 Detector and a SPD20A UV-vis Detector. Boc-Protected poly(acryloyl hydrazide) (Boc-Px) was analysed using 0.05 M LiBr in dimethylformamide (DMF) at 60 °C, or 0.005 M NH4BF4 in DMF at 50 °C, as the eluent and a flow rate of 1 mL min−1. The instrument was fitted with a Polymer Labs PolarGel guard column (50 × 7.5 mm, 5 μm) followed by two PLGel PL1110–6540 columns (300 × 7.5 mm, 5 μm). Molecular weights were calculated based on a standard calibration method using polymethylmethacrylate. Poly(acryloyl hydrazide) Px was analysed using Dulbecco's Phosphate Buffered Saline 0.0095 M (PO4) without Ca and Mg as the eluent and a flow rate of 1 mL min−1. The instrument was fitted with an Agilent PL aquagel-OH column (300 × 7.5 mm, 8 mm) and run at 35 °C.

Dialysis was carried out in deionised water at room temperature for a minimum of 48 hours using a Spectra/Por 6 1000 Molecular weight cut-off (MWCO) 38 mm width membrane.

tert-Butyl-2-acryloylhydrazine-1-carboxylate (M1)

Acrylic acid (3.8 ml, 55.00 mmol) and tert-butyl carbazate (8.9 g, 66.0 mmol) were dissolved in a H2O[thin space (1/6-em)]:[thin space (1/6-em)]THF mixture (2[thin space (1/6-em)]:[thin space (1/6-em)]1, 180 ml) at r.t. N-(3-Dimethylaminopropyl)-N′-ethylcarbodiimide hydrochloride (11.8 g, 61.3 mmol) was added in portions to the solution over 15 minutes and left stirring for 3 h. The solution was extracted with ethyl acetate (EtOAc) (3 × 75 ml) and the organic layer was washed with 0.1 M HCl (3 × 75 ml), H2O (50 ml) and brine (2 × 50 ml). The organic phase was dried with Na2SO4 and the solvent was removed under reduced pressure to afford the crude product as a white solid. The crude product was purified by recrystallization from EtOAc (70 °C to r.t.) to afford a white crystalline powder (5.1 g, 50% yield): Rf = 0.87 (100% EtOAc); 1H-NMR (300 MHz, DMSO-d6) δ (ppm) 9.79 (s, 1H), 8.84 (s, 1H), 6.17–6.20 (m, 2H), 5.69 (dd, 3JH,H = 7.8, 4.5 Hz, 1H), 1.40 (s, 9H). 13C-NMR (100 MHz, DMSO-d6) δ (ppm) 164.3 (s), 155.3 (s), 129.4 (d), 126.2 (t), 79.2 (s), 28.1 (q). IR (neat) νmax 3311 (m sh, N–H), 3221 (m sh, N–H), 2981 (w sh, C–H), 1715 (s sh, C[double bond, length as m-dash]O), 1668 (s sh, C[double bond, length as m-dash]O) cm−1.

Acryloylhydrazide hydrochloride (M2)

Hydrazide M1 (2.0 g, 10.7 mmol) in 1 M HCl(aq) (80 ml) was stirred at 0 °C for 24 h and stirred a further 48 h at r.t. Excess HCl was removed under reduced pressure without heating the solution. Water was removed by lyophilisation to afford a white crystalline powder (0.9 g, 68% yield): 1H-NMR (300 MHz, DMSO-d6) δ (ppm) 11.44 (s, 1H), 6.26–6.39 (m, 2H), 5.85 (dd, 3JH,H = 9.6, 2.5 Hz, 1H). 13C-NMR (100 MHz, DMSO-d6) δ (ppm) 163.9 (s), 129.1 (d), 127.7 (t).

Poly(tert-butyl-2-acryloylhydrazine-1-carboxylate) (Boc-Px)

In a typical experiment, a solution of 4,4′-azobis(4-cyanovaleric acid) (V-501) (18.4 mg, 64.0 μmol) in DMSO (1.5 mL) and a solution of CTA1 (72.3 mg, 32.2 μmol) in DMSO (1.5 mL) were added sequentially to a solution of tert-butyl-2-acryloylhydrazine-1-carboxylate (3.0 g, 16.1 mmol) in DMSO (14.9 mL). A 50 μL aliquot of this solution was taken at this stage to aid in the calculation of conversion. The reaction mixture was then sealed and degassed with Argon for 30 min. The degassed solution was left to react at 70 °C for 7 h. The reaction was stopped by allowing it to cool down to room temperature and by exposing it to air. A 50 μL aliquot of this solution was taken at this stage to aid in the calculation of conversion. The polymer was purified by dialysis against water. The water was removed by lyophilisation and by drying in a desiccator with P2O5 to afford 2.2 g of Boc-P40 as an off-white powder (73% yield). UV (DMSO) λmax 300 nm. 1H-NMR (300 MHz, DMSO-d6) δ (ppm) 9.22 (br, 1H, NH), 8.60 (br, 1H, NH), 2.03 (br, 1H, CH2CH), 1.41 (br, 11H, 9H in C(CH3)3, 2H in CHCH2). Conversion 86%. DP (UV-vis) 45.

Poly(acryloyl hydrazide) Px

In a typical experiment, trifluoroacetic acid (TFA) (15 mL) was added dropwise to poly(tert-butyl-2-acryloylhydrazine-1-carboxylate) (Boc-P40) (1.5 g) and the yellow solution was stirred at r.t. overnight. Excess of TFA was removed by blowing a steady stream of Argon and the resulting oil was diluted in water (15 mL). The P40·TFA salt formed was neutralised by adding NaHCO3 until no foaming was observed. The colourless solution was allowed to stir overnight. The crude polymer was purified by dialysis against water. The water was removed by lyophilisation and by drying in a desiccator with P2O5 to afford 650 mg of P40 as a white powder (92%). 1H-NMR (300 MHz, D2O) δ (ppm) 1.59–2.08 (br m, (3·DP)H), 1.01 (s, 3H), 0.95 (s, 3H). 13C-NMR (100 MHz, D2O) δ (ppm) 174.9 (s), 40.2–40.5 (d), 34.4–35.7 (d). DP (1H-NMR) 40. IR (neat) νmax 3254 (w br, N–H), 1609 (m br, C[double bond, length as m-dash]O), 1428 (s sh) cm−1.

Conjugation of poly(acryloyl hydrazide) Px with aldehydes

In a typical experiment, 200 μl of a 100 mM solution of Px in acetic acid (AcOH)/D2O buffer§ was mixed with 200 μl of a 100 mM solution of the aldehyde in the required solvent. This mixture was shaken at 60 °C for 24 h. Polymers were used without further purification.

Results and discussion

Poly(acryloyl hydrazide) synthesis

Although several conditions have been reported in the literature for the synthesis of poly(acryloyl hydrazide) and poly(methacryloyl hydrazide),29,32–34 including the recently reported polymerisation of unprotected poly(methacryloyl hydrazide) at pH 0,43 we decided to explore a synthetic route that could avoid the use of an excess of toxic hydrazine. Two synthetic strategies to achieve the target poly(acryloyl hydrazide) Px starting from commercially available tert-butyl 2-acryloylhydrazine-1-carboxylate were thus investigated (Scheme 1). In both cases, reversible addition–fragmentation chain transfer (RAFT) polymerisation was employed because of its versatility for the preparation of acrylamide based polymers.44–46 Our initial attempts focused on the polymerisation of the deprotected acryloyl hydrazide (M2, Scheme 1, bottom). However, this strategy proved challenging. Initial polymerisation of this monomer was done with CTA1, a chain transfer agent previously used in our group,47 using acetate buffer (pH 5) at 70 °C. This pH was selected as a compromise to maximise solubility of the RAFT agent and protonation of the hydrazide. Although monomer consumption was observed rapidly by 1H NMR, no characteristic broad polymer peaks were seen in the expected alkyl region 1.9–1.1 ppm (Fig. S3, ESI). Instead, the appearance of broad peaks at 2.86 and 2.21 ppm suggested the formation of oligomeric compounds, probably resulting from the Michael addition of the nitrogen in one hydrazide to the α,β-unsaturated system in another monomer. Moreover, the characteristic yellow colour of the solution due to CTA1 also disappeared over time, suggesting that degradation of the transfer agent was occurring. We think both results indicate that possibly at this pH the hydrazide monomer was not fully protonated and thus remained strongly nucleophilic. Thus, we attempted the polymerisation using CTA2, a RAFT agent whose reactivity can be tuned as a function of the pH of the polymerisation solution.48 This RAFT agent is suitable for the polymerisation of challenging monomers and it could be used in aqueous conditions at low pH to ensure full protonation of the hydrazide monomer. Two conditions were thus explored ([monomer][thin space (1/6-em)]:[thin space (1/6-em)][CTA2][thin space (1/6-em)]:[thin space (1/6-em)][p-toluene sulfonic acid] at 100[thin space (1/6-em)]:[thin space (1/6-em)]1[thin space (1/6-em)]:[thin space (1/6-em)]1 and 100[thin space (1/6-em)]:[thin space (1/6-em)]1[thin space (1/6-em)]:[thin space (1/6-em)]200 ratios), but in both cases no polymer formation was observed.
image file: c7py00535k-s1.tif

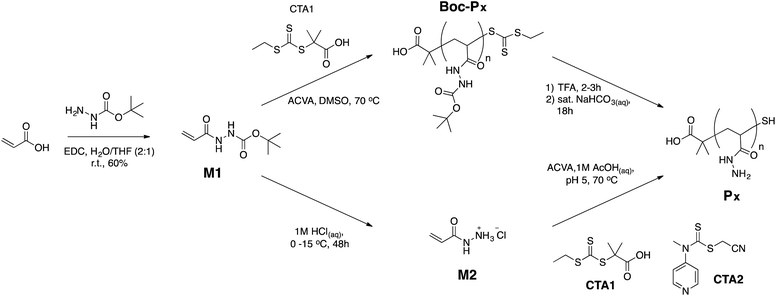

Scheme 1 Synthetic strategies investigated for the synthesis of poly(acryloyl hydrazide).

In light of these issues with the polymerisation of acryloyl hydrazide, the polymerisation of the protected monomer (M1) in DMSO at 70 °C was attempted instead. In this case, a decrease in alkene signals in 1H-NMR could be observed, as well as broadening of N–H signals and the tert-butyl signals, and the appearance of new broad signals in the alkyl region (Fig. S4, ESI). To determine optimum reaction times, we carried out kinetic studies of the reaction by taking aliquots at different intervals and monitoring the conversion (c) by 1H-NMR. As expected for any free radical polymerisation, the reaction followed first order kinetics, at least during the initial stages of the polymerisation (Fig. 1). However, a deviation from linearity could be observed when the natural logarithm of the relative monomer concentration was plotted against time (Fig. 1A), suggesting termination may be occurring at later stages of the reaction. A similar behaviour has been observed in the polymerisation of other (meth)acrylamides,49 which has been assigned to the degradation of the polymer's trithiocarbamate end-group via an amide backbiting mechanism.50 In our case, a deviation from linearity was observed, even when polymerisations were performed at 50 °C and 44 °C, using suitable initiators for those temperatures (Fig. S7). When the reaction was carried out at 30 °C, only 40% conversion was achieved after 24 h. Similarly, reduction of the amount of initiator used had no major effect on the kinetics of the reaction, beyond the appearance of a small induction period (Fig. 1A, ○). As in most previous cases, the reaction slowed down at higher conversions, suggesting termination. This effect agreed with the observed increase in the dispersity (Đ) in molecular weight as the polymerisation progressed (Fig. 1B).


image file: c7py00535k-f1.tif

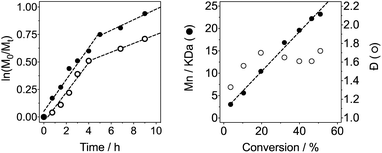

Fig. 1 Left: Representative linear plot of ln[M]0/[M]t vs. time. Conditions: ● [M] = 0.9 M, [M]/[CTA]/[V-501] = 100/1/0.2; ○: [M] = 0.9 M, [M]/[CTA]/[V-501] = 100/1/0.11. Right: Representative plot of measured number average molecular weight (Mn) vs. conversion (●) and Đ vs. conversion (○). Mt, Mn and Đ calculated by GPC using 0.005 M NH4BF4 in DMF at 50 °C as the eluent.

Nonetheless, the tested conditions allowed us to predict the molecular weight of the formed polymers (Fig. 1B), and thus we synthesised different polymer batches with degrees of polymerisation (DPs) ranging from 43 to 127 and dispersities between 1.38–1.51 (Table 1). Attempts to prepare polymers of larger DPs (i.e. ∼200 monomer units) lead to polymers with higher Đ values, despite having reached similar monomer conversions than the other polymerisations performed (Table 1). UV-Vis analysis of all polymers revealed the presence of a characteristic band at around 300 nm (Fig. S5, ESI), in close proximity to that of the transfer agent used (Fig. 2). The presence of this band suggested that all polymers still retained some of the RAFT agent used. There were small differences in the wavelength for maximum absorption (λmax) implying that the chemical environment around this chain transfer agent was changing as the degree of polymerisation was increased.


image file: c7py00535k-f2.tif
Fig. 2 Representative UV-Vis spectra of the polymers prepared in this work and the reaction of the poly(acryloyl hydrazide) and DTNB. UV-Vis spectra for CTA1 and DTNB are shown for comparison. Conditions: Boc-P40 and CTA1 were carried out in DMSO. P40, P40 + DNTB and DTNB were carried out in water at r.t. [Boc-P40] = 0.63 mg ml−1, [CTA] = 0.03125 mg ml−1, [P40] = 1.33 mg ml−1, [DTNB] = 0.02 mg ml−1.
Table 1 Boc-protected poly(acryloyl hydrazide)s (Boc-Px) described in this paper
Polymer [M]/[CTA] ca DPth[thin space (1/6-em)]b Mn[thin space (1/6-em)]c Đc
a Conversion (c) calculated from 1H NMR peak integration of alkene signals versus a known standard.b [M]/[CTA] × c.c Calculated by GPC using 0.05 M LiBr in DMF at 60 °C as the eluent.
Boc-P40 50 86% 43 9810 1.38
Boc-P80 99 79% 78 20[thin space (1/6-em)]306 1.52
Boc-P130 151 84% 127 31[thin space (1/6-em)]552 1.51
Boc-P170 195 87% 170 44[thin space (1/6-em)]826 1.95


The polymers were then deprotected by reacting in neat TFA for 2–3 h followed by dilution in water and saturation with NaHCO3. This way the excess of TFA was neutralised and the hydrazides deprotonated to afford the target poly(acryloyl hydrazide) Px. We also observed the loss of the thiocarbonylthio group to afford a thiol, possibly because of the strongly basic conditions employed during neutralisation (pH NaHCO3(sat) ∼12). For example, the UV-Vis signal at 300 nm observed for Boc-P40 (Fig. 2, solid line), could not be observed for the deprotected polymer P40 (Fig. 2, dashed line). Moreover, when this deprotected polymer was reacted with 5,5′-dithiobis(2-nitrobenzoic acid) (DNTB), a colorimetric dye used for the identification of thiols,51 a characteristic peak at 435 nm could be observed (Fig. 2, dotted line), representative of the formed 5-mercapto-2-nitrobenzoic acid. No effect over the molecular weight distribution of this polymer could be observed following basic treatment, suggesting that coupling of the polymer chains through disulfide oxidation was minimal under these conditions (Fig. S8).

NMR analysis of the target poly(acryloyl hydrazide)s Px confirmed the absence of the Boc signal (Fig. S6, ESI). Moreover, signals corresponding to the methyls originating from the RAFT agent could now be clearly identified at 0.94 and 1.00 ppm, and were used to determine the degree of polymerisation (Table 2). Again, these values were in close agreement to those expected from the conversion during the polymer synthesis, validating the use of the described conditions for the synthesis of these polymers.

Table 2 Poly(acryloyl hydrazide)s (Px) described in this paper
Polymer DPNMR[thin space (1/6-em)]a Mn[thin space (1/6-em)]b Đb
a Calculated from 1H NMR peak integration of methyl signals at 0.94 and 1.00 ppm versus alkyl backbone.b Calculated by GPC.c Samples were not soluble in GPC eluent.
P40 49 10[thin space (1/6-em)]918 1.37
P80 106 18[thin space (1/6-em)]446 1.33
P130 136 c c
P170 162 c c


Aldehydes coupling to polymer

As described in our previous work with siRNA, 4-imidazolecarboxaldehyde (1) was used as a model hydrophilic aldehyde to identify conditions for the functionalisation of the polymer scaffold.27 As reported, the coupling of 1 with poly(acryloyl hydrazide) Px could be performed in 100 mM AcOH/D2O buffer with varying amounts of aldehyde in relative short times (1–4 h). When we looked at these conditions in more detail, we identified that the duration of the coupling was not dependent on the number of equivalents added, with 0.3 and 0.6 eq. of 1 requiring 1 h for a complete coupling to be observed (Fig. 3, Table S1).27 For 0.9 eq., no full consumption of aldehyde was observed even after 24 h (Fig. S9, ESI). However, for these equivalents, the amount of free aldehyde (∼27%) was more or less constant at different intervals, suggesting that ∼65–66% of the hydrazide side-chains had reacted. This degree of functionalisation is what we had reported before and in agreement with other examples in the literature.27,29
image file: c7py00535k-f3.tif

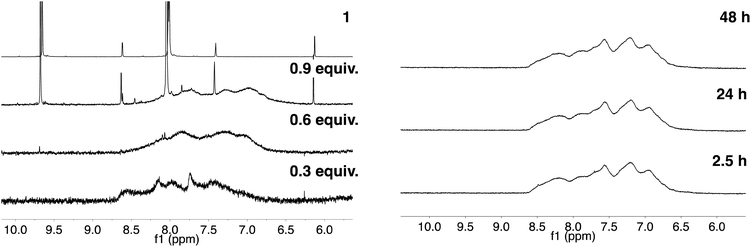

Fig. 3 Left: 1H NMR spectra of 1 (Top) and of P40 treated with different amounts of 1 after 1 h of reaction. Adapted with permission from ref. 27. Right: 1H NMR spectra of the reaction of P40 with 0.6 eq. 1 analysed at different intervals.

As just discussed, the degree of functionalisation remained constant under the conditions (100 mM AcOH in D2O at pH 2.9) used for the functionalisation, and no regeneration of the aldehyde was observed. To further probe this, P40 was incubated with 0.6 eq. of 4-imidazolecarboxaldehyde (1), enough aldehyde to ensure full reactivity with the polymer backbone. The degree of functionalisation was evaluated by NMR over a period of 48 h, and no signal for the free aldehyde was observed at any point of the experiment (Fig. 3, right). A similar effect was observed when the degree of functionalisation was monitored for the reaction with 1 eq. of the aldehyde, with no significant changes in the amount of free aldehyde observed with time (Fig. S10). These experiments suggested that the system had reached thermodynamic equilibrium, and any aldehyde dissociation would be compensated by the reformation of hydrazone. Remarkably, when the samples were diluted twofold following initial incubation for 2 h, no regeneration of the aldehydes could be observed, suggesting that the thermodynamic equilibrium was not significantly affected under these conditions (i.e. 100 mM AcOH in D2O at pH 2.9 and twofold dilution) (Fig. S11).

We decided then to investigate the coupling of a series of hydrophilic aldehydes including anionic glyoxylic acid (2) neutral glyceraldehyde (3), or biologically similar betaine aldehyde chloride (4), pyridoxal-5′-phosphate (5) and 5-formyluracil (6) (Table 3). As expected, the coupling was highly dependent on the solubility of the aldehydes and/or the polymers obtained in the buffer used. When acidic conditions were employed (in this case 5% AcOH, 24 h incubation. See discussion on organic solvent for details), only the neutral and cationic aldehydes 3 and 4 could give similar degrees of functionalisation to that reported for the imidazole derivative (1). Anionic aldehyde 5 and the uracil derivate 6 were insoluble in the acidic buffer employed while glyoxylic acid (2) resulted in insoluble polymers that compromised the characterisation of the degree of functionalisation. Switching to a basic buffer (100 mM Na2HPO4 in D2O pH 9.1) compromised the overall coupling, and in this case, only anionic derivatives gave satisfactory degrees of functionalisation ranging from 63% for 2 to a very good 86% in the case of the phosphate derivative 5. Interestingly, uracil derivative 6 remained insoluble in any of the conditions tested and we decided to explore the use of a polar organic solvent like DMSO to carry out the reactions. However, the prepared poly(acryloyl hydrazide)s Px showed very low solubility in this solvent and it had to be dissolved in aqueous conditions before any further dissolution with DMSO. Yet this way we could prepare solutions of P40 with up to 95% of DMSO, without any obvious formation of precipitates by visual inspection.

Table 3 Percentage loading in coupling reactions of P40 with 1 eq. of water soluble aldehydes under different aqueous conditions
Entry Aldehyde 5% AcOH in D2O pH 2.9 100 mM Na2HPO4 in D2O pH 9.1 95% DMSO-d6 5% AcOH in D2O
All experiments characterized after 24 h incubation at 60 °C. Percentage functionalisation calculated by 1H NMR peak integration.a Insoluble aldehyde and/or insoluble products.
P401 image file: c7py00535k-u1.tif 66% 74%
P402 image file: c7py00535k-u2.tif 3% 63% 68%
P403 image file: c7py00535k-u3.tif 65% 13% 20%
P404 image file: c7py00535k-u4.tif 80% 30%
P405 image file: c7py00535k-u5.tif a 86% a
P406 image file: c7py00535k-u6.tif a a 65%


The use of an organic co-solvent like DMSO opened new possibilities but required exploring the effect that this solvent had in the coupling conditions. Investigation of the kinetics of the reaction suggested that now the coupling of the hydrazides and the aldehydes was much slower and often long incubation at 60 °C was required to achieve similar degrees of functionalisation than those observed under aqueous conditions. For instance, when P40 and 1 eq. of our model aldehyde 1 were dissolved in a 1[thin space (1/6-em)]:[thin space (1/6-em)]1 mixture of aqueous buffer (5% AcOH in D2O) and DMSO-d6, less than half of the aldehyde had coupled after incubation for 24 h at 60 °C (Fig. S12, ESI). This could be improved by increasing the amount of DMSO-d6 to 95%, with approximately 76% of the aldehyde reacting in this case (Fig. S13, ESI). In view of this effect of the organic solvent in the rate of functionalisation, all the couplings reported in Table 3 were performed following 24 h incubation at 60 °C.

Using these conditions (95% DMSO-d6/5% AcOH in D2O) we could functionalise P40 with the uracil derivative 6, reaching similar levels of functionalisation (65%) to the previous cases (Table 3). These conditions proved to be quite versatile and all aldehydes except for the phosphate derivative 5 could be dissolved in this solvent. Yields varied again, with glyceraldehyde 3 giving a surprising low degree of functionalisation (20%). We believe that in this case functionalisation of the polymer is outcompeted by the self-polymerisation of 3 via cyclic ketal formation, in agreement with the disappearance of the aldehyde signals and the appearance of a new signal at 3.53 ppm (Fig. S14, ESI).

The use of an organic solvent opened also the possibility of evaluating the coupling conditions for hydrophobic aldehydes, often present in biologically relevant polymers such as gene vectors or antimicrobial polymers. A series of commercially available aldehydes ranging from aliphatic to aromatic aldehydes (Table 4) were evaluated for coupling to poly(acryloyl hydrazide) P40 using 95% DMSO-d6/5% AcOH in D2O as the reacting buffer. Overall, coupling efficiency for the aromatic aldehydes was around 70% regardless of the size of the aromatic aldehyde used (e.g. P407 vs. P408). We could efficiently incorporate substituted aromatics, including hydroxylated (P409–P4011), carboxylated (P4012) and fluorinated aldehydes (P4014 and P4015). The degree of substitution seemed to have an effect in the coupling of the hydroxylated aromatics, with only 50% loading observed for 2,4,5-trihydroxybenzaldehyde (11). A similar effect was observed for the fluorinated derivatives, suggesting both electronic and steric effects should be contributing to the efficiency of the functionalisation. Steric effects were more evident for the aliphatic aldehydes, with acetaldehyde (16) reaching almost a 90% of loading. Isovaleraldehyde (17) gave a smaller degree of functionalisation (82%) with all of the other aliphatic aldehydes showing significantly less loading. However, solubility of the formed polymers with these long aliphatic aldehydes (18–20) was low, compromising the characterisation by NMR to determine the percentage of loading for these aldehydes. Nevertheless, broadening of 1H-NMR peaks belonging to the aliphatic chains supported evidence for hydrazone formation (Fig. S15, ESI). Some of these experiments were then repeated under the same conditions but using twice the amount of aldehyde (i.e. 2 eq.). Overall, increasing the amount of aldehyde had a beneficial effect over the coupling efficiency, which in some cases reached almost full conversion (Table S2, ESI).

Table 4 Percentage loading in coupling reactions of P40 with 1 eq. of different hydrophobic aldehydes
Entry Aldehyde Loading Entry Aldehyde Loading
All experiments characterized after 24 h incubation at 60 °C. Percentage functionalisation calculated by 1H NMR peak integration.a Insoluble products.
P407 image file: c7py00535k-u7.tif 64% P4014 image file: c7py00535k-u8.tif 72%
P408 image file: c7py00535k-u9.tif 73% P4015 image file: c7py00535k-u10.tif 56%
P409 image file: c7py00535k-u11.tif 71% P4016 image file: c7py00535k-u12.tif 89%
P4010 image file: c7py00535k-u13.tif 85% P4017 image file: c7py00535k-u14.tif 82%
P4011 image file: c7py00535k-u15.tif 50% P4018 image file: c7py00535k-u16.tif a
P4012 image file: c7py00535k-u17.tif 75% P4019 image file: c7py00535k-u18.tif 62%a
P4013 image file: c7py00535k-u19.tif 52% P4020 image file: c7py00535k-u20.tif 59%a


Impurities formed after coupling

During the coupling reaction with aromatic aldehydes a new sharp signal was identified in the NMR spectra (Fig. S15, ESI). These sharp singlets between 9.0–8.5 ppm are consistent with H-C(R) = X environments, and would suggest the formation of imines or hydrazones, through cleavage of the NH–NH bond or the CO–NH bond respectively (Scheme S1). We therefore carried out coupling reactions with representative aldehydes and hydrazine monohydrate or ammonia respectively, using 95% DMSO-d6/5% AcOH in D2O as the reacting buffer. Coupling between hydrazine and benzaldehyde, and between hydrazine and 4-hydroxybenzaldehyde, resulted in the formation of hydrazones with NMR spectra that matched those of the impurities observed (Fig. S16, ESI). These two impurities could be identified in all the couplings with aromatic aldehydes, although in most cases the impurity's content was generally around 1–3% of total amount of aldehyde used (Table S3, ESI). When coupling experiments with sub-stoichiometric (0.25 eq.) amounts of benzaldehyde were performed, both mono- and di-hydrazone were observed by NMR, even before all the aldehyde had coupled (∼4 h) (Fig. S17, ESI). The initial amount of impurity was very small (<2% of the initial aldehyde). Once all the aldehyde had been consumed we observed a steady increase in the concentration of mono-hydrazone (e.g. benzylidenehydrazine), and up to 13% of the initial aldehyde had converted into this compound after 12 days. No significant increase in the intensity of the di-hydrazone (e.g. 1,2-dibenzylidenehydrazine) was observed and remained around 3% even after 12 days.

At this stage, the mechanism of this side-reaction is unclear, but we believe that the mono-hydrazone is formed through cleavage of the C–N bond in the polymer's hydrazone side-chains (Scheme S1). The di-hydrazone will be then formed by subsequent reaction between any free aldehyde and the mono-hydrazone until no free aldehyde is present. We anticipate that cleavage will be probably facilitated by the presence of nucleophilic hydrazides in the vicinity of the hydrazone, and thus the amount of impurity is only significant when sub-stoichiometric amounts of aldehydes are employed.

Effect of Mw on coupling

Finally, to explore the effect of polymer size on this post-polymerisation strategy, functionalisation of P80 using 95% DMSO-d6/5% AcOH in D2O as the reacting buffer was performed (Table S4, ESI). Overall coupling efficiencies were very similar to those reported for P40, although bulky and aliphatic aldehydes yielded lower degrees of functionalization. This was particularly the case for 2-naphthaldehyde (8) and acetaldehyde (16) with over 20% lower coupling efficiencies than that observed for P40 (Table 4). Similarly to P40, coupling efficiency with P80 could be improved by reacting with 2 eq. of aldehyde with, on average, an additional 10% of the side-chains functionalized this way. Kinetic studies were carried with several aldehydes and P80 to investigate the time required to reach maximum possible conversion for each substrate. Most of the aldehydes reacted within 6 h, with acidic 5-formylsalicylic (12) and aliphatic isovaleraldehyde (17) reaching their highest loading efficiency in less than 2 h. On the other hand, indole-3-carboxaldehyde (13) required at least 24 h reaction time to reach maximum conversion. The level of impurities formed in theses couplings to P80 (Table S4, ESI) were overall similar to those reported for P40, being around 1–3% of the total amount of aldehyde used in most cases.

Conclusions

Here, we have presented the synthesis and post-polymerisation functionalisation of poly(acryloyl hydrazide). RAFT polymerisation was employed to prepare a small library of Boc-protected poly(acryloyl hydrazide)s. Following deprotection under acidic conditions, we demonstrated that poly(acryloyl hydrazide) is a versatile reactive scaffold that can mediate the synthesis of polymers carrying a wide range of functionalities, including non-water soluble and biologically similar aldehydes. The efficiency of the hydrazide-aldehyde coupling was modulated by tuning the reaction conditions, including the use of both aqueous and organic conditions, to yield polymers with a consistent degree of functionalisation. We believe that our results will be of relevance to those screening for activity in polymers with high and/or complex patterns of functionalisation, such as those working in the discovery of polymeric materials for biomedical applications. Our efforts to elucidate the nature and mechanism of the side-reaction identified, the optimisation of the synthetic route, as well as further applications will be reported in due course.

Contributions

All authors contributed to the experimental set-up and discussed the results. DNC and FFT designed the polymer synthesis and characterisation. BM carried out GPC analysis of kinetic studies, and DNC and OC performed all other GPC analysis. DNC, JM and FFT designed the functionalisation experiments. DNC, OC, RB and JLB performed kinetic and stability experiments. DNC performed all of the other experiments. JM and FFT secured funding. DNC and FFT analysed the data and wrote the paper, with all other authors contributing to the final version of the manuscript.

Conflict of interest

There are no conflicts of interest to declare.

Acknowledgements

This work was supported by the Royal Society, U.K (IE130688) and the Wellcome Trust (177ISSFPP). F. F.-T. thanks the Birmingham Science City and the European Regional Development Fund, the Royal Society (RG140273), and the University of Birmingham (John Evans Fellowship). J. M. thanks funding from MINECO (CTQ2014-59646-R, RYC-2013-1378) the Xunta de Galicia (ED431G/09 and 2016-AD031) and the ERC (Stg-DYNAP-677786). We thank Paul Wilson and David Haddleton (Warwick University) for the kind gift of 2,2′-azobis(2,4-dimethylvaleronitrile) (V-65) and Cecile Le Duff (University of Birmingham) for her help with stability experiments. FFT and RB thank the India Travel Fund of the University of Birmingham. We also thank the following organisations for PhD scholarships: the University of Birmingham and John Evans (DNC), BBSRC (BB/M01116X/1) and the Midlands Integrative Biosciences Training Partnership (MIBTP) (OC), the University of Birmingham (JLB) and EPSRC (EP/L505110/1, M11296H) (BM).
