Transfer hydrogenation of ortho-hydroxybenzophenone ketimines catalysed by BINOL-derived phosphoric acid occurs by a 14-membered bifunctional transition structure

Jolene P. Reid and Jonathan M. Goodman *
Centre for Molecular Informatics, Department of Chemistry, University of Cambridge, Lensfield Road, Cambridge CB2 1EW, UK. E-mail:

Received 2nd June 2017 , Accepted 28th July 2017

First published on 28th July 2017

Chiral BINOL-derived phosphoric acids catalyse the transfer hydrogenation of ketimines using Hantszch esters. In many cases the nitrogen on the imine binds to the catalyst through the catalyst hydroxyl group and the nucleophile forms a second hydrogen bond to the phosphoryl oxygen. DFT and ONIOM calculations show that the introduction of an ortho-hydroxyaryl group on the carbon atom of the ketimine leads the reaction to proceed through a 14-membered bifunctional mechanism. The transition states of these reactions involve both hydrogen bonding from the hydroxyl group on the imine and the nucleophile's proton to the phosphate catalyst. This mechanistic pathway is lower in energy than the conventional route, consistent with the experimentally observed increased rates of reaction relative to imines that are not derived from ortho-hydroxybenzophenone. To complement the high-level calculations, an accessible qualitative model has been developed that predicts the correct sense of stereoinduction for all examples.


Chiral phosphoric acids are an important class of Brønsted acids, catalysing a wide range of transformations.1–3 The addition of nucleophiles to imines is the largest substrate class for these catalysts. Phosphoric acids catalyse these reactions through a common bifunctional mechanism in which the nitrogen on the imine binds to the phosphoric acid through the Brønsted acidic site while the nucleophile binds through its proton to the P[double bond, length as m-dash]O. Therefore, the catalyst simultaneously activates both the nucleophile and the electrophile. This mechanism is known to operate for a wide variety of reactions involving imines.4

In 2010 Wang et al. reported that the chiral phosphoric acid catalysed transfer hydrogenation of ketimines facilitated by Hantszch esters could be extended to ortho-hydroxybenzophenone-derived substrates (Fig. 1).5 Wang suggested a 10 membered transition state resembling Akiyama's model,6,7 with activation of only the imine through protonation and a second hydrogen bonding interaction from the ortho-hydroxylaryl moiety to the P[double bond, length as m-dash]O of the catalyst. The nucleophile would then be delivered to the most accessible face. Such a model in which only one of the reactants is activated has been known to be higher in energy compared to those involving bifunctional activation.8 Despite this, NMR evidence suggested the phenolic proton was bound to the catalyst.5,9 The group also noted that removing the hydroxyl group at the ortho position greatly slowed the reaction, supporting the importance of a productive binding site to the catalyst via a hydrogen bond to this position.10 The uncertainty associated with the mechanism for this important class of substrates makes prediction of the sense of enantioinduction very difficult for novel reactants. In this report we disclose a bifunctional model based on DFT and ONIOM calculations, which suggest that the reaction involves two hydrogen-bonding interactions, one from the ortho-hydroxyl aryl group on the imine and the second, from the nucleophile's proton to the phosphate catalyst. These interactions lead to a lower energy transition state than those proposed before.

image file: c7ob01345k-f1.tif

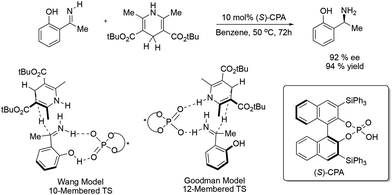

Fig. 1 Asymmetric transfer hydrogenation of ortho-hydroxybenzophenone derived imines.

Computational methods

The preferred reaction pathway was first investigated using buta-1,3-diene-1,4-diol-phosphoric acid as a model for the catalyst, before studying the full molecular system. Quantum mechanical calculations were performed using the Gaussian 09 (revision D.01).11 The B3LYP density functional,12,13 and split-valence polarized 6-31G** basis set,14,15 were used for all geometry optimizations. Single-point energies were taken using the M06-2X density functional,16 and 6-31G** basis set.14,15 This energy was used to correct the gas-phase energy obtained from the B3LYP calculations. For the QM/MM hybrid calculations on the full catalyst, transition states were located first, by a conformational search in MacroModel (version 9.9)17 using the OPLS-2005 force field.18–20 Selected conformers below 10 kJ mol−1 of the minimum were optimized using the ONIOM method implemented in Gaussian 09 (revision D.01).11 The B3LYP density functional,12,13 and split-valence polarized 6-31G** basis set,14,15 were used for the high-layer, and the force field UFF,21 was used for the low-layer. The reactants and the phosphoric acid moiety of the catalyst were included in the high-layer, and the remaining regions of the catalyst were treated as the low-layer. This method has previously been shown to give excellent results when used to describe reactions catalyzed by chiral phosphoric acids.8,22–26 The position of the partition within the catalyst was chosen as the phosphoric acid binds directly to the reagents, whereas the remaining catalyst acts as steric bulk and can be adequately described by molecular mechanics. We use the Kekulé bonding structure for all catalysts ensuring that the connectivity in the catalyst backbone is consistent between the structures allowing for accurate energy and geometry comparisons. We have re-optimized the lowest energy TS structures for reaction 1, using the delocalized bonding arrangement and have concluded that it does not affect the relative energies to an appreciable extent. All calculations were performed with the (S)-catalyst for model consistency. Single point energy calculations were performed on the resulting structures using M06-2X density functional,16 and the 6-31G** basis set,14,15 using non-default convergence criteria (fine grid density, ultrafine accuracy level) as implemented in the Jaguar program (version 7.9).27 This energy was used to correct the gas-phase energy derived from the ONIOM calculations. Free energies in solution were derived from structures optimized in the gas phase at the ONIOM (B3LYP/6-31G**: UFF), level of theory by means of a single point calculation using M06-2X/6-31G** with the polarizable continuum model (PCM) as implemented in the Jaguar program (version 7.9), using benzene (probe radius = 2.60 Å) as the solvent.28 These values were used to correct the Gibbs free energy derived from the ONIOM calculations.

Results and discussion

Mode of activation

Investigations of the reaction using the simplified phosphoric acid model, buta-1,3-diene-1,4-diol-phosphoric acid considered three different pathways summarised in Fig. 2. To reduce the computational time slightly simpler molecules were used, the di-tert-butyl groups of the Hantzsch ester was replaced by a dimethyl. The transition state in which the catalyst establishes two interactions with the imine (Wang's model) leads to Mechanism A. The study revealed five unique transition states corresponding to this mechanism. Only the lowest energy TS are shown in Fig. 2. The catalyst can establish two points of contact to the nitrogen on the imine and the proton on the Hantszch ester leading to Mechanism B. A total of twelve transition states were located, five of these corresponded to E imine configuration, the rest, Z. These transition states where calculated to be disfavoured relative to Mechanism C in which the phosphate catalyst binds to Hantszch ester and the ortho-hydroxyl aryl group. Assuming the reaction is under Curtin–Hammett control, the reaction will proceed via the lowest energy TS. TS329 was found to be the lowest energy and tightest transition state with the shortest hydrogen bonds from imine to catalyst (1.53 Å). This suggests the binding mode change between the imine and the catalyst is due to increased strength of the hydrogen bonding in Mechanism C relative to Mechanism B. Mechanism C is 7.9 kcal mol−1 lower in energy than the conventional bifunctional Mechanism B. Comparing the ΔG values reveals that the rate of reaction for these substrates would be expected to be faster, the ΔG value for TS3 was calculated to be 3.0 kcal mol−1 which is significantly lower than that obtained for TS2, 10.8 kcal mol−1. These calculations are in excellent agreement with the experimental observations as imines that did not have the ortho-hydroxyl group to proceed through this lower energy pathway showed no reaction under the same conditions.10 The imine can be activated through a proton transfer from the phosphoric acid or the OH group on the aryl ring. We have characterized both pathways and our calculations indicate that the intramolecular proton transfer is most feasible (Fig. 3).
image file: c7ob01345k-f2.tif

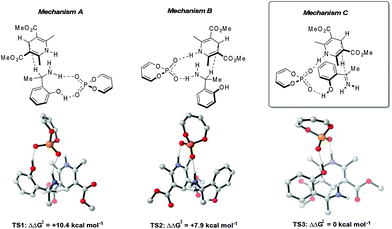

Fig. 2 Mechanistic proposals and the calculated free energies with the model catalyst. Geometries B3LYP/6-31G**, single-point energy M06-2X/6-31G**.

image file: c7ob01345k-f3.tif
Fig. 3 TSs for the protonation of imine catalysed by a model phosphoric acid. All energies in kcal mol−1. Geometries B3LYP/6-31G**, single-point energy M06-2X/6-31G**.

Model for stereoselectivity

Transition states for the full catalyst system were located using ONIOM (B3LYP/6-31G**: UFF), single-point energies M06-2X/6-31G** were then calculated for the low energy reaction pathways (see ESI for further details). Solvation free energy corrections were computed by means of the PCM model. We have previously identified this as an excellent computational method for studying chiral phosphoric acid catalysed transfer hydrogenation reactions.8,26 There are ten reasonable transition states for these reactions, resulting from three mechanisms (Fig. 2) and a number of different arrangements of the imine. Our model studies allowed us to reduce this number to eight, as the energy differences between the dual (Mechanism A) and bifunctional modes (Mechanisms B and C) of activation are so large that not even the catalysts steric interactions could change this preference. The lowest energy conformations of the transition states are shown in Fig. 4, energies of additional conformations have been provided in the ESI. For each of the bifunctional mechanisms the N-substituent of the imine can be directed towards the front of the 3,3′ substituents on the binaphthol ring leading to a Type II reaction pathway or away, Type I. Additionally the imine can exist as either the E or Z isomers for the NH binding mode. The OH binding mode is restricted to proceed via the E configuration, geometry optimizations of Z TSs showed that these structures converged into the dual mode of activation (Mechanism A) and were disfavoured by 18.8 kcal mol−1 or more relative to TS6-E. Therefore TS's involving the Z configuration and this binding mode was not investigated further. Thorough conformational searching of the possible catalyst–substrate conformations located a total of 72 transition states (see ESI). The calculations suggest that the reaction proceeds via an OH-Type II E reaction mechanism, TS6-E, this is favoured relative to the Type I E, TS7-E, by 1.9 kcal mol−1. This is in good agreement with the experimentally observed sense of enantioselectivity. The ortho-hydroxy aryl group of the imine prefers to be pointed away from the catalyst 3,3′ substituents and occupies the free space at the front left hand side of the catalyst. The imine adopts a tilted position, minimising the steric interactions of the N-substituent and the 3,3′ group. In the Type I E TS the aromatic group is orientated towards the back phenyl ring of the SiPh3 3,3′ substituent. This leads to a large energetic penalty and increases the energy of the Type I E TS relative to the Type II E. The NH Type II E TS also avoids the unfavourable steric interactions between the ortho-hydoxy group and the 3,3′ substituent. However, despite the structural similarities, the NH binding mode was strongly disfavoured confirming the same trends as the model catalyst. The most favourable TS, TS-6E was the tightest of all the TSs with the shortest hydrogen bonds. The strength of the hydrogen bond between TS6-E and TS4-E is compromised; the angle of the hydrogen bond deviates modestly away from linearity 176° to 171° and lengthens from 1.48 Å to 1.81 Å. Therefore, the reasons for the large energetic preference of OH-Type II E TS originates from both steric and electronic factors. Relative populations of transition states were predicted at the temperature they were performed from the corrected Gibbs free energy differences and based on Boltzmann distribution analysis. The computed enantiomeric excess (ee) was 90%, which is very close to the experimental value (92%) (Table 1).
image file: c7ob01345k-f4.tif

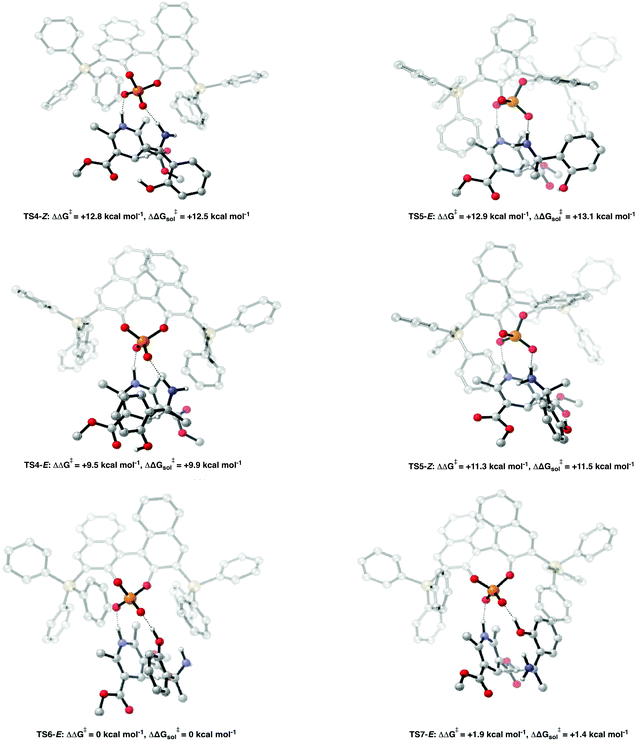

Fig. 4 Competing TSs for the SiPh3 catalysed transfer hydrogenation reaction. ONIOM (B3LYP/6-31G**: UFF), single-point energy M06-2X/6-31G**. Grayed-out regions were treated with UFF, and the full-colour regions were treated B3LYP/6-31G**. Structures generated using CYLview.30
Table 1 Interatomic distances for the lowest energy ONIOM TSs
  Interatomic distance (Å)
C–H (breaking) C–H (forming) NH/OH–O (imine) NH–O (Hantzsch ester)
TS4-Z 1.39 1.34 1.76 1.50
TS5-E 1.42 1.32 1.70 1.64
TS4-E 1.40 1.32 1.81 1.50
TS5-Z 1.37 1.35 1.76 1.59
TS6-E 1.36 1.32 1.48 1.56
TS7-E 1.36 1.33 1.50 1.61

We have summarised the calculations into a qualitative model (Fig. 5, bottom, the OOH model for ortho-OH substrates) to explain and predict the stereochemical outcome in the chiral phosphoric acid catalysed transfer hydrogenations of ortho-hydroxy ketimines. The model is built on the OH-binding mode in which the aromatic substituent is orientated towards the empty pocket of the catalyst. Increasing the sterics remote from the phosphoric acid maximises the steric repulsions between the ortho-hydroxy aryl group and the 3,3′ substituents in the Type I E TS leading to high levels of enantioselectivity.

image file: c7ob01345k-f5.tif

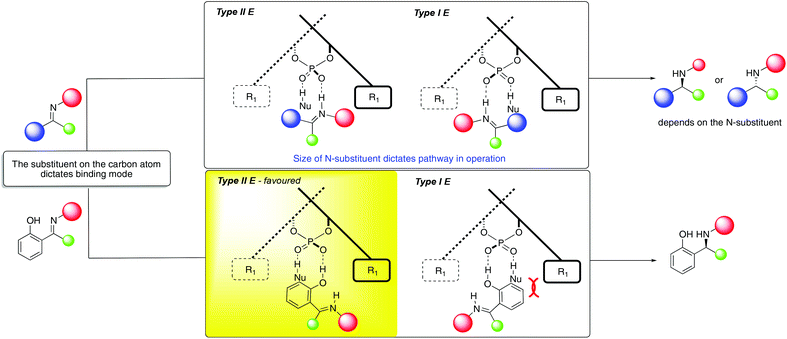

Fig. 5 Conventional (top) and OOH (ortho-OH, bottom) qualitative models for predicting stereoselectivity for nucleophilic additions to imines.

The qualitative OOH model predicts that the introduction of a larger substituent on the nitrogen indicated in red, Fig. 5, would result in a minimal increase in steric repulsions between this substituent and the 3,3′ group. However, the conventional bifunctional model4 (Fig. 5, top) predicts major steric repulsions and a reaction pathway change from Type II to Type I as a result. To test this, transition states for a second literature reaction,10 reported by Wang et al. in which the H on the nitrogen was replaced by a aromatic moiety were located using ONIOM (B3LYP/6-31G**: UFF), the results are summarized in the ESI. To simplify our calculations, the aromatic moiety was truncated to a phenyl group; calculations on similar systems have reported this to have a minimal effect on the reaction outcome but would rapidly enhance computational tractability in terms of conformational flexibility.8,26 According to our calculations OOH-Type II E is favoured over OOH-Type I E by 2.0 kcal mol−1 a value very similar to that calculated for the reduction of NH ketimines and in good agreement experiment, 89% ee. However, for the NH binding mode the lowest energy pathway is now Type I Z due to the increased steric interactions between the N-aryl substituent and the 3,3′ groups in the Type II E TS. The standard bifunctional mechanism would predict a mechanism change where the OOH model does not. The OOH model is consistent with the experimental data.


DFT and ONIOM calculations suggest that the phosphoric acid catalysed transfer hydrogenation of imines derived from ortho-hydroxybenzophenone involves a bifunctional mechanism in which there are two hydrogen-bonding interactions from reagents to catalyst, one from the ortho-hydroxyl group and a second from the nucleophile's proton. This mode of activation is lower in energy than those originally proposed. The hydroxyl group is a key element in dictating reactivity and enantioselectivity. This is an under-appreciated mode of activation achieving faster rates of reaction than the conventional bifunctional mode and these investigations should promote future developments in the field. Our calculations have been summarized into a simple qualitative model (Fig. 5) that accurately reproduces the experimentally observed sense of enantioinduction for all examples. This model highlights the important steric interactions between substrate and catalyst necessary for efficient stereoinduction.


We thank the EPSRC for funding.


  1. T. Akiyama, Chem. Rev., 2007, 107, 5744 CrossRef CAS PubMed.
  2. M. Terada, Synthesis, 2010, 1929 CrossRef CAS.
  3. D. Parmar, E. Sugiono, S. Raja and M. Rueping, Chem. Rev., 2014, 114, 9047 CrossRef CAS PubMed.
  4. J. P. Reid, L. Simón and J. M. Goodman, Acc. Chem. Res., 2016, 49, 1029 CrossRef CAS PubMed.
  5. T. B. Nguyen, H. Bousserouel, Q. Wang and F. Gueŕitte, Org. Lett., 2010, 12, 4705 CrossRef CAS PubMed.
  6. T. Akiyama, J. Itoh, K. Yokota and K. Fuchibe, Angew. Chem., Int. Ed., 2004, 43, 1566 CrossRef CAS PubMed.
  7. M. Yamanaka, J. Itoh, K. Fuchibe and T. Akiyama, J. Am. Chem. Soc., 2007, 129, 6756 CrossRef CAS PubMed.
  8. L. Simón and J. M. Goodman, J. Am. Chem. Soc., 2008, 130, 8741 CrossRef PubMed.
  9. T. B. Nguyen, Q. Wang and F. Gueŕitte, Chem. – Eur. J., 2011, 17, 9576 CrossRef CAS PubMed.
  10. T. B. Nguyen, H. Bousserouel, Q. Wang and F. Gueŕitte, Adv. Synth. Catal., 2011, 353, 257 CrossRef CAS.
  11. M. J. Frisch, et al., Gaussian 09, Revision D.01, Gaussian, Inc., Wallingford, CT, 2013 Search PubMed.
  12. A. D. Becke, Phys. Rev. A, 1988, 38, 3098 CrossRef CAS.
  13. C. Lee, W. Yang and R. G. Parr, Phys. Rev. B: Condens. Matter, 1988, 37, 785 CrossRef CAS.
  14. R. Krishnan, J. S. Binkley, R. Seeger and J. A. Pople, J. Chem. Phys., 1980, 72, 650 CrossRef CAS.
  15. P. M. W. Gill, B. G. Johnson, J. A. Pople and M. J. Frisch, Chem. Phys. Lett., 1992, 197, 499 CrossRef CAS.
  16. Y. Zhao and D. Truhlar, Theor. Chem. Acc., 2008, 120, 215 CrossRef CAS.
  17. MacroModel, version 9.9, Schrodinger, LLC, New York, NY, 2009 Search PubMed.
  18. G. A. Kaminski, R. A. Friesner, J. Tirado-Rives and E. Jorgensen, J. Phys. Chem. B, 2001, 105, 6474 CrossRef CAS.
  19. W. L. Jorgensen, D. S. Maxwell and J. Tirado-Rives, J. Am. Chem. Soc., 1996, 118, 11225 CrossRef CAS.
  20. W. L. Jorgensen and J. Tirado-Rives, J. Am. Chem. Soc., 1988, 110, 1657 CrossRef CAS PubMed.
  21. A. K. Rappe, C. J. Casewit, K. S. Colwell, W. A. Goddard and W. M. Skiff, J. Am. Chem. Soc., 1992, 114, 10024 CrossRef CAS.
  22. L. Simón and J. M. Goodman, J. Am. Chem. Soc., 2009, 131, 4070 CrossRef PubMed.
  23. L. Simón and J. M. Goodman, J. Org. Chem., 2010, 75, 589 CrossRef PubMed.
  24. M. N. Grayson, S. C. Pellegrinet and J. M. Goodman, J. Am. Chem. Soc., 2012, 134, 2716 CrossRef CAS PubMed.
  25. L. M. Overvoorde, M. N. Grayson, Y. Luo and J. M. Goodman, J. Org. Chem., 2015, 80, 2634 CrossRef CAS PubMed.
  26. J. P. Reid and J. M. Goodman, J. Am. Chem. Soc., 2016, 138, 7910 CrossRef CAS PubMed.
  27. Jaguar, version 7.9, Schrodinger, LLC, New York, NY, 2012 Search PubMed.
  28. B. Mennucci and J. Tomasi, J. Chem. Phys., 1997, 106, 5151 CrossRef CAS.
  29. We have drawn the TS as aromatic but other resonance structures are possible.
  30. CYL view, 1.0b, Université de Sherbrooke, Legault, C. Y., 2009 Search PubMed.


Electronic supplementary information (ESI) available: Complete list of authors in the Gaussian09 reference, Cartesian coordinates, energies, values of imaginary frequencies of the transition state structures and energies of all conformations tested. See DOI: 10.1039/c7ob01345k
