Hybrid magneto-plasmonic liposomes for multimodal image-guided and brain-targeted HIV treatment

Asahi Tomitaka a, Hamed Arami bc, Zaohua Huang a, Andrea Raymond a, Elizette Rodriguez a, Yong Cai d, Marcelo Febo e, Yasushi Takemura f and Madhavan Nair *a
aDepartment of Immunology, Institute of NeuroImmune Pharmacology, Centre for Personalized Nanomedicine, Herbert Wertheim College of Medicine, Florida International University, Miami, Florida 33199, USA. E-mail: nairm@fiu.edu
bMolecular Imaging Program at Stanford (MIPS), The James H Clark Center, Stanford University, Stanford, California 94305, USA
cDepartment of Radiology, Stanford University School of Medicine, Stanford, California 94305, USA
dDepartment of Chemistry & Biochemistry, Southeast Environmental Research Center, Florida International University, Miami, Florida 33199, USA
eDepartment of Psychiatry, McKnight Brain Institute, University of Florida College of Medicine, Gainesville, FL 32611, USA
fDepartment of Electrical and Computer Engineering, Yokohama National University, Yokohama 240-8501, Japan

Received 28th September 2017 , Accepted 12th November 2017

First published on 21st November 2017

Image-guided drug delivery is an emerging strategy in the field of nanomedicine. The addition of image guidance to a traditional drug delivery system is expected to achieve highly efficient treatment by tracking the drug carriers in the body and monitoring their effective accumulation in the targeted tissues. In this study, we developed multifunctional magneto-plasmonic liposomes (MPLs), a hybrid system combining liposomes and magneto-plasmonic nanoparticles for a triple-modality image-guided drug delivery. Tenofovir disoproxil fumarate, an antiretroviral drug used to treat human immunodeficiency virus type 1 (HIV-1), was encapsulated into the MPLs to enable the treatment in the brain microenvironment, which is inaccessible to most of the drugs. We found strong negative and positive contrasts originating from the magnetic core of MPLs in magnetic resonance imaging (MRI) and magnetic particle imaging (MPI), respectively. The gold shell of MPLs showed bright positive contrast in X-ray computed tomography (CT). MPLs achieved enhanced transmigration across an in vitro blood–brain barrier (BBB) model by magnetic targeting. Moreover, MPLs provided desired therapeutic effects against HIV infected microglia cells.


Image-guided therapy or theranostics (combination of diagnostics and therapy) is one of the emerging biomedical applications in the field of nanomedicine.1–3 Image-guided drug delivery is a new strategy which helps to improve desired therapeutic effects by monitoring the exact biodistribution of the administered drugs, owing to the imaging contrast generated from their carriers (e.g. nanoparticles and polymers). Using targeted nano-systems as drug carriers increases the chances of successful therapy due to their effective role in adjusting the biodistribution, circulation time, and aqueous solubility of the drugs.4 Smart nano-systems can be designed for delivery of the vital drugs to most inaccessible parts of the body such as the brain to act against diseases including HIV. Also, the addition of imaging contrasts to these nano-systems, which show limited therapeutic effect due to a lack of monitoring,5 helps to visualize them in the body and validate their effective delivery to targeted regions by adjusting their physicochemical properties.

To achieve image-guided drug delivery, the nanoparticles need to possess imaging capability and targeting ability simultaneously. Various nano-formulations such as liposomes and polymers, which co-encapsulate both contrast agents and drugs, have been developed for image-guided drug delivery.6,7 These nano-formulations have a high drug loading capacity and can be tuned for sustained or controlled drug release. Contrary to these formulations, inorganic nanoparticles such as magnetic (e.g. iron oxide) and gold nanoparticles are considered as excellent candidates for image-guided drug delivery due to their intrinsic imaging capabilities. Magnetic nanoparticles (MNPs) show unique properties under an external magnetic field based on the field conditions. One of the most established applications of MNPs is magnetic resonance imaging (MRI). MRI is a clinically established magnetic imaging system which uses magnetic nanoparticles as both negative and positive contrast enhancers based on the shortening effects on T2 or T1 relaxation time of surrounding tissues.8 Magnetic particle imaging (MPI) is a new pre-clinical imaging modality in which the imaging signal is directly generated from the non-linear magnetization of the nanoparticles in response to an external magnetic field.9 Unlike MRI, there is no tissue background signal interference in MPI. In addition, a magnetic force exerted on magnetic nanoparticles under a magnetic field gradient improves targeted delivery of drugs to the desired tissues.10 Under an alternating magnetic field, MNPs induce heat, which can be used to control drug release and hyperthermia.11 Gold nanoparticles are also considered as effective contrast agents for biomedical imaging applications. Gold nanoparticles possess a unique optical property called surface plasmon resonance (SPR), which is based on the oscillation of free-electrons on the surface of nanoparticles under light with a specific wavelength.12 In addition, gold nanoparticles possess great X-ray attenuation. These properties allow gold nanoparticles to be used for multiple imaging modalities including photoacoustic imaging and X-ray CT.13,14 By combining magnetic and gold nanoparticles within a single nanostructure, magneto-plasmonic nanoparticles show multi-functionality including all the unique properties from magnetic and gold nanoparticles.15 This multi-functionality has a great advantage toward multi-modal imaging, which enables a synergetic effect using multiple imaging modalities to overcome disadvantages of each modality,16 thus allowing more precise imaging.

Human immunodeficiency virus (HIV) is a lentivirus which is a subfamily of retroviruses.17 Although successful antiretroviral therapy (ART) can reduce viral load of HIV infected patients significantly and improve life expectancy, eradication of HIV has not been achieved.18 Also, currently there is no preventive vaccine available for HIV.19 One of the hurdles for HIV treatment is the inaccessibility of anti-HIV drugs to sanctuary sites including the central nervous system, which reduces the effectiveness of ART.20 Delivery of antiretroviral drugs or other external molecules to the brain is limited due to the existence of the blood–brain barrier (BBB), which separates the circulating blood from the brain.21,22 The BBB is a diffusion barrier formed by endothelial cells, astrocyte end-feet, and pericytes. The tight junctions between the cerebral endothelial cells selectively limit molecules entering the brain.21 To overcome the limited accessibility of drugs to the brain, nanoparticle-based drug delivery has been applied for brain targeting by improving drug transport across the BBB. Receptor-mediated pathways have been primary strategies to deliver nanoparticles non-invasively to the brain. It is based on the affinity between targeting ligand on the nanoparticle surface and their receptors expressed on the brain endothelial cells, followed by transcytosis which is a transcellular transport mechanism.23 Enhanced BBB transmigration of MNPs, magneto-electric nanoparticles, and magneto-plasmonic nanoparticles has been used for magnetic targeting.15,24–26

Here, we developed a multi-functional hybrid system containing biocompatible liposomes and magneto-plasmonic nanoparticles for image-guided delivery of anti-HIV drugs to the brain (Fig. 1). This hybrid system allowed high loading of an antiretroviral drug within the liposomes, enhanced BBB transmigration, and enabled precise monitoring of drug distribution using multi-modal imaging due to the unique properties of magneto-plasmonic nanoparticles. The developed hybrid system, magneto-plasmonic liposomes (MPLs), was tested for multi-modal imaging capabilities, cytotoxicity, BBB transmigration efficiency, and anti-HIV therapeutic effect.

image file: c7nr07255d-f1.tif

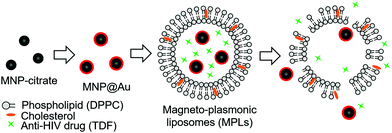

Fig. 1 Schematic illustration of preparation steps for magneto-plasmonic liposomes (MPLs). Sodium citrate coated magnetic nanoparticles (MNP-citrate) were synthesized by a co-precipitation method, followed by Au coating on the surface by citrate reduction. Au coated MNPs (MNP@Au) were further coated with polyethylene glycol (PEG). PEG coated MNP@Au and tenofovir disoproxil fumarate (TDF) were encapsulated into DPPC liposomes. Prepared MPLs release TDF in a sustained manner.



Iron(III) chloride hexahydrate (ACS reagent, 97%), iron(II) chloride tetrahydrate (ReagentPlus®, 98%), hydrochloric acid (36.5–38.0%, BioReagent, for molecular biology), ammonium hydroxide (28% NH3 in H2O, ≥99.99% trace metal basis), sodium citrate dihydrate (≥99%, FG), gold(III) chloride trihydrate (ACS reagent, ≥49.0% Au basis), potassium thiocyanate (ACS reagent, ≥99.0%), cholesterol (≥99%), XTT sodium salt (BioReagent), and phenazine methosulfate, fibronectin from bovine plasma, fluorescein isothiocyanate–dextran (average mol wt 3000–5000), and polybrene were purchased from Sigma-Aldrich. Chloroform (HPLC grade) was purchased from Fisher Scientific. Ultrapure agarose was purchased from Invitrogen. mPEG-thiol (Mw 5000) was purchased from Laysan Bio, Inc. 1,2-Dipalmitoyl-sn-glycero-3-phosphocholine (DPPC) and 1-palmitoyl-2-(dipyrrometheneboron difluoride)undecanoyl-sn-glycero-3-phosphocholine (TopFluor PC) were purchased from Avanti Polar Lipids, Inc. Tenofovir Disoproxil Fumarate (TDF) was purchased from United States Pharmacopeia. Human brain astrocytes (HAs), human brain endothelial cells (HBMECs), their culture media, and poly-L-lysine were purchased from ScienCell Research Laboratories. The human microglia cell line (CHME-5) was purchased from Applied Biological Materials. HIV-1 BaL (catalog #510) was provided by the National Institutes of Health AIDS Research and Reference Reagent Program. Hoechst 33342, trihydrochloride trihydrate was purchased from Invitrogen.

Synthesis of magnetic nanoparticles

Magnetic nanoparticles (MNPs) were synthesized by a co-precipitation method. Briefly, iron(III) chloride hexahydrate (FeCl3·6H2O, 1.17 g) dissolved in water and iron(II) chloride tetrahydrate (FeCl2·4H2O, 0.43 g) dissolved in 2 M hydrochloric acid solution were mixed. The temperature of the solution was increased to 70 °C and ammonium hydroxide was added dropwise with stirring at 200 rpm. Immediately after the addition of ammonium hydroxide, the color of the solution turned black. After 30 min of stirring, an aqueous solution containing 0.95 g of sodium citrate was added and the temperature of the solution was further increased to 90 °C. This reaction was continued for 30 min under stirring at 400 rpm. The synthesized citrate coated MNPs (MNP-citrate) were purified with water by using a centrifuge followed by 30 min of sonication.

Synthesis of MNP@Au magneto-plasmonic nanoparticles

MNP@Au magneto-plasmonic nanoparticles were synthesized by using an adapted version of the method previously reported.15 Briefly, MNP-citrate (8 mg) dispersed in 5 mM sodium citrate was sonicated using a probe sonicator at 20% amplitude prior to gold coating. The solution was heated to boiling temperature and 85 μmol of HAuCl4 was added under stirring at 300 rpm. After 6 min of reaction, the resulting nanoparticles (core–shell nanoparticles of magnetic nanoparticle core and gold shell, MNP@Au) were collected using a magnet and redispersed in distilled water.

Characterization of MNP@Au magneto-plasmonic nanoparticles

The iron and gold concentrations were determined using an inductively coupled plasma mass spectrometer (ICP-MS, PerkinElmer Sciex, model ELAN DRC-II). Samples were dissolved in aqua regia and diluted by deionized water prior to the measurement. Transmission electron microscopy (TEM) images were acquired using a Phillips CM-200 200 kV transmission electron microscope operated at 80 kV. The magnetization curve of MNP@Au was measured using a vibrating sample magnetometer (VSM-3, Toei Kogyo) equipped with an electromagnet (TEM-WFR7, Toei Kogyo) and a gaussmeter (Model 421, Lake Shore Cryotronics, Inc.). The measurement was conducted at room temperature with a maximum field of 780 kA m−1. The X-ray powder diffraction (XRD) pattern of MNP@Au was recorded with a Bruker GADD/D8 X-Ray system with a Mo anode (wavelength: 0.708 Å). Optical properties of MNP@Au were determined by measuring absorbance using a UV-visible spectrophotometer (Hitachi U-2910). Samples were diluted with distilled water to the Fe concentration of 10 μg ml−1.

Preparation of magneto-plasmonic liposomes (MPLs)

MNP@Au was coated with polyethylene glycol (PEG) before liposomal preparation. Briefly, mPEG-thiol (0.5 mg ml−1) was added to MNP@Au and stirred at 300 rpm overnight. PEG coated MNP@Au (MNP@Au-PEG) was purified using a centrifuge and sonicated for 1 min using a probe sonicator at 20% amplitude.

MPLs were prepared by a hydration method. DPPC and cholesterol were mixed in chloroform and evaporated using a rotary evaporator. The resulting film was hydrated with 10 mM HEPES buffered saline containing 0.2 mg ml−1 of MNP@Au-PEG and TDF, and kept in a water bath at 50 °C for 2 h. After the hydration, unilamellar liposomes were obtained by an extrusion process using a membrane with a pore size of 0.2 μm followed by purification using a centrifuge at 1000g. For the optimization of liposomal formulation, the molar ratio of lipid to cholesterol was varied from 1[thin space (1/6-em)]:[thin space (1/6-em)]1, 2[thin space (1/6-em)]:[thin space (1/6-em)]1, 4[thin space (1/6-em)]:[thin space (1/6-em)]1, to no cholesterol, and the drug to lipid ratio was varied from 0.1[thin space (1/6-em)]:[thin space (1/6-em)]34 to 1[thin space (1/6-em)]:[thin space (1/6-em)]34.

Characterization of magneto-plasmonic liposomes (MPLs)

The encapsulation efficiency of the drug was measured using a UV-visible spectrophotometer (Hitachi U-2910). The supernatant removed during the purification process of MPLs was centrifuged at 200[thin space (1/6-em)]000g for 60 min to separate the unencapsulated drug. The drug concentration in the supernatant was measured using a UV-visible spectrophotometer. The encapsulation efficiency was calculated using following equation:
image file: c7nr07255d-t1.tif
where WTotal is the total amount of drug added during preparation and WSupernatant is the amount of drug detected in the supernatant. The amount of MNP@Au encapsulated into liposomes was also measured using a UV-visible spectrophotometer. The encapsulated MNP@Au was extracted by dissolving liposomes using Triton X-100. The amount of the extracted MNP@Au was measured using a UV-visible spectrophotometer. Hydrodynamic sizes and zeta potentials of MPLs dispersed in PBS were measured using a Zetasizer Nano-ZS (Malvern Instruments).

A study of TDF release from MPLs was performed using a dialysis membrane. MPLs were loaded in a dialysis membrane (Micro Float-A-Lyzer, Spectrum Labs) with a molecular weight cut-off of 100 kDa and immersed in an isotonic solution, 10 mM phosphate buffered-saline solution (PBS, pH 7.4). The temperature of the heater surface was set at 40 °C and the stirring rate was maintained at 200 rpm. The sample was collected at each time point up to 3 days and replaced with PBS.

TEM images of MPLs were acquired using a Phillips CM-200 200 kV transmission electron microscope operated at 80 kV.

Multimodal imaging properties

The MRI properties of MPLs were evaluated in a 30 cm horizontal bore 7-Tesla MRI system (Bruker Biospin). An aqueous solution of MPLs (100 μl) was placed in a polymerization chain reaction (PCR) tube and fixed with 1 wt% agar. Sample temperature was maintained at room temperature. The transverse relaxation time T2-weighted images were obtained with the following parameters: pulse repetition time 2000 ms, echo time 5.21 ms, slice thickness 1 mm, and number of acquisitions 12.

MPI images of MPLs were acquired with the projection Field Free Line (FFL) Momentum MPI scanner (Magnetic Insight Co.). An aqueous solution of MPLs (100 μl) was placed in a polymerization chain reaction (PCR) tube and fixed with 1 wt% agar. The MPI scanner was operated with a magnetic field gradient strength of 6, 6, and 6 T m−1 along the x-, y- and z-axes of the instrument with an excitation field of peak amplitude 20 mT at 45 kHz along the z-axis. Overlap fraction and harmonic bandwidth were 90% and 1000 kHz. 2D images were captured with a field of view (FOV) of 6 cm × 8 cm and acquisition time of 10 seconds per projection.

Micro-CT imaging was conducted using TriFoil Imaging CT120 with about 10 minute acquisition time and 100 mm isotropic resolution. VivoQuant software was used for image reconstructions. CT values were estimated in Hounsfield units (HU) by calibration with water and air as 0 HU and −1000 HU, respectively.

Cytotoxicity study

The cytotoxicity study of MPLs was conducted on primary human astrocytes and a human microglia cell line (CHME-5) using XTT (sodium 3,3′-(-[(phenlamino)carbonyl]-3,4-tetrazolium)-bis(4-methoxyl-6-nitro)benzene sulfonic acid hydrate) assay. Cells were seeded in 96-well cell culture plates at a density of 1 × 104 cells per well and 4 × 104 cells per well for primary human astrocytes and CHME-5, respectively. After 24 h of incubation at 37 °C, the medium was replaced with 100 μl of fresh medium containing MPLs with a MNP@Au concentration of 0.5–10 μg ml−1. After 24 h and 48 h of incubation, the cells were washed with PBS and 100 μl of fresh medium was added. The XTT/PMS solution mixture was prepared by mixing XTT and phenazine methosulfate (PMS) immediately before use. The XTT/PMS solution mixture (25 μl) was added to each well and incubated at 37 °C for 4 h. Absorbance was measured at 450 nm using a microplate reader (Synergy HT, multi-mode microplate reader, BioTek).

Experiments were performed in quadruplicate (N = 3). The results are represented as the mean ± standard deviation. Statistical analysis was performed using one-way analysis of variance (ANOVA) followed by Tukey's multiple comparison test and the difference was considered significant at P < 0.05.

In vitro blood–brain barrier (BBB) model and BBB transmigration

For the BBB transmigration test, MPLs containing fluorescent tagged-lipids (TopFluor PC) were prepared. Briefly, 0.5 mol% of DPPC was replaced with TopFluor PC and followed by the evaporation of lipid, hydration of a lipid film with 10 mM HEPES buffered saline containing 0.2 mg ml−1 of MNP@Au-PEG and TDF, and an extrusion process. Control plain liposomes were prepared by adding PBS for the hydration process.

The in vitro BBB model was developed in a bicompartmental transwell culture plate as described earlier.24,25,27 Briefly, 2 × 105 primary human brain microvascular endothelial cells (HBMECs) were grown to confluence on the upper side of the transwell inserts with a 3 μm microporous membrane, and 1 × 105 human astrocytes and 1 × 105 human pericytes were grown underside of the inserts, respectively. Further experiments were conducted within 6 days after seeding the cells, and establishment of the BBB integrity was confirmed by the transendothelial electrical resistance (TEER) measurement.

A transmigration study was conducted by adding fluorescently labelled plain liposomes or MPLs to the upper chamber and incubating at 37 °C for 24 h with a magnet (a magnetic field of 150 mT at the surface of the culture plate measured using a gaussmeter) below the cell culture plate. After incubation, the media containing liposomes were collected from the lower chamber and the fluorescence signal from the liposomes was measured with excitation/emission wavelengths at 485/520 nm using a microplate reader. The transmigration efficiency was calculated as

Transmigration efficiency [%] = FLower/FTotal × 100
where FLower is the fluorescence signal in the lower chamber and FTotal is the fluorescence signal from the total amount of liposomes initially added to the upper chamber.

The effect of MPL exposure on the integrity of the in vitro BBB was determined by measuring TEER using Millicell ERS microelectrodes (Millipore) after exposure of MPLs to the BBB model. Experiments were performed in duplicate (N = 3), and the results are represented as the mean ± standard deviation.

Anti-HIV therapeutic efficacy of MPLs

The therapeutic efficacy of MPLs was tested on the HIV infected CHME-5 human microglia cell line. Cells were seeded in a 12-well cell culture plate at a density of 2.5 × 105 cells per well and incubated for 24 h at 37 °C. The cells were activated by treating with polybrene (15 μg mL−1) for 1 hour prior to the infection. Then, they were infected with HIV-1 BaL overnight and washed with PBS. The medium was replaced with 1 ml of fresh medium containing MPLs and incubated for 3 days. The culture supernatants were collected and quantitated for the HIV p24 antigen using an enzyme-linked immunosorbent assay kit (ZeptoMetrix, NY, USA). Experiments were performed in duplicate (N = 2).

For the cellular internalization study, CHME-5 cells were seeded in a 12-well culture plate at a density of 2 × 105 cells per well. After 24 h of incubation at 37 °C, the medium was replaced with 1 ml of fresh medium containing fluorescently labelled MPLs with a MNP@Au concentration of 1 μg ml−1. After 1, 3, and 6 h of incubation, the cells were washed with PBS and Hoechst 33342 was added for nucleus staining. The internalized MPLs were observed using a fluorescence microscope (Olympus IX51).

Results and discussion

Synthesis and characterization of MNP@Au magneto-plasmonic nanoparticles

MNP@Au magneto-plasmonic nanoparticles were synthesized by a seeding approach. First, MNPs were synthesized by a co-precipitation method and coated with sodium citrate (MNP-citrate). Then, MNP-citrate seeds were coated with gold by reducing Au3+ on the surface. This process was optimized in our previous report.15 MNP@Au was also coated with PEG to improve the stability. The Au-to-Fe weight ratio of MNP@Au-PEG measured by ICP-MS was 3.49 (72 wt% Au, 28 wt% Fe3O4). The TEM images of MNP-citrate and MNP@Au-PEG are shown in Fig. 2(a) and (b). MNP-citrate showed a spherical morphology and the average particle size of 10.4 nm. After gold coating, MNP@Au-PEG showed an almost spherical structure with the average particle size of 33.0 nm. The nanoparticles with a weaker contrast in Fig. 2(b) show the existence of uncoated MNPs. Based on the Au-to-Fe weight ratio and average sizes of MNP@Au-PEG, the average diameter of the MNP core and the thickness of the Au shell were calculated to be 27.7 nm and 2.6 nm, respectively. This indicates that the clusters of multiple MNPs were coated by the Au shell with the thickness of 2.6 nm. Fig. 2(c) shows the magnetization curve of MNP@Au. The magnetization curve showed no coercivity or remanent magnetization at room temperature when the external magnetic field was zero, confirming their superparamagnetic behavior. Superparamagnetic nanoparticles show negligible magnetic interaction with each other and have better colloidal stability,28 and thus preferred for in vivo applications. The saturation magnetization of MNP@Au before the PEG coating was 35 emu g−1 (A m2 kg−1) based on MNP@Au weight, which is 38% of bulk saturation magnetization of magnetite, 92 emu g−1.29 Successful Au coating was confirmed through X-ray diffraction and absorbance. Fig. 2(d) shows X-ray diffraction patterns of MNP-citrate and MNP@Au. The peaks from MNP-citrate were indexed to the (2 2 0), (3 1 1), (4 0 0), (4 2 2), (5 5 1), (4 4 0) and (5 3 3) planes, which correspond to Fe3O4. On the other hand, MNP@Au showed sharp peaks from the gold shell which can be indexed to the (1 1 1), (2 0 0), (2 2 0), (3 1 1), and (2 2 2) planes, and slight peaks which can be indexed to the planes corresponding to Fe3O4. The Au shell thickness of MNP@Au was calculated using Scherrer's equation30 and estimated to be 6.7 nm, which was larger than the thickness calculated from the ICP data (2.6 nm). This can be explained by an inaccuracy of the Au-to-Fe weight ratio in a single particle due to the existence of uncoated MNPs. The absorbance spectra of MNP-citrate and MNP@Au are shown in Fig. 2(e). No apparent absorbance peaks were observed for MNP-citrate between 400 and 800 nm. An increase of absorbance from MNP-citrate was observed at the wavelength below 500 nm due to the ligand to metal charge transition of iron oxides.31 On the other hand, a sharp absorbance peak at 526 nm was observed for MNP@Au. This is due to the surface plasmon resonance (SPR) phenomenon which is a unique property of metal nanoparticles caused by the oscillation of free-electrons on the surface.32
image file: c7nr07255d-f2.tif

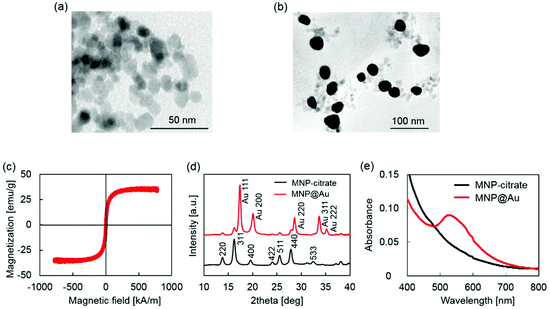

Fig. 2 Characterization of MNP@Au. (a) TEM image of MNP-citrate, (b) TEM image of MNP@Au-PEG, (c) a magnetization curve of MNP@Au, (d) X-ray diffraction (XRD) patterns of MNP-citrate and MNP@Au, and (e) absorbance of MNP-citrate and MNP@Au. The average sizes of MNP-citrate and MNP@Au were 10.4 nm and 33.0 nm, respectively. MNP@Au showed superparamagnetic properties. Au specific diffraction pattern and SPR peak were observed from MNP@Au.

Preparation and characterization of magneto-plasmonic liposomes (MPLs)

MPLs were prepared by co-encapsulating MNP@Au-PEG and anti-HIV drug, tenofovir disoproxil fumarate (TDF) into dipalmitoyl phosphatidylcholine (DPPC) liposomes. MNP@Au was coated with PEG before liposomal preparation to improve its colloidal stability. Since the composition of the liposomes can significantly change their drug encapsulation efficiency, hydrodynamic size, and drug release, MPLs were prepared by varying the drug-to-lipid and lipid-to-cholesterol ratios. The preparation conditions were tuned to achieve optimized TDF encapsulation efficiency, hydrodynamic sizes, and TDF release profile. Fig. 3(a) shows the TDF encapsulation efficiency of MPLs prepared using different drug-to-lipid ratios ranging from 0.1[thin space (1/6-em)]:[thin space (1/6-em)]34 to 1[thin space (1/6-em)]:[thin space (1/6-em)]34. An increased TDF encapsulation efficiency was observed with MPLs prepared with a higher drug ratio. Fig. 3(b) and (c) show the TDF encapsulation efficiency and hydrodynamic size variations of MPLs prepared with the lipid-to-cholesterol ratio varied from no cholesterol to 1[thin space (1/6-em)]:[thin space (1/6-em)]1, while the drug-to-lipid ratio was fixed at 1[thin space (1/6-em)]:[thin space (1/6-em)]34. The TDF encapsulation efficiency increased significantly by reducing the cholesterol ratio, showing the highest encapsulation for MPLs prepared without cholesterol. Hydrodynamic sizes of MPLs were also affected by the lipid-to-cholesterol ratios. Increasing the amount of cholesterol reduced hydrodynamic sizes of MPLs, except for MPLs prepared with the lipid-to-cholesterol ratio of 1[thin space (1/6-em)]:[thin space (1/6-em)]1. This suggests that cholesterol has a key role in the encapsulation efficiency, size, and drug release of MPLs. Due to its hydrophobicity and rigid structure, incorporation of cholesterol is known to improve the stability of the liposome bilayer and reduce permeability.33,34 Increasing the amount of cholesterol increases the mechanical rigidity of liposome bilayers, and induces an expansion of lipid head groups.35,36 The resulting reduction of internal aqueous volume within the hydrophilic region decreased the encapsulation efficiency of the hydrophilic drug.37 A reduction in hydrophilic drug encapsulation efficiency was also reported due to the limited binding spaces caused by stearic hindrances when the amount of cholesterol was increased.38 We observed the same variations in MPLs, which showed a lower encapsulation efficiency of hydrophilic drug TDF for MPLs prepared with a higher cholesterol ratio.
image file: c7nr07255d-f3.tif

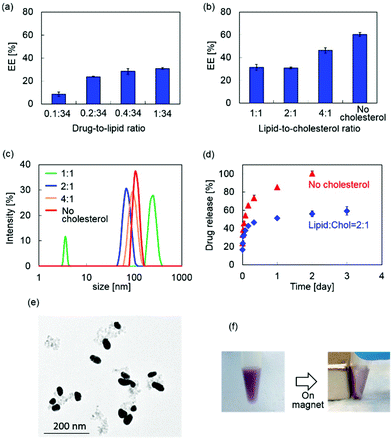

Fig. 3 Characterization of MPLs. (a) TDF encapsulation efficiency (EE) of MPLs prepared with the fixed lipid-to-cholesterol ratio (2[thin space (1/6-em)]:[thin space (1/6-em)]1) and the drug-to-lipid ratio varied from 0.1[thin space (1/6-em)]:[thin space (1/6-em)]34 to 1[thin space (1/6-em)]:[thin space (1/6-em)]34. (b) TDF EE of MPLs prepared with the fixed drug-to-lipid ratio (1[thin space (1/6-em)]:[thin space (1/6-em)]34) and the lipid-to-cholesterol ratio varied from no cholesterol to 1[thin space (1/6-em)]:[thin space (1/6-em)]1. (c) Hydrodynamic sizes of the MPLs prepared with the fixed drug-to-lipid ratio (1[thin space (1/6-em)]:[thin space (1/6-em)]34) and the lipid-to-cholesterol ratio varied from no cholesterol to 1[thin space (1/6-em)]:[thin space (1/6-em)]1. (d) In vitro TDF release from MPLs prepared with the fixed drug-to-lipid ratio (1[thin space (1/6-em)]:[thin space (1/6-em)]34) with no cholesterol and lipid to cholesterol ratio of 2[thin space (1/6-em)]:[thin space (1/6-em)]1. (e) TEM image of MPLs. (f) A picture of MPLs attracted to a magnet.

The TDF release study was conducted on two MPLs prepared with no cholesterol and the lipid-to-cholesterol ratio of 2[thin space (1/6-em)]:[thin space (1/6-em)]1 based on the selection criteria of the highest encapsulation efficiency and smallest hydrodynamic size, respectively. We found faster TDF release for MPLs prepared with no cholesterol (Fig. 3(d)). The encapsulated TDF of these MPLs was completely released within 2 days. In contrast, slower TDF release occurred for MPLs prepared with the lipid-to-cholesterol ratio of 2[thin space (1/6-em)]:[thin space (1/6-em)]1 after an initial burst release within the first 6 h. This fast release at the beginning of the release profile corresponds with other liposomal formulations.39 Lower permeability of cholesterol containing liposomes results in slower drug release,40 which is preferred for the sustained drug release approaches. Based on the small hydrodynamic size and slower drug release profile, we chose MPLs (containing 2.4 μmol TDF per mg MNP@Au) prepared with the drug-to-lipid ratio of 1[thin space (1/6-em)]:[thin space (1/6-em)]34 and the lipid-to-cholesterol ratio of 2[thin space (1/6-em)]:[thin space (1/6-em)]1 for further imaging and in vitro experiments. The TEM image of the MPLs and the picture of the MPLs attracted by a magnet are shown in Fig. 3(e) and (f).

Multimodal imaging properties

MRI, MPI, and micro-CT scan were conducted to demonstrate multimodal imaging capability of MPLs. Fig. 4(a) and (b) show the T2-weighted MR images and transverse relaxivity of MPLs as a function of Fe concentration. Stronger negative contrast and enhanced transverse relaxivity were observed by increasing the Fe concentration, and the T2 relaxivity was calculated to be 424 mM−1 s−1. The relaxivity of magnetic nanoparticles strongly depends on their composition, size, and aggregation state of the particles. Iron oxide nanoparticles with a larger core show greater T2 relaxivity.41 The relaxivity can be controlled by aggregation of monodisperse iron oxide nanoparticles, and enhanced T2 relaxivity is reported for the particles with larger hydrodynamic sizes.42 Higher T2 relaxivity of MPLs compared to clinically used T2 contrast agent Feridex® (133 mM−1 s−1)43 can be explained due to the cluster of multiple MNPs within the Au shell, which corresponds to the MNP core diameter of 27.7 nm calculated from the ICP-MS result.
image file: c7nr07255d-f4.tif

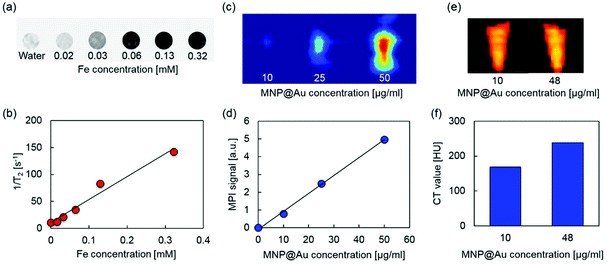

Fig. 4 Multi-modal imaging properties of MPLs. (a) T2-Weighted MRI images, (b) transverse relaxivity, (c) MPI images, (d) MPI signals, (e) micro-CT images, and (f) CT values of MPLs. MRI images showed strong negative contrast in a Fe concentration dependent manner, and a linear trend of transverse relaxivity was observed. MPI images showed concentration dependent positive contrast and exhibited linear signal variation with increasing MPL concentration. Micro-CT images also showed concentration dependent positive contrast and a higher CT value was observed with a higher concentration of MPLs.

Fig. 4(c) and (d) show MPI images and MPI signal intensities of MPLs with different concentrations. The contrast of the MPI image was enhanced by increasing the MPL concentration. The signal intensity was also increased linearly with concentration, showing an R-squared value of 0.998. MPI uses MNPs as contrast agents. Unlike MRI, which uses the hydrogen proton as a signal source,44 the MPI signal is generated directly from MNPs based on their intrinsic magnetic responses (non-linear magnetization), and there is no background from surrounding tissues due to their diamagnetic properties.45 This makes MPI a promising candidate for quantitative imaging with high sensitivity and spatial resolution.

Micro-CT images and CT values of MPLs are shown in Fig. 4(e) and (f). Increasing the concentration of MNP@Au resulted in higher contrasts with the CT attenuation values of 169 and 238 Hounsfield units (HU) for MPLs with the MNP@Au concentrations of 10 and 48 μg ml−1, respectively. The concentration dependent enhancement of CT contrast was generated from gold.46 Gold nanostructures (e.g. gold nanoparticles and nanoshells) are emerging as CT contrast enhancers that can be potentially used as alternatives for currently available iodine-based contrast agents in clinics. Iodine based CT contrast agents require a high administrative dose to achieve effective diagnosis, and the associated toxicity and their short blood circulation times limit their application.47 Gold nanoparticles are expected to overcome these limitations due to the biocompatibility and higher X-ray attenuation coefficient.48 Overall, these results indicate that MPLs are excellent candidates for accurate image-guided therapy using triple-modal MRI/MPI/CT imaging.

Cytotoxicity study

Fig. 5 shows the viability of primary human astrocytes and microglia cell line CHME-5 after exposure to MPLs containing 2.4 μmol TDF per mg MNP@Au evaluated by the XTT assay. Exposure to MPLs up to the MNP@Au concentration of 10 μg ml−1 showed no significant decrease in the viability of the primary human astrocytes within 48 hours. CHME-5 exposed to MPLs for 24 h showed no effect on the viability. However, the viability of CHME-5 cells was slightly decreased to 89% after 48 h exposure to MPLs at a MNP@Au concentration of 10 μg ml−1, which is negligible in terms of overall cytotoxicity concerns.
image file: c7nr07255d-f5.tif

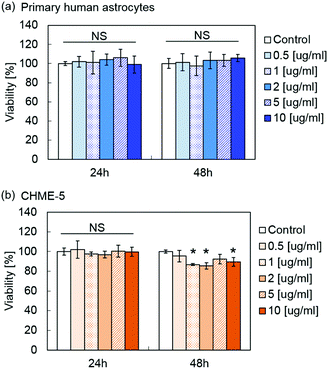

Fig. 5 Effect of MPLs on cellular viability. (a) Human primary astrocytes and (b) CHME-5 after 24 h and 48 h exposure to MPLs. The MNP@Au concentration of MPLs was varied from 0.5 to 10 μg ml−1. The viability was determined using XTT assay (*P < 0.05; NS, not significant, P > 0.05; N = 3).

Although biocompatibility of liposomes has been proved in in vitro, in vivo, and clinical studies, there are fewer reports of conducting the toxicity study of magneto-plasmonic nanoparticles especially on central nervous system (CNS) cells.49 Our previous study showed that magneto-plasmonic nanoparticles (MNP@Au-PEG) caused no toxicity on primary human astrocytes at concentrations of up to 100 μg ml−1.15 Separate cytotoxicity studies showed less cytotoxicity of TDF compared to other reverse transcriptase inhibitors such as stavudine.50 The highest concentration of encapsulated TDF in MPLs used for the XTT assay was 24.2 μM (MNP@Au concentration of 10 μg ml−1), which was lower than the reported CC50 (50% cytotoxicity concentration) of 399 μM and 850 for HepG2 cells and skeletal muscle cells, respectively.51

In vitro blood–brain barrier (BBB) model

The blood–brain barrier (BBB) limits the transmigration of pathogens, chemicals, proteins, drugs and various nano-formulations due to the tight junctions between the capillary endothelial cells, which regulate the transport of molecules based on size and charge. Therefore, nano-formulations must possess the capacity to cross the BBB in order to gain access to the brain. Magnetic targeting is a targeting strategy which utilizes magnetic force exerted on magnetic nanoparticles to achieve efficient delivery in an active manner. An enhanced transmigration of magnetized nano-formulations across the BBB has been demonstrated under an external magnetic field generated by a permanent magnet.15,24–26

The BBB transmigration capacity of MPLs was evaluated using an in vitro BBB model prepared as previously described.27Fig. 6(a) shows the BBB transmigration efficiency of control plain liposomes and MPLs. A higher transmigration efficiency was observed by increasing the incubation time of control liposomes and MPLs in the presence of a magnetic field gradient. MPLs showed significantly higher BBB transmigration efficiency compared to control liposomes after 3, 6, and 24 h of incubation. The magnetic force exerted on MPLs under a magnetic field gradient contributed to the higher transmigration efficiency which resulted in a 1.8-fold increase compared to the transmigration efficiency of control liposomes after 24 h of incubation. Transendothelial electric resistance (TEER) of the in vitro BBB model was measured after transmigration study to evaluate the integrity of the BBB. The BBB untreated, exposed to control liposomes, or exposed to MPLs showed TEER values of 260 ± 20, 253 ± 15, and 257 ± 16 Ω cm−2, respectively. Since the TEER value of 200 Ω cm−2 is considered to be the baseline reading indicative of BBB formation,52 the TEER values of untreated and treated BBB models prove sufficient integrity. Moreover, no significant difference was observed for the TEER values of the BBB models after the transmigration study of control liposomes and MPLs, which indicates that the transmigration of liposomes in the presence of a magnetic field gradient did not disrupt BBB integrity.

image file: c7nr07255d-f6.tif

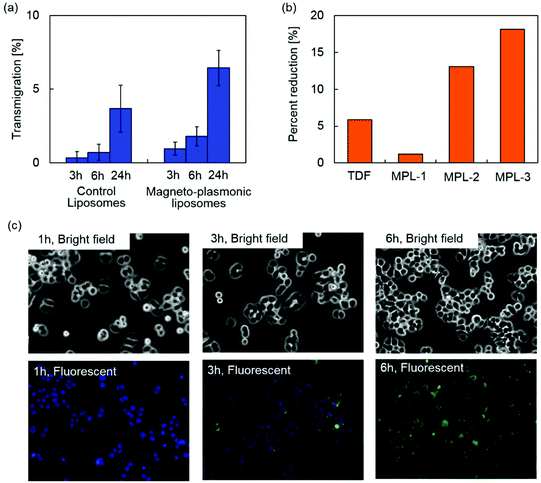

Fig. 6 BBB transmigration and therapeutic efficacy of MPLs. (a) BBB transmigration efficiency of MPLs across an in vitro BBB model. (b) Percent reduction in the p24 level of HIV infected CHME-5 after three day incubation with TDF alone (13.2 μM) and MPLs with MNP@Au concentrations of 3.1 μg ml−1 (MPL-1), 6.2 μg ml−1 (MPL-2), and 9.3 μg ml−1 (MPL-3). (c) MPLs uptake by microglia cells. Bright field images and fluorescence images of CHME-5 exposed to fluorescently labelled MPLs (green fluorescence) for 1, 3, and 6 h. The cell nucleus (blue) was stained with Hoechst 33342. Uptake of MPLs was clearly observed after 3 h of incubation, and a significant amount of MPLs was internalized at 6 h.

Anti-HIV therapeutic efficacy of MPLs

The therapeutic effect of MPLs on HIV infected microglia cells (CHME-5) was evaluated by monitoring the levels of the HIV p24 antigen released in the supernatant. The p24 antigen is the HIV capsid protein, a major component of the viral core,53 and is used as a marker to detect in vitro HIV infections.54Fig. 6(b) shows percent reduction in the p24 level of HIV infected CHME-5 after three day treatment with TDF alone (13.2 μM) and MPLs containing 2.4 μmol TDF per mg MNP@Au. The MNP@Au concentration of MPLs was varied from 3.1 μg ml−1 (MPL-1) to 9.3 μg ml−1 (MPL-3). The encapsulated and released TDF concentration on day 3 was calculated based on the drug release profile (Table 1). HIV replication as measured by p24 ELISA was reduced from 370 pg ml−1 in control/untreated cells to 349 pg ml−1 in cells treated with 13.2 μM TDF. After a 3 day treatment with three different concentrations of MPLs, the p24 antigen decreased to 365, 324, and 308 pg ml−1 for the cells incubated with MPL-1, MPL-2, and MPL-3, respectively. The treatment with a higher concentration of MPLs resulted in a greater p24 reduction for HIV-infected CHME-5. The percent reduction of CHME-5 treated with the highest concentration of MPLs (MPL-3) was 18%, which was three times effective compared to CHME-5 treated with TDF alone. Although the TDF concentration released from MPL-3 at day 3 was 13.2 μM, which was the same concentration for the TDF alone control sample, MPLs showed a greater effect on p24 reduction. This greater therapeutic effect of TDF encapsulated in MPLs could be due to the cellular internalization of MPLs.
Table 1 MPLs used for the therapeutic efficacy study. Three different concentrations of MPLs were used to treat HIV infected cells. The corresponding values for total encapsulated TDF were calculated from the encapsulation efficiency of MPLs (2.4 μmol TDF per mg MNP@Au). Released TDF within 3 days was calculated from the in vitro release profile of MPLs
  MNP@Au Encapsulated TDF Released TDF
TDF 13.2 μM
MPL-1 3.1 μg ml−1 7.4 μM 4.4 μM
MPL-2 6.2 μg ml−1 14.8 μM 8.8 μM
MPL-3 9.3 μg ml−1 22.2 μM 13.2 μM

To evaluate cellular internalization, CHME-5 cells were exposed to the fluorescently labelled MPLs and monitored for up to 6 h using fluorescence microscopy. Fig. 6(c) shows bright field and fluorescence images of the CHME-5 cells exposed to MPLs for 1, 3, and 6 h. Significant uptake of MPLs was observed after 3 h of incubation, and the overall fluorescence intensity increased after 6 h of incubation, indicating enhanced uptake of MPLs over incubation time. The fluorescence signals from MPLs (green color) were uniformly distributed throughout the cells except for their nuclei. Cellular uptake of liposomes is known to be mediated mainly by cell membrane fusion or endocytosis.55 The membrane fusion allows delivery of molecules directly into the cytoplasm, which is preferred for certain applications such as gene delivery.56 The uptake via fusion can be promoted by incorporating cations and membrane-disrupting peptides.57 On the other hand, the nanomaterials internalized via endocytosis are transferred to endosomes, which ultimately fuse with lysosomes and degrade internalized nanomaterials depending on the pathway.58 The liposomes containing DPPC as a main lipid component are neutral, which are not actively fusogenic. However, cellular uptake of DPPC liposomes and their accumulation in lysosomes have been reported previously.59,60 These results indicate that MPLs were internalized into CHME-5 possibly via endocytosis. TDF is a nucleotide reverse-transcriptase inhibitor, which inhibits viral replication by chain termination of viral DNA.61 Since this mechanism occurs intracellularly, the cellular transport efficiency strongly affects the therapeutic effect. Although TDF has been reported to enter cells by passive diffusion,62 their encapsulation into liposomes facilitated effective cellular uptake. The enhanced delivery and release of the encapsulated TDF inside the cells enabled efficient inhibition of viral replication.

In this study, we developed multi-functional MPLs for brain-targeted image-guided drug delivery for HIV treatment. We demonstrated sustained release of TDF from MPLs, their biocompatibility, and the therapeutic effect on HIV infected microglia after a treatment with MPLs. The ability to generate contrasts using MRI, MPI, and X-ray CT and the capability to cross the BBB will enable brain-targeted drug delivery with highly precise image guidance. Taken together, MPLs have a great potential for image-guided drug delivery targeting other brain diseases such as brain tumors and Alzheimer's disease.


Magneto-plasmonic liposomes (MPLs) containing MNP@Au and anti-HIV drug, tenofovir disoproxil fumarate (TDF) were developed for HIV treatment in the brain. We optimized MPLs for sustained release with a 59% TDF release over three days. They showed negative contrast in T2-weighted MRI and positive contrast in MPI and X-ray CT. The BBB transmigration efficiency of MPLs was enhanced under an external magnetic field gradient without disrupting the integrity. The treatment of HIV infected microglia with MPLs successfully reduced viral replication. Given our findings, we conclude that MPLs can effectively deliver the anti-HIV drug to HIV infected cells with the help of triple-modal imaging.
