β-O-4 type dilignol compounds and their iron complexes for modeling of iron binding to humic acids: synthesis, characterization, electrochemical studies and algal growth experiments

Ewelina Orlowska a, Éva A. Enyedy b, Marc Pignitter c, Franz Jirsa ad, Regina Krachler a, Wolfgang Kandioller *a and Bernhard K. Keppler a
aInstitute of Inorganic Chemistry, Faculty of Chemistry, University of Vienna, Waehringer Str. 42, A-1090 Vienna, Austria. E-mail: wolfgang.kandioller@univie.ac.at; Fax: +43-1-4277-9526; Tel: +43-1-4277-52609
bDepartment of Inorganic and Analytical Chemistry, University of Szeged, Dóm tér 7, H-6720 Szeged, Hungary
cDepartment of Physiological Chemistry, Faculty of Chemistry, University of Vienna, Althanstr. 14/UZA II, A-1090 Vienna, Austria
dDepartment of Zoology, University of Johannesburg, Auckland Park, 2006, South Africa

Received 29th June 2017 , Accepted 5th September 2017

First published on 12th September 2017


A series of β-O-4 type dilignols and their iron(III) complexes, designed as model compounds for humic acids, were prepared and characterized by 1H-NMR and 13C-NMR spectroscopy, elemental analysis, EPR, IR and UV-Vis spectroscopies and electrospray ionization mass spectrometry (ESI-MS). Properties regarding iron binding, stability, lipophilicity and bioavailability for microorganisms have been evaluated with cyclic voltammetry, stability studies in water and seawater by means of UV-Vis spectrophotometry and the algae growth assays with seawater algal species Chlorella salina and Prymnesium parvum. Both established ligands and their iron complexes undergo deprotonation processes in seawater whereas no changes in UV-Vis spectra were observed in distilled water. The iron(III) complex formation constants, pKa values and lipophilicity of the dilignols were in the same range as for the analogous catechol coordination compound. Synthesized dilignols were prone to redox reactions under biological conditions similar to natural aquatic humic acids. Moreover, an increased iron bioavailability was observed for the presented complexes compared to corresponding catechol complexes and comparable to the bioavailability of iron bound to humic acid complexes recovered from Craggie Burn river. Those results confirm that β-O-4 type dilignol compounds are excellent model ligands for aquatic humic acids.


Introduction

Iron chemistry in seawater and its bioavailability for microorganisms have been intensively investigated for a long time.1–4 Several experiments have shown that iron is limiting the productivity of marine ecosystems in huge areas of the ocean5–9 but only little is known about the chemical speciation of iron in seawater and its accessibility for phytoplankton. Iron is not only an important factor for growth of algae and other microorganisms but also selectively supporting the development and expansion of several species (with lower iron demand), which impacts the food chain within the whole ecosystem.4,10 Analytical methods provide information about the concentration of dissolved and undissolved iron or iron solubility dependent on the presence of organic ligands. However, exact structures of bioavailable iron complexes and uptake mechanisms remain still unclear. There are several factors influencing iron bioavailability for microorganisms. Besides different uptake mechanisms, kinetics and iron requirements for each species, one pressing issue is the chemical form of bioavailable iron. It is known, that inorganic iron displays an extremely low solubility in seawater, which is the result of the low solubility of iron oxide (the general term ‘iron oxide’ describes various forms of iron oxide, oxyhydroxide and amorphous iron hydroxide).11,12 Thus, almost all of dissolved iron in the ocean is bound to organic scaffolds.13–16 Those ligands have a large range of different structures and origins. One group of them are siderophores, which are produced by bacteria particularly in order to complex iron(III).17–19 Stability constants for iron complexes of these natural chelators are extremely high and special mechanisms have been developed by certain organisms to release the iron from complexes formed.20 Another big group of important iron chelators are substances which originate from decomposition of organic material, known as humic substances. Their main sources are rivers, especially derived from peat bog regions which are rich in aquatic humic substances (AHS). It has been shown, that AHS are greatly improving the bioavailability of iron in coastal waters.21–25 Also algal studies on microalgae Chlorella salina and Diacronema lutheri in batch cultures support the assumption of the positive impact of AHS on iron supply.26 Algal cultures treated with isolated AHS showed increased growth response compared to samples treated with iron(III) chloride and EDTA (ethylenediaminetetraacetate), a complexation agent used for commercial algal cultivation27). Knowing the importance of those chelators on phytoplankton growth and vitality, which affect huge amount of other processes like for example the global CO2 cycle,28–30 it is of great interest to clarify the chemistry behind iron complexation, release and uptake as well as the structure of the complexes and ligands. Unfortunately, research on humic substances, especially AHS is very challenging due to their low concentration in seawater31 and the structural complexity depending on origin, incorporated building blocks and formation processes.32–35 In order to understand the chemistry of AHS regarding iron binding properties and the postulated release by photoreduction36 the utilization of model systems represents a highly promising approach. In our previous studies, we synthesized simple iron complexes with different coordination motifs and ligand scaffolds and investigated them for their suitability as model compounds for humic acids iron complexes.37 The model compounds were characterized and investigated by various analytical techniques (cyclic voltammetry, EPR, EXAFS,36 UV-Vis spectroscopy etc.) in addition to algal batch culture studies on chlorophyte and haptophyte unicellular algae species. The results of the latter assays led to the conclusion, that catechol-based ligand systems are excellent scaffolds for modeling of iron–AHS complexes. Therefore catechol-derived ligands and complexes with structural characteristics and molecular weight in range of natural AHS were established. The main components of humic substances are lignin decomposition products, originating from support tissues in plants and guaiacylglycerol-β-guaiacyl ether represents a suitable model for lignin.38,39 Binding studies of iron with guaiacylglycerol-β-guaiacyl ether precursors (coniferyl alcohol, sinapic acid, ferulic and coumaric acid) and dehydrogenation polymers of coniferyl alcohol have been already carried by Guillon et al. regarding their sorption properties in comparison to lignin.40,41 Although guaiacylglycerol-β-guaiacyl ether seems to be a good model for AHS, formation of stable iron complexes is unlikely. For this reason, we decided to modify the β-O-4 backbone of guaiacylglycerol-β-guaiacyl ether by introduction of a free catecholic moiety. In this work we report the synthesis of diastereomerically pure lignols designed as model compounds for AHS, bearing free catecholic groups and their respective iron complexes. The synthesized substances were characterized by elemental analysis, spectroscopic methods (IR, EPR, UV-Vis), NMR spectroscopy (in the case of the ligands), mass spectrometry (ESI-MS) and cyclic voltammetry. The proton dissociation constants (pKa), complex formation constants and lipophilicity (as distribution coefficients) were determined. The bioavailability of the respective iron coordination compounds was elucidated in two unicellular algal species, namely chlorophyta Chlorella salina and haptophyte Prymnesium parvum in batch cultures.

Results and discussion

Synthesis – general overview

Diastereomerically pure guaiacylglycerol-β-guaiacyl ether 6a was synthesized according to previously published procedure.42 Two novel β-O-4 type lignol compounds 6b,c were synthesized in a similar approach (Scheme 1, see ESI). Compound 3 was prepared according to the procedure described by Nakatsubo et al.43 using tert-butyl chloroacetate. Aldehydes bearing free phenolic groups were protected with benzyl groups to avoid undesired side reactions (2a–c). Condensation of 3 and 2a–c in the presence of lithium diisopropyl amide at −78 °C led to diastereoisomeric mixture of 4a–c (1[thin space (1/6-em)]:[thin space (1/6-em)]1 ratio of erythro and threo, respectively). As described in literature, recrystallization of 4a from EtOAc gave rise to pure erythro diastereoisomer. For the compounds 4b and 4c recrystallization was not successful and column chromatography (n-hexane/EtOAc 5[thin space (1/6-em)]:[thin space (1/6-em)]1 to 1[thin space (1/6-em)]:[thin space (1/6-em)]1) was performed. Due to the very similar elution time, it was difficult to separate both diastereoisomers and only the erythro diastereoisomer was purely separated.
image file: c7nj02328f-s1.tif

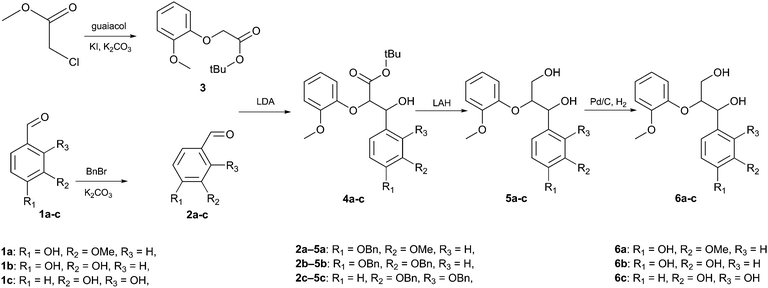

Scheme 1 Synthesis of β-O-4 type lignol compounds.

The isolated compounds were reduced with lithium aluminum hydride and benzyl groups were cleaved by palladium-catalyzed hydrogenation yielding 6a–c. Formation of the desired dilignols was confirmed by NMR spectroscopy and elemental analysis. The ESI-MS spectra of the ligands were measured in methanol or in acetonitrile. Overall the positively charged Na+ adducts, with m/z values of 329 (6a and 6b), were detected. Lignols were isolated in low to moderate yields due to the crucial purification step including the separation of diastereoisomers. Thus in this step the yield of the pure erythro diastereoisomers was between 7% and 20%. The Fe(III) complexes were synthesized by deprotonation of the ligand with potassium hydroxide and addition of iron(III) chloride in methanolic solution (see ESI). The complexes 7b and 7c were isolated in low to moderate yields (7–27%) and characterized by standard analytical methods. We presume that similar to analogous Fe(III) catechol coordination compounds, dinuclear complexes with two lignols bridging two iron centers were obtained. The mass spectra of the complexes display, similar to isolated and characterized catechol complex, one negatively charged fragment with m/z value of 664, which can be assigned to Fe(lignol)2. All detected molecular peaks of the complexes showed the expected isotopic iron pattern. Also elemental analysis, electrochemical studies and complex formation studies support our proposed structures.

Cyclic voltammetry

The electrochemical behavior of the ligands and complexes was studied in order to estimate the possibility of iron reduction under physiological conditions. The proposed mechanism of iron release in natural humic acid complexes includes the photoreduction of Fe(III) to Fe(II).36 Fe(II) has low affinity to AHS, dissociates from the complex and can be uptaken by the microorganisms. Although Fe(II) undergoes oxidation in oxygenated seawater, the steady state concentration of Fe(II) remains higher due to this reduction process.44 Thus redox potentials present important information regarding the bioavailability of iron and cyclic voltammetric measurements of 6b and 6c were performed in aqueous solution at various pH values in the absence and in the presence of iron(III) ions. Representative cyclic voltammograms are shown in Fig. 1 for 6b and catechol as reference, and electrochemical data are presented in Table S1 (ESI). A reversible (E1/2 = 0.00 V) and a quasi-reversible process (E1/2 = +0.82 V) can be observed at pH 3.7 in the case of 6b. The reversible process might belong to the one-electron transfer between the catechol and the semiquinone radical.45 On the other hand mostly irreversible oxidation peaks appear at pH > 8.8, which is the pH range where the ligand 6b is present in its monodeprotonated (HL) form (Fig. S4A, ESI). The current maximum of the cathodic peak at +0.65 V is decreasing with increasing pH and a novel oxidation peak appears at +0.50 V and becomes dominant at pH 9.89, but disappears at pH > 12. In addition a new reduction peak is observed at pH ≥ 11 at +0.27 V. In the presence of half-equivalent iron(III) the position of the quasi-reversible peak pair is already shifted at pH 1.8 and ΔE is somewhat lower (+0.33 vs. +0.24 V) (Fig. 3B), although practically no complex formation takes place under these conditions (Fig. S4B, ESI), because peaks belong to the unbound iron are observed at a lower potential range (E1/2 = −0.15 at pH 2.7, not shown here). The cathodic peak at +0.42 V is disappearing with increasing pH, while the oxidation peak still can be observed shifting from +0.76 to +0.42 V. The anodic peak is most probably related to the electrochemical oxidation of the ligand, which is mostly bound to the metal ion (e.g. 95% of the ligand is coordinated at pH 8). In addition a novel cathodic peak is seen at ca. −0.1 V at pH > 9 where more and more tris-ligand species are assumed to be formed and the reduction process can be described to the iron(III)/iron(II) transition. Notably, only irreversible processes are observed at pH > 5. Overall, 6c behaves very similarly to 6b; however, formal potentials E1/2 of the ligand are always lower by 170–180 mV (Table S1, ESI). At the same time in the presence of iron(III) ions the observed anodic and cathodic peak positions are just slightly different in the case of the studied ligands. Comparing the recorded voltammograms of 6b, 6c to those of catechol at pH ∼ 8 when iron(III) was added to the solution it can be noted that the oxidation peak of catechol (+0.64 V) appears at a similar potential as in the case of the other two ligands, while a cathodic peak with high intensity is seen at +0.42 V and another smaller reduction peak appears at lower potentials (+0.11 V). In the case of catechol, iron(III) is present in the bis complex predominantly at 1[thin space (1/6-em)]:[thin space (1/6-em)]2 metal-to-ligand ratio at pH 8 due to the formation of the higher stability complexes compared to ligands 6b and 6c (cf. Fig. S4B, ESI, in the case of 6b) based on the determined stability constants (vide infra). The isolated Fe(III) complexes 7b,c of the respective dilignols ligands 6b,c were investigated for comparison. However, due to the lower aqueous solubility the experiments were performed in DMF (Fig. S1, ESI). Under these conditions the two irreversible reduction peaks with values −0.07 V and +0.52 V and an irreversible oxidation peak at +1.2 V were detected for 7b which can be assigned to ligand and iron reduction. Complex 7c showed three irreversible reduction peaks with the values +0.01 V, +0.29 V and +0.44 V and similar to 7b an oxidation peak at +1.2 V.
image file: c7nj02328f-f1.tif

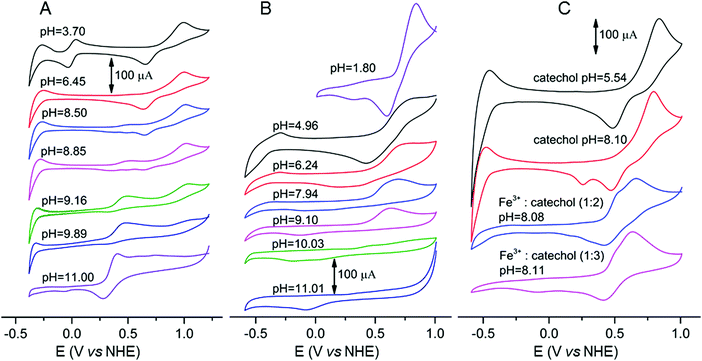

Fig. 1 Cyclic voltammograms of 6b (A) and the iron(III) – 6b (1[thin space (1/6-em)]:[thin space (1/6-em)]2) (B) system at various pH values in aqueous solution, and for catechol (at pH 5.54 and 8.00) and iron(III) – catechol (1[thin space (1/6-em)]:[thin space (1/6-em)]2, 1[thin space (1/6-em)]:[thin space (1/6-em)]3) system (at pH ∼ 8.1) for comparison (C). (cL = 2.0 mM; I = 0.10 M (KCl); T = 25 °C).

Overall, the observed reduction potentials of model ligands, complexes and in situ prepared iron(III) complexes are lying in the area accessible to photoreduction as well as for natural occurring reducing agents.46 These studies confirm that those dilignols can be seen as suitable model compounds for AHS regarding their redox activity.

EPR spectroscopy

EPR spectral analyses of the ligands 6a–c, revealed a g-factor of 2.0 similar to the free electron (Fig. 2). Thus, all ligands might represent organic free radicals. Santana-Casiano et al. showed that catechol-type structures can be readily oxidized in the presence of oxygen yielding stable radicals.47 Stable radicals were also detected in humic acids.48,49 The high stability of the free radicals can be explained by the delocalization of the electron over the phenol ring.
image file: c7nj02328f-f2.tif

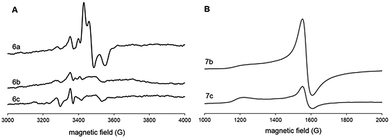

Fig. 2 EPR spectra of the ligands, 6a–c (A), as well as of the iron complexes, 7b and 7c (B), measured at 9.43 GHz and 90 ± 1 K.

The hyperfine splitting of the signal indicates an interaction between the unpaired electron and magnetic hydrogen nuclei. The line pattern of the EPR spectrum suggests that the electron is delocalized over the carbon atoms of the aromatic ring. The EPR spectrum of the ligand, 6a, differs from the other ligands exhibiting a g-factor of approximately 1.9. The methoxy group at the aromatic ring might participate in the delocalization of the electron, thereby inducing the appearance of additional signals. The two iron complexes, 7b and 7c, showed a distinct signal at g = 4.3 (Fig. 2). This isotropic-looking line is characteristic of Fe(III) in the high spin state. By considering all experimental g-values for each of the Kramers’ doublets, a rhombicity of 0.32 and 0.11 was determined for both complexes, suggesting low axial symmetry.

Proton dissociation processes and lipophilicity of the ligands

The proton dissociation constants of the studied ligands 6a–c were determined by pH-potentiometric and UV-Vis spectrophotometric titrations in aqueous solution (Table 1). The first deprotonation process in all cases takes place at pH < 11.5, therefore pK1 values could be determined accurately by the evaluation of the pH-potentiometric titration curves; on the other hand, these titrations were used to obtain the exact concentration of the ligands stock solutions and to check their stability in aqueous solution. Consecutive titrations showed that no ligand decomposition occurred in the pH range studied under an argon atmosphere and the stock solutions (pH ∼ 1.8) were stable over 48 h. The proton dissociation processes could be followed by UV-Vis spectrophotometric titrations as well, since the deprotonation of the hydroxyl functional groups is accompanied by characteristic spectral changes. However, the second step occurs only at pH > 11.5 and spectra had to be recorded at high pH values (pH > 12.6) where the ionic strength of 0.10 M could not be kept constant and the measurement of the pH values became uncertain due to the alkaline error of the glass electrode. Therefore the pK2 constants have fairly high experimental errors and should be considered as estimated values. The titrations were performed under strictly anaerobic conditions due to the susceptibility of the catechol type ligands towards oxidation.50 Representative UV-Vis spectra recorded at various pH values are shown for 6b in Fig. S2A and B (ESI). Proton dissociation constants and the spectra of the individual ligand species H2L, HL, and L2− (Table 1 and Fig. S2C, D, ESI) were calculated on the basis of deconvolution of the measured spectra. The formation of a new band with higher λmax values (294 nm) can be observed due to the deprotonation of the first OH moiety. While the completely deprotonated form of the ligands (L2−) in the case of 6b and 6c is characterized by a strong band at 308 and 314 nm, and a weaker band at 404 and 400 nm, respectively.
Table 1 Proton dissociation constants (pKa) of ligands 6a–c determined by various methods, λmax and molar absorbance values (ε) of the ligand species in the different protonates states, distribution (%) and n-octanol–water distribution coefficients (log[thin space (1/6-em)]D) at pH 2.5 and 8.3. (T = 25 °C; I = 0.1 M (KCl))
6a 6b 6c
pK1 pK2 pK1 pK2 pK1 pK2
a Data for the neutral HL species. b Data for the L species. c MarvinSketch.51 d ChemDraw.52
pH-Potentiometry 9.70 ± 0.09 9.21 ± 0.02 8.93 ± 0.03
UV-Vis photometry 9.77 ± 0.01 9.20 ± 0.01 12.9 ± 0.2 9.02 ± 0.01 12.9 ± 0.2
λ max (nm)/ε (M−1 cm−1) H2L 278/3970a 276/4040 276/4200
HL 248/8970b 280/4610 280/4400
282/4125b 294/4320 294/4540
294/3750b
L2− 258/6000 266/8980
308/6930 314/6900
404/890 400/1060
Distribution at pH 2.5 100% HL 100% H2L 100% H2L
log[thin space (1/6-em)]D2.5 +0.79 ± 0.15 +0.57 ± 0.10 +0.56 ± 0.14
Distribution at pH 8.3 97% HL, 3% L 90% H2L, 10% HL 84% H2L, 16% HL
log[thin space (1/6-em)]D8.3 +0.73 ± 0.14 +0.44 ± 0.02 +0.15 ± 0.08
log[thin space (1/6-em)]P (predicted) +1.66c/+1.92d +1.51c/+1.66d +1.51c/+1.66d


Comparing the pK1 values of 6b and 6a it can be clearly seen that the acidity of 6a is significantly weaker due to the electron donating effect of the methyl group, while 6b and 6c have similar pKa values, close to the reported values of catechol (pK1 = 9.22 and pK2 = 13.0).50

The lipo-hydrophilic character (log[thin space (1/6-em)]D) of the ligands 6a–c was studied at pH 2.5 and 8.3 via the partitioning between n-octanol and water (Table 1, Fig. S7A and B, ESI). The ligands are present in their neutral forms at the chosen acidic pH, thus log[thin space (1/6-em)]D2.5 can be considered as log[thin space (1/6-em)]P values. The predicted log[thin space (1/6-em)]P values (with ChemDraw and MarvinSketch programs) for these compounds are ca. one order of magnitude higher than the experimentally obtained ones; however, they show the same tendency. All results indicate that the methoxy derivative has a more lipophilic character compared to 6b,c, which have moderate hydrophilic character like the reference compound catechol. At the chosen slightly alkaline pH the ligands are partly deprotonated, which causes the increased hydrophilicity. We have made an attempt at determining the lipophilicity of the iron(III) complexes of the studied compounds, but a precipitate was formed and clogged between the two phases even at lower ligand concentration (100 μM), which hindered the quantitative analysis. Comparing the spectra of the aqueous phase obtained after partitioning for the iron(III) containing samples in buffered solution and in seawater to that of the free ligand, it can be concluded that the unbound ligand-to-complex ratio is significantly changed in the case of the buffered solution. However, in seawater the absorbance values (thus concentration) were significantly decreased in both cases. The spectra recorded for the octanol phases (Fig. S7C and D, ESI) show unambiguously the presence of some iron(III) complexes in the organic solvent in addition to the unbound ligand despite the net charge of the complex even in the case of the seawater with the very high salt content.

Complex formation processes of ligands

The complex formation processes of the ligand 6b with iron(III) were studied primarily by pH-potentiometry in aqueous solution. However, the complexation was found to be sluggish, especially in the acidic pH-range meaning that the equilibrium was not reached within 10 min as also reported for catecholates.50 Therefore UV-Vis spectrophotometry was applied to follow the complexation of 6a–c with iron(III) using longer waiting time in the pH range from 2 to 11 with the exclusion of air; and the process was found to be reversible under this condition. Spectra were recorded in the wavelength range 350–1000 nm where mostly the strong metal-to-ligand charge transfer (CT) bands can be seen and the non-coordinated ligands do not absorb. A representative spectrum series for the iron(III) – 6c (1[thin space (1/6-em)]:[thin space (1/6-em)]3) system is shown in Fig. 3A, which shows characteristic changes upon increasing pH. The λmax values of the main CT band were decreased with increasing pH (Fig. 3B) and a well-isolated isosbestic point is observed at 530 nm at pH > 7.5 showing a clean transformation of a complex to another species, most probably due to the equilibrium between the bis- and tris-ligand complexes. The recorded spectra were deconvoluted resulting in the overall stability constants and the molar absorbance spectra of the [FeL]+, [FeL2] and [FeL3]3− complexes of 6b and 6c (see data in Table 2 and Fig. 3C in the case of 6c). In these complexes most probably the completely deprotonated ligands (L2−) coordinate via an (O,O) donor set as it was reported for the reference compound, catechol, and for other catecholate derivatives.50,53,54 The coordination of the monoprotonated ligand (HL) in the metal complexes is very rare and observed only in compounds isolated from organic solvents;55,56 however, it was also suggested for the iron(III) in mono-ligand complexes of catechol by Hider et al.54 It is noteworthy that intramolecular redox processes between Fe(III)–catecholate and Fe(II)–semiquinone species are known to occur, mostly in the case of the mono complex.45,54,57 In addition existence of dimeric species [Fe2L4]2− of catechol in the pH range of the formation of the bis-complex was also suggested based on Mössbauer spectroscopy. This species was suggested to contain two equivalent sites and a bridging hydroxyl group.54 Spectrophotometry is not an adequate method to distinguish between the formation of [Fe2L4]2− and [FeL2] complexes with the same metal-to-ligand ratio. Therefore two kinds of models could be calculated for the studied systems using the titration data which consist of the formation of the mononuclear or the dinuclear complex, but the latter model gave somewhat poorer fits between the experimental and calculated absorbance values. The calculated molar absorbance spectra and λmax values (Table 2) of the [FeL]+, [FeL2] and [FeL3]3− complexes 6b and 6c are in accordance with literature data related to the catechol complexes.53 Since ligand 6a has lower water solubility compared to the other two studied compounds its complexation with iron(III) was studied via the ligand's bands at lower concentrations (∼200 μM). The measured absorbance values in the absence and the presence of the metal ion (Fig. S3, ESI) were fairly similar suggesting the negligible formation of the iron(III) complexes under these conditions. The coordination of the monodentate phenolate type ligand is very weak similarly to the case of the phenol itself.58 Direct comparison of stability constants (Table 2) and concentration distribution curves calculated for the iron(III) complexes formed with 6b, 6c (Fig. S5A, ESI) and catechol (Fig. S5B, ESI) shows that the studied ligands form somewhat lower stability complexes than catechol. (Notably, direct comparison of the log[thin space (1/6-em)]β values in this case is possible due to the similar stoichiometry of the complexes formed and the similar pKa values of the ligands.) In these cases the predominant formation of the bis complexes is found at neutral and slightly basic pH values. However, the actual speciation at pH 8 depends on the actual metal-to-ligand ratio (Fig. 3D).
image file: c7nj02328f-f3.tif

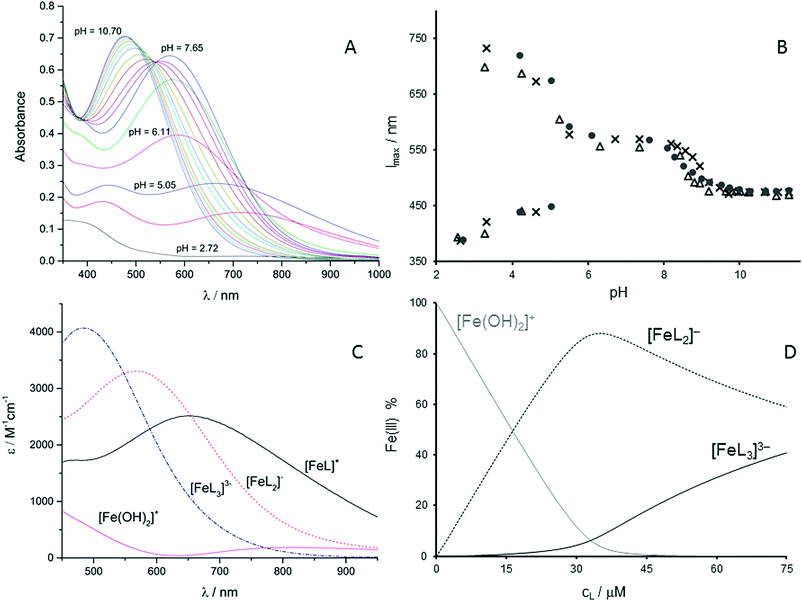

Fig. 3 UV-Vis absorbance spectra recorded for the iron(III) – 6c (1[thin space (1/6-em)]:[thin space (1/6-em)]3) system at various pH values (A) and the λmax values at 1[thin space (1/6-em)]:[thin space (1/6-em)]3 (●), 1[thin space (1/6-em)]:[thin space (1/6-em)]2 (×) and 1[thin space (1/6-em)]:[thin space (1/6-em)]1 (△) metal-to-ligand ratios (B) (cL = 1.06 mM). Calculated molar absorbance spectra of the individual complexes of 6c (C). Concentration distribution curves for the iron(III) – 6c system at various total concentrations of the ligand at a constant concentration of iron(III) and at pH 8.0 (D). (cL = 0–75 μM; cFe(III) = 15 μM; pH = 8.0; I = 0.10 M (KCl); T = 25 °C).
Table 2 Overall and stepwise stability constants (log[thin space (1/6-em)]β, log[thin space (1/6-em)]K) for the iron(III) complexes of 6b and 6c determined by UV-Vis spectrophotometry, λmax and molar absorbance values (ε) of the complexes, and stability constants for the iron(III) complexes formed with catechola for comparison. (T = 25 °C; I = 0.1 M (KCl))
[FeL]+ [FeL2] [FeL3]3−
a Model with the dimeric complex: log[thin space (1/6-em)]β [FeL]+: 18.17 ± 0.02, log[thin space (1/6-em)]β [Fe2L4]2−: 64.43 ± 0.03, log[thin space (1/6-em)]β [FeL3]3−: 39.45 ± 0.02. b Model with the dimeric complex: log[thin space (1/6-em)]β [FeL]+: 18.40 ± 0.02, log[thin space (1/6-em)]β [Fe2L4]2−: 70.34 ± 0.03, log[thin space (1/6-em)]β [FeL3]3−: 43.69 ± 0.02. c Data are taken from ref. 50 (I = ca. 0.15 M; T = 27 °C).
6b log[thin space (1/6-em)]β 18.18 ± 0.02 30.67 ± 0.02 39.66 ± 0.02
log[thin space (1/6-em)]K 18.18 12.49 8.99
λ max (nm)/ε (M−1 cm−1) 614/3200 573/3550 487/4170
6c log[thin space (1/6-em)]β 18.32 ± 0.02 33.13 ± 0.02 43.34 ± 0.02
log[thin space (1/6-em)]K 18.32 14.81 10.21
λ max (nm)/ε (M−1 cm−1) 657/2840 567/3300 482/4070
catecholc log[thin space (1/6-em)]β 20.11 34.80 43.86
log[thin space (1/6-em)]K 20.11 14.69 9.06


In order to compare the metal ion binding abilities of the studied ligands to each other and to catechol or to other iron chelators (such as the catecholate-containing siderophores) pM (p[Fe(III)]) values were calculated and plotted against the pH. p[Fe(III)] is the negative logarithm of the equilibrium concentration of the free metal ion, while p[unbound Fe(III)] values were also computed which show the summed equilibrium concentration of the unbound metal fraction involving the iron(III)-hydroxido species under the conditions employed (cFe(III) = 1 μM, Fe(III)[thin space (1/6-em)]:[thin space (1/6-em)]L = 1[thin space (1/6-em)]:[thin space (1/6-em)]10) (Fig. S6, ESI). These pM–pH curves reveal the following stability trend: 6b < 6c < catechol. p[Fe(III)] values 14.08 and 14.81 were obtained at pH 7.4 for 6b and 6c respectively, which are significantly lower than that of the hexadentate catecholate-type enterobactin (35.5) or the hexadentate hydroxamate-type desferrioxamine B (26.6)59 representing the much weaker iron(III) binding ability of the studied ligands compared to the naturally occurring siderophores.

Algal growth experiments

The understanding of the chemistry of these model compounds in aqueous solution provides useful information for the interpretation of algal studies. In order to evaluate the stability of the iron complexes and dilignol ligands in aqueous solution, time dependent UV-Vis studies in seawater, distilled water and water at pH 8 have been performed. Both complexes 7b and 7c and the ligands 6b and 6c showed changes in their UV-Vis spectra over 24 h in seawater (Fig. S8, ESI) in contrast to 6a (see S9, ESI). The experiments in distilled water revealed no changes in absorbance in all tested compounds (see S10–S12, ESI). The time dependent spectra of 7b and 6a–c in water at pH ∼ 8 (see S13 and S14, ESI), showed also an increase in the same signals as observed in seawater. The same behavior was observed for as time period of 21 days (duration of algal growth tests) and only ligand 6a showed an additional band after 14 days (see S15 and S16, ESI). Those results confirm that the established compounds are sufficiently stable for algal growth experiments. In order to elucidate the bioavailability of the iron complexes 7b,c as well as the free ligands 6a–c to provide bioavailable iron, algal tests on C. salina and P. parvum have been performed. Those two species were intentionally chosen due to their wide occurrence and different biology. C. salina is a representative for unicellular green algae. The species react very sensitive to iron limitation. It has been recently reported, that cultures cultivated without iron or chelator EDTA showed poor growth.26,37,60 The second species P. parvum, is a unicellular haptophyte and this algae is able to grow under photoautotrophic and heterotrophic conditions. The species is also less sensitive to iron deficiency and can adapt to several environmental limitations. Moreover, P. parvum is well known for its toxicity and is a cause of mass fish deaths in coastal waters. Investigating both species may help to understand the alterations in iron uptake and preferences of each algae species towards different iron sources. All algae experiments were carried out in batch cultures, using three different nutrition setups. As full medium, seawater with micronutrient and vitamin solution as well as solution of NaNO3, Na2SiO3, NaH2PO4 as described by Guillard et al.,27 were used (see Table S5, ESI). Those are common conditions for marine algae cultivation. The second set of control samples was lacking EDTA, which serves as chelator for iron and other metal ions. Those are useful negative references to study ligands 6a–c because these samples show the growth of the culture containing inorganic iron without chelating molecules. Third control set enables the evaluation of the culture growth without iron but with chelating molecules. With this control, the impact of other metal ions in solution can be elucidated. Theoretically, if the iron bound in complexes 7b and 7c is not bioavailable, the growth of the culture should be worse than the culture without iron. On the other hand if the ligands 6a–c cannot form bioavailable complexes with iron in solution, the growth of the culture should be comparable with the growth of the culture lacking EDTA.

The growth response of C. salina in the first experiment is shown in Fig. 4. As expected samples treated with medium without EDTA and iron showed poor growth. Samples treated with 6a reached similar low algae concentration confirming that this ligand cannot stabilize iron in solution. This result for 6a is not surprising because former complexation experiments and speciation studies revealed a low affinity of the ligand towards iron. In contrast, 6b,c showed positive impact on the growth of C. salina. In case of 6c two different concentrations were chosen for the experiment. In the standard setup concentrations equal the EDTA concentration were applied. In this case the culture grew better than in samples lacking both EDTA and iron, but worse than in full medium. For the other samples with 6c we used twice higher concentration compared to that of EDTA because one EDTA molecule is able to bind one iron molecule, but at least two dilignols are needed to form a stable Fe(III) complex. For those samples, we observed better growth as for those with standard 6c concentration and even better than in full medium. Although ligand 6b was only used in same concentration (as EDTA), the growth response was similar to algae treated with complex 7b. Those results revealed that 6b is more efficient than the respective complex 7b and ligand 6c. Overall, both ligands 6b and 6c and the complex 7b are able to provide C. salina with bioavailable iron. Treatment with those model compounds showed better growth response than the samples cultivated in full medium. Comparison of the end-algal-concentration in samples treated with 6b, 6c and 7b with our former experiments, where C. salina was treated with isolated AHS, showed similar values. Whereas samples containing AHS grew to 9 × 106 ± 3.6 × 106 cells mL−1 and 10 × 106 ± 6.7 × 105 cells mL−1 in each experiment, samples with model compounds reached approximately 7.7 × 106 ± 1 × 106 cells mL−1. Algae cultures containing complex 7c as iron source reached only half of the concentration of the culture containing 7b (see Fig. S17, ESI). Table S2 (ESI) shows the end concentrations of the samples as well as the relation between the end-algae concentration of control samples to samples treated with model compounds from both experiments with C. salina.


image file: c7nj02328f-f4.tif

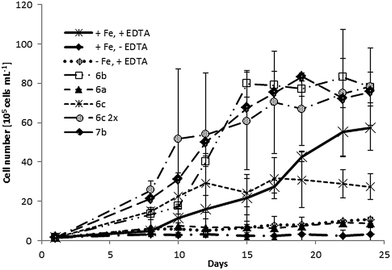

Fig. 4 Growth curves of C. salina (error bars: ±SD) treated with model compounds 6a, 6b, 6c, 6c (2× concentration) and 7b compared to control samples (+Fe, +EDTA; +Fe, −EDTA; −Fe, +EDTA).

Additionally to the maximal algae cell concentration, we also calculated the specific growth rate of algae for all tested compounds after 17 days of each experiment (which was the duration of the algal growth experiment for 7c (Table S3, ESI). Similar to the maximal algae cell concentrations, highest specific growth rates were observed for samples treated with 6b and 7b.

The model ligands were also tested on P. parvum for they ability to bind and supply iron (Fig. S18, ESI). The culture of P. parvum was not as sensitive as C. salina to iron deficiency and we did not observe such pronounced effects on algal growth as for C. salina. In fact, the control with full medium reached almost the same concentration as the control without chelator (EDTA). Ligand 6b was tested in two concentrations, (1× and 2 × c(EDTA)); however, no impact on the final algae concentration was observed. In contrast to the experiments on C. salina samples treated with 6a showed similar growth response as 6b. Ligand 6c displayed the only positive impact on P. parvum in comparison to control with full medium. Overall the end concentrations of P. parvum in the batch culture were significantly lower as the concentration of C. salina. The specific growth rates of algae for all tested compounds after 17 days are shown in Table S4 (ESI). Similar to the maximal algae cell concentrations, highest specific growth rates were observed for samples treated 6c.

Summarizing the algal studies results, some of our herein presented compounds can be seen as suitable models for humic acids regarding the iron transport and ability to supply microorganisms with iron. In all experiments, the algal growth in samples without iron was strongly inhibited. For C. salina typical growth pattern, known from iron enrichment experiments,61,62 was observed.63,64

Conclusions

In this work, the novel dilignols-based models for aquatic humic acids were synthesized and extensively characterized. In order to investigate the redox properties, cyclicvoltammetric measurements were carried out. All of the compounds can be possibly reduced under biological conditions, which is in accordance with the properties of AHS. Various UV-Vis studies were performed in order to elucidate iron(III) complex formation constants, pKa values of the ligands, lipophilicity and the stability of the compounds in aquatic systems, especially in artificial seawater to verify the potential of the developed model to supply marine microorganisms with iron. Regarding the stability of the compounds we observed changes in spectra of the recorded in seawater which were the result of the deprotonation of free catecholic hydroxy groups. Comparison of the pK1 values of 6b,c to 6a revealed a significantly weaker acidity of 6a due to the electron donating effect of the methyl group, while 6b and 6c have pKa values, which are similar to catechol. The lipophilicity studies of the ligands showed that methoxy derivative 6a has more lipophilic character compared to the catecholate derivatives, which have moderate hydrophilic character due to the partial deprotonation at increased pH. Stability constants for the formation of the iron(III) complexes with model ligands were somewhat lower as for catechol whereas no data could be collected for 6a due to its very low affinity towards iron. At neutral and slightly basic pH values bis-complexes were predominant. The iron(III) binding ability of the studied ligands was found to be weaker as for the known siderophores. The ability to supply algae with iron was investigated in algal batch cultures. Ligands 6b,c bearing catecholic moiety showed very good impact on the culture of C. salina and P. parvum comparable with natural AHS and significantly better as for catechol itself. Also experiments on C. salina with isolated iron complexes gave similar results. However, guaiacylglycerol-β-guaiacyl ether did not enhance the growth of C. salina. Those results suggest that catecholic moieties can play an important role for complexation and stabilization of inorganic iron by humic substances.

Conflicts of interest

There are no conflicts to declare.

Acknowledgements

We thank the University of Vienna and the Austrian Science Fund (FWF) (P 25849-N19) for financial support. This work was also supported by the J. Bolyai Research Scholarship of the Hungarian Academy of Sciences (E.A.E.). The research was supported by National Research, Development and Innovation Office-NKFIH through project GINOP-2.3.2-15-2016-00038 and TÉT_15-1-2016-0024.
