Source tracing of natural organic matter bound mercury in boreal forest runoff with mercury stable isotopes

Martin Jiskra*abc, Jan G. Wiederhold*abd, Ulf Skyllberge, Rose-Marie Kronberge and Ruben Kretzschmara
aSoil Chemistry, Institute of Biogeochemistry and Pollutant Dynamics (IBP), ETH Zurich, CHN, CH-8092 Zurich, Switzerland. E-mail: martin.jiskra@gmail.com
bIsotope Geochemistry, Institute of Geochemistry and Petrology (IGP), ETH Zurich, CH-8092 Zurich, Switzerland
cObservatoire Midi-Pyrénées, Laboratoire Géosciences Environnement Toulouse (GET), CNRS-IRD-Université de Toulouse, F-31400 Toulouse, France
dDepartment of Environmental Geosciences, University of Vienna, A-1090 Vienna, Austria. E-mail: jan.wiederhold@univie.ac.at
eDepartment of Forest Ecology and Management, Swedish University of Agricultural Sciences, S-90183 Umeå, Sweden

Received 3rd June 2017 , Accepted 1st August 2017

First published on 2nd August 2017


Terrestrial runoff represents a major source of mercury (Hg) to aquatic ecosystems. In boreal forest catchments, such as the one in northern Sweden studied here, mercury bound to natural organic matter (NOM) represents a large fraction of mercury in the runoff. We present a method to measure Hg stable isotope signatures of colloidal Hg, mainly complexed by high molecular weight or colloidal natural organic matter (NOM) in natural waters based on pre-enrichment by ultrafiltration, followed by freeze-drying and combustion. We report that Hg associated with high molecular weight NOM in the boreal forest runoff has very similar Hg isotope signatures as compared to the organic soil horizons of the catchment area. The mass-independent fractionation (MIF) signatures (Δ199Hg and Δ200Hg) measured in soils and runoff were in agreement with typical values reported for atmospheric gaseous elemental mercury (Hg0) and distinctly different from reported Hg isotope signatures in precipitation. We therefore suggest that most Hg in the boreal terrestrial ecosystem originated from the deposition of Hg0 through foliar uptake rather than precipitation. Using a mixing model we calculated the contribution of soil horizons to the Hg in the runoff. At moderate to high flow runoff conditions, that prevailed during sampling, the uppermost part of the organic horizon (Oe/He) contributed 50–70% of the Hg in the runoff, while the underlying more humified organic Oa/Ha and the mineral soil horizons displayed a lower mobility of Hg. The good agreement of the Hg isotope results with other source tracing approaches using radiocarbon signatures and Hg[thin space (1/6-em)]:[thin space (1/6-em)]C ratios provides additional support for the strong coupling between Hg and NOM. The exploratory results from this study illustrate the potential of Hg stable isotopes to trace the source of Hg from atmospheric deposition through the terrestrial ecosystem to soil runoff, and provide a basis for more in-depth studies investigating the mobility of Hg in terrestrial ecosystems using Hg isotope signatures.



Environmental significance

Our paper illustrates the potential of Hg stable isotopes to trace the source of Hg in terrestrial ecosystems – from atmospheric deposition to runoff. Such a tracer is urgently needed to understand the mechanisms and lag time of Hg transfer through terrestrial ecosystems. Our results of a case study in northern Sweden show that the Hg in the terrestrial ecosystem and runoff is predominantly originating from plant uptake of gaseous elemental mercury and demonstrate the strong coupling of Hg with natural organic matter. Our findings have important implications for the prediction of future Hg levels in natural ecosystems under reduced atmospheric deposition rates, changing environmental conditions, and land use changes.

1 Introduction

Humans are exposed to toxic methyl-mercury (MeHg) primarily through the consumption of fish.1 In Scandinavia, over 60% of all freshwater lakes contain fish with Hg concentrations exceeding the EU guideline for fish consumption.2 Hg enters aquatic ecosystems by direct atmospheric deposition or via catchment runoff from terrestrial ecosystems.1 The prediction of future Hg concentrations in the atmosphere, aquatic environments, and eventually in fish is essential for the assessment of future human Hg exposure through fish consumption. Anthropogenic Hg emissions have led to a 20% increase in the soil Hg pool.3 International efforts to reduce primary anthropogenic Hg emissions, agreed on by the Minamata Convention on Mercury coordinated by the United Nations Environment Programme,4 will result in reduced atmospheric deposition. With the decrease in direct atmospheric Hg(II) deposition related to primary anthropogenic emissions, one can expect an increasing relative contribution of Hg from terrestrial runoff to aquatic ecosystems. Furthermore, increasing temperatures driven by climate change are expected to increase the export of natural organic matter (NOM) from boreal systems5 and accordingly may result in higher Hg export associated with NOM. It is therefore essential to understand the Hg sources and input pathways from terrestrial ecosystems and how they respond to changes in environmental conditions and atmospheric Hg deposition, in order to predict the development of Hg concentrations in aquatic ecosystems. Understanding the Hg transfer from boreal forests to aquatic ecosystems is of special importance because the highest fish Hg concentrations in Sweden and Finland have been observed in regions of boreal coniferous forests.2 Hg forms strong complexes with NOM,6 which has an important role in controlling terrestrial Hg runoff, illustrated by a strong correlation between dissolved Hg concentrations and dissolved organic carbon concentrations.2,7–11 A survey on natural freshwaters from the USA by Babiarz et al. reported that a large fraction of the dissolved Hg (<0.45 μm) is associated with high molecular weight NOM or other colloids (>10 kDa).12 A strong coupling of terrestrial Hg runoff to NOM was also described in studies using terrestrial organic matter biomarkers as tracers for the source of Hg in lake sediments.13,14 MeHg from terrestrial sources was shown to exhibit a higher potential for bioaccumulation than MeHg in sediments.15 Forest management practices were shown to affect both NOM and Hg export to aquatic ecosystems, e.g. through forest harvest (clear-cut), after which increased Hg concentrations in water, zooplankton, and fish have been observed.9,16–20 In two accompanying studies we reported that forest harvest lead to an enhanced MeHg formation in soils and an increased MeHg transport from the same study sites.21,22

The analysis of natural Hg stable isotope signatures provides a promising tool to trace sources and transformations of Hg in the environment.23,24 Atmospheric gaseous elemental mercury (Hg0) and oxidized Hg(II) in precipitation, the two main atmospheric mercury sources for terrestrial ecosystems, are characterized by distinct mass-independent Hg isotope anomalies.25–32 Using the isotopic fingerprints of Hg0 and Hg(II) in precipitation recent studies could show that 60–90% of Hg found in soils originated from the direct deposition of Hg0 through uptake by plants and subsequent litterfall.29,31–34 These findings are in contrast to previous concepts that oxidized Hg(II) in precipitation is the dominant pathway of atmospheric Hg deposition.1,35 In aquatic ecosystems, Hg stable isotope analysis has been successfully applied to trace Hg sources in fish,36–39 e.g., by relating the Hg isotope signature of fish to the signatures of sediments and thereby inferring the contribution of anthropogenic pollution in fish37 or the role of sediments as food source.38 Furthermore, Hg stable isotopes were used to elucidate differences in MeHg sources between terrestrial and aquatic organisms.40–42 To fully understand processes governing Hg transformations and uptake into organisms using Hg stable isotopes it is essential to know the isotopic signature of the Hg source.42 Direct measurements of Hg stable isotope signatures in surface water, the link between the source of Hg and the aquatic organisms, however are limited to few studies.43,44 Only recently, analytical techniques have been developed for the measurement of stable Hg isotopes in natural water samples, based on acid digestion and pre-enrichment on an ion-exchange column44–46 or stannous chloride reduction and purge and trap.25,31,32,47,48 So far aqueous Hg isotope data have been mainly reported for precipitation samples (rain and snow)25–29,47 exhibiting low NOM concentrations.

Here, we developed an alternative method based on an ultrafiltration technique used for pre-enrichment, suitable for water samples with high NOM concentrations (>10 mg L−1) combined with a two-step oven combustion system. This approach may prove useful in many natural aquatic environments, because the transport of Hg is closely linked to NOM and many important Hg transformation processes (e.g., methylation, demethylation, reduction) occur in NOM-rich environments. In this exploratory study we investigated Hg stable isotope signatures of NOM-bound Hg in a boreal forest catchment runoff in northern Sweden and compared it to signatures of different soil horizons, some of them already published previously.33 The study had the following objectives: (i) to develop and validate a pre-enrichment method for the measurement of Hg isotope signatures in water samples with high NOM concentrations, (ii) to investigate if the isotopic signature of catchment runoff is fractionated with respect to the Hg pools in soils, (iii) to trace the source of Hg in boreal catchment runoff back to soil horizons and atmospheric deposition pathways.

2 Experimental section

2.1 Materials and reagents

Polyethylene canisters (25 L) were cleaned in the laboratory with 0.24 M HCl/0.32 M HNO3 (2×) and ultrapure water (>18 MΩ cm, 3×) and rinsed with sample water in the field (3×). All filtration steps were performed with a peristaltic pump (Masterflex I/P, Cole-Parmer) equipped with spallation-free pump-tubing (GORE Style 100SC, Cole-Parmer). All tubing, manometer, valves and fittings were made of Teflon to minimize Hg and NOM sorption. 0.45 μm cross-flow filtration was performed with a 142 mm mixed cellulose ester membrane (HAWP14250, Merck Millipore) on a self-constructed Teflon filter-holder. For ultrafiltration, a hollow-fiber system was used (1 kDa cutoff, Polysulfone, UFP-1-C-9, GE Life Sciences). The filtration system was cleaned by circulating 0.05 M citric acid (pH 2–2.5) and NaOH (0.1 M) for 0.5 h each, to remove iron precipitates and organic matter, respectively, followed by repeated flushing with ultrapure water.

2.2 Study area

Samples were taken from four small catchments (5–30 ha) of boreal forests in northern Sweden close to Junsele (Fig. ESI S3.1, coordinates: 63°50′ N, 17°00′ E), each drained by a first-order stream. Two sites (reference site 1 and 2) were covered by mature (>80 years-old) Norway spruce (Picea abies) forest stands. At two sites (clear-cut site 1 and 2) with similar mature stands, trees were harvested two years before and planted with Norway spruce one year prior to the sampling. All soils were classified as either Podzols or Histosols49 and have been actively drained by ditches dug in the early 1900's to increase forest productivity. Soil profiles were sampled in July 2011 at 5 locations along a transect perpendicular to the first-order stream, as described previously by Jiskra et al.33 The distance from the soil profiles to the stream was between 1 and 72 m (ESI Tables S1 and S2), covering the riparian zone and lower sections of the hillslopes representing the transition between discharge areas and upland prior to forest harvest (reference site 1 and 2) and new discharge areas created after harvest (clear-cut site 1 and 2). Composite samples consisting of 5 soil samples taken within approximately 10 m2 were divided into surface organic horizons (Oe/He), underlying Oa/Ha organic horizons exhibiting a higher degree of humification, and for Podzols mineral E + B horizons. Of the Ha and B horizons only the top 15 and 5 cm were sampled, respectively. Soil Hg isotope signatures of the harvested sites (clear-cut site 1 and 2) are presented for the first time in this publication. Soil Hg isotope signatures from reference site 1 and 2 have been reported previously.33 Water samples from the first-order streams in the runoff of the four boreal forest catchments were collected in September 2012 for Hg isotope and radiocarbon analysis. In addition to the first-order streams, a larger stream draining all of the four catchments (Lillsele stream) and the inlet and outlet of a nearby lake (Västra Kortingvattnet, VK) were sampled (Fig. S1). Water samples for total Hg and dissolved organic carbon (DOC) analysis were taken at 9 occasions during 2011 and 2012 (Fig. S2).21 Reference sites 1 and 2 correspond to the REF1 and REF2 above the postglacial marine limit (ML), and the clear-cut site 1 and 2 correspond to CC2 and CC3 above ML in the studies of Kronberg et al.21,22

2.3 Soil sample preparation

The soil sampling and oven combustion procedure has been described previously by Jiskra et al.33 In short, composite samples were homogenized using a 4 mm cutting sieve, dried in an oven at 45 °C and further homogenized using a rotary disk mill. The sample powder was used for elemental concentration, Hg isotope, and radiocarbon analyses. For Hg isotope analysis, the samples were combusted in a two-stage combustion oven connected to an oxidizing liquid trap, as previously described.33

2.4 Water sample preparation

We developed a sample enrichment procedure for Hg associated with high molecular weight NOM and colloids (size range: 1 kDa to 0.45 μm) based on pre-enrichment by ultrafiltration. For aqueous samples with high NOM concentrations (13.7 to 58.5 mg L−1) with background concentrations of Hg (3.9 to 14.0 ng L−1) and low sulfide concentrations (below detection limit to 0.2 μM) as found in boreal forest runoff of this study,21,22 Hg(II) is mainly complexed to thiol (SH) groups of NOM.6,50,51 Some Hg(II), in particular from the clear-cut sites exhibiting more reducing conditions21,22 might also be present in the form of Hg-sulfide nanoparticles coated with NOM.52 A large fraction of the Hg(II) is associated with high molecular weight NOM or other colloids (>1 kDa)12 and therefore ultrafiltration allows for an enrichment of Hg, together with the >1 kDa fraction in the retentate.

A scheme of the pre-enrichment steps is given in Fig. 1. 50 L of water per sample were transported to the laboratory on the day of sampling and refrigerated at 4 °C (step 1, Fig. 1) until filtration was performed. Samples were filtered within 24 h using a 0.45 μm cutoff crossfiltration membrane to remove particulate matter and bacteria (step 2, Fig. 1). Water samples were then circulated over the tangential flow ultrafiltration system, with water, dissolved ions, and low molecular weight NOM passing through the cutoff (<1 kDa) of the ultrafiltration membrane (permeate). Over time (≈6 h) this led to an enrichment of colloids, mainly characterized by higher molecular weight NOM (>1 kDa) and concomitantly Hg in the remaining fraction (retentate, >1 kDa, <0.45 μm) (step 3, Fig. 1). For the Swedish runoff samples in our study, this process allowed an enrichment of on average 38% (±10%) of the total dissolved (<0.45 μm) Hg in the ≈1 L retentate sample, resulting in an enrichment factor (C(Hg)retentate/C(Hg)feedsolution) of ≈20 compared to the initial Hg concentration (ESI Table S7). The ≈1 L retentate used for Hg isotope analysis was frozen and the remaining water was removed by freeze-drying (ALPHA 2-4 LDplus, Christ) (step 4, Fig. 1). Finally the freeze-dried organic carbon was combusted in the two-stage oven system and total Hg trapped in an oxidizing liquid trap (step 5, Fig. 1), as previously described for soil samples by Jiskra et al.33


image file: c7em00245a-f1.tif
Fig. 1 Schematic overview for the enrichment of Hg in water with high NOM concentration for Hg isotope analysis. Volumes (V) of water samples and mass (m) of solid sample and typical total Hg concentrations (Hgtot). The ratios represent typical enrichments in Hg concentration during ultrafiltration and freeze-drying and dilution during combustion.

During tangential-flow ultrafiltration, the concentration of NOM in the permeate is not only dependent on the membrane cutoff, but also on the NOM concentration in the retentate. Furthermore, membrane fouling occurs over time. Therefore, the fraction of NOM recovered in the retentate depends on the number of cycles the retentate has passed over the membrane. It is important to note that this decrease of the NOM fraction in the retentate with cycle number is associated with the physical performance of the ultrafiltration process and does not imply any change of the molecular structure of the NOM or the speciation of Hg. Therefore the Hg fractions in the retentate were highest in the study by Babiarz et al.12 (5 L feed volume), followed by the SM validation samples (10 L feed volume) and the Swedish runoff samples (50 L feed volume). It is important to note that the Hg fraction in the <0.45 μm to >1 kDa retentate has to be understood as the ultrafiltration method yield and not as a quantification approach of the size fraction between <0.45 μm and >1 kDa in the natural sample. We therefore suggest that the physical enrichment based on molecular size of the NOM did not introduce any methodological artifacts on the Hg isotope composition, even though only a part of the total Hg in the system was enriched together with the higher molecular weight NOM.

To validate the enrichment method, water from a small lake in the peatland Seleger Moor (SM, Rifferswil, Switzerland) with high NOM concentrations (≈33 mg L−1) and low Hg concentration (≪10 ng L−1) was collected. The SM validation samples (10 L) were filtered (0.45 μm) and then spiked with 50, 100, and 250 ng L−1 of our inhouse Hg isotope standard (ETH-Fluka), conditioned for 24 h, and processed as described above. During ultrafiltration (step 3, Fig. 1) the permeate fraction (<1 kDa) and the retentate fraction (<0.45 μm, >1 kDa) were collected separately in addition to a fraction recovered from the ultrafiltration membrane by rinsing with 2 L ultrapure water (rinse).

2.5 Analytical methods

Solutions of the oxidizing liquid trap, containing 1% KMnO4 (w/v) in 10% H2SO4 (v/v) were pre-reduced using 0.66% (w/v) hydroxylamine–hydrochloride (NH2OH–HCl) and diluted to 5 or 2.5 ppb Hg for isotope measurements. Hg isotope signatures were measured using cold vapor generation stannous chloride reduction (CV; HGX-200, Cetac) coupled to a multicollector inductively coupled plasma mass spectrometer (MC-ICPMS) as described in detail previously.33,53,54 Briefly, all Hg masses were measured simultaneously for 108 integration cycles of 5 s. Measured Tl (NIST-997) masses 203 and 205, continuously introduced using a desolvating nebulizer (Apex, Elemental Scientific) were used for instrumental mass bias correction. Hg isotope signatures are reported relative to the bracketing standard (NIST-3133) measured prior to and after each sample. Mass-dependent fractionation (MDF) is reported as δ202Hg (eqn (1)) and mass-independent fractionation (MIF) as Δ199Hg, Δ200Hg, Δ201Hg, and Δ204Hg (eqn (2)–(5)) following previous recommendations of Blum and Bergquist55 and Coplen.56

image file: c7em00245a-t1.tif(1)

Δ199Hg = δ199Hg − (δ202Hg × 0.2520) (2)

Δ200Hg = δ200Hg − (δ202Hg × 0.5024) (3)

Δ201Hg = δ201Hg − (δ202Hg × 0.7520) (4)

Δ204Hg = δ204Hg − (δ202Hg × 1.493) (5)

The regularly measured in-house standard (ETH-Fluka) reproduced with δ202Hg = −1.44‰ ± 0.12‰, Δ199Hg = 0.07 ± 0.05‰, Δ200Hg = 0.01 ± 0.06‰ and Δ201Hg = 0.03 ± 0.06‰ (2σ, n = 21) and the process standard (Montana Soil, NIST-2711), combusted in the oven-enrichment system after every 10 samples reproduced at δ202Hg = −0.12 ± 0.10‰, Δ199Hg = −0.23 ± 0.07‰, Δ200Hg = 0.00 ± 0.04‰ and Δ201Hg = −0.18 ± 0.02‰ (2σ, n = 10), consistent with previously published values.54,57–61 The accurate measurement of Hg isotope signatures in organic soil matrices was validated by measurements of peat samples low in ambient Hg spiked with inorganic Hg(II), consistent with direct measurements of the inorganic Hg(II)-salt (ESI Table S9).33

Total dissolved Hg concentrations were measured using cold vapor atomic fluorescence spectrometry (CV-AFS; Millennium Merlin, PS Analytical) and DOC (<0.45 μm) was measured using a total organic carbon analyzer (TOC, Dimatoc 2000, Dimatec). For solid samples, carbon and nitrogen were measured by a CHNS analyzer (LECO) and the total Hg concentration was measured by combustion atomic absorption spectrometry (LECO AMA-254). Element concentrations (Z > 11) were measured by energy-dispersive X-ray fluorescence analysis (XRF; Spectro-X-Lab 2000, Spectro) of pressed pellets of powdered samples with wax (4 g sample, 0.9 g wax).

Radiocarbon signatures were measured on the soil sample powders and freeze-dried organic carbon of the water samples after pre-enrichment. Samples were graphitized and high precision 14C signatures measured on an accelerator mass spectrometer (AMS, ETH Zurich).62 Since the majority of samples contained post-bomb carbon, the radiocarbon data are reported as fraction relative to modern carbon (F14C) according to Reimer et al.63

2.6 Mixing model

The contribution of litter-derived and precipitation-derived Hg was calculated using a binary mixing model taking into account triple Hg isotope signatures (δ202Hg, Δ199Hg, Δ200Hg) of the litter endmember from the local site and previously published data for Hg in precipitation.33 The Hg contribution of different soil horizons to the catchment runoff was calculated with a mixing model using Hg isotope signatures as tracers. We assumed that the Hg isotope signature in the dissolved phase was a mixture of the different sources, represented by the bulk soil horizon measurements and that there was no Hg isotope fractionation associated with leaching of Hg from the soils. Thus, the signatures of the source pools (Oe/He, Oa/Ha, and E + B horizon) were treated as conservative tracers. The limitations of the conservative tracer approach will be addressed in the discussion. The distribution of the source signals was modeled based on the measured results (average and standard deviation, ESI Table ESI) using the pseudo-random number generation function of Matlab (R2012a, MathWorks) and the contributions of the soil samples were simulated with a Monte Carlo simulation approach (details in ESI).

3 Results

3.1 Validation of pre-enrichment using ultrafiltration

The validation test of the pre-enrichment method using ultrafiltration showed a very good mass balance for the recovery of organic carbon (98–116%) and Hg (93–97%) (Table 1). About 10% of the total organic carbon and Hg was associated with the rinse fraction, likely representing the dead volume in the ultrafiltration system and sorption to the membrane. Based on the good mass balance for DOC and Hg the blank levels are expected to be below 5% of the total Hg of a sample and thus did not have a significant effect on the measured Hg isotope signatures. The retentate of the SM sample spiked with 100 ng L−1 Hg and a retentate of a SM blank sample spiked with 1000 ng L−1 Hg after ultrafiltration were freeze-dried, combusted in the two-stage oven system and analyzed for Hg isotope signatures. The yield of Hg in the trap solution of the oven combustion system compared to the amount of Hg in the retentate was 83% for the 100 ppt spiked SM sample and on average 88% (±14%) for the boreal runoff samples (ESI Table S7). The Hg isotope signature of the ETH-Fluka standard spiked to the SM water and processed by the ultrafiltration, freeze-drying and two-stage oven combustion method was identical within analytical uncertainty (2 SD) to the results of the directly measured ETH-Fluka standard (Table 1), confirming that the enrichment procedure did not cause any Hg isotope fractionation. We therefore conclude that the sample enrichment using ultrafiltration is a suitable method to measure Hg isotope signatures of aqueous samples with high NOM concentrations.
Table 1 Validation of mercury enrichment method by ultrafiltration for the measurement of Hg isotope signatures in aqueous samples with high DOC concentrations: samples from Seleger Moor (SM) in Switzerland spiked with different concentrations of Hg (in-house isotope standard, ETH-Fluka), size fraction, DOC and Hg concentration and percentage relative to total for the relevant fractions, and Hg isotope signatures
  Fraction Size Amount (L) DOC (mg L−1) DOC (% total) Hg (ng L−1) Hg (% total) δ202Hg (‰) Δ199Hg (‰) Δ200Hg (‰) Δ201Hg (‰) Δ204Hg (‰)
a Spiked to retentate after ultrafiltration.b Direct measurements of 2.5 or 5 ppb standard solution in this study (ETH-Fluka), n = 26.c Ref. 54, n = 16.d nd = not determined.e This sample was freeze-dried in a close-neck bottle for 500 h resulting in a lower yield and higher δ202Hg value compared to the other standard and samples that were freeze-dried in large surface flasks for 96–120 h.
SM-blank Total <0.45 μm 10 33   <10
Permeate <1 kDa 9 10 27 <10 ndd
Retentate <0.45 μm, >1 kDa 1 147 44 11 ndd
SM-50 ppt Hg Total <0.45 μm 10 33   49
Permeate <1 kDa 9 9 25 <10 ndd
Retentate <0.45 μm, >1 kDa 0.95 225 65 427 83 −1.25e 0.11 0.05 0.05 −0.11
Rinse ndd 2 16 10 27 11
Recovery       100   94
SM-100 ppt Hg Total <0.45 μm 10.5 33   111
Permeate <1 kDa 8.8 19 47 32 24
Retentate <0.45 μm, >1 kDa 1.08 213 66 672 63 −1.37 0.12 0.03 0.02 −0.04
Rinse ndd 2 6 3 36 6
Recovery       116   93
SM-250 ppt Hg Total <0.45 μm 10 33   249
Permeate <1 kDa 9 8 22 9 3
Retentate <0.45 μm, >1 kDa 0.89 239 65 2310 82
Rinse ndd 2 17 10 143 12
Recovery       98   97
SM-1000 ppt Hga Retentate <0.45 μm, >1 kDa 0.94     1064   −1.35 0.09 0.04 0.02 −0.05
ETH-Flukab Average             −1.44 0.07 0.01 0.03 0.00
2 SD             ±0.12 ±0.06 ±0.06 ±0.06 ±0.10
ETH-Flukac Average             −1.38 0.08 0.02 0.03 −0.02
2 SD             ±0.09 ±0.03 ±0.02 ±0.04 ±0.05



3.2 Hg isotope signatures in clear-cut soils and catchment runoff

For all four forest sites, Hg associated with NOM in catchment runoff had negative δ202Hg (−2.29‰ to −1.99‰), Δ199Hg (−0.42‰ to −0.33‰) and Δ200Hg values (−0.12‰ to −0.01‰) (Fig. 2a, d, f and i). Hg isotope signatures in soil samples of clear-cut sites were characterized by isotopically light δ202Hg values (MDF, δ202Hg = −2.48‰ to −1.64‰), a depletion in odd-mass isotopes (odd-MIF, Δ199Hg = −0.49‰ to −0.31‰) and small negative even-MIF (Δ200Hg = −0.08‰ to 0‰) (Table 2, Fig. 2d and i). The δ202Hg, Δ199Hg and Δ200Hg signatures of the clear-cut soil and runoff samples were in the range of the Hg isotope signatures measured in the soils of the same boreal forest catchments33 (δ202Hg = −2.56‰ to −1.55‰ and Δ199Hg = −0.48‰ to −0.24‰)33 (Fig. 2a, d, f and i) and consistent with other observations in soils, generally reporting negative δ202Hg and Δ199Hg values.29,31,32,34,64,65 The water sample of the larger Lillsele stream had MDF (δ202Hg = −2.01‰) and MIF (Δ199Hg = −0.33‰) signatures similar to the four runoff samples from the boreal catchments which are draining into the Lillsele stream (Table 3). Also the lake inlet (VK-inlet) had MDF (δ202Hg = −1.76‰) and MIF (Δ199Hg = −0.25‰) signatures similar to the runoff samples from the boreal catchments (Table 2). The δ202Hg signature of the lake outlet, representing the mixed lake water (VK-outlet), was similar to the lake inlet (δ202Hg = −1.92‰), however its Δ199Hg signature was different from all soil and runoff samples (Δ199Hg = 0.04‰). All soil and natural water samples had a Δ199Hg/Δ201Hg ratio of ≈1 within analytical uncertainty and the samples did not exhibit an anomaly in Δ200Hg (Table 3). The radiocarbon signature (F14C) in the runoff (1.10 and 1.11 for reference site 1 and 2, respectively, Fig. 2b and g) indicated that the presence of post-bomb carbon was similar to the radiocarbon signatures measured for the organic topsoil horizons Oe/He (1.12 ± 0.01 for both sites) and different from the underlying organic Oa/Ha (0.95 ± 0.06 and 1.20 ± 0.05) and mineral E + B (1.01 ± 0.04 and 1.05 ± 0.05) horizons (ESI Table S4). We did not observe any statistical difference in F14C between the bulk soil and the extracted humic acid fraction of selected soil samples (Fig. S5), supporting that the F14C leaching from a soil horizon is similar to its bulk F14C signature. The Hg[thin space (1/6-em)]:[thin space (1/6-em)]C ratios in the catchment runoff was generally lower (average of all 4 sites: 0.31 μg g−1) than in the soils. The Hg[thin space (1/6-em)]:[thin space (1/6-em)]C ratio in soil increased with soil depth from the uppermost horizons (Oe/He, average: 0.42 μg g−1) to the underlying organic Oa/Ha (average: 0.68 μg g−1) and mineral E + B (average: 1.21 μg g−1) horizons (Fig. 2c, e, h, and j, Table S2).
image file: c7em00245a-f2.tif

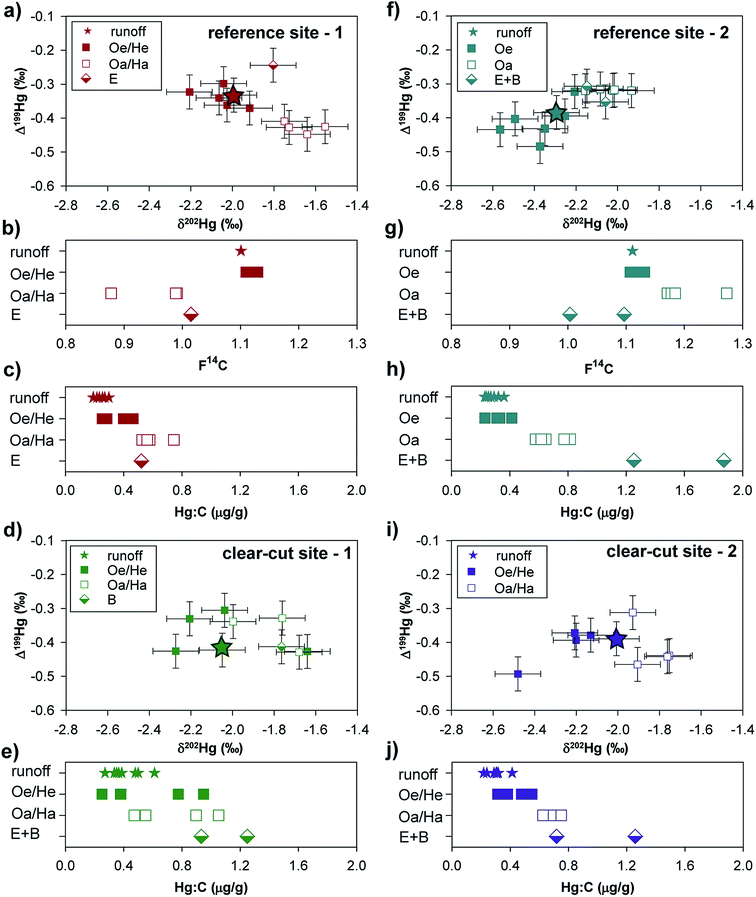

Fig. 2 Water sample results (stars) of catchment runoff in comparison with major pools of boreal forest soils in four sites (two intact forests (reference site 1 and 2) and two harvested forest sites (clear-cut site 1 and 2)): Hg isotope signatures (δ202Hg vs. Δ199Hg, panels a, d, f and i), radiocarbon signatures (F14C, panels b and g) and Hg to carbon ratios (Hg[thin space (1/6-em)]:[thin space (1/6-em)]C, panels c, e, h and j). Soil data from clear-cut sites are from this study, soil data of reference sites are from Jiskra et al.33
Table 2 Hg isotope data of soil samples from clear-cut sites. Samples were taken from 5 soil profiles with increasing distance to the stream (P1 to P5). The soil samples are categorized as Oe/He for the organic surface horizons, Oa/Ha for underlying more decomposed organic horizons, and B for the mineral horizon
Sample δ202Hg (‰) Δ199Hg (‰) Δ200Hg (‰) Δ201Hg (‰) Δ204Hg (‰) Δ199Hg/Δ201Hg
Clear-cut site – 1
P2-He −1.64 −0.43 −0.03 −0.40 0.02 1.08
P3-Oe −2.21 −0.33 −0.01 −0.32 0.07 1.03
P4-Oe −2.27 −0.43 −0.03 −0.43 0.11 0.98
P5-Oe −2.04 −0.31 0.00 −0.28 0.03 1.08
P2-Ha −1.68 −0.43 −0.08 −0.43 −0.03 1.00
P3-Oa −1.76 −0.33 −0.06 −0.28 0.10 1.16
P4-Oa −2.00 −0.34 −0.01 −0.34 0.10 0.99
P5-B −1.76 −0.41 −0.03 −0.40 0.05 1.04
[thin space (1/6-em)]
Clear-cut site – 2
P2-He −2.48 −0.49 −0.02 −0.46 0.07 1.08
P3-He −2.20 −0.39 −0.07 −0.38 −0.04 1.02
P4-He −2.13 −0.38 −0.05 −0.34 0.02 1.12
P5-Oe −2.21 −0.37 −0.04 −0.29 −0.01 1.29
P2-Ha −1.91 −0.47 −0.07 −0.39 −0.01 1.19
P3-Ha −1.75 −0.44 −0.03 −0.38 0.04 1.17
P4-Ha −1.76 −0.44 −0.02 −0.44 −0.02 1.01
P5-Oa −1.93 −0.31 −0.06 −0.33 0.03 0.95


Table 3 Water samples: sampling date, dissolved organic carbon (DOC), total dissolved Hg (Hgtot), mercury to carbon ratio (Hg[thin space (1/6-em)]:[thin space (1/6-em)]C), radiocarbon signature (F14C) and mercury isotope signatures (±2σ)
Name Date DOC (mg L−1) Hgtot (ng L−1) Hg[thin space (1/6-em)]:[thin space (1/6-em)]C (μg g−1) F14C δ202Hg (‰) Δ199Hg (‰) Δ200Hg (‰) Δ201Hg (‰) Δ204Hg (‰)
Reference site – 1 20.09.2012 30 9.2 0.31 1.101 −1.99 ± 0.12 −0.33 ± 0.05 −0.07 ± 0.05 −0.36 ± 0.07 −0.08 ± 0.11
Reference site – 2 24.09.2012 20 6.8 0.34 1.111 −2.29 ± 0.12 −0.38 ± 0.05 −0.03 ± 0.05 −0.29 ± 0.07 0.09 ± 0.11
Clear-cut site – 1 24.09.2012 17 10.5 0.60   −2.05 ± 0.12 −0.42 ± 0.05 −0.12 ± 0.05 −0.25 ± 0.07 0.11 ± 0.11
Clear-cut site – 2 20.09.2012 34 10.6 0.31   −2.01 ± 0.12 −0.39 ± 0.05 −0.03 ± 0.05 −0.41 ± 0.07 −0.12 ± 0.11
Lillsele stream 28.09.2012 24 6.6 0.27   −2.01 ± 0.12 −0.33 ± 0.05 −0.01 ± 0.05 −0.35 ± 0.07 0.12 ± 0.11
Lake inlet 28.09.2012 18 5.5 0.30   −1.76 ± 0.12 −0.25 ± 0.05 −0.01 ± 0.05 −0.29 ± 0.07 −0.06 ± 0.11
Lake outlet 28.09.2012 11 4.2 0.39   −1.92 ± 0.12 0.04 ± 0.05 −0.02 ± 0.05 −0.04 ± 0.07 −0.08 ± 0.11


4 Discussion

4.1 Hg isotope signatures of boreal catchment runoff

The runoff samples were collected on days with no precipitation (Fig. S4) and the runoff represented moderate to high flow conditions, typical for fall.21 Precipitation, a potentially important source for Hg in soil runoff, was previously observed to have a Hg isotope signature (δ202Hg = −1.7‰ to 0.5‰ and Δ199Hg = −0.1‰ to 1.1‰, 5 to 95 percentile, <25 ng L−1, n = 58)25–29,31 which is distinct from the soil and runoff samples. Using the binary mixing model between litter- and precipitation-derived Hg based on triple Hg isotope signatures (δ202Hg, Δ199Hg, Δ200Hg) established in Jiskra et al.,33 we calculated the contribution of precipitation-derived Hg in the runoff samples. The calculated contribution of precipitation-derived Hg in runoff samples was on average 13% (±5%) for all sites and thus not significantly different from the average contribution of precipitation-derived Hg reported for the soil samples (average 10%).33 Systematically positive anomalies on the even-mass isotopes (average Δ200Hg = 0.27‰) were reported for precipitation,25–29,31 whereas atmospheric Hg0 is associated with slight negative Δ200Hg values (average −0.05‰).25,30–32,66 Foliar uptake of atmospheric Hg0 is associated with a large MDF fractionation towards negative δ202Hg values, whereas there is no fractionation in Δ199Hg and Δ200Hg.29,31,67 As potential post-deposition processes (e.g. re-emission) appear not to affect Δ200Hg isotope signatures, it has been suggested that Δ200Hg isotope signatures are a robust fingerprint to trace atmospheric sources in terrestrial31 and aquatic68 ecosystems. The significant negative Δ200Hg anomalies in soil (p < 0.01, z-test) and runoff (p < 0.01, z-test) samples (Fig. 3) provide strong support that atmospheric Hg0, and not precipitation-derived HgII represents the dominant source of atmospheric Hg deposition for the boreal forest catchment studied here. This finding is in agreement with the calculated low contribution of precipitation-derived Hg in the runoff samples. We therefore conclude that at days without rainfall and at moderate to high flow conditions prevalent during the sampling period in September 2012, NOM-bound Hg in runoff was dominated by Hg mobilized from the soil horizons and additional direct runoff of precipitation-derived Hg played no significant role. This is in agreement with hydrological studies showing that runoff during rain events in fall is dominated by “old soil water” in these types of boreal forest catchments dominated by Podzols/Histosols along riparian zones of streams.69 The sample of the nearby lake studied here and other lake samples from Ontario, Canada43 (Fig. 3) were characterized by stable Hg isotope signatures that suggest higher contributions (16 ± 10% for the nearby lake and 42 ± 26% for Ontario) of precipitation-derived Hg.
image file: c7em00245a-f3.tif

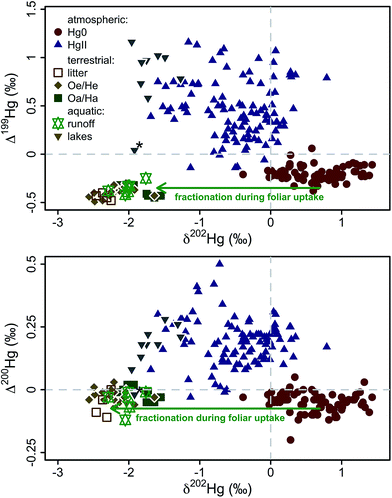

Fig. 3 Comparison of terrestrial Hg isotope signatures (litter, soil) and runoff of the boreal forest catchment studied here and in Jiskra et al.33 with previously published values for atmospheric gaseous elemental Hg0 and oxidized Hg in precipitation HgII.25–32 The lake sample marked with * is from the lake close to the boreal forest catchment, all other lake samples are from Ontario, Canada published by Chen et al.43 The Hg isotope fractionation trajectory associated with foliar uptake of Hg0 is marked by the arrow.29,31 Measurement uncertainties (2 SD) were typically below 0.2‰ for δ202Hg and below 0.1‰ for Δ199Hg and Δ200Hg (details in original literature).

The Hg in the catchment runoff could potentially be affected by Hg isotope fractionation caused by secondary processes resulting in an offset of the runoff isotope signature compared to the soils. In case the mobilization of Hg from the soil would be controlled by an exchange of Hg between NOM in soils and NOM in runoff, involving inorganic Hg(II) complexes in solution, an enrichment of heavy isotopes in the dissolved phase would be expected as observed for Hg(II) sorption to thiol-groups.53 However, the process of Hg desorption from natural organic matter (NOM) has been shown to be very slow,70 and therefore it appears more plausible that Hg is mobilized from soils along with NOM, while the strong Hg(II)–NOM complexes remain intact. Reductive loss of Hg during transport from the soil to the runoff could represent another plausible cause for Hg isotope fractionation; however the samples were taken in very small creeks and the exposure time to sunlight was minimal. Furthermore, all known reduction mechanisms cause an enrichment of lighter isotopes in the reduced Hg0 phase.71–73 Both of these potential secondary processes would lead to heavier δ202Hg isotope signatures in the runoff, however we see no evidence for secondary processes in the runoff samples which were characterized by relatively light δ202Hg values (δ202Hg = −1.99‰ to −2.29‰). A third potential secondary process would be the change in speciation during transfer in the runoff or sample processing from HgS nanoparticles to thermodynamically more stable Hg-SH complexes with NOM. The Hg isotope fractionation between dissolved Hg(II) and thiol-bound Hg53 and Hg-sulfide61 is very similar (−0.6‰ in δ202Hg with respect to aqueous Hg(II)). We therefore expect that the potential change in speciation between Hg-SH and Hg-S does not lead to a significant change in the δ202Hg isotope signature of the runoff. As the Hg isotope signatures of the runoff samples were in the range of the soil samples we suggest that effects from Hg isotope fractionation caused by secondary processes were negligible and that stable Hg isotopes have the potential as tracer to elucidate source and flow pathways of Hg. We therefore used a mixing model to describe the contributions of different soil horizons, exhibiting distinct end-member signatures, to the Hg in the runoff. All runoff data were well described by a mixing of Hg isotope signatures from different soil horizons. The results of the mixing model suggest that for most of the sites the majority of the Hg originated from the surface Oe/He horizons with 71 ± 17% and 58 ± 18% for the reference sites 1 and 2, and 55 ± 25% and 48 ± 22% for the clear-cut sites 1 and 2, respectively. The remaining fraction (28–52%) originated from the deeper more humified organic Ha/Oa horizon and the mineral E + B horizon (Fig. 4a, ESI Table S6).


image file: c7em00245a-f4.tif

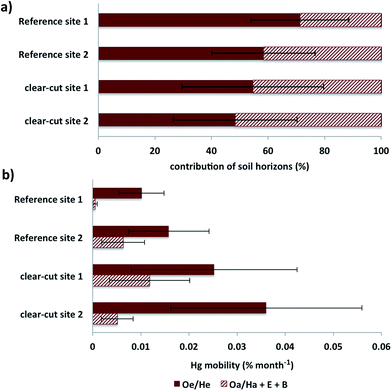

Fig. 4 Role of soil horizons in catchment runoff calculated from stable Hg isotope signatures using a conservative mixing model (details in ESI): (a) contribution of soil horizons to catchment runoff based on Hg isotope signatures, (b) mobility of Hg during moderate to high flow conditions (September 2012) relative to Hg pool sizes in different soil horizons.

4.2 Comparison of Hg isotope signatures to radiocarbon signatures and Hg[thin space (1/6-em)]:[thin space (1/6-em)]C ratios

The radiocarbon signatures (F14C) of NOM in the runoff of two reference sites were identical to the radiocarbon signatures reported for the Oe/He horizons33 (Fig. 2b and g). A high fraction of NOM in runoff originating from uppermost Oe/He horizons would be in agreement with a lysimeter study, reporting that Oe horizons of Podzols are the dominant source for NOM in soil leachates.74 Another study on boreal spruce forests in Sweden, however, indicated that NOM in soil solution collected from mineral B horizons was derived from the mineral horizon itself.75 Despite the fact that there are large stocks of old carbon (100 to 1000 years, F14C < 1) mainly in Ha horizons of Histosols,33 the runoff was characterized by the presence of post-bomb carbon (F14C > 1, Fig. 2), and thus dominated by young NOM from the Oe/He horizons, in agreement with previous findings based on radiocarbon signatures.76–78 NOM has a governing role for the mobility of Hg in soils, based on the high binding affinity of thiol groups in organic matter for Hg(II).6 We observed an increase of the Hg[thin space (1/6-em)]:[thin space (1/6-em)]C ratios with soil depth both in the clear-cut samples presented here and the reference samples presented in Jiskra et al.,33 similar to previous observations.7,79–82 The Hg[thin space (1/6-em)]:[thin space (1/6-em)]C ratios of the runoff samples were similar to the Hg[thin space (1/6-em)]:[thin space (1/6-em)]C ratios of the Oe/He horizons of the corresponding catchment (Fig. 2c, e, h and j) and generally lower than Hg[thin space (1/6-em)]:[thin space (1/6-em)]C ratios in the Oa/Ha and mineral horizons.

Many studies observed a correlation between dissolved Hg and NOM concentration.7–11,83 Based on this correlation, it has been suggested that it may be possible to trace the origin of Hg to soil horizons by comparing the Hg[thin space (1/6-em)]:[thin space (1/6-em)]C ratios in the runoff with Hg[thin space (1/6-em)]:[thin space (1/6-em)]C ratios of the solid phases.7 However, other studies have observed independent dynamics of Hg and NOM, e.g., after snowmelt.84 We observed slightly lower Hg[thin space (1/6-em)]:[thin space (1/6-em)]C ratios in the runoff compared to the uppermost Oe/He horizons. This difference might originate from a larger mobility of young NOM derived from the decomposition of fresh litter which exhibits the lowest Hg[thin space (1/6-em)]:[thin space (1/6-em)]C ratios. With our sampling strategy, where we sampled discrete soil horizons of 5 to 15 cm thickness, we are not able to resolve younger and potentially more mobile soil pools. The lower Hg[thin space (1/6-em)]:[thin space (1/6-em)]C ratios observed in the runoff speak against a preferential leaching of HgS nanoparticles from soils to runoff, where one would expect higher Hg[thin space (1/6-em)]:[thin space (1/6-em)]C ratios in the terrestrial runoff.

In our study, the fingerprint of Hg isotope ratios, a potential tracer for the Hg source, the radiocarbon signature, a tracer for the NOM source, and the Hg[thin space (1/6-em)]:[thin space (1/6-em)]C ratio in the runoff samples were all in good agreement with the respective fingerprints of the Oe/He horizons (Fig. 3a). The similarity of the three signatures affirms the strong link between NOM and Hg.

4.3 Mobility of Hg in boreal forest soils

We calculated the mobility of Hg from the different soil horizons as percentage of monthly outflow relative to the total soil horizon pool (Fig. 4b) based on estimates for the Hg pool sizes in the soils by Kronberg et al.22 (ESI Table S5) and the source contribution modeled with the Hg isotope signatures (ESI Table S6). The organic topsoil horizons Oe/He showed a Hg mobility between 0.01 and 0.04% per month at all four investigated sites (Fig. 4b). The mobility of the underlying organic Oa/Ha and the mineral B horizons was consistently lower at all four sites (Fig. 4b). However only the difference of reference site 1 was statistically significant (p < 0.05, z-test). With time the more mobile fraction of NOM is washed out of the system and the remaining fraction of NOM in Oa/Ha horizons is characterized by a higher degree of humification, and might therefore have a reduced potential for mobilization of NOM and Hg. Furthermore, the hydraulic conductivity of boreal soils has been reported to decrease with soil depth, allowing higher lateral flow in the uppermost soil horizons.69,85–88 The very low Hg mobility in the Histosol Ha horizon at reference site 1 (≈0.0005% per month) is likely related to the low hydraulic conductivity of peat soils,88 hampering the transport of water through the Ha horizon to the runoff. In contrast, the expected higher hydraulic conductivity of Podzol Oa horizons at reference site 2 can be assumed to allow a higher transport to the runoff. This would be in line with the constant fraction of precipitation-derived Hg in the deeper Histosol Ha horizons, compared to an accumulation of precipitation-derived Hg over time through vertical infiltration in the deeper Podzol Oa and B horizons observed by Jiskra et al.33 It has to be considered that the above discussed mobility is based on a single sampling event at “mid-fall runoff conditions” condition. Further in-depth investigations on seasonal trends are needed to assess the overall mobility of Hg in such ecosystems.

4.4 Effects of forest harvest

We have previously reported that forest harvest of the clear-cut sites 1 and 2 have led to an increase in MeHg concentration in the soil pool from <1% to ≈7%.21,22 Comparing the bulk Hg isotope composition in the soil horizons (Oe/He and Oa/Ha, Table 2) of the clear-cut sites with the respective soil horizons of the reference sites 1 and 2,33 we find no significant difference between the two sites (p > 0.4, t-test). We conclude that the processes associated with forest harvest did not affect the large bulk soil Hg pool in the two years between clear-cut and soil sampling to an extent that would alter the Hg stable isotope signatures. The harvesting of forest by clear-cutting has been shown to have significant effects on MeHg concentrations in the catchment runoff and in biota of the associated aquatic ecosystems.9,16–22 Forest clear-cut and site preparation has been shown to enhance the NOM mobilization and runoff flux compared to intact reference sites.21,89,90 The Hg isotope signatures in the runoff of clear-cut sites could potentially indicate a higher contribution of Hg from underlying Oa/Ha horizons (≈50%) as compared to the reference sites (Fig. 3), however this difference was not significant. Similarly, radiocarbon signatures revealed a mobilization of old carbon from peat soils impacted by land-use change.78,91 Higher sample sizes would be needed to get a conclusive result on the effect of forest harvest on the mobilization of Hg from lower soil horizons.

5 Conclusion

Using a pre-enrichment method based on ultrafiltration, we measured Hg isotope signatures of Hg associated with high molecular weight NOM from boreal forest runoff. Whereas the analytical pre-enrichment technique presented here has proven useful to analyze Hg isotope composition in NOM-rich water, it relied on large sample quantities and was very labour intensive. The application of the ultrafiltration technique will allow to further investigate specific questions on the shuttling of Hg by NOM, and analyzing Hg isotopes in natural surface water with high NOM concentration. In order to process larger quantities of samples and analyze Hg isotopes in surface waters exhibiting lower NOM concentrations alternative approaches, e.g. based on purge and trap methods might prove more suitable. We found that the Hg isotope signatures in the boreal soil runoff were very similar to the Hg isotope signatures of the surrounding soils and conclude that the majority of Hg in the runoff originates from the deposition of atmospheric Hg0 through vegetation uptake. We suggest that the different Hg isotope signatures found in different soil horizons can be useful to assess the contribution of different soil horizons to terrestrial runoff. This approach might serve very useful to assess the future development of Hg loads in runoff with changing atmospheric Hg concentrations and climatic conditions. The exploratory data on Hg isotope signatures in runoff from boreal forest soils presented here do not allow extrapolation to global scale, as they are limited on a temporal and spatial resolution. The findings however illustrate the potential of Hg stable isotopes to trace the source of Hg from atmospheric deposition through a terrestrial ecosystem. River fluxes, transporting terrestrial and anthropogenic Hg, represent an important Hg source to the oceans.92,93 Foliar uptake of atmospheric Hg0 was found to be the dominant atmospheric deposition pathway to many terrestrial ecosystems around the globe.29,31–34,94 As a result, soils are generally characterized by negative δ202Hg values from the isotopic fractionation during foliar uptake and Δ199Hg and Δ200Hg values similar to atmospheric Hg0.29,31–34,94 This characteristic “terrestrial” isotopic fingerprint has the potential to trace the contribution of terrestrial Hg e.g. to living biota40,42,95 or sediments in lakes68 and the ocean.96,97
