Two new phases in the ternary RE–Ga–S systems with the unique interlinkage of GaS4 building units: synthesis, structure, and properties

Hua Lin a, Jin-Ni Shen b, Wei-Wei Zhu c, Yi Liu *c, Xin-Tao Wu a, Qi-Long Zhu *a and Li-Ming Wu *ad
aState Key Laboratory of Structural Chemistry, Fujian Institute of Research on the Structure of Matter, Chinese Academy of Sciences, Fuzhou, Fujian 350002, People's Republic of China. E-mail: liuyimse@zju.edu.cn; qlzhu@fjirsm.ac.cn; liming_wu@fjirsm.ac.cn
bCollege of Materials Science and Engineering, Fuzhou University, Fujian 350108, People's Republic of China
cState Key Laboratory of Silicon Materials, School of Materials Science and Engineering, Zhejiang University, Hangzhou 310027, People's Republic of China
dKey Laboratory of Theoretical and Computational Photochemistry, Ministry of Education, College of Chemistry, Beijing Normal University, Beijing 100875, People's Republic of China

Received 13th July 2017 , Accepted 11th September 2017

First published on 11th September 2017


Two novel ternary rare-earth chalcogenides, Yb6Ga4S15 and Lu5GaS9, have been prepared by solid-state reactions of an elemental mixture at high temperatures. Their structures were determined on the basis of single-crystal X-ray diffraction. Yb6Ga4S15 crystallizes in the monoclinic space group C2/m (no.12) [a = 23.557(2) Å, b = 3.7664(4) Å, c = 12.466(1) Å, β = 90.915(9)°, V = 1105.9(2) Å3 and Z = 2], whereas Lu5GaS9 crystallizes in the triclinic space group P[1 with combining macron] (no.2) [a = 7.735(3) Å, b = 10.033(4) Å, c = 10.120(4) Å, α = 106.296(4)°, β = 100.178(5)°, γ = 101.946(3)°, V = 714.1(5) Å3 and Z = 2]. Both the structures feature complicated three dimensional frameworks with the unique interlinkages of GaS4 as basic building units. Significantly, photo-electrochemical measurements indicated that title compounds were photoresponsive under visible-light illumination. Furthermore, the UV–visible–near IR diffuse reflectance spectra, thermal stabilities, electronic structures, physical properties as well as a structure change trend of the ternary rare-earth/gallium/sulfur compounds have been evaluated.


Introduction

Recently, quaternary chalcogenides that contain a rare-earth metal together with a group 13 main-group metal (e.g., Ga and In) are of great interest due to their fascinating structural chemistry and interesting physical properties including magnetic, photo-response, photoelectric, and nonlinear optical (NLO) properties.1–18 For example, 1D infinite anionic chains containing the compound Ba2REMQ5 (RE = rare-earth metal; M = Ga, In; Q = S, Se, Te) offer flexibility in band gap engineering by controlling the composition and show weak short-range antiferromagnetic interactions between the adjacent RE3+ cations.7,9,10 La3CuGaSe7 contains interesting isolated [CuSe3]4− pyramids and [GaSe4]5− tetrahedra and exhibits interesting centrosymmetric photo-response behaviour.15 The CuIn1−xCexTe2 film shows excellent photoelectric properties and has potential applications as a competent absorber material in photovoltaic devices.16 Non-centrosymmetric Sm4GaSbS9 and La4InSbS9 exhibit very strong powder second harmonic generation (SHG) responses in the IR range, indicating that they are promising candidates for laser frequency conversion applications.5,6

Compared with the extensive research studies on quaternary systems, the studies on ternary rare earth metal/gallium/sulfur (RE/Ga/S) compounds are relatively scarce. The existing examples are limited to only REGa2S4 (RE = Sm, Eu, Yb),19 LaGaS3,20 RE6Ga3.33S14 (RE = La–Nd, Sm–Tb, Y),21 and RE3GaS6 (RE = Dy, Ho, Er, Y).22 From the structure point of view, all of them contain GaS4 tetrahedra as the basic building units (BBUs), which can be further interlinked by multi-connection ways with the S atoms to create a 0D cluster, infinite 1D chain, or a 2D layer. More interestingly, the Ga–S sub-structure in these known ternary RE/Ga/S compounds decreases as the RE/Ga atomic ratio increases. For example, as the RE/Ga atomic ratio increases from 0.5 (for the REGa2S4 type) to 1.0 (for LaGaS3) and then to 3.0 (for the RE3GaS6 type), the Ga–S sub-structure decreases from the 2D layer to the 1D zigzag chain and then to the 0D monomeric GaS4 cluster (shown below). Such results inspire us to make further efforts to synthesize new compounds in a related system by adjusting the RE/Ga atomic ratio, especially to some extreme ratios.

In this study, our detailed exploratory investigation has led to the discovery of two novel sulfides Yb6Ga4S15 and Lu5GaS9 representing the new structure types in the RE/Ga/S system. The RE/Ga atomic ratio of 5.0 in the latter breaks the known high limit. The discrete dimeric (GaS4)2 tetrahedra were periodically embedded within the 3D Lu–S covalent channel. Whereas in the former, the RE/Ga atomic ratio of 1.5 lies between the known 1.0 (LaGaS3) and 1.8 (RE6Ga3.33S14 type), and it contains an unprecedented 1D GaS4 double-tetrahedron-chain. In addition, the syntheses, single crystal analyses, optical band gaps, and magnetic and photo-electrochemical properties as well as electronic structures based on VASP calculations are reported.

Experimental section

Materials and instrumentation

All of the reactants were from commercial sources and used without further purification. Yb (3N) and Lu (3N) were purchased from Huhhot Jinrui Rare Earth Co., Ltd. Ga (5N) and S (5N) were purchased from Alfa Aesar. Microprobe elemental analyses were performed on a field emission scanning electron microscope (FESEM, JSM6700F) equipped with an energy dispersive X-ray spectroscope (EDX, Oxford INCA). Powder X-ray diffraction (PXRD) patterns (Cu-Kα) were collected on a Rigaku MiniFlex II powder diffractometer. The solid-state optical absorption spectra were recorded at room temperature using a PerkinElmer Lambda 950 UV–Vis spectrophotometer and BaSO4 was used as a standard. The thermal stability analyses were performed on a NETZSCH STA 449C simultaneous analyser under a nitrogen atmosphere. Magnetic susceptibility measurements were carried out using a Quantum Design PPMS-9T magnetometer at a field of 1000 Oe in the temperature range of 2–300 K. The photo-electrochemical tests were performed using an electrochemical workstation (CHI660E) with a conventional three-electrode setup under simulated solar light illumination. The as-prepared title compounds were coated on a slice of an ITO glass with an area of 1 × 1 cm2 and employed as the working electrode. A platinum wire and saturated Hg/HgCl2 were used as the counter and reference electrodes, respectively, and a 0.2 M Na2SO4 aqueous solution was used as an electrolyte. A 500 W Xe lamp was utilized as the simulated solar light source.

Syntheses

Two title compounds were synthesized through conventional high-temperature solid-state reactions of an elemental mixture. The loaded compositions are as follows: Yb (0.5191 g, 3 mmol), Ga (0.1394 g, 2 mmol) and S (0.2405 g, 7.5 mmol) for Yb6Ga4S15, and Lu (0.4374 g, 2.5 mmol), Ga (0.0349 g, 0.5 mmol) and S (0.1443 g, 4.5 mmol) for Lu5GaS9. These mixtures were loaded into silica tubes and then flame-sealed under a high vacuum of 10−3 Pa. The sealed tubes were placed in a temperature-controlled furnace, heated to 1223 K for Yb6Ga4S15 (1323 K for Lu5GaS9) for 100 h, and annealed at this temperature for 3 days, and then slowly cooled to 673 K at 3 K h−1 before switching off the furnace. Their purities were confirmed by PXRD studies (see Fig. 1). The experimental PXRD patterns of the two title compounds are in agreement with the ones simulated from their single-crystal XRD data. The results of the EDX analyses of the single crystals of the title compounds gave average molar ratios of RE/Ga/S of 6/4.03(4)/15.11(2) for Yb6Ga4S15 and 5/0.97(1)/9.05(4) for Lu5GaS9, respectively, which are in good agreement with those determined from single-crystal XRD structural analyses. The crystals appear stable in air and moisture over the periods of time longer than three months.
image file: c7dt02545a-f1.tif
Fig. 1 Experimental (blue) and simulated (black) PXRD patterns of (a) Yb6Ga4S15 and (b) Lu5GaS9.

Single-crystal X-ray diffraction (XRD)

Data of the title compounds were collected on a Mercury 70 CCD diffractometer with Mo-Kα radiation at 293 K. The data sets were corrected for Lorentz and polarization factors as well as for absorption by the multi-scan method.23 Two structures were solved by direct methods and refined by full-matrix least-squares fitting on F2 by using the SHELX-2014 program package.24 All of the non-hydrogen atoms were refined with anisotropic thermal parameters and the coordinates were standardized using STRUCTURE TIDY.25 Crystallographic data and structural refinements of the title compounds are summarized in Table 1, the positional coordinates and anisotropic parameters are shown in Table 2, and some important bond distances are listed in Table 3.
Table 1 Crystallographic data and refinement details of Yb6Ga4S15 and Lu5GaS9
Formula Yb6Ga4S15 Lu5GaS9
a R 1 = ∑||Fo| − |Fc||/∑|Fo|, wR2 = [∑w(Fo2Fc2)2/∑w(Fo2)2]1/2.
Fw 1798.02 1233.11
Crystal system Monoclinic Triclinic
Crystal color Deep-red Brown
Space group C2/m(no. 12) P[1 with combining macron](no. 2)
a (Å) 23.557(2) 7.735(3)
b (Å) 3.7664(4) 10.033(4)
c (Å) 12.466(2) 10.120(4)
α (°) 90 106.296(4)
β (°) 90.915(9) 100.178(5)
γ (°) 90 101.946(3)
V3) 1105.9(2) 714.1(5)
Z 2 2
D c (g cm−3) 5.40 5.74
μ (mm−1) 31.3 37.4
GOOF on F2 1.07 1.06
R 1, wR2 (I > 2σ(I))a 0.0232, 0.0547 0.0241, 0.0553
R 1, wR2 (all data) 0.0243, 0.0555 0.0299, 0.0582
Largest diff. peak and hole (e Å−3) 1.118, −1.406 1.830, −2.082


Table 2 Atomic coordinates and equivalent isotropic displacement parameters of Yb6Ga4S15 and Lu5GaS9
Atom Wyckoff x y z U (eq)
a U (eq) is defined as one-third of the trace of the orthogonalized Uij tensor.
Yb 6 Ga 4 S 15
Yb1 4i 0.51727(2) 0 0.15150(4) 0.0080(2)
Yb2 4i 0.71101(2) 0 0.23808(4) 0.0100(2)
Yb3 4i 0.83853(2) 0 0.04540(4) 0.0094(2)
Ga1 4i 0.08996(5) 0 0.0099(3) 0.0099(3)
Ga2 4i 0.36310(5) 0 0.33187(9) 0.0094(3)
S1 4i 0.0202(2) 0 0.2971(2) 0.0107(5)
S2 4i 0.1794(2) 0 0.3676(2) 0.0127(6)
S3 4i 0.1905(2) 0 0.6488(2) 0.0126(6)
S4 4i 0.2571(2) 0 0.1098(2) 0.0082(5)
S5 4i 0.4004(2) 0 0.1651(2) 0.0095(5)
S6 4i 0.4289(2) 0 0.4716(2) 0.0085(5)
S7 4i 0.6272(2) 0 0.0968(2) 0.0092(5)
S8 2a 0 0 0 0.0123(8)
Lu 5 GaS 9
Lu1 2i 0.13901(4) 0.34263(3) 0.73338(3) 0.00689(8)
Lu2 2i 0.18990(4) 0.67889(3) 0.62276(3) 0.00542(8)
Lu3 2i 0.25093(4) 0.00984(3) 0.48854(3) 0.00513(8)
Lu4 2i 0.36329(4) 0.64655(3) 0.27758(3) 0.00535(8)
Lu5 2i 0.46198(4) 0.30928(3) 0.04389(3) 0.00612(8)
Ga1 2i 0.1238(2) 0.90265(8) 0.02461(8) 0.0072(2)
S1 2i 0.0209(2) 0.1669(2) 0.4603(2) 0.0058(3)
S2 2i 0.0821(2) 0.5070(2) 0.3446(2) 0.0060(4)
S3 2i 0.1505(2) 0.8225(2) 0.2193(2) 0.0062(4)
S4 2i 0.1728(2) 0.1498(2) 0.1039(2) 0.0081(4)
S5 2i 0.2670(2) 0.4969(2) 0.0053(2) 0.0063(4)
S6 2i 0.3587(2) 0.1768(2) 0.7644(2) 0.0055(3)
S7 2i 0.5476(2) 0.1675(2) 0.4557(2) 0.0049(3)
S8 2i 0.5869(2) 0.4823(2) 0.3163(2) 0.0058(3)
S9 2i 0.6846(2) 0.1591(2) 0.1089(2) 0.0085(4)


Table 3 Selected bond lengths (Å) of Yb6Ga4S15 and Lu5GaS9
Yb6Ga4S15 Lu5GaS9
Yb1–S1 × 2 2.616(2) Lu1–S1 2.699(2) Lu4–S2 2.636(2)
Yb1–S5 2.761(2) Lu1–S2 2.662(2) Lu4–S3 2.761(2)
Yb1–S7 2.687(2) Lu1–S3 2.698(2) Lu4–S5 2.626(2)
Yb1–S8 × 2 2.693(4) Lu1–S5 2.638(2) Lu4–S6 2.667(2)
Yb2–S2 × 2 2.597(2) Lu1–S6 2.652(2) Lu4–S7 2.689(2)
Yb2–S3 2.697(3) Lu1–S8 2.677(2) Lu4–S8 2.677(2)
Yb2–S4 × 2 2.709(2) Lu2–S1 2.656(2) Lu5–S4 2.734(2)
Yb2–S7 2.625(3) Lu2–S2 2.642(2) Lu5–S5 2.766(2)
Yb3–S4 × 2 2.815(2) Lu2–S2 2.728(2) Lu5–S5 2.711(2)
Yb3–S7 × 2 2.718(2) Lu2–S7 2.663(2) Lu5–S6 2.657(2)
Yb3–S5 × 2 2.798(2) Lu2–S8 2.704(2) Lu5–S8 2.688(2)
Yb3–S4 2.945(2) Lu2–S9 2.626(2) Lu5–S9 2.626(2)
Ga1–S1 2.255(3) Lu3–S1 2.655(3) Ga1–S3 2.321(2)
Ga1–S2 2.227(3) Lu3–S1 2.639(2) Ga1–S4 2.300(2)
Ga1–S6 × 2 2.343(2) Lu3–S1 2.681(2) Ga1–S4 2.308(2)
Ga2–S3 × 2 2.282(2) Lu3–S3 2.708(2) Ga1–S9 2.242(2)
Ga2–S5 2.270(3) Lu3–S7 2.634(2)
Ga2–S6 2.313(3) Lu3–S7 2.704(2)


Computational section

Utilizing density functional theory (DFT) as implemented in the Vienna ab initio simulation package (VASP) code,26 we investigate the electronic structures of the title compounds. We used the projector augmented wave (PAW)27 method for the ionic cores and the generalized gradient approximation (GGA)28 for the exchange–correlation potential, in which the Perdew–Burke–Ernzerhof (PBE)29 type exchange–correlation was adopted. The reciprocal space was sampled with a 0.03 Å−1 spacing in the Monkhorst–Pack scheme for structure optimization, while denser k-point grids with a 0.01 Å−1 spacing were adopted for property calculation. We used a mesh cut-off energy of 500 eV to determine the self-consistent charge density. All geometries are fully relaxed until the Hellmann–Feynman force on atoms is less than 0.01 eV Å−1 and the total energy change is less than 1.0 × 10−5 eV.

Results and discussion

The novel ternary Yb6Ga4S15 phase crystallizes in the centrosymmetric space group C2/m (Pearson symbol mC50, no.12) [a = 23.557(2) Å, b = 3.7664(4) Å, c = 12.466(1) Å, β = 90.915(9)°, V = 1105.9(2) Å3 and Z = 2]. There are 13 unique crystallographic positions in the asymmetric unit of the structure, including three Yb sites, two Ga sites and eight S sites (Table 2). As shown in Fig. 2, the remarkable structural feature is the novel 3D framework based on the 2D Yb–S layers of the two different corner-sharing substructures (chain A and chain B), which are further bridged by 1D GaS4 double-tetrahedron-chains extending along the c direction. Each chain A is composed of condensed Yb1S6 octahedra via sharing of 4-fold μ4-S8 bridging atoms (shared by four coplanar octahedra) and 2-fold μ2-S2 bridging atoms (shared by two coplanar octahedra), as shown in Fig. 3a. Yb2S6 octahedra and Yb3S7 mono-capped trigonal prisms are interconnected via corner-sharing (S2, S4, S5 and S7) into a double chain along the b-axis. Then, such two 1D chains are alternately interconnected via corner-sharing (S4), resulting in the formation of chain B (Fig. 3a). All Yb–S bonds range from 2.597(2) to 2.945(2) Å (Table 3), which are close to the Yb–S bonds in Yb2S3 (2.672–2.733 Å),30 YbPS4 (2.816–2.964 Å)31 and Yb2BiS4 (2.858–2.985 Å).32 Each infinite 1D GaS4 double-tetrahedron-chain is formed by corner-sharing Ga1S4 tetrahedra and Ga2S4 tetrahedra, as shown in Fig. 3b. Remarkably, such a double GaS4 tetrahedron 1D chain is observed for the first time in the ternary RE/Ga/S system. The Ga–S distances vary from 2.227(3) to 2.343(2) Å (Table 3), which are close to those in YbGa2S4 (2.269–2.281 Å)19c and β-LaGaS3 (2.194–2.325 Å).20a
image file: c7dt02545a-f2.tif

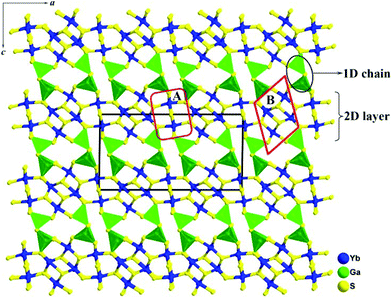

Fig. 2 Crystal structure of Yb6Ga4S15 with the unit cell marked viewed parallel to [010]. The structure is formed by 1D Ga–S chains and 2D Yb–S layers. The 2D layer consists of two different substructures (chain A and chain B) which are alternately connected along the a axis (the details are shown in Fig. 3).

image file: c7dt02545a-f3.tif

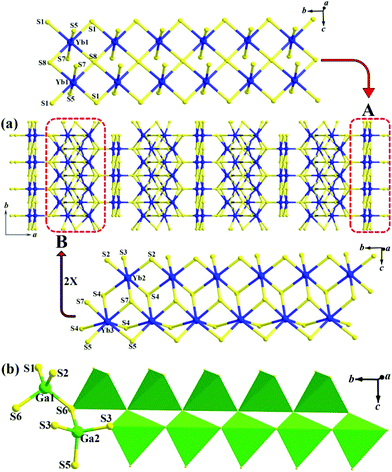

Fig. 3 (a) Approximate [001] structure view of the 2D Yb–S layer in Yb6Ga4S15. Chain A is composed of condensed Yb1S6 octahedra, whereas the single-chain in chain B consists of Yb2S6 octahedra and Yb3S7 mono-capped trigonal prisms. (b) GaS4 double-tetrahedron-chain extending along the c direction in Yb6Ga4S15.

The unit cell of Lu5GaS9 is shown in Fig. 4. It has the largest RE/Ga molar ratio in the RE/Ga/S system reported so far and crystallizes in the triclinic space group P[1 with combining macron] (Pearson symbol aP30, no.2) [a = 7.735(3) Å, b = 10.033(4) Å, c = 10.120(4) Å, α = 106.296(4)°, β = 100.178(5)°, γ = 101.946(3)°, V = 714.1(5) Å3 and Z = 2]. In the structure, there are 15 crystallographically unique atoms (including 5 Lu atoms, 1 Ga atom and 9 S atoms) in the asymmetric unit and all are in special positions (Table 2). All Lu atoms are 6-fold coordinated in distorted LuS6 octahedra with Lu–S bonds ranging from 2.626(2) to 2.766(2) Å, which are also comparable to those in CsLu7S11 (2.579–2.816 Å),33 LuCuS2 (2.630–2.741 Å)34 and Lu2CrS4 (2.602–2.695 Å),35 as well as the sum of the ionic radii of Lu3+ and S2− (2.701 Å).36 The S–Lu–S angular deviations are ranging from 84.8 to 99.4° and 169.8 to 177.5°, respectively. Different from the discussion above, it is amazing that discrete dimeric (GaS4)2 tetrahedra can serve as the centred species in the 3D anionic Lu–S channel in the Lu5GaS9 compound. Moreover, red atoms in Fig. 5 indicate the distribution of such centred species in the unit cell, which is distributed with a large interval, at least 7.4 Å apart. In more detail, as shown in Fig. 6, dimeric (GaS4)2 tetrahedra are interconnected via corner-sharing (S3, S4 and S9) into a complete 3D Lu–Ga–S framework. Such discrete dimeric (GaS4)2 tetrahedra are observed for the first time in the ternary RE/Ga/S systems.


image file: c7dt02545a-f4.tif

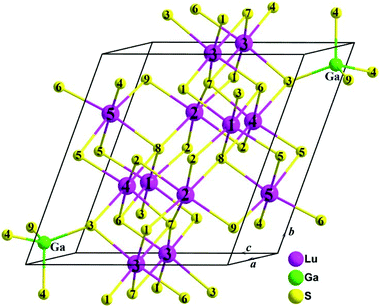

Fig. 4 Structure of Lu5GaS9 with the atom number and unit cell marked.

image file: c7dt02545a-f5.tif

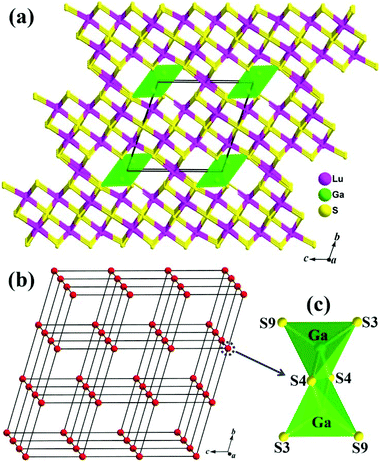

Fig. 5 (a) Structure of Lu5GaS9 viewed along the a-direction showing a 3D Lu–S channel formed by 6-folded coordinated Lu metals. The discrete dimeric (GaS4)2 tetrahedra (green polyhedron) are embedded in such a channel. (b) Topological representation of dimeric (GaS4)2 tetrahedra (red atoms) in the structure with the unit cell outlined. (c) The dimeric (GaS4)2 tetrahedra with the atom number marked.

image file: c7dt02545a-f6.tif

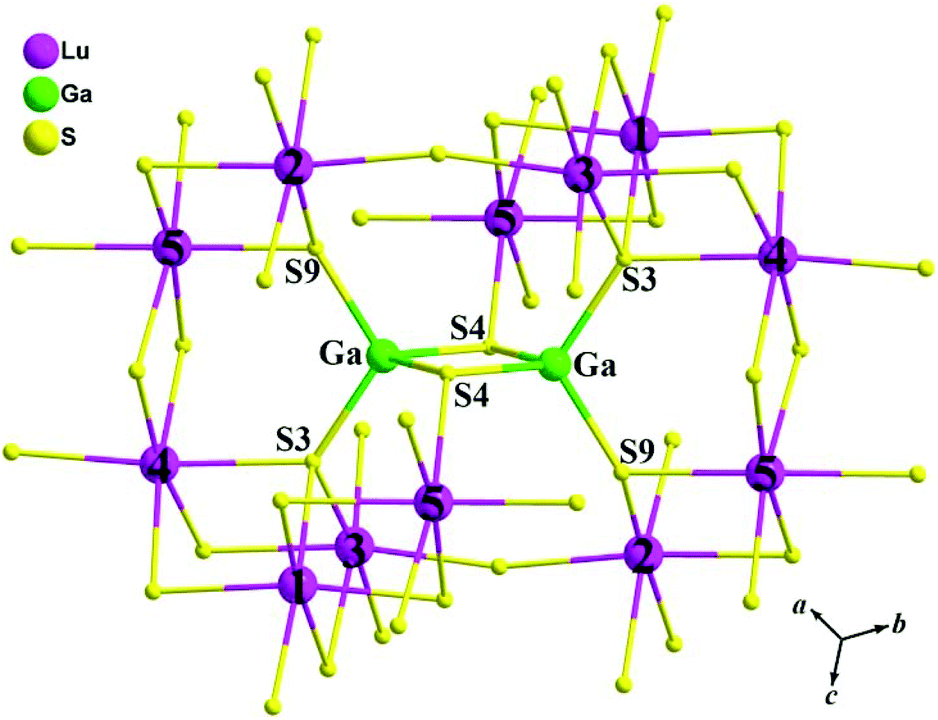

Fig. 6 The coordination environment of dimeric (GaS4)2 tetrahedra with the surrounding Lu number outlined.

Comparison with other sulfides in the RE/Ga/S system

The six RE/Ga/S structure types are shown in Fig. 7, which clearly displays a relationship between the crystal structure and the RE/Ga atomic ratio. All of the compounds contain GaS4 tetrahedra as the smallest BBU. It is easily understood from this illustration that as the system contains more RE atoms, the Ga–S sub-structure is reduced. For example, the RE/Ga ratios in REGa2S4 and REGaS3 are 0.5 and 1.0, respectively, and they have 2D and 1D structures, respectively. 2D type structures are formed at the top of the figure, whereas 0D structures appear at the bottom. This can be geometrically explained. Sulfur atoms in the 2D Ga–S structures can coordinate to two Ga atoms, like as in REGa2S4. In the 0D Ga–S structures, however, all of the sulfur atoms should coordinate to only one Ga atom. Therefore, as the RE/Ga atomic ratio increases, the Ga–S sub-structure generally changes from a 2D layered structure to a 1D chain structure, and then to discrete clusters.
image file: c7dt02545a-f7.tif

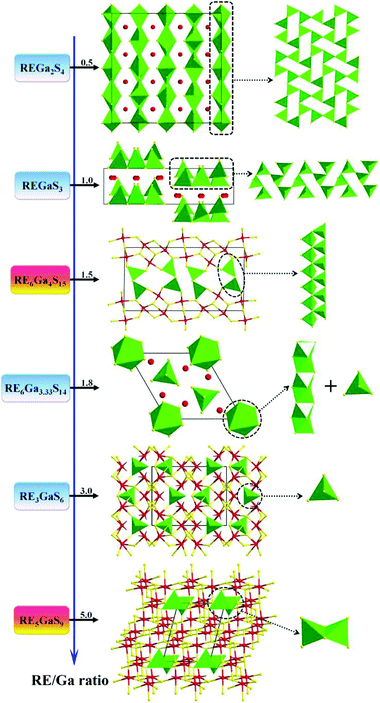

Fig. 7 Relationship between the structure and the RE/Ga atomic ratio in the ternary RE/Ga/S system. As the RE/Ga ratio increases (bottom), the Ga–S sub-structure changes from a 2D layered structure to a 1D chain structure and then to a 0D isolated unit. Red: RE; yellow: S; green polyhedron: GaS4 tetrahedra.

Thermal, magnetic and optical properties

In order to investigate the structural stability, the thermogravimetric (TG) and differential thermal analysis (DTA) experiments were performed on the title compounds. As shown in Fig. 8a and b, both compounds have excellent thermal stabilities. The TG data indicate negligible weight loss in the whole measured temperature range (300–1273 K) and no melting or phase transition processes can be identified from the corresponding DTA cycling curves.
image file: c7dt02545a-f8.tif
Fig. 8 TG (black) and DTA (blue) diagrams of (a) Yb6Ga4S15 and (b) Lu5GaS9. (c) Temperature (T) dependence of the molar magnetic susceptibility (χ) and the inverse molar magnetic susceptibility (χ−1) for Yb6Ga4S15. (d) Solid-state UV-vis optical absorption spectra of Yb6Ga4S15 (blue line) and Lu5GaS9 (black line). Photocurrent responses of (e) Yb6Ga4S15 and (f) Lu5GaS9 under simulated solar light illumination.

The magnetic susceptibility of the compound Yb6Ga4S15 is shown in Fig. 8c, which is collected at an applied field of 1000 Oe. Since Ga3+ and S2− are diamagnetic species, the magnetic (paramagnetism) contribution is expected to originate from the Yb3+ ions. Linear fitting of the molar susceptibility (1/χ) with T in the temperature range of 50–300 K indicates a Curie constant (C) of 15.23 emu K mol−1 and a Weiss constant (θ) of −47.96 K. The theoretical total effective magnetic moment in the temperature region can be calculated by using the equation μeff (total) = [6μeff (Yb)2]1/2 and is found to be 11.61μB, which is comparable to the experimental effective magnetic moment 11.04μB. The large negative θ value suggests strong antiferromagnetic interactions existing between the Yb3+ ions.

Fig. 8d shows the UV–vis–NIR diffuse reflectance spectra of the title compounds. The results show that the polycrystalline title compounds possess semiconducting band gaps of 2.11 eV (for Yb6Ga4S15) and 2.34 eV (for Lu5GaS9), which are confirmed by the colour of the obtained crystal.

The photo-electrochemical properties of the title compounds were also studied in a three-electrode set-up, including a working electrode (Yb6Ga4S15 or Lu5GaS9), a saturated Hg/HgCl2 reference electrode and a Pt-wire counter electrode. Fig. 8e and f show the rapid and consistent photocurrent responses of Yb6Ga4S15 and Lu5GaS9 for each switch-on and -off event in multiple 10 s on–off cycles under simulated solar light illumination. The steady state of both compounds reached less than 1 s when the light was switched on, indicating that these two compounds possess a high transfer efficiency of photo-generated electrons and a separation efficiency of photo-generated electron–hole pairs.37–44 Moreover, Lu5GaS9 exhibits a stronger transient photocurrent response which is about 3 times larger than that of Yb6Ga4S15. These data are smaller than those of ReSe8Br2 (9 μA cm−2),45 CuSnSe-1 (3 μA cm−2),46 [Ru(bpy)3][Cd17S4(SPh)28] (0.6 μA cm−2),40 and ReS8Br2 (0.3 mA cm−2),45 but wider than those of BaCuSbS3 (55 nA cm−2)44 and BaCuSbSe3 (30 nA cm−2).44

Theoretical studies

The first-principles electronic band structures of the title compounds are studied (Fig. 9a and b). The calculations indicate the semiconductor characteristics, and the calculated energy gaps (Eg) are 1.45 and 1.89 eV for Yb6Ga4S15 (direct band-gap) and Lu5GaS9 (indirect band-gap), respectively, which are smaller than the experimental results (2.11 eV for Yb6Ga4S15 and 2.34 eV for Lu5GaS9). Such a discrepancy is due to the discontinuity of the exchange–correlation energy implemented in the GGA calculation.28 The partial density of states (PDOSs) projected on the constituent elements of the title compounds are shown in Fig. 9c and d. It is clear that the distributions of states near EF are similar for both compounds. The top of the valence bands (VBs) is mostly made up of S 3p states mixed with a small amount of the Yb or Lu 5d states and Ga 4s/4p states, whereas the bottom of the conduction bands (CBs) consists mostly of Yb or Lu 5d states and S 3p states. Since the optical response of a crystal mainly originates from the electronic transitions between the VB top and CB bottom states, thus, both compounds have similar band gaps, and the difference comes from the different energy level of Ga 4s and 4p states. The covalent bonding interactions between RE and S atoms are pretty strong according to PDOSs.
image file: c7dt02545a-f9.tif
Fig. 9 Calculated band structures of (a) Yb6Ga4S15 and (b) Lu5GaS9. PDOSs of (c) Yb6Ga4S15 and (d) Lu5GaS9 (the orbitals with minor contributions are omitted for clarity). The Fermi level EF is set at 0.0 eV.

Conclusions

In summary, Yb6Ga4S15 and Lu5GaS9 representing two unprecedented phases in the RE–Ga–S system have been successfully prepared by solid-state reactions at high temperatures and structurally characterized for the first time. Both of them feature complicated 3D frameworks with different connections of GaS4 basic building units. Interestingly, the photo-electrochemical studies indicate that the title compounds are photo-responsive under simulated solar light illumination. In addition, the electronic structure studies reveal that the transitions from S 3p states to RE-5d and Ga 4s/4p states determine the energy gaps. Therefore, the title compounds have similar Eg, and the small difference comes from the different contribution of Ga 4s and Ga 4p. More interestingly, these two types together with the previously reported RE/Ga/S compounds demonstrate a nice structure change trend: as the RE/Ga atomic ratio increases, the Ga–S sub-structure generally changes from a 2D layered structure to a 1D chain structure and then to discrete GaS4 tetrahedra or dimeric (GaS4)2 tetrahedra. Further studies on the understanding of the structure–property relationship and the design or prediction of new compounds in a related system are in progress.
