Modular synthesis of simple cycloruthenated complexes with state-of-the-art performance in p-type DSCs

Felix Brunner a, Nathalie Marinakis a, Cedric Wobill a, Markus Willgert a, Cathrin D. Ertl a, Tatjana Kosmalski a, Markus Neuburger a, Biljana Bozic-Weber a, Thilo Glatzel b, Edwin C. Constable a and Catherine E. Housecroft *a
aDepartment of Chemistry, University of Basel, Spitalstrasse 51, CH-4056 Basel, Switzerland. E-mail:
bDepartment of Physics, University of Basel, Klingelbergstrasse 82, CH-4056 Basel, Switzerland

Received 6th September 2016 , Accepted 29th September 2016

First published on 10th October 2016

A modular approach based on Suzuki–Miyaura cross coupling and Miyaura borylation has been used to prepare two cyclometallated [Ru(N⁁N)2(C⁁N)]+ complexes which possess either a carboxylic or phosphonic acid group attached via a phenylene spacer to the 4-position of the pyridine ring in the C⁁N ligand. The key intermediate in the synthetic pathway is [Ru(bpy)2(1)]+ where bpy = 2,2′-bipyridine and H1 is 4-chloro-2-phenylpyridine. The crystal structure of [Ru(bpy)2(1)][PF6] is presented. Reaction of [Ru(bpy)2(1)][PF6] with 4-carboxyphenylboronic acid leads to [Ru(bpy)2(H6)][PF6], while the phosphonic acid analogue is isolated as the zwitterion [Ru(bpy)2(H5)]. The cyclometallated complexes have been characterized by mass spectrometry, multinuclear NMR spectroscopy, absorption spectroscopy and electrochemistry. [Ru(bpy)2(5)] adsorbs onto NiO FTO/NiO electrodes (confirmed by solid-state absorption spectroscopy) and its performance in p-type dye-sensitized solar cells (DSCs) has been compared to that of the standard dye P1; two-screen printed layers of NiO give better DSC performances than one layer. Duplicate DSCs containing [Ru(bpy)2(H5)] achieve short-circuit current densities (JSC) of 3.38 and 3.34 mA cm−2 and photoconversion efficiencies (η) of 0.116 and 0.109%, respectively, compared to values of JSC = 1.84 and 1.96 mA cm−2 and η = 0.057 and 0.051% for P1. Despite its simple dye structure, the performance of [Ru(bpy)2(H5)] parallels the best-performing cyclometallated ruthenium(II) dye in p-type DSCs reported previously (He et al., J. Phys. Chem. C, 2014, 118, 16518) and confirms the effectiveness of a phosphonic acid anchor in the dye and the attachment of the anchoring unit to the pyridine (rather than phenyl) ring of the cyclometallating ligand.


There is growing interest in utilizing cyclometallated ruthenium(II) complexes as dyes in dye-sensitized solar cells (DSCs).1–3 Typical families of complexes are based upon [Ru(N⁁N)2(C⁁N)]+, [Ru(N⁁N⁁N)(C⁁N⁁N)]+ and [Ru(N⁁N⁁N)(N⁁C⁁N)]+ where archetype N⁁N, HC⁁N, N⁁N⁁N, HC⁁N⁁N and N⁁CH⁁N ligands are, respectively 2,2′-bipyridine (bpy), 2-phenylpyridine (Hppy), 2,2′[thin space (1/6-em)]:[thin space (1/6-em)]6′,2′′-terpyridine (tpy), 6-phenyl-2,2′-bipyridine and 1,3-bis(pyridin-2-yl)benzene. The majority of investigations have addressed dyes suited to electron injection at an n-type semiconductor interface, the driving force behind the use of anionic cyclometallating ligands being the replacement of thiocyanate ligands typically present in established Grätzel-type sensitizers. The panchromatic spectral response of [Ru(N⁁N)2(C⁁N)]+ dyes in DSCs was identified by Grätzel in 2009.4 An advantage of incorporating cyclometallating domains in these complexes is the potential for HOMO–LUMO energy tuning by ligand functionalization,5 and photoconversion efficiencies matching or exceeding that of the standard ruthenium dye N719 have been reported.6

The HOMO of a [Ru(N⁁N)2(C⁁N)]+ complex is localized on the Ru/C⁁N unit.7 Therefore, in cyclometallated dyes for n-type DSCs, the C⁁N domain functions as an ancillary ligand and the N⁁N ligand (which contributes to the LUMO) carries the anchoring unit (e.g. carboxylic or phosphonic acid). The first oxidation process is typically shifted 900 mV less positive when compared with the relevant all-nitrogen donor analogue. By switching this functionalization pattern so that the anchor is positioned on the cyclometallating ligand, [Ru(N⁁N)2(C⁁N)]+ and [Ru(N⁁N⁁N)(N⁁C⁁N)]+ complexes become candidates for sensitizers in p-type DSCs (Fig. 1), or at the p-type interface in tandem cells.8 This potential has been proven,9–13 efficiencies are generally low and the area remains ripe for further exploration. It has been demonstrated that tris(bpy)ruthenium(II)- or (bpy)tricarbonylchlororhenium(I)-dyes bearing alkylphosphonate or phosphonic acid anchors bind to NiO,14,15 but, to the best of our knowledge, [Ru(N⁁N)2(C⁁N)]+ complexes with phosphonic acid anchoring units have not been reported as sensitizers in p-type DSCs. In an initial investigation,16 we used the strategy shown in Scheme 1 to access a [Ru(bpy)2(C⁁N)]+ complex bearing a peripheral phosphonate ester. Although the cyclometallated complex shown in Scheme 1 can be isolated in good yield, its deprotection to yield the corresponding phosphonic acid was, in our hands, unsuccessful. In the present work, we present an alternative synthetic approach, the versatility of which can be used to introduce different anchoring domains into [Ru(N⁁N)2(C⁁N)]+ complexes. We also demonstrate the viability of a phosphonate anchored [Ru(N⁁N)2(C⁁N)]+ dye in p-type DSCs.

image file: c6tc03874c-f1.tif

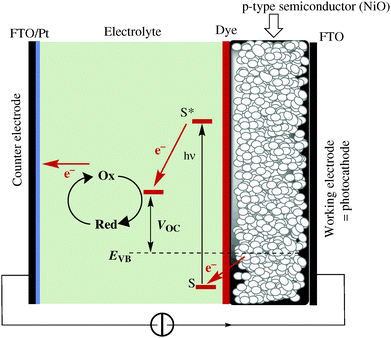

Fig. 1 Working principle of a p-type DSC. S and S* are the ground and excited states of the dye; EVB represents the quasi-Fermi level of the valence band of the semiconductor; VOC = open circuit voltage.

image file: c6tc03874c-s1.tif
Scheme 1 Previously reported synthesis16 of a phosphonate ester-functionalized [Ru(N⁁N)2(C⁁N)]+ complex. Conditions: (i) [Pd(PPh3)4], Cs2CO3, HPO(OEt)2, THF, microwave, 110 °C, 90 min; (ii) cis-[Ru(bpy)2Cl2], AgPF6.



1H, 13C, 11B and 31P NMR spectra were recorded on a Bruker Avance III-400 or III-500 spectrometer at 295 K. The 1H and 13C chemical shifts were referenced with respect to residual solvent peaks (δTMS = 0), 11B with respect to BF3·Et2O, and 31P with respect to 85% aqueous H3PO4. High resolution (HR) ESI-MS were measured on a Bruker maXis 4G instrument, and LC-ESI-MS using a combination of Shimadzu (LC) and Bruker AmaZon X instruments. An Agilent 8453 spectrophotometer was used to record absorption spectra. Solid-state absorption spectra of dye-functionalized electrodes were recorded using a Cary-5000 spectrophotometer. Microwave reactions were carried out in a Biotage Initiator 8 reactor.

Electrochemical measurements were made with a CHI 900B instrument using a glassy carbon working electrode, platinum-wire auxiliary electrode, and silver-wire pseudo-reference electrode. Redox potentials were determined by both cyclic and square wave voltammetry. HPLC grade, argon-degassed DMSO or MeCN solutions (≈10−4 mol dm−3) of samples were used in the presence of 0.1 M [nBu4N][PF6] as supporting electrolyte; the scan rate was 0.1 V s−1 and ferrocene (Fc+/Fc) was the internal standard.


2-Bromo-4-chloropyridine, 1-bromo-4-iodobenzene, SPhos Pd G2, [PdCl2(PPh3)2], [Pd(PPh3)4] and [Pd(dppf)Cl2] were purchased from Sigma-Aldrich; 4-carboxyphenylboronic acid was bought from Acros. All were used as received.

Abbreviation: dppf = 1,1′-bis(diphenylphosphino)ferrocene.

Compound H1

2-Bromo-4-chloropyridine (1.00 g, 5.20 mmol), phenylboronic acid (996 mg, 70%, 5.7 mmol), [PdCl2(PPh3)2] (182 mg, 0.300 mmol) and Na2CO3 (1.10 g, 10.4 mmol) were suspended in THF/H2O (1[thin space (1/6-em)]:[thin space (1/6-em)]1 by vol, 40 mL). The mixture was heated at 60 °C for 3 h, and then poured into water (300 mL) and extracted with CH2Cl2 (3 × 300 mL). The combined organic layers were washed with water (300 mL), dried over MgSO4 and the solvent was removed under reduced pressure. The resulting yellow oil was purified by column chromatography (SiO2, EtOAc/cyclohexane 1[thin space (1/6-em)]:[thin space (1/6-em)]10) and H1 was isolated as a yellowish oil (627 mg, 5.2 mmol, 64%). NMR spectroscopic data were consistent with those reported.17

Compound H2

Bis(pinacolato)diboron (1.35 g, 5.28 mmol) and KOAc (777 mg, 7.92 mmol) were added to a degassed solution of 2-phenyl-4-chloropyridine (500 mg, 2.64 mmol) in dioxane followed by [Pd(dppf)Cl2] (65 mg, 79 μmol, 3 mol%). The solution was degassed again, and the reaction mixture was heated at reflux for 72 h. After removing the solvent under reduced pressure, the residue was purified by Kugelrohr distillation. The resulting oil was subjected to column chromatography (SiO2, EtOAc[thin space (1/6-em)]:[thin space (1/6-em)]cyclohexane 1[thin space (1/6-em)]:[thin space (1/6-em)]2 changing to EtOAc[thin space (1/6-em)]:[thin space (1/6-em)]cyclohexane 5[thin space (1/6-em)]:[thin space (1/6-em)]1) and H2 was isolated as a brown oil (98 mg, <348 μmol, <13%). The compound could not be completely purified (see text). 1H NMR (500 MHz, CDCl3) δ/ppm 8.73 (dd, J = 4.7, 1.1 Hz, 1H, HA6), 8.12 (s, 1H, HA3), 8.05 (m, 2H, HB2), 7.59 (dd, J = 4.8, 1.1 Hz, 1H, HA5), 7.48 (ddt, J = 8.6, 7.2, 1.8 Hz, 2H, HB3), 7.43 (m, 1H, HB4). 13C{1H} NMR (126 MHz, CDCl3) δ/ppm 156.7 (CA2), 149.0 (CA6), 139.4 (CB1), 128.8 (CB4), 128.6 (CB3), 127.1 (CA5), 127.0 (CB2), 125.7 (CA3), 84.5 (CMe). 11B NMR (128 MHz, CDCl3) δ/ppm 30.8.


A solution of [Ru(bpy)2Cl2] (581 mg, 1.20 mmol), H1 (501 mg, 2.64 mmol) and AgPF6 (667 mg, 2.64 mmol) in CH2Cl2 (75 mL) was heated at reflux for 19 h. The reaction mixture was filtered over celite and washed thoroughly with CH2Cl2. The solvent was removed under vacuum and the dark purple residue was purified by column chromatography (alumina, acetone/pentane 2[thin space (1/6-em)]:[thin space (1/6-em)]1, changing to acetone). After solvent evaporation, an oil was isolated. The oil was diluted with CH2Cl2 and then hexanes were added to precipitate the product. After filtration, [Ru(bpy)2(1)][PF6] was isolated as a dark purple solid (584 mg, 0.782 mmol, 65.2%). 1H NMR (500 MHz, CD3CN) δ/ppm 8.47 (dt, J = 8.3, 1.0 Hz, 1H, HA3), 8.40 (dt, J = 8.3, 1.0 Hz, 1H, HB3), 8.32 (overlapping m, 1H, HC3+D3), 8.07 (d, J = 2.3 Hz, 1H, HE3), 8.03 (ddd, J = 5.7, 1.6, 0.8 Hz, 1H, HB6), 8.00 (ddd, J = 8.2, 7.6, 1.6 Hz, 1H, HA4), 7.88–7.82 (overlapping m, 5H, HF3+A6+B4+C4+D6), 7.81 (ddd, J = 8.2, 7.5, 1.4 Hz, 1H, HD4), 7.72 (ddd, J = 5.7, 1.5, 0.8 Hz, 1H, HC6), 7.51 (dd, J = 6.2, 0.6 Hz, 1H, HE6), 7.43 (ddd, J = 7.6, 5.4, 1.2 Hz, 1H, HA5), 7.26–7.20 (overlapping m, 3H, HB5+C5+D5), 6.97 (dd, J = 6.2, 2.3 Hz, 1H, HE5), 6.91 (td, J = 7.4, 1.4 Hz, 1H, HF4), 6.86 (td, J = 7.2, 1.4 Hz, 1H, HF5), 6.46 (m, 1H, HF6). 13C{1H} NMR (126 MHz, CD3CN) δ/ppm 194.7 (CF1), 169.6 (CE2), 158.5 (CB2), 157.7 (CC2), 157.6 (CD2), 156.0 (CA2), 155.0 (CB6), 152.2 (CE6), 151.3 (CA6/D6), 150.9 (CC6), 150.1 (CA6/D6), 145.8 (CF2), 143.9 (CE4), 137.4 (CA4), 136.5 (CF6), 136.0 (CB4/C4), 134.9 (CB4/C4), 134.7 (CD4), 129.7 (CF5), 128.0 (CA5), 127.3 (CB5/C5/D5), 127.2 (CB5/C5/D5), 127.0 (CB5/C5/D5), 125.5 (CF3), 124.4 (CB3), 124.1 (CA3), 123.9 (CC3+D3), 123.1 (CE5), 122.0 (CF4), 119.8 (CE3). 31P{1H} NMR (162 MHz, CDCl3) δ/ppm −144.6 (septet, J = 707 Hz, PF6). LC-ESI-MS m/z 602.1 [M − PF6]+ (calc. 602.1). UV-Vis (MeOH, 1 × 10−5 M) λ/nm (ε/dm3 mol−1 cm−1) 249 (36[thin space (1/6-em)]000), 296 (62[thin space (1/6-em)]000), 369 (12[thin space (1/6-em)]000), 409 (11[thin space (1/6-em)]000), 491 (9800), 540 (10[thin space (1/6-em)]000). Found C 49.12, H 3.47, N 9.52; C31H23ClF6N5PRu·0.5H2O requires C 49.25, H 3.20, N 9.26.

Diethyl 4-bromobenzenephosphonate

1-Bromo-4-iodobenzene (2.00 g, 7.10 mmol), [Pd(PPh3)4] (408 mg, 0.354 mmol) and Cs2CO3 (4.84 g, 14.80 mmol) were combined in anhydrous THF (10 mL). The mixture was degassed for 10 min and heated at reflux for 2.5 h. The reaction mixture was filtered over celite and washed thoroughly with THF. After removal of solvent, the residue was purified by flash column chromatography (SiO2, CH2Cl2, changing to CH2Cl2/EtOH 100[thin space (1/6-em)]:[thin space (1/6-em)]3). Diethyl 4-bromobenzenephosphonate was isolated as a yellow oil (1.5 g, 7.1 mmol, 73%). NMR spectroscopic data were consistent with the literature.18

Compound 3

[Pd(dppf)Cl2] (70 mg, 85 μmol) was added to a degassed mixture of diethyl 4-bromobenzenephosphonate (500 mg, 1.7 mmol), bis(pinacolato)diboron (877 mg, 3.4 mmol) and KOAc (503 mg, 5.1 mmol) in THF (20 mL). The reaction mixture was degassed again and heated in a microwave reactor at 90 °C for 1 h. The mixture was then filtered over celite and the solvent was removed from the filtrate. The resulting brown oil was purified by column chromatography (SiO2, CH2Cl2, changing to CH2Cl2/EtOH, 100[thin space (1/6-em)]:[thin space (1/6-em)]5) and used in the next step without further purification. The 1H NMR spectroscopic data matched those reported.1931P{1H} NMR (162 MHz, CDCl3) δ/ppm +18.6. 11B NMR (128 MHz, CDCl3) δ/ppm +22.4.

Compound H24

A solution of 3 (582 mg, 1.7 mmol), and Me3SiBr (2.8 mL, 21.4 mmol) in dry CH2Cl2 was stirred at room temperature for 19 h. The reaction was quenched with water and the layers separated. The aqueous layer was evaporated to dryness and the residue was redissolved in EtOH. The solvent was evaporated under reduced pressure. The product was recrystallized from MeOtBu and H24 was isolated as a white solid (276 mg, 1.1 mmol, 65%). 1H NMR (400 MHz, DMSO-d6) δ/ppm 10.90 (s, 2H, HPOH), 7.78–7.63 (m, 4H, H2+3), 1.30 (s, 12H, HMe). 13C{1H} NMR (126 MHz, DMSO-d6) δ/ppm 137.2 (d, JPC = 179 Hz, C1), 134.0 (d, J = 13.8 Hz, C3), 129.8 (d, J = 9.4 Hz, C2), 83.9 (Cq-pin), 24.7 (CMe). 31P{1H} NMR (162 MHz, DMSO-d6) δ/ppm +12.2. 11B NMR (128 MHz, DMSO-d6) δ/ppm +28.4. LC-ESI-MS m/z: 285.1 [M + H]+ (calc. 285.1). Found C 49.87, H 6.43; C12H18BO5P·0.25H2O requires: C 49.95, H 6.46.


[Ru(bpy)2(1)][PF6] (100 mg, 134 μmol), H24 (67 mg, 268 μmol), K3PO4 (199 mg, 938 μmol) and SPhos Pd G2 (4.8 mg, 6.7 μmol, 5 mol%) were dissolved in degassed MeCN/H2O (1[thin space (1/6-em)]:[thin space (1/6-em)]1, 40 mL). The mixture was degassed again and heated at 70 °C for 5 h. The solvent was then removed under reduced pressure and additional water was added to yield a precipitate. This was collected over celite, washed with water and dissolved in MeOH. After removing the solvent, the resulting red solid was purified by column chromatography (SiO2, MeCN/saturated aqueous KNO3/H2O 7[thin space (1/6-em)]:[thin space (1/6-em)]1[thin space (1/6-em)]:[thin space (1/6-em)]0.5, changing to MeCN/saturated aqueous KNO3/H2O 7[thin space (1/6-em)]:[thin space (1/6-em)]2[thin space (1/6-em)]:[thin space (1/6-em)]2). The MeCN was evaporated and additional water was added. The precipitate that formed was collected over celite, washed thoroughly with water and dissolved with MeOH. After evaporating the solvent under reduced pressure, [Ru(bpy)2(H5)] was isolated as a dark red solid (82 mg, 113 μmol, 84%). 1H NMR (500 MHz, CD3OD) δ/ppm 8.62 (dt, J = 8.3, 1.0 Hz, 1H, HA3), 8.53 (dt, J = 8.2, 1.1 Hz, 1H, HB3), 8.46 (dt, J = 8.3, 1.1 Hz, 1H, HC3), 8.44 (dt, J = 8.2, 1.1 Hz, 1H, HD3), 8.32 (d, J = 1.9 Hz, 1H, HE3), 8.15 (ddd, J = 5.7, 1.5, 0.7 Hz, 1H, HB6), 8.07–7.98 (overlapping m, 2H, HA4+F3), 7.98–7.88 (overlapping m, 4H, HG2+D6+A6), 7.89–7.73 (overlapping m, 6H, HC4+B4+D4+G3+C6), 7.61 (dd, J = 6.0, 0.6 Hz, 1H, HE6), 7.48 (ddd, J = 7.6, 5.4, 1.2 Hz, 1H, HA5), 7.30–7.20 (overlapping m, 4H, HB5+C5+D5+E5), 6.92 (ddd, J = 7.7, 7.1, 1.3 Hz, 1H, HF4), 6.82 (td, J = 7.3, 1.3 Hz, 1H, HF5), 6.44 (dd, J = 7.4, 0.9 Hz, 2H, HF6). 13C{1H} NMR (126 MHz, CD3OD) δ/ppm 193.7 (CF1), 169.4 (CE2), 159.2 (CB2), 158.5 (CC2), 158.2 (CD2), 156.8 (CA2), 155.5 (CB6), 151.4 (CD6), 151.3 (CE6), 150.9 (CC6), 150.1 (CA6), 148.9 (CE4), 146.8 (CF2), 139.5 (CG4), 137.5 (CA4), 136.4 (CF6), 136.2 (CB4), 134.9 (CC4), 132.8 (CD4), 129.7 (CG2), 128.2 (CF5), 127.4 (CA5), 127.3 (CB5+C5+D5), 127.2 (CG3), 125.6 (CF3), 124.6 (CB3), 124.5 (CA3), 124.1 (CC3+D3), 122.1 (CF4), 121.1 (CE5), 117.3 (CE3). 31P{1H} NMR (162 MHz, CD3OD) δ/ppm +10.8. LC-ESI-MS m/z: 724.2 [M + H]+ (calc. 724.1). HR ESI-MS m/z: 724.1068 (calc. 724.1056). UV-Vis (MeOH, 1 × 10−5 M) λ/nm (ε/dm3 mol−1 cm−1): 251 (47[thin space (1/6-em)]000), 287 (sh, 59[thin space (1/6-em)]000), 296 (66[thin space (1/6-em)]000), 374 (13[thin space (1/6-em)]000), 420 (16[thin space (1/6-em)]000), 492 (12[thin space (1/6-em)]000), 544 (12[thin space (1/6-em)]000). Found C 57.96, H 4.47, N 9.41; C37H28N5O3PRu·2.5H2O requires C 57.88, H 4.33, N 9.12.


[Ru(bpy)2(1)][PF6] (50 mg, 67 μmol), 4-carboxyphenylboronic acid (22.2 mg, 134 μmol), K3PO4 (99.4 mg, 468 μmol) and SPhos Pd G2 (2.4 mg, 3.3 μmol, 5 mol%) were dissolved in degassed MeCN/H2O (1[thin space (1/6-em)]:[thin space (1/6-em)]1, 40 mL). The mixture was degassed again and heated at 70 °C for 5 h. Then, the MeCN was evaporated and additional water was added to precipitate the crude product. The precipitate was collected over celite, washed with water and dissolved with MeOH. Solvent was removed and the red residue was purified by column chromatography (SiO2, MeCN/saturated aqueous KNO3/H2O, 7[thin space (1/6-em)]:[thin space (1/6-em)]1[thin space (1/6-em)]:[thin space (1/6-em)]0.5). The MeCN was evaporated, additional water was added and the precipitate that formed was filtered over celite, and washed with water. The solid was dissolved in aqueous MeOH; enough water was used to render the compound soluble. An excess of aqueous NH4PF6 was added and the red precipitate was collected by filtration. [Ru(bpy)2(H6)][PF6] was isolated as a dark red solid (47 mg, 56 μmol, 84%). 1H NMR (500 MHz, acetone-d6) δ/ppm 8.76 (d, J = 8.4 Hz, 1H, HA3), 8.68 (d, J = 8.3 Hz, 1H, HB3), 8.61 (d, J = 8.3 Hz, 1H, HC3), 8.58 (d, J = 8.1 Hz, 1H, HD3), 8.52 (d, J = 2.0 Hz, 1H, HE3), 8.19 (m, 1H, HB6/C6/D6), 8.18–8.12 (overlapping m, 4H, HG2+A4+F3), 8.07 (m, 1H, HA6), 8.04 (m, 1H, HB6/C6/D6), 7.99–7.93 (overlapping m, 4H, HB6/C6/D6+G3+B4), 7.93–7.88 (overlapping m, 2H, HC4+D4), 7.79 (d, J = 5.7 Hz, 1H, HE6), 7.60 (ddd, J = 7.5, 5.6, 1.2 Hz, 1H, HA5), 7.42–7.35 (overlapping m, 4H, HE5+B5+C5+D5), 6.92 (td, J = 7.4, 1.3 Hz, 1H, HF4), 6.85 (td, J = 7.3, 1.3 Hz, 1H, HF5), 6.52 (dd, J = 7.8, 1.3 Hz, 1H, HF6). 13C{1H} NMR (126 MHz, acetone-d6) δ/ppm 170.0 (CE2), 158.0 (CC2+D2), 155.5 (CB6/C6/D6), 151.5 (CA6), 151.3 (CB6/C6/D6), 150.8 (CB6/C6/D6), 150.1 (CE6), 137.4 (CA4), 136.1 (CF6), 135.5 (CB4/C4/D4), 134.7 (CB4/C4/D4), 134.4 (CB4/C4/D4), 131.1 (CG2), 129.2 (CF5), 128.0 (CA5), 127.7 (CG3), 127.2 (CB5+C5+D5), 125.4 (CF3), 124.3 (CB3), 124.1 (CA3), 123.9 (CC3+D3), 121.3 (CF4), 120.7 (CE5), 117.0 (CE3); signals for CCOOH, CB2, CA2, CE4, CF2, CG4 not resolved. 31P{1H} NMR (202 MHz, acetone-d6) δ/ppm −144.7 (JPF = 727 Hz). LC-ESI-MS positive mode: m/z: 688.1 [M − PF6]+ (calc. 688.1). ESI-MS negative mode: 145.0 [PF6] (calc. 145.0). HR ESI-MS positive mode: m/z: 688.1283 [M − PF6]+ (calc. 688.1286). UV-Vis (MeOH, 1 × 10−5 M) λ/nm (ε/dm3 mol−1 cm−1) 252 (47[thin space (1/6-em)]000), 296 (69[thin space (1/6-em)]000), 374 (13[thin space (1/6-em)]000), 427 (16[thin space (1/6-em)]000), 492 (12[thin space (1/6-em)]000), 543 (12[thin space (1/6-em)]000). Satisfactory elemental analysis could not be obtained.


Single crystal data were collected on a Bruker APEX-II diffractometer; data reduction, solution and refinement used APEX2, SuperFlip and CRYSTALS respectively.20–22 Structure analysis used Mercury v. 3.6.23,24


C31H23ClF6N5PRu, M = 747.04, purple needle, monoclinic, space group P21/n, a = 12.9459(8), b = 17.2178(10), c = 14.0795(8) Å, β = 110.666(2)°, U = 2936.38(17) Å3, Z = 4, Dc = 1.690 Mg m−3, μ(Cu-Kα) = 6.304 mm−1, T = 123 K. Total 27[thin space (1/6-em)]090 reflections, 5389 unique, Rint = 0.038. Refinement of 4765 reflections (406 parameters) with I > 2σ(I) converged at final R1 = 0.0257 (R1 all data = 0.0311), wR2 = 0.0266 (wR2 all data = 0.0360), gof = 1.1321. CCDC 1465171.

Electrode preparation and device assembly

Each working electrode was prepared from an FTO glass plate (SolaronixTCO22-7, 2.2 mm thickness, sheet resistance ≈7 Ω square−1) which was cleaned by sonicating in Sonoswiss surfactant (2% in milliQ water), and rinsed with milliQ water and EtOH. The surface was activated in a UV-O3 system (Model 256-220, Jelight Company Inc.) for 20 min. Then the glass was immersed five times and air dried after every dipping in a [Ni(acac)2] (ACROS) solution (MeCN 0.5 mM). The FTO plate was dried and a layer of NiO paste (Ni-Nanoxide N/SP, Solaronix) was screen printed (90T, Serilith AG, Switzerland). The printed plate was kept in an EtOH chamber for 3 min to reduce surface irregularities of the printed layer and dried for 6 min at 125 °C on a heating plate. Screen printing was used to give either one or two layers of NiO and then the electrodes were heated from room temperature to 350 °C over a period of 30 min, then kept at 350 °C for 30 min, then allowed to cool slowly to room temperature over ∼2 h. After sintering, the FTO plate with the NiO screen printed dots was cut to make electrodes of size of 1 cm × 2 cm. After the final sintering, the thickness of a two-layer screen printed NiO surface was typically ∼2.5 ± 1.0 μm (by FIB measurements, recorded using a REM-FEI Helios NanoLab 650). The electrodes were heated at 250 °C for 20 min and then cooled to 80 °C before being immersed to a MeCN (0.3 mM) solution of P1 (Dyenamo AB) or [Ru(bpy)2(5)] (EtOH, 0.1 mM) for 20 h. The electrodes were removed from the solutions and were washed with EtOH and dried under a stream of N2. The fracture surfaces of electrodes screen printed with one or two layers of NiO were also examined by field-emission scanning electron microscopy (FE-SEM) using a Hitachi S-4800 equipped with a cold field-emission electron source.

Commercial counter electrodes (Solaronix Test Cell Platinum Electrodes) were washed with EtOH and then heated on a hot plate at 450 °C for 30 min to remove volatile organic impurities.

The DSCs were assembled by combining dye-covered FTO/NiO electrodes and Pt counter-electrodes using thermoplast hot-melt sealing foil (Solaronix, Meltonix 1170-25 Series, 60 μm thick) by heating while pressing them together. The electrolyte comprised I2 (0.1 M), LiI (1 M) in MeCN. The electrolyte was introduced into the cell by vacuum backfilling. The hole on the counter electrode was finally sealed using the hot-melt sealing foil and a cover glass.

Device performance measurements

The solar cell measurements were made using duplicate cells; the active area was 0.237 cm2. The DSCs were sun soaked from behind for 20 min at 1 sun irradiation and then measured immediately to obtain the current density–voltage (JV) measurements with a LOT Quantum Design LS0811 instrument (100 mW cm−2 = 1 sun at AM1.5 and 23 °C). The instrument software was set to a p-type measurement mode (inverted configuration), with 360 ms as the settling time, and with a voltage step of 5.3 mV. The voltage was scanned from negative to positive values.

Results and discussion

Synthesis and characterization of the [Ru(bpy)2(C⁁N)]+ building block

Sensitizers for n-type DSCs incorporate a wide range of anchoring units.25 In order to establish a similar palette for p-type [Ru(bpy)2(C⁁N)]+ dyes, we developed a modular strategy for synthesis based on Suzuki–Miyaura cross coupling and Miyaura borylation. The approach described below has the advantage that it can also easily be adapted to tune the electronic properties of the dye by replacing bpy by functionalized-bpy ligands in the cis-[Ru(bpy)2Cl2] precursor.

Scheme 2 shows the preparation of two HC⁁N ligands, H1 and H2, which, once incorporated into a {Ru(N⁁N)2(C⁁N)}-core, are capable of undergoing a Suzuki–Miyaura cross coupling. To increase the selectivity of the first step in Scheme 2, 2-bromo-4-chloropyridine was used instead of 2,4-dibromopyridine. A Suzuki reaction between 2-bromo-4-chloropyridine and phenylboronic acid gave H1 in 64% yield. Compound H1 has previously been prepared by a Grignard reaction with 4-chloropyridine-N-oxide in 74% yield,17 but we find the Suzuki coupling more convenient. To widen the scope of our modular approach to {Ru(N⁁N)2(C⁁N)}-functionalization, we synthesized H2 using a Miyaura borylation (Scheme 2). The reaction was monitored by 1H NMR spectroscopy and after ∼5 hours, 40% conversion had been achieved. Attempts to increase the conversion using longer reaction times and higher ratios of catalyst, base or bis(pinacolato)diboron failed. The mixture of product and reagents were subjected to a Kugelrohr distillation and the residue was chromatographed. However, pure H2 could not be obtained. Further development of the synthetic strategy therefore utilized ligand H1.

image file: c6tc03874c-s2.tif

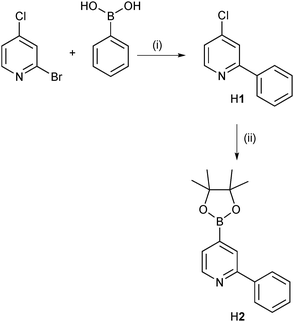

Scheme 2 Syntheses of intermediates H1 and H2. Conditions: (i) Na2CO3, [Pd(PPh3)2Cl2], THF/H2O, 60 °C, 3 h; (ii) bis(pinacolato)diboron, KOAc, [Pd(dppf)Cl2], dioxane, reflux, 72 h.

The reaction of H1 with cis-[Ru(bpy)2Cl2] in the presence of AgPF6 (Scheme 3) following a procedure for [Ru(bpy)2(ppy)]+ previously reported by one of us26 gave [Ru(bpy)2(1)][PF6] in 65.2% yield. The LC-ESI mass spectrum of the product exhibits a peak envelope at m/z 602.1 arising from the [M − PF6]+ ion. Fig. 2 and Fig. S1 (ESI) show the solution 1H and 13C NMR spectra, respectively, which were assigned using 2D methods (COSY, NOESY, HMQC and HMBC). The presence of the C⁁N chelate leads to inequivalent bpy ligands, as indicated by the ring labels in Scheme 3. A starting point for 1H and 13C NMR signal assignment is the lowest frequency signal at δ 6.46 ppm in the 1H NMR spectrum (Fig. 2) which is characteristic of proton HF6 of the cyclometallated phenyl ring.16

image file: c6tc03874c-s3.tif

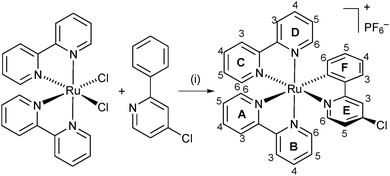

Scheme 3 Cyclometallation reaction to form [Ru(bpy)2(1)][PF6]. Conditions: (i) AgPF6, CH2Cl2, reflux, 19 h. Ring and atom labels used for NMR assignments are shown.

image file: c6tc03874c-f2.tif

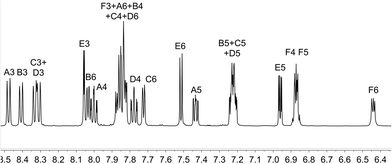

Fig. 2 The 500 MHz 1H NMR spectrum of [Ru(bpy)2(1)][PF6] (in CD3CN). Atom labels are given in Scheme 3.

We recently commented on the paucity of structural data for [Ru(N⁁N)2(C⁁N)]+ complexes.16 An updated search of the Cambridge Structural Database (CSD v. 5.37 with one update) using Conquest v. 1.18 revealed only 25 hits for discrete complexes containing a {Ru(bpy)2(ppy)}-core (Hppy = 2-phenylpyridine; the bpy core-unit includes complexes with phen ligands). Single crystals of [Ru(bpy)2(1)][PF6] were grown by vapour diffusion of Et2O into an MeCN solution of the complex. The compound crystallizes in the monoclinic space group P21/n with both the Λ- and Δ-[Ru(bpy)2(1)]+ cations present in the unit cell. Fig. 3 shows the structure of the Λ-[Ru(bpy)2(1)]+ cation and selected bond distances and angles are given in the figure caption. The structure exhibits no surprises, being similar to that of the analogous complex in which the chloro substituent in coordinated [1] is replaced by a methyl acetate group.16 As in the latter structure, efficient face-to-face and edge-to-face π-contacts between enantiomers is observed (Fig. 4). For the face-to-face interaction, the distance between the ring planes = 3.31 Å, and centroid⋯centroid separation = 3.64 Å; for the edge-to-face interaction, C–H⋯centroid distance = 2.48 Å.

image file: c6tc03874c-f3.tif

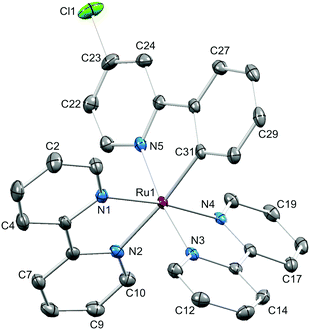

Fig. 3 Structure of the Λ-[Ru(bpy)2(1)]+ cation in [Ru(bpy)2(1)][PF6] with ellipsoids plotted at 40% probability level and H atoms omitted for clarity. Selected bond parameters: Ru1–N1 = 2.0591(17), Ru1–N2 = 2.1378(19), Ru1–N3 = 2.0360(18), Ru1–N4 = 2.0400(18), Ru1–N5 = 2.0742(18), Ru1–C31 = 2.038(2), C23–Cl1 = 1.735(2) Å; N1–Ru1–N2 = 77.67(7), N3–Ru1–N4 = 79.11(7), N5–Ru1–C31 = 79.76(8), N1–Ru1–N4 = 172.76(7), N3–Ru1–N5 = 171.53(7), N2–Ru1–C31 = 174.17(8)°.

image file: c6tc03874c-f4.tif

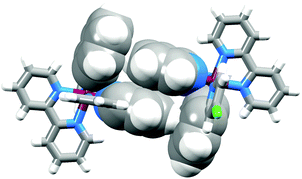

Fig. 4 Face-to-face and edge-to-face contacts between Λ- and Δ-[Ru(bpy)2(1)]+ cations in [Ru(bpy)2(1)][PF6].

Synthesis and characterization of anchoring unit building blocks

We decided to target [Ru(bpy)2(C⁁N)]+ dyes with CO2H or P(O)(OH)2 anchoring groups, and therefore required anchoring modules capable of undergoing Suzuki–Miyaura cross coupling with [Ru(bpy)2(1)]+. For the carboxylic acid anchor, a suitable reagent is a commercially available 4-carboxyphenylboronic acid. The phosphonic acid anchoring module was synthesized by the route shown in Scheme 4. Diethyl 4-bromobenzenephosphonate (Scheme 4) has previously been prepared in 22% from 1,4-dibromobenzene by Grignard reaction.18 We were able to isolate the phosphonate ester in 73% yield by a palladium-catalysed phosphonation of 1-bromo-4-iodobenzene (selective at the iodo-functionality) using a stoichiometric amount of HPO(OEt)2. Further functionalization by Miyaura borylation using bis(pinacolato)diboron yielded the diester 3 (Scheme 4); this was used in the next step without purification. Compound 3 was recently reported as part of a wide-ranging study of regioselective aromatic C–H borylations,19 and the 1H NMR spectroscopic data agreed with those published. In the 31P{1H} NMR spectrum, 3 is characterized by a signal at δ +18.6 ppm, and in the 11B NMR spectrum by a resonance at δ +22.4 ppm. Deprotection of 3 to give acid H24 was achieved with Me3SiBr. Whereas the diester 3 is readily soluble in CH2Cl2 and CHCl3, acid H24 is soluble only in solvents such as DMSO; in DMSO-d6, H24 exhibits signals in the 31P{1H} and 11B NMR spectra at δ +12.2 and +28.4 ppm, respectively. In the LC-ESI mass spectrum of H24, a peak at m/z = 285.1 was assigned to [M + H]+.
image file: c6tc03874c-s4.tif

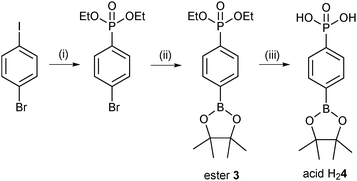

Scheme 4 Synthesis of the phosphonic acid building block 4. Conditions: (i) HPO(OEt)2, Cs2CO3, [Pd(PPh3)4], THF, reflux, 2.5 h; (ii) bis(pinacolato)diboron, KOAc, [Pd(dppf)Cl2], THF, microwave reactor, 90 °C, 1 h; (iii) Me3SiBr, CH2Cl2, room temperature, 19 h.

Conversion of [Ru(bpy)2(1)]+ to potential sensitizers

The final step of the synthesis of cyclometallated ruthenium complexes functionalized with anchoring groups is a cross coupling of [Ru(bpy)2(1)]+ with 4-carboxyphenylboronic acid or H24 (Scheme 5). Table 1 summarizes the reaction conditions investigated during optimization; reactions were monitored using LC-ESI-MS. Initial attempts to couple [Ru(bpy)2(1)]+ with 4-carboxyphenylboronic acid using typical Suzuki coupling conditions with catalytic amounts of Pd(OAc)2 did not give the desired product. Although [Ru(bpy)2(1)]+ was consumed, LC-ESI-MS confirmed that the products were [Ru(bpy)2(ppy)]+ (resulting from palladium-catalysed dehalogenation) and the homocoupled product [(bpy)2Ru(μ-dppy)Ru(bpy)2]+ (dppy = 2,2′-diphenyl-4,4′-bipyridine). To overcome this problem, we turned to a catalyst containing the sterically demanding SPhos ligand which has been shown by O'Connor27 to be effective for the Suzuki coupling of 4-carboxyphenylboronic acid with an aryl chloride. The second generation precatalyst SPhos Pd G2 does not require reducing agents for activation and is highly reactive. Under microwave conditions (Table 1), Suzuki–Miyaura coupling of [Ru(bpy)2(1)]+ with 4-carboxyphenylboronic acid using SPhos Pd G2 in EtOH solvent showed a 91% selectivity for the desired product and no homocoupling was observed. However, if similar conditions are used for the reaction between [Ru(bpy)2(1)]+ and H24, only 31% selectivity was achieved (Table 1). The choice of solvent is known to influence the dehalogenation reaction,28 and therefore EtOH was replaced by a 1[thin space (1/6-em)]:[thin space (1/6-em)]1 mixture of MeCN and H2O. This choice was made, in part, for solubility reasons. Under the conditions shown in Table 1, the Suzuki–Miyaura cross coupling of [Ru(bpy)2(1)]+ and 4-carboxyphenylboronic acid proceeded with both 100% conversion and selectivity. For the reaction with anchoring module H24, the highest selectivity achieved was 97%; adjustments to the temperature and time (Table 1) were required for optimization of selectivity.
image file: c6tc03874c-s5.tif

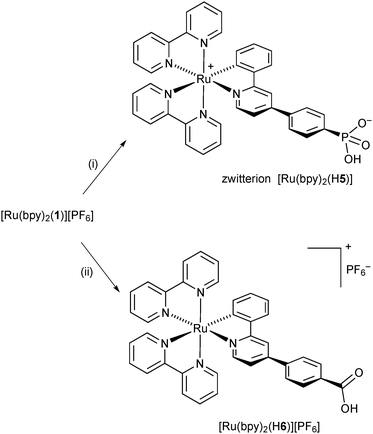

Scheme 5 Conversion of [Ru(bpy)2(1)][PF6] to [Ru(bpy)2(H5)] and [Ru(bpy)2(H6)][PF6]. Optimized conditions: (i) H24, K3PO4, SPhos Pd G2, MeCN/H2O; 70 °C, 5 h; (ii) 4-carboxyphenylboronic acid, K3PO4, SPhos Pd G2, MeCN/H2O; 70 °C, 5 h.
Table 1 Conditions and product selectivity for Suzuki–Miyaura cross coupling of [Ru(bpy)2(1)]+ with 4-carboxyphenylboronic acid or H24
Catalyst/precatalyst t/h Temp/°C Solvent Conversiona/% Selectivity C[thin space (1/6-em)]:[thin space (1/6-em)]Dehal[thin space (1/6-em)]:[thin space (1/6-em)]Ha,b
a 100% conversion corresponds to all [Ru(bpy)2(1)]+ consumed; values are calculated from LC-ESI-MS peak integration assuming that all measured complexes have an equal response factor in the ESI-MS. b C = coupled product [Ru(bpy)2(H5)] or [Ru(bpy)2(H6)][PF6]; Dehal = [Ru(bpy)2(ppy)][PF6]; H = homocoupled product [(bpy)2Ru(μ-dppy)Ru(bpy)2][PF6]2. c Reaction performed under microwave conditions.
Coupling with 4-carboxyphenylboronic acid
Pd(OAc)2 24 ∼22 THF/H2O (4[thin space (1/6-em)]:[thin space (1/6-em)]1 vol) 100 0[thin space (1/6-em)]:[thin space (1/6-em)]59[thin space (1/6-em)]:[thin space (1/6-em)]41
SPhos Pd G2 1 90 EtOHc 94 91[thin space (1/6-em)]:[thin space (1/6-em)]9[thin space (1/6-em)]:[thin space (1/6-em)]0
SPhos Pd G2 3.5 70 MeCN/H2O (1[thin space (1/6-em)]:[thin space (1/6-em)]1 vol) 100 100[thin space (1/6-em)]:[thin space (1/6-em)]0[thin space (1/6-em)]:[thin space (1/6-em)]0
Coupling with H24
SPhos Pd G2 0.5 80 EtOHc 75 31[thin space (1/6-em)]:[thin space (1/6-em)]69[thin space (1/6-em)]:[thin space (1/6-em)]0
SPhos Pd G2 1 90 MeCN/H2O (1[thin space (1/6-em)]:[thin space (1/6-em)]1 vol) 100 90[thin space (1/6-em)]:[thin space (1/6-em)]7[thin space (1/6-em)]:[thin space (1/6-em)]3
SPhos Pd G2 5 70 MeCN/H2O (1[thin space (1/6-em)]:[thin space (1/6-em)]1 vol) 100 97[thin space (1/6-em)]:[thin space (1/6-em)]3[thin space (1/6-em)]:[thin space (1/6-em)]0

The electrospray mass spectra of the products revealed peak envelopes at m/z 724.2 and 688.1, respectively. However, on their own, these results are ambiguous, because they are consistent with either [M + H]+ for M being a zwitterion [Ru(bpy)2(H5)] or [Ru(bpy)2(6)], or [M − PF6] for salts [Ru(bpy)2(H25)][PF6] and [Ru(bpy)2(H6)][PF6]. Elemental analysis for the phosphonic acid-functionalized compound was consistent with the zwitterion shown in Scheme 5, and this was further supported by the response of the 31P NMR spectrum to the addition of base or acid. Fig. 5 shows that the signal at δ +10.8 ppm that characterizes the isolated complex shifts to δ +15.2 ppm after TFA vapour has been blown over the mouth of the NMR tube. Addition of a little solid K2CO3 to the same NMR sample results in a shift back to lower frequency (δ +10.6 ppm with a shoulder at δ +10.7 ppm). A resonance at approximately the same frequency results if K2CO3 is added to a solution of the isolated complex. These observations indicate that the complex is the zwitterion [Ru(bpy)2(H5)]. In contrast, the second product is formulated as [Ru(bpy)2(H6)][PF6]; the 31P NMR spectrum showed a septet at δ −144.7 ppm (JPF = 727 Hz) characteristic of the hexafluoridophosphate anion. The difference in protonation states in the isolated ruthenium complexes is consistent with the pKa values of structurally related pairs of carboxylic and phosphonic acids, e.g. for PhCO2H, pKa = 4.20 and for PhPO3H2, pKa(1) = 1.86.29

image file: c6tc03874c-f5.tif

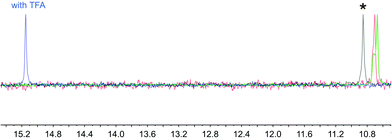

Fig. 5 162 MHz 31P{1H} NMR spectrum of [Ru(bpy)2(H5)] (*) in CD3OD, and spectra taken after the addition of (a) CF3CO2H (TFA, blue), (b) K2CO3 (green) or (c) CF3CO2H followed by K2CO3 (red).

The complexes [Ru(bpy)2(H5)] and [Ru(bpy)2(H6)][PF6] were characterized by 1H and 13C NMR spectroscopies, the spectra being assigned using COSY, HMQC and HMBC methods. The 1H NMR spectra are shown in Fig. S2 (ESI). We noted that when an acetone-d6 solution of [Ru(bpy)2(H6)][PF6] was left to stand for several days, the 1H NMR signals for protons HG2 and HG3 (the ring to which the CO2H group is attached) broadened and shifted (Fig. S3, ESI); some precipitate was also observed in the NMR tube. We attribute this to a change in protonation state, but have not investigated the system in detail.

The solution absorption spectra of [Ru(bpy)2(H5)] and [Ru(bpy)2(H6)][PF6] are similar, and the features reflect those of [Ru(bpy)2(C⁁N)]+ complexes previously described.7,11,16,30,31 The spectrum of [Ru(bpy)2(H5)] is shown in Fig. 6. The intense, high-energy bands (between ∼240 and 320 nm) are assigned to ligand-centred π* ← π transitions, while the broad, lower intensity absorptions around 350–430 nm and 430–620 nm are characteristic of [Ru(bpy)2(C⁁N)]+ cations and arise, respectively, from metal-to-C⁁N and metal-to-bpy MLCT transitions.7,11,31 The broad response of [Ru(bpy)2(H5)] is comparable to that of the organic dye P1 (Scheme 6 and Fig. 6) that is a standard sensitizer in p-type DSCs (see later).

image file: c6tc03874c-f6.tif

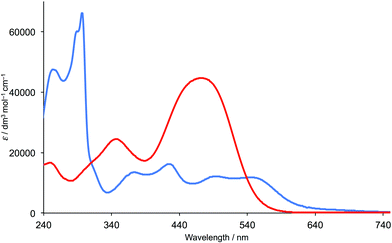

Fig. 6 The solution absorption spectra of [Ru(bpy)2(H5)] (MeOH, 1 × 10−5 mol dm−3, blue curve) and of the dye P1 (MeCN, 1 × 10−5 mol dm−3, red curve).

image file: c6tc03874c-s6.tif
Scheme 6 Structure of sensitizer P1.

The cyclometallated ruthenium(II) complexes are redox active and cyclic voltammetric data compared to the archetype compound [Ru(bpy)2(ppy)][PF6] are given in Table 2.

Table 2 Redox potentials for [Ru(bpy)2(H5)] (degassed DMSO solutions) and [Ru(bpy)2(H6)][PF6] compared to [Ru(bpy)2(ppy)][PF6]16 (both in degassed MeCN) with respect to Fc/Fc+; 0.1 M [nBu4N][PF6] as supporting electrolyte and a scan rate of 0.1 V s−1
Complex E ox1/2/V E red11/2/V E red21/2/V E red31/2/V ΔE1/2/V
[Ru(bpy)2(ppy)][PF6] +0.09 −1.96 −2.22 2.05
[Ru(bpy)2(H5)] +0.05 −1.96 −2.23 −2.83 2.01
[Ru(bpy)2(H6)][PF6] +0.07 −1.94 −2.21 −2.82 2.02

The modular approach to the synthesis of [Ru(bpy)2(H5)] and [Ru(bpy)2(H6)][PF6] is a versatile one that should be applicable for introducing other anchoring domains. [Ru(bpy)2(H5)] is more reliably isolated in an unambiguous protonation state than [Ru(bpy)2(H6)][PF6] (see above) and, therefore, we chose to focus on the use of [Ru(bpy)2(H5)] as a sensitizer in p-type DSCs in the present investigation.

DSC working-electrode fabrication

The fabrication of FTO/NiO photocathodes in p-type DSCs is a critical part of the device fabrication.32,33 Initially,34 we investigated doctor blading and screen-printing the FTO glass with different numbers of layers of NiO, combined with pre-treatment of the FTO glass with dip-coated or spin-coated [Ni(OAc)2] or [Ni(acac)2] to improve adhesion of the NiO paste.35,36 The surface morphology of the electrodes was investigated using SEM and FIB imaging (see Experimental section). Pretreating the FTO glass with [Ni(acac)2] followed by two screen-printed layers of NiO paste lead (after sintering involving a cycle between room temperature and 350 °C, see Experimental section) to a NiO layer thickness of ∼2.5 ± 1.0 μm (Fig. 7). This is typical of NiO photocathodes used in p-type DSC studies37,38 and is compatible with the limitation imposed by the diffusion length of a hole in the NiO semiconductor.38 A recent investigation using the standard P1 dye (Scheme 6)33 confirms that two-layers of screen-printed commercial (Dyenamo) NiO lead to better performing p-type DSCs than using one layer.
image file: c6tc03874c-f7.tif
Fig. 7 FIB images of an FTO/NiO electrode with [Ni(acac)2] pretreatment and two screen-printed layers of NiO sintered at 350 °C: (a) top surface, and (b) a gallium beam cut into the NiO with a platinum layer is deposited on top of the NiO surface. In (b), the glass and FTO coating are visible beneath the NiO.

The dye-functionalized photocathodes were prepared by immersing the FTO/NiO electrodes in an MeCN solution of P1 (Scheme 6) or an EtOH solution of [Ru(bpy)2(H5)]. The solid-state absorption spectra of electrodes with adsorbed dye are shown in Fig. 8. Each spectrum was corrected for the background spectrum of the blank FTO/NiO electrode. A comparison of Fig. 6 and 8 shows that the profiles of the absorption spectra are similar, although there is a red-shift on going from solution to solid; for P1, λmax = 468 nm in MeCN and ∼525 nm in the solid-state dye, and for [Ru(bpy)2(H5)], λmax = 492 and 544 nm in MeOH, compared to ∼500 and ∼560 nm in the solid sample.

image file: c6tc03874c-f8.tif

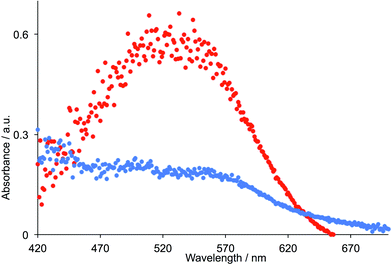

Fig. 8 Solid-state absorption spectra of FTO/NiO electrodes with adsorbed dyes P1 (red) and [Ru(bpy)2(H5)] (blue).

DSC performances

The p-type DSCs were assembled as described in the Experimental Section, and duplicate DSCs were made for each dye. Previous investigations of cyclometallated ruthenium(II) dyes have employed an electrolyte comprising I/I3/MeCN (with no additives),9–11,13 a composition regularly used for the standard dye P1. For DSC measurements, a settling time of 360 ms gave reproducible JV curves whether the voltage was scanned from negative to positive, or from positive to negative, potentials. Settling times of ≤200 ms led to JV curves that differed with the direction of the scan; a settling time of 360 ms was therefore adopted as standard for all measurements.

Before discussing the results, we draw attention to the fact that literature photoconversion efficiencies (η) of standard dye P1 in p-type DSCs show significant variation.33,39,40 Contributing factors include the method of NiO fabrication and layer thickness,32,33 and the electrolyte (MeCN/I2/LiI, MeCN/I2/LiI/TBP, or LiI/I2/propylene carbonate).41–46 The use of MeCN in place of propylene carbonate in the electrolyte is beneficial in terms of short-circuit current density (JSC). It is also important to note that for n-type DSCs, the use of different sun simulators (e.g. Solaronix vs. LOT) also leads to differing JSC values.47 In a bench-marking investigation,33 Gibson and coworkers included measurements of the performance of p-type DCSs with P1 with a variety of different fabrication methods. The study included electrodes with one screen-printed layer of Solaronix NiO paste and a sintering temperature of 350 °C, leading to values of JSC = 1.57 mA cm−2, open-circuit voltage (VOC) = 93 mV, fill-factor (ff) = 32%, and η = 0.047%. We have fabricated DSCs that are directly comparable to the latter except for the inclusion of the Ni(acac)2 pretreatment (see above) which we find essential for good adhesion of the NiO to the FTO glass. The performance data for P1 (Table 3, one-layer of NiO) are similar to those reported,33 validating the data presented below. We find an enhanced DSC performance for P1 is obtained by using two-layers of NiO (Table 3).

Table 3 Performance data for duplicate DSCs containing dyes [Ru(bpy)2(5)] or P1. Measurements were made on the day of sealing the DSCs
Dye (DSC number) Number of NiO layers J SC/mA cm−2 V OC/mV ff/% η/%
P1 (cell 1) 1 1.54 91 35 0.049
P1 (cell 2) 1 1.26 95 35 0.042
P1 (cell 1) 2 1.84 88 35 0.057
P1 (cell 2) 2 1.96 82 32 0.051
[Ru(bpy)2(H5)] (cell 1) 1 2.18 93 39 0.079
[Ru(bpy)2(H5)] (cell 2) 1 2.00 94 41 0.077
[Ru(bpy)2(H5)] (cell 1) 2 3.38 95 36 0.116
[Ru(bpy)2(H5)] (cell 2) 2 3.34 95 34 0.109

Table 3 also gives values of JSC, VOC, ff and η for DSCs sensitized with the cyclometallated dye [Ru(bpy)2(H5)] with electrodes made with one or two screen-printed layers of NiO. As for P1, better DSC performances are observed for two-layers of NiO. JV curves for the DSCs containing [Ru(bpy)2(H5)] adsorbed on two-layers of NiO are shown in Fig. 9. The low fill-factors of p-type DSCs are a known phenomenon.48 Pairs of DSCs (Table 3 and Fig. 9) give reproducible DSC parameters. Pleasingly, JSC values and η are significantly better for [Ru(bpy)2(H5)] than for P1, and both JSC and η are comparable with the best values (JSC = 3.43 mA cm−2 and η = 0.109% for the dye shown in Scheme 7)9 reported for cyclometallated ruthenium dyes9–11,13 or for two recently reported diacetylide ruthenium(II) donor–π–acceptor dyes (JSC = 1.50 and 2.25 mA cm−2, η = 0.038 and 0.079%).49 Values of VOC = 93 mV and ff = 33% for the dye in Scheme 7 compare favourably with the observed values of VOC and ff (Table 3) for [Ru(bpy)2(H5)]. Given that [Ru(bpy)2(H5)] is a model dye, its promising performance suggests that the phosphonic anchor is beneficial. Furthermore, while DFT calculations indicate that the anchoring unit is most beneficially attached to the cyclometallating ring which contributes significantly to the HOMO of a [Ru(N⁁N)2(C⁁N)]+ complex,11 [Ru(bpy)2(H5)] achieves a value of JSC = 3.38 mA cm−2 with the anchoring unit in the 4-position of the pyridine ring of the C⁁N ligand.

image file: c6tc03874c-f9.tif

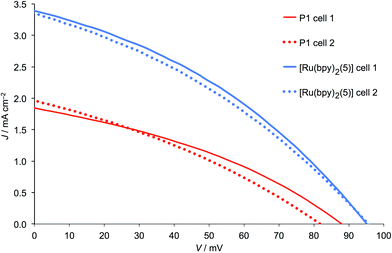

Fig. 9 JV curves for duplicate DSCs containing dyes P1 and [Ru(bpy)2(H5)].

image file: c6tc03874c-s7.tif

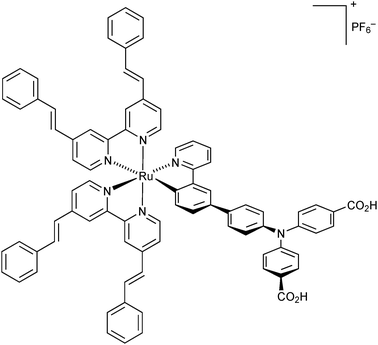

Scheme 7 Structure of a cyclometallated ruthenium dye that achieves JSC = 3.43 mA cm−2 and η = 0.104%.9


We have described a readily adaptable modular strategy for cyclometallated ruthenium(II) complexes [Ru(bpy)2(H6)][PF6] and [Ru(bpy)2(H5)] which possess a carboxylic or phosphonic acid group attached via a phenylene spacer to the 4-position of the pyridine ring in the cyclometalling ligand. The isolation of the zwitterion [Ru(bpy)2(H5)] versus the cationic [Ru(bpy)2(H6)]+ is consistent with the difference between the pKa values of RPO3H2 and RCO2H. The key intermediate in the synthetic pathway is the chloro-derivative [Ru(bpy)2(1)]+ which has been structurally characterized as the [PF6] salt.

[Ru(bpy)2(H5)] has been evaluated as a dye in p-type DSCs and its performance compared to that of the standard dye P1; DSC parameters for the latter were first validated against the benchmarking work of Gibson and coworkers.33 Duplicate DSCs containing [Ru(bpy)2(H5)] exhibit values of JSC = 3.34 and 3.38 mA cm−2 and η = 0.116 and 0.109% making this structurally simple dye comparable to the best-performing cyclometallated ruthenium(II) dye in p-type DSCs previously reported.11 [Ru(bpy)2(H5)] achieves values of VOC = 95 mV and ff = 34–36%. The performance parameters confirm the effectiveness of a phosphonic acid anchor in the dye and the attachment of the anchoring unit to the pyridine ring of the cyclometallating ligand. We are currently investigating the improvement of the performance of this and related ruthenium(II) dyes in p-type DSCs, and are striving to understand the factors that contribute to the surprisingly good performance of the structurally simple [Ru(bpy)2(H5)].


We thank the Swiss National Science Foundation (Grant number 200020_144500) and the University of Basel for financial support. Chantelle Ekanem and Agron Ilazi are acknowledged for their contributions to optimization of conditions for the preparation of FTO/NiO electrodes. We thank Professor Ernst Meyer for helpful discussions. FIB images were recorded in the Nano Imaging Lab (Swiss Nanoscience Institute, University of Basel) by Daniel Mathys.


  1. K. C. D. Robson, P. G. Bomben and C. P. Berlinguette, Dalton Trans., 2012, 41, 7814 RSC  , and references therein.
  2. P. G. Bomben, K. C. D. Robson, B. D. Koivisto and C. P. Berlinguette, Coord. Chem. Rev., 2012, 256, 1438 CrossRef CAS  , and references therein.
  3. A. Colombo, C. Dragonetti, A. Valore, C. Coluccini, N. Manfredi and A. Abbotto, Polyhedron, 2014, 82, 50 CrossRef CAS  , and references therein.
  4. T. Bessho, E. Yoneda, J.-H. Yum, M. Guglielmi, I. Tavernelli, H. Imai, U. Rothlisberger, Md. K. Nazeeruddin and M. Grätzel, J. Am. Chem. Soc., 2009, 131, 5930 CrossRef CAS PubMed .
  5. T. Funaki, H. Otsuka, N. Onozawa-Komatsuzaki, K. Kasuga, K. Sayama and H. Sugihara, J. Mater. Chem. A, 2014, 2, 15945 CAS .
  6. See for example: J.-Y. Li, C. Lee, C.-Y. Chen, W.-L. Lee, R. Ma and C.-G. Wu, Inorg. Chem., 2015, 54, 10483 CrossRef CAS PubMed ; J.-F. Huang, J.-M. Liu, P.-Y. Su, Y.-F. Chen, Y. Shen, L.-M. Xiao, D.-B. Kuang and C.-Y. Su, Electrochim. Acta, 2015, 174, 494 CrossRef .
  7. P. G. Bomben, K. C. D. Robson, P. A. Sedach and C. P. Berlinguette, Inorg. Chem., 2009, 48, 9631 CrossRef CAS PubMed .
  8. J. He, H. Lindström, A. Hagfeldt and S.-E. Lindquist, Sol. Energy Mater. Sol. Cells, 2000, 62, 265 CrossRef CAS .
  9. M. He, Z. Ji, Z. Huang and Y. Wu, J. Phys. Chem. C, 2014, 118, 16518 CAS .
  10. Z. Ji, G. Natu and Y. Wu, ACS Appl. Mater. Interfaces, 2013, 5, 8641 CAS .
  11. Z. Ji, G. Natu, Z. Huang, O. Kokhan, X. Zhang and Y. Wu, J. Phys. Chem. C, 2012, 116, 16854 CAS .
  12. Z. Ji and Y. Wu, J. Phys. Chem. C, 2013, 117, 18315 CAS .
  13. C. J. Wood, K. C. D. Robson, P. I. P. Elliott, C. P. Berlinguette and E. A. Gibson, RSC Adv., 2014, 4, 5782 RSC .
  14. Y. Pellegrin, L. Le Pleux, E. Blart, A. Renaud, B. Chavillon, N. Szuwarski, M. Boujtita, L. Cario, S. Jobic, D. Jacquemin and F. Odobel, J. Photochem. Photobiol., A, 2011, 219, 235 CrossRef CAS .
  15. M. Braumüller, M. Schulz, M. Staniszewska, D. Sorsche, M. Wunderlin, J. Popp, J. Guthmuller, B. Dietzek and S. Rau, Dalton Trans., 2016, 45, 9216 RSC .
  16. C. D. Ertl, D. P. Ris, S. C. Meier, E. C. Constable, C. E. Housecroft, M. Neuburger and J. A. Zampese, Dalton Trans., 2015, 44, 1557 RSC .
  17. H. Andersson, F. Almqvist and R. Olsson, Org. Lett., 2007, 9, 1335 CrossRef CAS PubMed .
  18. C. Edder and J. M. J. Fréchet, Org. Lett., 2003, 5, 1879 CrossRef CAS PubMed .
  19. Y. Kuninobu, H. Ida, M. Nishi and M. Kanai, Nat. Chem., 2015, 7, 712 CrossRef CAS PubMed .
  20. Bruker Analytical X-ray Systems, Inc., 2006, APEX2, version 2 User Manual, M86-E01078, Madison, WI.
  21. L. Palatinus and G. Chapuis, J. Appl. Crystallogr., 2007, 40, 786 CrossRef CAS .
  22. P. W. Betteridge, J. R. Carruthers, R. I. Cooper, K. Prout and D. J. Watkin, J. Appl. Crystallogr., 2003, 36, 1487 CrossRef CAS .
  23. I. J. Bruno, J. C. Cole, P. R. Edgington, M. K. Kessler, C. F. Macrae, P. McCabe, J. Pearson and R. Taylor, Acta Crystallogr., Sect. B: Struct. Sci., 2002, 58, 389 CrossRef .
  24. C. F. Macrae, I. J. Bruno, J. A. Chisholm, P. R. Edgington, P. McCabe, E. Pidcock, L. Rodriguez-Monge, R. Taylor, J. van de Streek and P. A. Wood, J. Appl. Crystallogr., 2008, 41, 466 CrossRef CAS .
  25. L. Zhang and J. M. Cole, ACS Appl. Mater. Interfaces, 2015, 7, 3427 CAS .
  26. E. C. Constable and J. M. Holmes, J. Organomet. Chem., 1986, 301, 203 CrossRef CAS .
  27. W. Runguphan and S. E. O'Connor, Org. Lett., 2013, 15, 2850 CrossRef CAS PubMed .
  28. See for example: J. Moon and S. Lee, J. Organomet. Chem., 2009, 694, 473 CrossRef CAS .
  29. Metal Phosphonate Chemistry: From Synthesis to Applications, ed. A. Clearfield and K. Demadis, RSC Publishing, 2011, ch. 5, p. 166 Search PubMed .
  30. P. Reveco, W. R. Cherry, J. Medley, A. Garber, R. J. Gale and J. Selbin, Inorg. Chem., 1986, 25, 1842 CrossRef CAS .
  31. M. L. Muro-Small, J. E. Yarnell, C. E. McCusker and F. N. Castellano, Eur. J. Inorg. Chem., 2012, 4004 CrossRef CAS .
  32. D. Dini, Y. Halpin, J. G. Vos and E. A. Gibson, Coord. Chem. Rev., 2015, 304–305, 179 CrossRef CAS .
  33. C. J. Wood, G. H. Summers, C. A. Clark, N. Kaeffer, M. Braeutigam, L. R. Carbone, L. D'Amario, K. Fan, Y. Farré, S. Narbey, F. Oswald, L. A. Stevens, C. D. J. Parmenter, M. W. Fay, A. La Torre, C. E. Snape, B. Dietzek, D. Dini, L. Hammarström, Y. Pellegrin, F. Odobel, L. Sun, V. Artero and E. A. Gibson, Phys. Chem. Chem. Phys., 2016, 18, 10727 RSC .
  34. Unpublished results: T. Kosmalski, Master Thesis, University of Basel, 2015.
  35. X. L. Zhang, F. Huang, A. Nattestad, K. Wang, D. Fu, A. Mishra, P. Bäuerle, U. Bach and Y.-B. Cheng, Chem. Commun., 2011, 47, 4808 RSC .
  36. I. R. Perera, T. Daeneke, S. Makuta, Z. Yu, Y. Tachibana, A. Mishra, P. Bäuerle, C. A. Ohlin, U. Bac and L. Spiccia, Angew. Chem., Int. Ed., 2015, 54, 3758 CrossRef CAS PubMed .
  37. See for example: S. Powar, T. Daeneke, M. T. Ma, D. Fu, N. W. Duffy, G. Götz, M. Weidelener, A. Mishra, P. Bäuerle, L. Spiccia and U. Bach, Angew. Chem., Int. Ed., 2013, 52, 602 CrossRef CAS PubMed ; S. Sheehan, G. Naponiello, F. Odobel, D. P. Dowling, A. Di Carlo and D. Dini, J. Solid State Electrochem., 2015, 19, 975 CrossRef ; V. Novelli, M. Awais, D. P. Dowling and D. Dini, J. Anal. Chem., 2015, 6, 176 Search PubMed .
  38. F. Odobel and Y. Pellegrin, J. Phys. Chem. Lett., 2013, 4, 2551 CrossRef CAS .
  39. F. Odobel, Y. Pellegrin, F. B. Anne and D. Jacquemin in High-Efficiency Solar Cells: Physics, Materials, and Devices, ed. X. Wang and Z. M. Wang, Springer, Switzerland, 2014, ch. 8 Search PubMed .
  40. S. Karamshuk, S. Caramori, N. Manfredi, M. Salamone, R. Ruffo, S. Carli, C. A. Bignozzi and A. Abbotto, Energies, 2016, 9, 33 CrossRef .
  41. P. Qin, H. Zhu, T. Edvinsson, G. Boschloo, A. Hagfeldt and L. Sun, J. Am. Chem. Soc., 2008, 130, 8570 CrossRef CAS PubMed .
  42. P. Qin, M. Linder, T. Brinck, G. Boschloo, A. Hagfeldt and L. Sun, Adv. Mater., 2009, 21, 2993 CrossRef CAS .
  43. L. Li, E. A. Gibson, P. Qin, G. Boschloo, M. Gorlov, A. Hagfeldt and L. Sun, Adv. Mater., 2010, 22, 1795 Search PubMed .
  44. L. Zhu, H. Yang, C. Zhong and C. M. Li, Chem. – Asian J., 2012, 7, 2791 CrossRef CAS PubMed .
  45. P. Qin, J. Wiberg, E. A. Gibson, M. Linder, L. Li, T. Brinck, A. Hagfeldt, B. Albinsson and L. Sun, J. Phys. Chem. C, 2010, 114, 4738 CAS .
  46. Y.-S. Yen, W.-T. Chen, C.-Y. Hsu, H.-H. Chou, J. T. Lin and M.-C. P. Yeh, Org. Lett., 2011, 13, 4930 CrossRef CAS PubMed .
  47. F. J. Malzner, S. Y. Brauchli, E. Schönhofer, E. C. Constable and C. E. Housecroft, Polyhedron, 2014, 82, 116 CrossRef CAS .
  48. Z. Huang, G. Natu, Z. Ji, M. He, M. Yu and Y. Wu, J. Phys. Chem. C, 2012, 116, 26239 CAS .
  49. S. Lyu, Y. Farré, L. Ducasse, Y. Pellegrin, T. Toupance, C. Olivier and F. Odobel, RSC Adv., 2016, 6, 19928 RSC .


Electronic supplementary information (ESI) available: Fig. S1–S3: additional NMR spectra. CCDC 1465171. For ESI and crystallographic data in CIF or other electronic format see DOI: 10.1039/c6tc03874c
